In modern piping systems, managing the transition between pipes of different diameters is essential for maintaining flow efficiency, preventing damage, and ensuring system longevity. One of the most effective components for this purpose is the stainless steel tube reducer. This article explores why stainless steel tube reducers are indispensable in piping systems, their types, benefits, applications, installation tips, and answers to frequently asked questions.
A stainless steel tube reducer is a pipe fitting designed to connect two pipes or tubes of different diameters, facilitating a smooth transition in size. These reducers are typically cone-shaped and are available in two main types: concentric and eccentric.

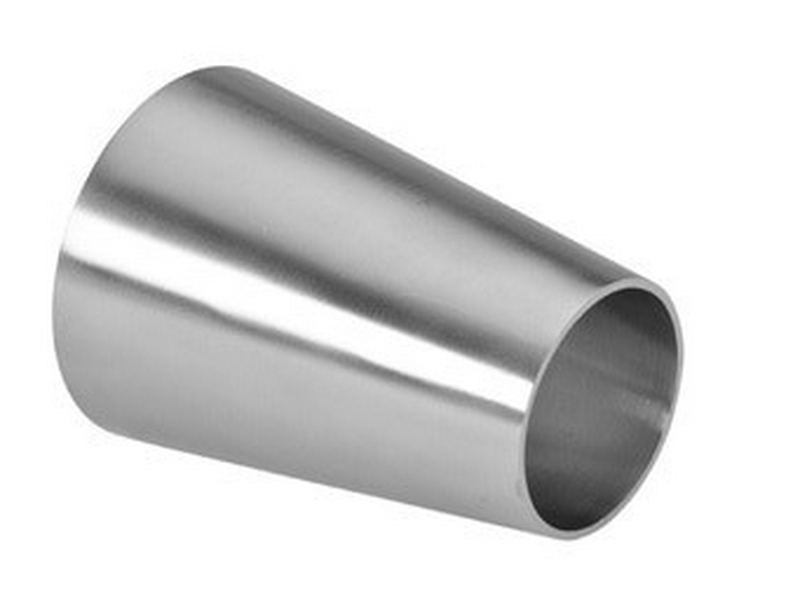

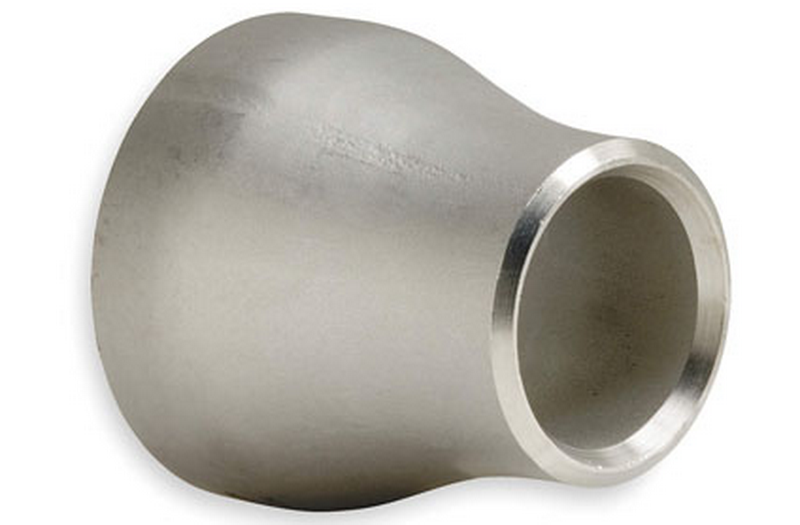

- Concentric Reducer: This reducer has a symmetrical, cone-shaped design where the centerlines of the larger and smaller pipe ends are aligned. It is ideal for vertical piping systems or applications where maintaining a consistent flow velocity is critical.
- Eccentric Reducer: This reducer has an offset centerline, meaning one side is flat. It is commonly used in horizontal piping to maintain a consistent fluid level and prevent air pockets or sediment accumulation[1][9][10].
| Type | Description | Typical Use Case |
|---|---|---|
| Concentric Reducer | Symmetrical, aligned centerlines, cone-shaped | Vertical pipelines, hydraulic systems, HVAC |
| Eccentric Reducer | Offset centerline, flat on one side | Horizontal pipelines, pump suction lines, drainage |
Stainless steel alloys, such as 304, 316, and duplex grades, contain chromium that forms a passive oxide layer, protecting the reducer from rust and corrosion. This makes stainless steel tube reducers suitable for harsh environments involving chemicals, humidity, saltwater, and acidic fluids[2][9][13].
Stainless steel reducers withstand high pressure and temperature conditions without deforming or failing, making them ideal for industrial applications like oil and gas, chemical processing, and energy production[2][10][13].
The smooth, polished surface of stainless steel tube reducers prevents bacterial growth and is easy to clean, which is essential in food processing, pharmaceuticals, and hospitals[2][3].
Stainless steel reducers can be fabricated to custom sizes and shapes, including seamless or welded versions, to fit specific piping requirements. They are available in various grades and standards to meet diverse industrial needs[1][14].
Besides functionality, stainless steel reducers offer a polished, sleek appearance suitable for architectural and decorative piping applications[2].
- Chemical and Petrochemical Plants: Handling corrosive fluids and high-pressure pipelines.
- Oil and Gas Industry: Connecting pipes in refineries and distribution systems.
- Food and Beverage Processing: Maintaining hygienic conditions with easy-to-clean fittings.
- Water Treatment Plants: Durable and corrosion-resistant for clean water supply.
- Marine and Shipbuilding: Resistant to saltwater corrosion.
- Pharmaceuticals and Hospitals: Ensuring sterile and hygienic piping.
Stainless steel tube reducers are typically manufactured using methods such as:
- Outer Die Method: Pressing a pipe end into a smaller diameter using an outer die, suitable for small to medium sizes.
- Plate Rolling and Welding: For larger reducers, stainless steel plates are rolled into cone shapes and welded.
- Deep Drawing: Used for caps and some reducer types.
- Heat Treatment and Annealing: To improve workability and metallurgical properties[5].
- Preparation: Clean and deburr pipe ends before installation to ensure a tight seal.
- Alignment: Properly align reducers with connecting pipes to avoid stress and leaks.
- Welding: Use appropriate welding techniques for buttweld reducers to maintain corrosion resistance.
- Inspection: Regularly inspect reducers for signs of wear or corrosion.
- Maintenance: Clean hygienic reducers frequently in food and pharmaceutical applications.
To better understand stainless steel tube reducers, here are some helpful visual aids and videos:
- Manufacturing Process Video:
A detailed guide on the manufacturing of pipe reducers, caps, and stub ends.
- Steel Tube Stretch Reducing Mill Video:
Shows how stainless steel tubes are heat-formed and stretched for enhanced properties.
Using a stainless steel tube reducer in your piping system offers numerous advantages, including excellent corrosion resistance, strength, durability, and hygienic properties. Whether you need to connect pipes of different diameters in industrial, commercial, or sanitary applications, stainless steel reducers provide a reliable and efficient solution. Their versatile designs-concentric and eccentric-allow for optimal flow management depending on the piping orientation and application. Supported by robust manufacturing processes and ease of installation, stainless steel tube reducers enhance the longevity and performance of piping systems across various industries.
A concentric reducer has aligned centerlines and a symmetrical shape, ideal for vertical piping and maintaining consistent flow velocity. An eccentric reducer has an offset centerline with a flat side, used in horizontal pipes to prevent air pockets and sediment accumulation[1][9][10].
Common grades include 304 for general corrosion resistance, 316 for enhanced resistance in harsh environments (like saltwater), and duplex stainless steel for higher strength and corrosion resistance[2][13].
Yes, stainless steel reducers, especially those polished and descaled, are widely used in food, beverage, and pharmaceutical industries due to their hygienic properties and ease of cleaning[2][3].
They provide a smooth transition between different pipe sizes, reducing turbulence, pressure loss, and potential flow disruptions, which enhances overall system performance[8][10].
Yes, stainless steel reducers are easy to fabricate, weld, and install. Proper installation ensures long service life with minimal maintenance, especially when following recommended alignment and cleaning procedures[2][8].
