Stainless steel coiled tubing is an essential material in many industrial sectors, celebrated for its unique combination of strength, flexibility, and corrosion resistance. From petrochemical and oil & gas operations to food processing, automotive, and medical applications, stainless steel coiled tubing plays a critical role in enabling safe, efficient transport of fluids and gases.
In this comprehensive guide, we will explore the step-by-step process of manufacturing stainless steel coiled tubing, incorporating visual explanations, process descriptions, and industry best practices. By the end, you will have a deep understanding of not just how this innovative product is made, but why it's so important across the global supply chain.

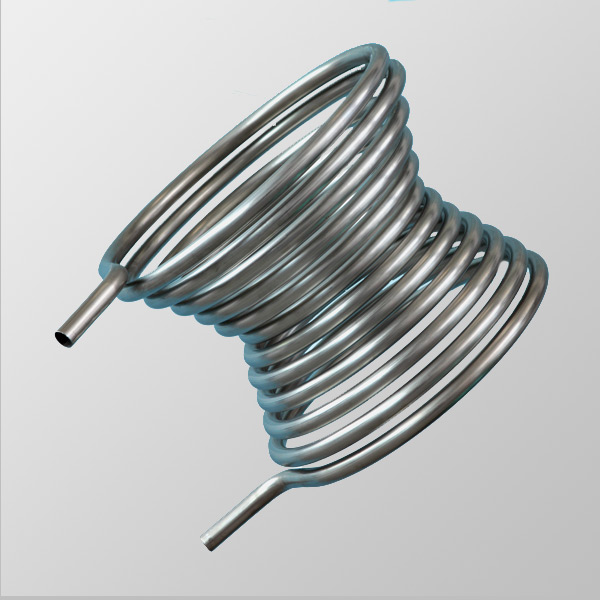

Stainless steel coiled tubing refers to long, continuous lengths of seamless or welded tubing formed from stainless steel, wound into coils for easier handling, transport, and usage. Its ability to be manufactured in seamless form with highly precise wall thickness and concentricity makes it a preferred option for high-pressure, high-purity, and critical flow applications.
Its key features include:
- High resistance to corrosion and chemicals.
- The ability to withstand extreme pressures and temperatures.
- Flexible installation—perfect for use in environments with limited space or where long, continuous runs are needed.
- Availability in various grades, typically 304/304L, 316/316L, and duplex stainless steels.
Coiled tubing provides numerous functional advantages that straight tubing cannot, especially in demanding industries that require reliability and efficiency. Its seamless design minimizes the risk of leakage, while long, uninterrupted lengths make for quicker and more secure installations.
The versatility and robust properties of stainless steel coiled tubing lend it to a wide range of industrial applications:
- Oil & Gas: For hydraulic control lines, chemical injection, subsea safety valves, and well intervention services.
- Chemical Processing: Used in instrumentation, heat tracing, process control, and transfer lines for corrosive fluids.
- Automotive: Essential for advanced fuel injection systems, brake lines, and hydraulic circuits.
- Aerospace: Applied to hydraulic and fuel distribution systems demanding high reliability under extreme conditions.
- Food & Beverage and Medical: Perfect for fluid transfer and heat exchange, thanks to its sanitary and corrosion-resistant properties.
- Power Generation: Used for steam and water lines in nuclear and thermal power plants for its safety and longevity.
Creating high-quality stainless steel coiled tubing is a multi-stage operation. Each stage requires strict process controls and technical expertise to meet stringent dimensional and performance requirements.
The journey begins with carefully selected, high-grade stainless steel, typically purchased in cylindrical billet form. The most common grades are 304/304L and 316/316L, though duplex, super duplex, and other alloys may be chosen to meet specific corrosion resistance or mechanical requirements. This step is crucial, as impurities or compositional inconsistencies at this stage could compromise the performance of the finished coiled tubing.
Raw steel billets are produced via melting and alloying in a high-capacity electric arc furnace. Precision is paramount here, as elements like chromium, nickel, molybdenum, and sometimes nitrogen are added to achieve exact required specifications. After the batch has been thoroughly melted and alloyed, the molten stainless steel is cast into ingots, blooms, or continuous cast billets, which serve as feedstock for tube forming.
The steelmaking process is closely monitored to ensure the precise chemical makeup and uniform distribution of alloying elements, enabling the finished tubing to meet international standards for strength, toughness, and corrosion resistance.
Next, the solid billets are preheated and pierced to create a hollow tube, initiating the transformation from block to tubular form. The tube is extruded at high temperature, reduced in cross-section, and elongated, aligning its grains and refining its internal structure. This primary tube, called a "mother tube," is then ready for further reduction and finishing.
Hot extrusion imparts desirable mechanical properties while shaping the tube. The initial extrusion produces a thick-walled tube; more precise wall thickness and diameters are achieved in subsequent cold working stages.
Once cool, the hot-extruded tube undergoes cold pilgering—a specialized longitudinal rolling process that incrementally reduces both the outer diameter and wall thickness. The tube passes back and forth through grooved dies mounted on a reciprocating mill. This increases precision, work hardens the steel, and imparts a smooth finish.
For certain applications where extreme dimensional accuracy is needed, a cold drawing process may follow. Lubricants are employed to protect surface quality and minimize frictional heat during reduction, which are later removed in downstream cleaning.
Cold reduction processes leave the steel tube hard and brittle. Therefore, annealing—a controlled heat treatment—is required to restore ductility, eliminate stresses, and refine the grain size. Tubing is typically annealed in a continuous bright annealing furnace, under a controlled atmosphere to maintain surface quality.
Subsequent cleaning stages remove any oxide scale, lubricant residues, and surface contaminants, using pickling baths or mechanical cleaning methods. This ensures a smooth, contaminant-free internal and external surface ready for coiling and final testing.
After annealing and cleaning, the refined tubing is carefully wound into coils. Sophisticated coiling machinery is used to ensure that the tubing maintains its roundness and internal diameter throughout the process. The coiling step requires exact control, as excessive force or improper technique can result in kinks, flattening, or internal stress—defects that will compromise performance, especially in high-pressure applications.
Both seamless and welded tubing can be coiled. For welded variants, a strip of stainless steel is rolled and longitudinally welded before being wound into a coil; for seamless, the pre-formed and reduced tube is simply cold-coiled.
Quality control is embedded at every key step of stainless steel coiled tubing production. Common inspections include:
- Hydrostatic Testing: Pressurizing the tube with water to ensure the metal can endure expected working pressures and to detect any leaks or bursts.
- Non-Destructive Testing: Ultrasonic or eddy current probes are used to reveal hidden internal defects, such as inclusions, cracks, or voids.
- Dimensional Inspections: All tubing is checked for diameter, wall thickness, ovality, and straightness to meet close tolerances.
- Mechanical Property Testing: Tubing samples are tested for tensile, yield, elongation, and hardness characteristics to confirm compliance with required standards.
Full traceability is maintained for each coil, and defective sections are cut out or recycled to guarantee that only conforming tubing reaches the customer.
Finishing operations depend on the specific end-use application. Final operations may include:
- Surface Polishing: Mechanical or electrochemical processes for a smooth or mirror-like finish, especially important in sanitary and aesthetic applications.
- Marking and Identification: For traceability and quality control, coils are marked with heat numbers, grade, and specifications.
- Final Cutting: Tubing can be supplied in full-length coils or cut to customer-specified lengths.
- Protective Packaging: Coils are often packed on spools or wooden reels, with careful covering to avoid contamination and physical damage during transport.
Throughout manufacturing, each step—including melting, extrusion, pilgering, annealing, and coiling—is carefully orchestrated to create a high-performance product. The use of modern machinery, from electric arc furnaces to computer-controlled pilger mills and coiling equipment, ensures the production of tubing with tight tolerances and exceptional internal and external consistency.
Skilled technicians monitor parameters throughout, intervening when necessary to adjust process speeds, temperature, pressure, and lubricant application. Their expertise, supported by real-time monitoring and automation, is crucial to delivering the flawless performance expected from stainless steel coiled tubing.
Traceability is a cornerstone of modern tubing production. Each coil carries full lineage information—from casting batch, composition, and processing records to final inspection results. This detailed record-keeping enables rapid response to customer queries, supports warranty and compliance efforts, and enhances confidence in product safety and reliability.
Strict adherence to international quality standards, such as ISO 9001 and industry-specific certifications (API, ASTM, EN, and others), forms the backbone of any reputable manufacturer's quality management system. Internal and external audits further verify compliance and continual improvement.
Continuous improvement is a defining feature of the industry. Modern factories employ advanced process controls, high-precision rolling and drawing equipment, and automated handling systems to minimize defects and maximize throughput. Innovations such as laser or orbital welding for long welded coiled tubing, inline automated inspection, and more energy-efficient annealing furnaces have all contributed to higher product quality and lower costs.
Manufacturers of stainless steel coiled tubing are increasingly attentive to environmental impacts. Steps are taken to minimize resource consumption, recycle scrap, manage emissions, and recover heat from processes such as annealing.
Worker safety is paramount at every stage, with rigorous safety protocols for handling molten metal, operating heavy machinery, and managing hazardous chemicals used in cleaning and pickling processes.
Stainless steel coiled tubing manufacturers rigorously follow international standards for dimension, tolerances, material composition, surface condition, and testing. Major standards include ASTM A269, ASTM A213, ASTM A789, and relevant EN specifications.
Compliance ensures compatibility for global customers and guarantees that tubing will perform reliably in critical applications, whether in subsea oil extraction, high-purity chemical transfer, or vital medical systems.
- Exceptional Corrosion Resistance: Stainless steel's inherent resistance to rust and chemicals is unmatched, making it ideal for harsh operating environments.
- High Strength and Pressure Ratings: Well-manufactured coiled tubing can handle very high internal pressures, making it suitable for deep-well, subsea, or critical industrial uses.
- Long, Continuous Lengths: The ability to supply tubing in hundreds or thousands of meters without joints minimizes leak points and improves system integrity.
- Flexibility and Ease of Installation: Coiled tubing allows for fewer connections and easier routing, greatly simplifying installation—especially in tight or complex environments.
- Hygienic and Clean: With a smooth, corrosion-resistant interior (especially after electropolishing), stainless steel coiled tubing is perfect for food, beverage, medical, and pharmaceutical industries.
- Customizability: Manufacturers can supply tubing in a range of grades, sizes, surface finishes, and packaging formats, as well as with special testing, marking, or certifications.
Looking forward, the importance of stainless steel coiled tubing in industrial innovation and infrastructure is only set to grow. Among emerging trends:
- Use of High-Performance Alloys: Increasing demand for tubing able to withstand even more aggressive environments, such as subsea hydrogen transport or sour gas applications, is spurring the use of super austenitic and duplex stainless steels.
- Integration With Smart Technology: Coiled tubing may be embedded with sensors for condition monitoring, flow measurement, or predictive maintenance.
- Greater Automation and Data Analytics: The rise of Industry 4.0 will drive smarter plants, real-time quality control, and further reductions in manufacturing defects.
- Green Manufacturing: Growing emphasis on low-carbon processes, recycling, and resource conservation is pushing producers toward more sustainable practices.
- Expanded Customization: More flexible production lines and rapid prototyping will allow even the most specialized users to have custom-tailored coiled tubing solutions delivered quickly and reliably.
Stainless steel coiled tubing stands as a testament to modern engineering, precision manufacturing, and material science. This seemingly simple product is, in reality, the result of a sophisticated, tightly controlled process that begins with selecting and alloying raw materials and extends through forming, reducing, annealing, coiling, and rigorous testing.
Its versatility, longevity, and performance contribute immensely to industries ranging from oil & gas to food and medical care. As manufacturing processes advance and demand for efficiency and safety intensifies, stainless steel coiled tubing will maintain its position as a vital, state-of-the-art component in the global industrial landscape.
By understanding the technical intricacies, quality controls, and future trends around stainless steel coiled tubing, end-users and purchasers are empowered to make informed decisions that enhance project success and overall plant performance.
Most stainless steel coiled tubing is manufactured from grades 304/304L and 316/316L. These offer excellent corrosion resistance, good formability, and mechanical strength. Other specialty grades, such as duplex or super austenitic stainless steels, may be used for highly demanding environments.
Seamless tubing is preferred for high-pressure, high-purity, and highly critical applications since it lacks a weld seam—a potential weak point. Welded tubing is suitable for lower-pressure environments or where extremely long continuous lengths are required and is more economical. Both undergo rigorous testing to ensure quality and reliability.
Each coil is subjected to a range of non-destructive testing (including ultrasonic and eddy current scans), hydrostatic pressure testing, and dimensional and surface inspections. Mechanical property tests for tensile strength and hardness are conducted to ensure compliance with rigorous standards.
Coiled tubing allows for long, joint-free runs, reducing the number of fittings and connections—thus minimizing leak risks and simplifying installation, especially in confined or complex routes. Fewer joints also mean reduced maintenance requirements and better system reliability.
Absolutely. Tubing can be tailored for outer and inner diameter, wall thickness, coil length, surface finish, and steel grade. Special coatings, electropolishing, and markings are available upon request, along with packaging and documentation tailored to unique industry or project needs.
