Coiled tubing (CT) has emerged as a notable technology in the oil and gas industry, offering various advantages over traditional drilling methods. Despite its benefits, coiled tubing has not fully replaced standard jointed pipe techniques. This article explores the reasons behind this phenomenon, delving into the technology's advantages, limitations, and the contexts in which it is preferred.

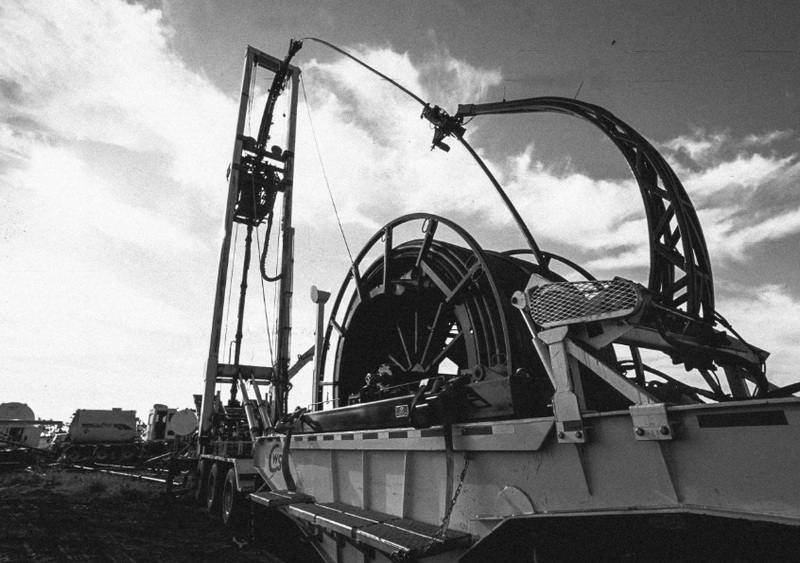

Coiled tubing consists of a continuous length of small-diameter pipe, typically ranging from 1 to 3.25 inches (25 to 83 mm) in diameter, wound onto a large reel. This design allows for efficient deployment into wellbores without needing to make connections between segments of pipe, which is a requirement in traditional drilling methods.
Coiled tubing is utilized for various tasks in oil and gas operations, including:
- Well cleanouts: Removing debris or sand from wellbores.
- Well stimulation: Enhancing hydrocarbon flow through acidizing or fracturing.
- Perforating: Creating pathways for oil or gas to enter the wellbore.
- Logging: Acquiring data on well conditions.
- Fishing operations: Retrieving lost tools or equipment from the wellbore.
Recent advancements have expanded the applications of coiled tubing beyond traditional uses. For instance, coiled tubing is now being employed for:
- Casing repairs: The flexibility and maneuverability of coiled tubing enable accurate positioning of casing patches even in complex wellbore conditions. This offers a cost-effective alternative to conventional casing repair techniques, facilitating the restoration of well integrity and ensuring operational safety[1].
- Plugging and abandonment (P&A): Coiled tubing allows for rigless operations in remote areas where rig availability is limited. Technologies like HydraCT™ have demonstrated success in installing isolation barriers efficiently without requiring extensive rig setups[3].
The advantages of coiled tubing technology include:
- Continuous Operation: Coiled tubing can be inserted and retrieved continuously, reducing downtime associated with making connections.
- Live Well Operations: It allows work on live wells without needing to kill the well, which can save time and reduce risks associated with pressure management.
- Versatility: The technology can perform multiple tasks within a single trip into the well, enhancing operational efficiency.
- Reduced Rig Time: Coiled tubing operations are generally faster than traditional methods due to fewer trips in and out of the wellbore.
- Enhanced Well Control: The continuous nature of coiled tubing minimizes connection failures, improving safety during operations.
Despite its advantages, coiled tubing faces several limitations that hinder its widespread adoption:
- Lack of Rotation: Coiled tubing cannot rotate on its own, which limits its effectiveness in certain drilling applications where rotation is necessary to prevent differential sticking or to drill through hard formations.
- Material Fatigue: The continuous nature of coiled tubing makes it susceptible to fatigue over time. Operators may need to replace coiled tubing more frequently than standard jointed pipe due to wear and tear.
- Depth Limitations: While advancements have increased the depth capabilities of coiled tubing, there are still limitations compared to traditional methods that can reach greater depths without significant risk.
- Cost Considerations: Initial setup costs for coiled tubing operations can be high. In some cases, companies may find it more economical to use traditional drilling methods depending on specific project requirements.
| Feature | Coiled Tubing | Standard Drilling Methods |
|---|---|---|
| Operation Type | Continuous | Segmental (jointed pipe) |
| Live Well Capability | Yes | Typically requires killing the well |
| Speed of Deployment | Faster due to fewer connections | Slower due to multiple trips |
| Depth Capability | Limited compared to standard methods | Greater depth potential |
| Cost Efficiency | Higher initial costs | Potentially lower operational costs |
| Flexibility | High | Moderate |
Recent advancements in coiled tubing technology have improved its reliability and efficiency. Innovations such as high-strength materials and enhanced manufacturing processes have led to stronger and more durable coiled tubing options. Additionally, real-time monitoring systems integrated into coiled tubing operations allow for better data collection and decision-making during interventions.
1. High-Strength Materials: The development of high-strength metals and composite materials has enabled the production of coiled tubing strings with higher tensile and burst strengths. Advanced materials allow for thinner walls while maintaining structural integrity, resulting in lighter, more flexible coiled tubing that can endure higher pressure and temperature situations[5].
2. Enhanced Manufacturing Processes: Innovations like laser welding, precision machining, and non-destructive testing have increased the quality and reliability of coiled tubing. These advancements ensure consistent dimensional accuracy and mechanical properties, reducing the risk of defects during operation[5].
3. Integrated Downhole Tools: Modern coiled tubing assemblies now feature a wide range of integrated downhole tools tailored for specific intervention tasks. These tools include logging instruments, milling tools, hydraulic jetting tools, perforating guns, and chemical injection systems[5].
4. Real-Time Monitoring Systems: The integration of real-time monitoring systems allows operators to remotely assess downhole conditions and adjust operational parameters accordingly. Sensors embedded within the coiled tubing string provide critical data on pressure, temperature, flow rates, and wellbore integrity[5].
5. Coiled Tubing Drilling (CTD) Technology: CTD technology has evolved significantly, enabling efficient drilling of lateral sections from existing wellbores. Specialized bottom hole assemblies allow for effective drilling solutions that were previously unattainable with conventional methods[5].
Several case studies highlight successful applications of coiled tubing across various scenarios:
1. HydraWell's PWC® System Deployment:
- In November 2022, HydraWell executed its first successful field campaign using coiled tubing to install an annular PWC® isolation barrier in a single run on Alaska's North Slope. This operation showcased how coiled tubing could facilitate rigless abandonment while ensuring effective fluid displacement downhole[3].
2. Underbalanced Coiling Techniques:
- Recent studies have illustrated how underbalanced coiling techniques can target natural fractures in tight sandstones effectively. This approach enhances recovery strategies by minimizing formation damage while maximizing hydrocarbon extraction efficiency[2].
3. Innovative Workover Solutions:
- A paper presented at the SPE/ICoTA conference detailed how inflatable packers combined with instrumented coiling systems could temporarily suspend wells for integrity remediation quickly while significantly reducing logistics costs[2].
The global market for coiled tubing services has shown robust growth recently. It is projected to grow from $4.78 billion in 2023 to $5.03 billion in 2024 at a compound annual growth rate (CAGR) of 5.2%. This growth is attributed to increased oil and gas exploration activities, cost-effective interventions, efficiency improvements in workover operations, and maintenance requirements for aging wells[7].
Major companies are launching new tools designed specifically for enhancing operational efficiency within this sector:
- Tools like HydroHammer for extended reach applications.
- IntelliPulser equipped with downhole sensors for adjustable control.
- Intelli-Log designed for rugged logging tasks compatible with various applications[7].
While coiled tubing presents numerous advantages over standard drilling methods—such as continuous operation, live well capabilities, and reduced rig time—its limitations prevent it from completely replacing traditional techniques. Factors such as lack of rotation, material fatigue, depth limitations, and higher initial costs play crucial roles in determining when each method is appropriate.
As advancements continue in coiled tubing technology—including high-strength materials, enhanced manufacturing processes, integrated downhole tools, real-time monitoring systems, and innovative drilling techniques—its adoption may increase; however, for now, both technologies coexist within the oil and gas industry.
Coiled tubing is used for various applications in the oil and gas industry including well cleanouts, stimulation treatments, logging activities, perforating wells, fishing operations, casing repairs, and rigless plugging & abandonment.
The main advantages include continuous operation without needing connections; the ability to work on live wells without killing them; reduced rig time due to fewer trips required; enhanced safety through better well control; versatility across multiple applications; and improved efficiency.
Coiled tubing has limitations such as lack of rotation for certain applications; susceptibility to material fatigue; depth constraints compared to traditional methods; higher initial costs; and specific project requirements that may favor conventional techniques.
By allowing multiple tasks to be performed in a single trip into the wellbore; reducing downtime associated with making connections between segments; enabling live operations without killing wells; and facilitating faster deployment overall.
Yes! Advancements include high-strength materials that enhance durability; real-time monitoring systems that improve data collection during interventions; integrated downhole tools tailored for specific tasks; enhanced manufacturing processes ensuring quality; and significant developments in CTD technology enabling efficient drilling solutions.
