Why Choose A 1/2 Stainless Steel Cable Over Galvanized?

Content Menu

● Introduction

● Is a 1/2 Stainless Steel Cable?

>> Key Features

● Steel Cable vs. Galvanized Cable: A Detailed Comparison

● Why Choose a 1/2 Stainless Steel Cable?

>> 1. Superior Corrosion Resistance

>> 2. High Strength and Load Capacity

>> 3. Longevity and Low Maintenance

>> 4. Aesthetic Appeal

>> 5. Versatility and Flexibility

>> 6. Safety and Compliance

>> 7. Cost-Effectiveness Over Time

● Common Applications of 1/2 Stainless Steel Cable

● Technical Specifications: 1/2 Stainless Steel Cable

● Installation and Handling Tips

● Conclusion

● Frequently Asked Questions

>> 1. What makes a 1/2 stainless steel cable better for marine environments?

>> 2. How does the strength of a 1/2 stainless steel cable compare to galvanized cable?

>> 3. What maintenance is required for 1/2 stainless steel cable?

>> 4. Can stainless steel and galvanized cables be used together?

>> 5. What are the most common uses for 1/2 stainless steel cable?

● Citations:

Introduction

When it comes to selecting the right cable for your project, the choice between a 1/2 stainless steel cable and a galvanized steel cable is crucial. Both options have their unique strengths, but the specific demands of your environment and application often make stainless steel the superior choice—especially in harsh, corrosive, or high-visibility settings. This comprehensive guide explores the reasons why a 1/2 stainless steel cable stands out, delving into its properties, advantages, applications, and how it compares to galvanized alternatives.

Is a 1/2 Stainless Steel Cable?

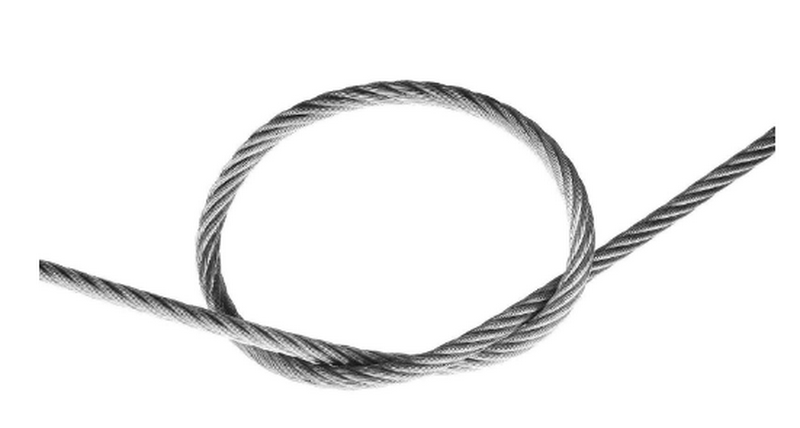

A 1/2 stainless steel cable refers to a wire rope with a diameter of half an inch, constructed from stainless steel alloys. The most common grades used are 304 and 316, known for their excellent corrosion resistance and strength. These cables are composed of multiple strands of steel wires twisted together, providing flexibility and durability.

Key Features

- Diameter: 1/2 inch

- Material: Stainless steel (typically 304 or 316)

- Construction: Multiple wire strands (e.g., 6x19, 1x19 configurations)

- Applications: Marine, architectural, industrial, and more

Steel Cable vs. Galvanized Cable: A Detailed Comparison

Feature	1/2 Stainless Steel Cable	1/2 Galvanized Steel Cable
Corrosion Resistance	Excellent (especially in saltwater)	Good, but coating can wear off
Strength	High tensile strength (up to 22,800 lbs)	Generally strong, but lower breaking point
Durability	Lasts up to 5x longer in harsh environments	Shorter lifespan in corrosive settings
Maintenance	Low (minimal upkeep required)	Moderate to high (zinc coating degrades)
Cost	Higher initial investment	Lower upfront cost
Appearance	Bright, shiny, modern	Dull, streaky, industrial
Flexibility	High (various constructions available)	Moderate
Weight	Slightly heavier	Slightly lighter

Why Choose a 1/2 Stainless Steel Cable?

1. Superior Corrosion Resistance

The standout feature of a 1/2 stainless steel cable is its exceptional resistance to rust and corrosion. Stainless steel contains at least 10.5% chromium, which forms a passive oxide layer on the surface, preventing moisture and chemicals from causing damage. This makes it ideal for:

- Marine environments (boats, docks, piers)

- Outdoor installations exposed to rain, humidity, or saltwater

- Industrial settings with exposure to chemicals or pollutants

Galvanized cables, while protected by a zinc coating, are vulnerable once this layer is damaged. Over time, the underlying steel can rust, especially in salty or acidic conditions, leading to premature failure.

2. High Strength and Load Capacity

A 1/2 stainless steel cable offers impressive tensile strength. For example, a 1/2" 6x19 IWRC (Independent Wire Rope Core) 304 stainless cable can have an assembly break strength of up to 22,800 lbs, making it suitable for heavy-duty lifting, suspension, and structural applications.

- Applications: Hoisting, winch lines, suspension bridges, architectural supports

While galvanized cables can be strong, stainless steel cables often surpass them in both strength and reliability over time, especially as the galvanized coating wears away.

3. Longevity and Low Maintenance

Stainless steel cables can last up to five times longer than galvanized cables in harsh environments. Their resistance to corrosion, combined with high durability, means less frequent inspections, replacements, and repairs.

- Maintenance: Minimal—occasional cleaning is usually sufficient

- Lifespan: 20+ years in many applications

Galvanized cables require more frequent checks, especially in corrosive environments, and may need regular re-coating or replacement.

4. Aesthetic Appeal

The bright, shiny finish of a 1/2 stainless steel cable makes it a preferred choice for modern architectural and design projects. It maintains its appearance over time, adding a polished, professional look to:

- Stair railings

- Balconies

- Bridges

- Public art installations

Galvanized cables, by contrast, have a duller appearance and show wear more readily.

5. Versatility and Flexibility

Stainless steel cables are available in various constructions (e.g., 1x19, 7x7, 6x19), allowing for flexibility or rigidity as needed. This versatility makes them suitable for a wide range of applications, from flexible rigging to rigid supports.

6. Safety and Compliance

Stainless steel cables meet rigorous safety and quality standards, such as Federal Specification RR-W-410 and ASTM A1023. Their reliability is critical in applications where failure is not an option, such as:

- Overhead lifting

- Safety barriers

- Critical infrastructure

7. Cost-Effectiveness Over Time

While the initial investment in a 1/2 stainless steel cable is higher, its longevity, reduced maintenance, and lower replacement frequency make it more cost-effective in the long run—especially in demanding environments.

Common Applications of 1/2 Stainless Steel Cable

- Marine: Boat rigging, mooring lines, dock supports

- Architecture: Railings, balustrades, suspension bridges, decorative elements

- Industrial: Lifting, hoisting, winch lines, conveyor systems

- Agriculture: Livestock fencing, greenhouse supports

- Safety: Fall protection, netting, barriers

Technical Specifications: 1/2 Stainless Steel Cable

- Diameter: 1/2 inch

- Construction: 6x19 IWRC (Independent Wire Rope Core)

- Material: 304 Stainless Steel (also available in 316 for higher corrosion resistance)

- Breaking Strength: Up to 22,800 lbs

- Weight per Foot: 0.46 lbs

- Compliance: Meets Federal and ASTM standards

Installation and Handling Tips

- Use compatible stainless steel fittings to prevent galvanic corrosion.

- Avoid mixing stainless steel with galvanized or other metals in the same assembly.

- Protect cable ends with end sleeves to prevent fraying.

- Regularly inspect for signs of mechanical wear or damage, especially in high-stress applications.

Conclusion

Choosing a 1/2 stainless steel cable over a galvanized cable is a smart investment for projects demanding superior corrosion resistance, strength, longevity, and visual appeal. Whether you're working in marine, architectural, industrial, or agricultural environments, stainless steel cables deliver unmatched performance and reliability. While the initial cost is higher, the long-term benefits—reduced maintenance, fewer replacements, and enhanced safety—make stainless steel the clear winner for critical and demanding applications.

Frequently Asked Questions

1. What makes a 1/2 stainless steel cable better for marine environments?

A 1/2 stainless steel cable excels in marine environments due to its high chromium content, which forms a passive oxide layer that protects against rust and corrosion. This makes it ideal for saltwater exposure, high humidity, and harsh weather, where galvanized cables would quickly deteriorate.

2. How does the strength of a 1/2 stainless steel cable compare to galvanized cable?

While both types offer high tensile strength, a 1/2 stainless steel cable (especially in 304 or 316 grades) often has a higher breaking point and maintains its strength over time, even as it ages. Galvanized cables can lose strength as the zinc coating wears off and corrosion sets in.

3. What maintenance is required for 1/2 stainless steel cable?

Minimal maintenance is needed for stainless steel cables. Regular visual inspections and occasional cleaning to remove dirt or salt deposits are usually sufficient. Unlike galvanized cables, there's no need for re-coating or frequent replacements.

4. Can stainless steel and galvanized cables be used together?

It is not recommended to mix stainless steel and galvanized cables or fittings, as contact between different metals can cause galvanic corrosion, especially in the presence of moisture or saltwater. Always use compatible materials for all components in your assembly.

5. What are the most common uses for 1/2 stainless steel cable?

The most common uses include marine rigging, architectural railings, suspension bridges, industrial hoisting, safety barriers, and agricultural fencing. Its combination of strength, corrosion resistance, and aesthetic appeal makes it suitable for both functional and decorative applications.
