Hydraulic control line tubings are critical components in the oil and gas industry, especially for subsea and downhole applications. Among various materials, 2205 hydraulic control line tubings in China have emerged as the top choice due to their superior mechanical properties, corrosion resistance, and manufacturing excellence. This article explores why 2205 stainless steel tubing is preferred, its applications, manufacturing processes, and the advantages it offers in demanding environments.

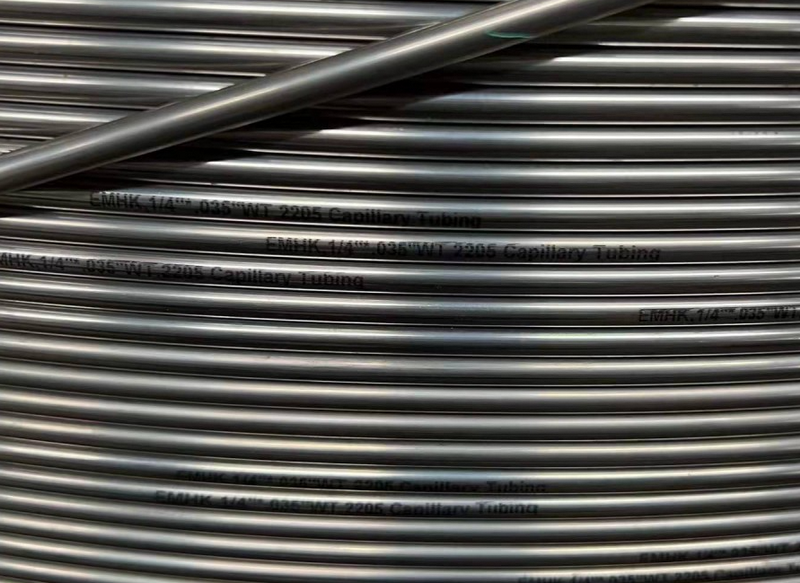

2205 hydraulic control line tubing is made from Duplex 2205 stainless steel, a nitrogen-enhanced duplex stainless steel alloy that combines approximately equal parts of austenitic and ferritic microstructures. This composition results in a material with double the yield strength of standard austenitic stainless steels like 316L, while also providing superior corrosion resistance, especially in chloride-rich and harsh environments[2][9].
- High Strength and Durability: Duplex 2205 offers yield strengths around 80,000 psi and tensile strengths exceeding 95,000 psi, making it ideal for high-pressure hydraulic control lines[10].
- Corrosion Resistance: The alloy resists pitting, crevice corrosion, chloride stress corrosion cracking, and general corrosion in acidic and subsea environments, crucial for oil and gas extraction[2][9][10].
- Dimensional Precision: Tubings have close dimensional tolerances, controlled ovality, and eccentricity to ensure reliability and leak prevention in hydraulic control systems[1][4][5].
- Surface Quality: Superior surface finish and high cleanliness of the inside surface reduce contamination risks and improve flow assurance[1][4].
- Manufacturing Standards: Produced according to ASTM A789 / ASME SA789 and EN10216-5 standards, ensuring consistent quality and performance[1][3][4][5].
2205 hydraulic control line tubings are manufactured using advanced processes such as:
- Seamless and Welded Tubing: Both TIG welded and seamless cold-drawn tubing are available to meet different application needs, with seamless tubing preferred for higher integrity and fewer leak risks[1][3][4][9].
- Cold Drawing and Annealing: These processes refine the microstructure, improve mechanical properties, and ensure dimensional accuracy[2][5].
- Hydrostatic Testing and Non-Destructive Testing: Each tubing length undergoes rigorous quality control, including eddy current testing, hydrostatic pressure testing, and surface roughness inspection to guarantee performance in critical applications[9][10].
The unique properties of 2205 duplex stainless steel make these tubings indispensable in various demanding sectors:
- Subsea Hydraulic Control Lines: Used in umbilicals to provide direct hydraulic control of valves on subsea Christmas trees, enabling precise valve actuation without electrical signals[1][4][5].
- Chemical Injection Lines: Essential for injecting chemicals into wells to prevent wax, scaling, and asphaltene deposits, thereby maintaining flow assurance and production efficiency[4][9][10].
- Downhole Safety Valve Control: Tubings control downhole safety valves and gas release valves, ensuring safe and reliable well operation[7][12].
- Oil and Gas Wells: Used extensively in downhole environments for pressure measurement, control, and chemical injection due to their corrosion resistance and strength[2][7][10].
- Other Industrial Uses: Including instrumentation, power generation, renewable energy, pulp and paper, marine industries, and more, thanks to their versatility and durability[10].
Duplex 2205's high chromium, molybdenum, and nitrogen content provide excellent resistance to chloride-induced corrosion, stress corrosion cracking, and hydrogen sulfide (H2S) environments. This makes it ideal for subsea and downhole applications where exposure to harsh chemicals and seawater is common[2][9][10].
The alloy's duplex microstructure doubles the yield strength compared to conventional austenitic stainless steels, allowing thinner walls and lighter tubing without compromising safety or performance[2][10].

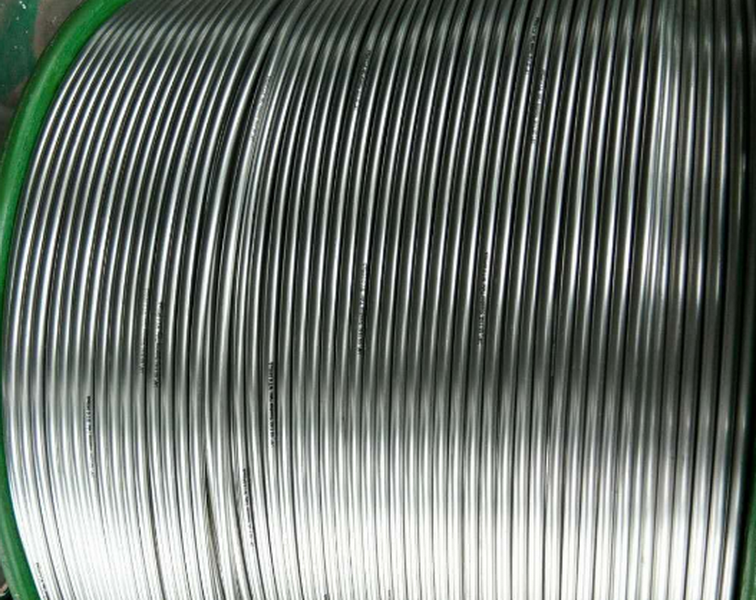

Chinese manufacturers offer coiled tubing lengths up to 10,000 meters or more, minimizing the number of welds and potential leak points. Custom diameters and wall thicknesses are available to meet specific project requirements[1][3][9].
China's advanced manufacturing infrastructure and economies of scale enable competitive pricing without sacrificing quality. This affordability, combined with high performance, makes 2205 tubing a preferred choice globally[9][11].
Strict adherence to international standards, thorough testing, and certifications such as ISO 9001 ensure that the tubing meets the rigorous demands of the oil and gas industry[9][10][11].
This video explains the basics of hydraulic control systems, including tubing roles in fluid power transmission and valve control, relevant to understanding control line tubing functions.
| Parameter | Specification |
|---|---|
| Material Grade | Duplex Stainless Steel 2205 (UNS S32205) |
| Outer Diameter (OD) | 1/8” to 1/2” (3.175 mm to 12.7 mm) |
| Wall Thickness (WT) | 0.02” to 0.083” (0.5 mm to 2.1 mm) |
| Length | Up to 10,000 m continuous coil |
| Yield Strength | ≥ 80,000 psi (550 MPa) |
| Tensile Strength | ≥ 95,000 psi (655 MPa) |
| Corrosion Resistance | Excellent resistance to pitting, crevice, SCC |
| Standards | ASTM A789 / ASME SA789 / EN10216-5 |
| Manufacturing Process | TIG welded & cold drawn, seamless & cold drawn |
| Surface Finish | Superior, high cleanliness inside and out |
China's dominance in producing 2205 hydraulic control line tubings stems from:
- Advanced Manufacturing Technology: Chinese producers utilize state-of-the-art welding, cold drawing, and annealing techniques to achieve high-quality tubing[1][3][4].
- Large Production Capacity: Ability to supply large volumes with consistent quality supports global oil and gas projects[9][11].
- Customization and Flexibility: Manufacturers offer tailored tubing sizes, lengths, and encapsulation options (e.g., PVDF, FEP coatings) to meet diverse customer needs[9].
- Cost Advantages: Competitive pricing due to efficient production and supply chain management attracts international buyers[9][11].
- Strong Quality Control: Comprehensive testing regimes ensure compliance with international standards and customer specifications[9][10][11].
2205 hydraulic control line tubings in China have become the top choice for the oil and gas industry due to their exceptional combination of strength, corrosion resistance, and manufacturing quality. Their application in subsea hydraulic control systems, chemical injection, and downhole safety valves highlights their critical role in ensuring operational safety and efficiency. China's advanced production capabilities, adherence to international standards, and cost-effective solutions make it the global leader in supplying these vital components. For industries requiring reliable, high-performance hydraulic control lines, 2205 duplex stainless steel tubing from China remains unmatched.
2205 duplex stainless steel offers a balanced microstructure that provides double the yield strength of austenitic steels and superior resistance to pitting, crevice corrosion, and stress corrosion cracking, making it ideal for harsh subsea and downhole environments.
They are widely used in subsea hydraulic control umbilicals, downhole chemical injection lines, safety valve control, and instrumentation tubing in the oil and gas industry.
Chinese manufacturers follow international standards such as ASTM A789 and ASME SA789, conduct rigorous testing including hydrostatic and eddy current tests, and maintain strict quality control throughout production.
Yes, tubing dimensions, wall thickness, lengths, and coatings can be customized to meet specific project requirements, including polymer encapsulation for additional chemical and wear resistance.
Coiled tubing allows for long continuous lengths with minimal welds, reducing leak risks and installation complexity, which is crucial for subsea and downhole hydraulic control systems.
