Choosing the right stainless steel tube shape is a critical decision that can significantly impact the success, durability, and aesthetics of your project. Stainless steel tubes come in a variety of shapes-round, square, rectangular, oval, and even more specialized profiles like hexagonal or D-shaped-each with unique advantages tailored to specific applications. This comprehensive guide will help you understand the different stainless steel tube shapes, their benefits, and how to select the best shape for your project needs.

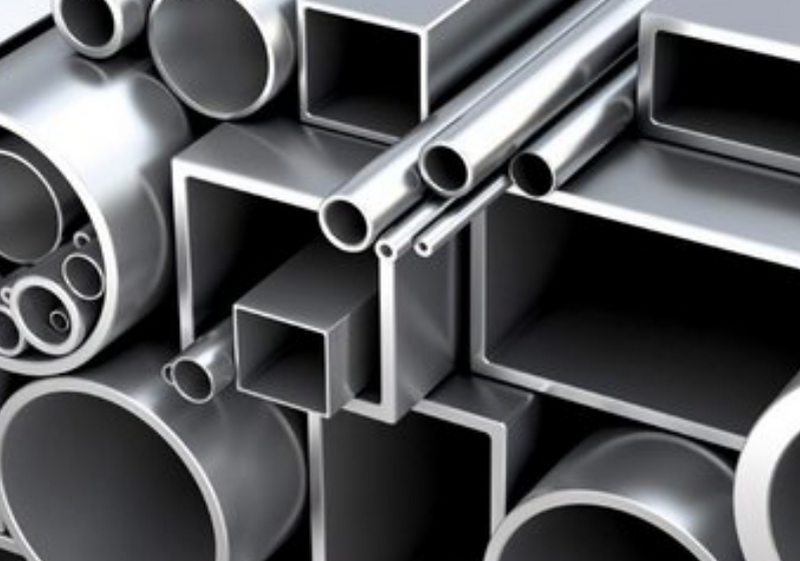

Stainless steel tubes are precision-engineered hollow cylinders or profiles made from corrosion-resistant alloys such as 304 or 316 stainless steel. They are widely used in industries ranging from construction and architecture to medical devices and food processing. The shape of the tube affects its strength, load-bearing capacity, ease of fabrication, and aesthetic appeal.

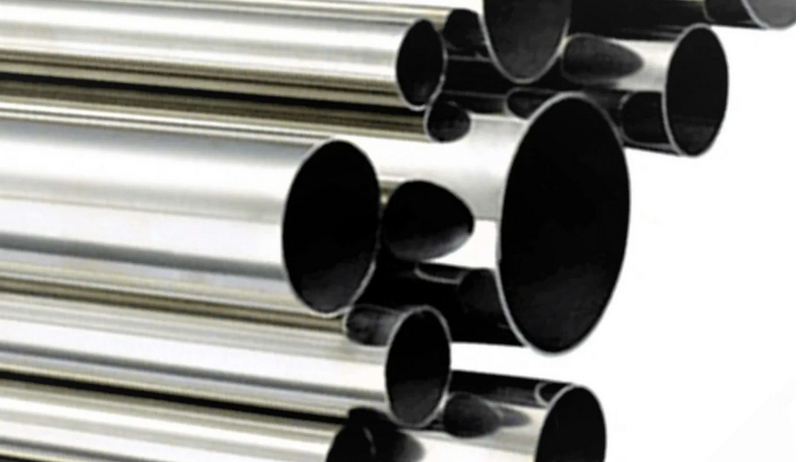

Round Tubes
The most common and versatile shape, round tubes are used for fluid transport, structural supports, and decorative purposes. Their circular cross-section provides uniform strength in all directions and excellent resistance to pressure, making them ideal for piping and mechanical applications.

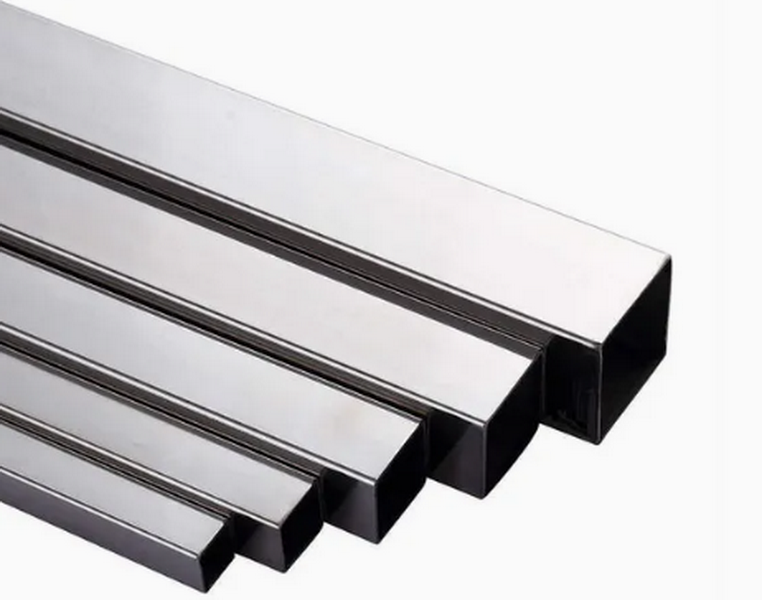

Square Tubes
Square tubes offer consistent strength on all four sides, providing excellent load-bearing capacity and stability. They are often used in construction, architectural framing, and industrial fabrication where clean lines and a modern look are desired.
Rectangular Tubes
Rectangular tubes provide flat surfaces on two sides, which is beneficial for mounting and design aesthetics. They combine strength with a sleek profile, commonly used in HVAC systems, off-road vehicle frames, and architectural applications.
Oval and Flat-Sided Oval Tubes
Oval-shaped tubes are valued for their aerodynamic and space-saving properties. They are used in radiant heating, automotive components, and where design meets function.
Hexagonal Tubes
With six sides, hexagonal tubes offer enhanced stability and are used in heavy-duty material handling, agricultural equipment, and solar panel supports.
D-Shaped and Double D Tubes
These shapes provide flat surfaces for mounting combined with curved profiles for strength, ideal for HVAC systems, automotive interiors, and burner appliances.
Specialty Shapes
Triangles, stars, I-shapes, T-shapes, and hybrid profiles are available for custom engineering needs, offering unique structural or aesthetic benefits.
| Tube Shape | Key Advantages | Typical Applications |
|---|---|---|
| Round | Uniform strength, excellent fluid dynamics | Piping, exhaust systems, structural supports |
| Square | Consistent strength, clean lines, architectural appeal | Construction, framing, shelving, handrails |
| Rectangular | Flat surfaces for mounting, directional strength | HVAC, off-road frames, architectural elements |
| Oval | Aerodynamic, space-efficient, sleek design | Radiant heating, automotive, design-focused |
| Hexagonal | Multi-sided strength, stability under heavy loads | Heavy-duty handling, agriculture, solar mounts |
| D-Shaped | Flat mounting surface with curved strength | HVAC, automotive interiors, appliances |
Each shape offers unique benefits depending on the mechanical demands, aesthetic requirements, and environmental conditions of your project.
Square and rectangular tubes generally provide higher bending resistance and load-bearing capacity compared to round tubes of similar dimensions. For heavy structural applications, these shapes offer superior stability.
Stainless steel grades like 304 and 316 are chosen based on corrosion resistance needs. The shape does not directly affect corrosion resistance but may influence cleaning ease and maintenance. For outdoor or marine environments, polished or brushed finishes on square or rectangular tubes are popular for their durability and aesthetic appeal.
Round tubes are easier to bend and form, making them suitable for complex shapes or fluid transport. Square and rectangular tubes provide flat surfaces that simplify mounting and welding but may be more challenging to bend.
Architectural projects often prefer square, rectangular, or oval tubes for their clean lines and modern appearance. Specialty shapes like triangular or teardrop tubes can add unique visual elements.
Tubing used in instrumentation or medical devices often requires tight dimensional tolerances. Stainless steel tubes are manufactured with strict control over outside diameter (OD), wall thickness, and inside diameter (ID), which varies slightly by shape.
Round tubes are the industry standard for piping and fluid transport due to their ability to evenly distribute stress and resist pressure. They are available in seamless and welded forms, with wall thicknesses tailored to withstand high pressures. Their smooth surface and continuous curve reduce turbulence in fluid flow, making them ideal for chemical processing, food and beverage industries, and HVAC systems.
Square tubes provide equal strength on all sides and are favored for structural applications requiring rigidity and load distribution. Their sharp corners and flat surfaces are aesthetically pleasing and meet architectural standards for modern design. They are commonly used in handrails, frames, shelving, and support beams.
Rectangular tubes combine strength with flat mounting surfaces, making them ideal for applications where components need to be attached or mounted. Their directional strength is beneficial in frames that bear loads in specific orientations, such as vehicle chassis or HVAC ductwork.
Oval tubes are chosen for their aerodynamic shape and space efficiency. Flat-sided oval tubes offer additional surface area for mounting or aesthetic design. These tubes are common in radiant heating systems, automotive parts, and decorative architectural elements.
Hexagonal tubes provide multi-directional strength and are used in heavy-duty applications. D-shaped tubes offer a flat surface for mounting with curved strength, suitable for HVAC and automotive interiors. Other shapes like teardrop or triangular tubes are used for specialized engineering or aesthetic purposes.
- Construction and Architecture: Square and rectangular tubes are widely used for structural frameworks, balustrades, and decorative elements due to their strength and clean aesthetics.
- Automotive and Transportation: Round and square tubes serve as exhaust systems, chassis frames, and interior supports.
- Industrial Machinery: Tubes of various shapes are used for fluid transport, hydraulic systems, and equipment frames.
- Food and Pharmaceutical: Round tubes with polished finishes are preferred for sanitary piping and processing equipment.
- Marine and Chemical: Corrosion-resistant stainless steel tubes, especially in round and rectangular shapes, withstand harsh environments.
- Specialty Engineering: Custom-shaped tubes like stars, triangles, and hybrid profiles meet unique design and strength requirements.
Selecting the best stainless steel tube shape for your project depends on multiple factors including structural strength, corrosion resistance, fabrication ease, and aesthetic requirements. Round tubes offer versatility and uniform strength, ideal for fluid transport and general structural use. Square and rectangular tubes provide superior load-bearing capacity and clean lines favored in construction and architectural projects. Oval and specialty shapes cater to design-focused applications requiring aerodynamic or unique profiles.
By understanding the strengths and limitations of each stainless steel tube shape, you can optimize your project for performance, durability, and visual appeal. Collaborate with trusted suppliers to customize dimensions, wall thickness, and finishes to meet your precise needs, ensuring the best outcome for your stainless steel tubing project.
Round tubes provide uniform strength and are ideal for fluid transport, while square and rectangular tubes offer flat surfaces and higher load-bearing capacity, making them better suited for structural and architectural applications.
Round stainless steel tubes are generally preferred for high-pressure applications due to their ability to evenly distribute stress and resist internal pressure effectively.
Yes, stainless steel tubes, especially round ones, can be bent and formed using specialized equipment to create custom shapes for complex designs or installations.
Thicker walls increase the tube's strength, pressure resistance, and durability but add weight. Thinner walls are lighter and easier to bend but may not withstand heavy loads or high pressures.
Common finishes include mill finish, polished, brushed, and mirror finish. Polished and mirror finishes enhance corrosion resistance and aesthetics, making them suitable for decorative and sanitary applications, while mill finish is cost-effective for industrial use.
