Stainless steel tubes are essential components in a wide range of industries, from construction and automotive to food processing and medical equipment. One of the most critical factors in selecting the right stainless steel tube is its thickness, which directly influences the tube's strength, durability, and suitability for specific applications. This comprehensive article explores the considerations for determining the appropriate thickness of stainless steel tubes, explains the importance of stainless steel tube dimension, and provides detailed insights into standard sizes, wall thicknesses, and their impact on performance.

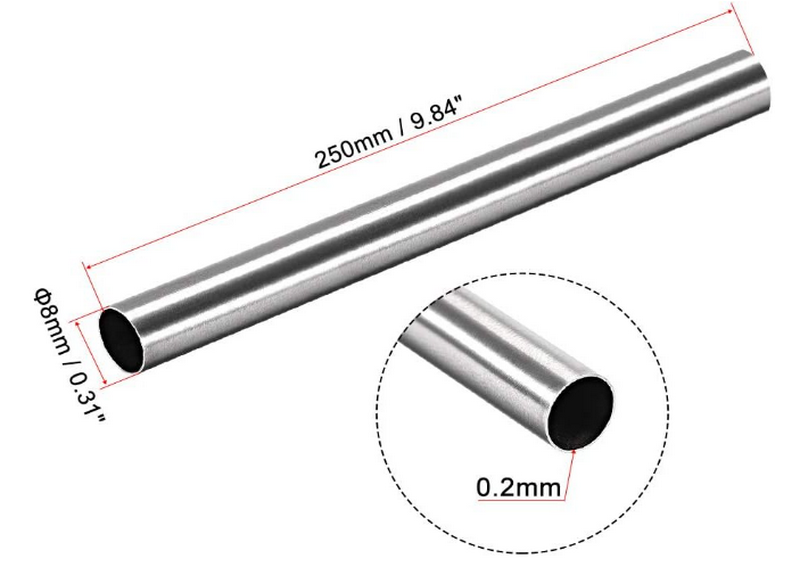

When discussing stainless steel tubes, three primary dimensions are crucial:
- Outer Diameter (OD): The total diameter measured from the outside edges of the tube.
- Inner Diameter (ID): The diameter of the hollow inside of the tube.
- Wall Thickness: The thickness of the tube's wall, calculated as the difference between the OD and ID divided by two.
These dimensions collectively define the tube's mechanical properties, including its strength, weight, and pressure resistance. The wall thickness, in particular, is a key determinant of the tube's ability to withstand internal and external forces.
Wall thickness affects:
- Structural Strength: Thicker walls provide greater resistance to bending, crushing, and deformation.
- Pressure Capacity: Tubes with thicker walls can handle higher internal pressures, making them suitable for high-pressure fluid or gas transport.
- Durability and Longevity: Thicker tubes are more resistant to wear, corrosion, and mechanical damage.
- Weight: Thicker tubes are heavier, which may be a disadvantage in applications where weight reduction is critical.
- Flexibility: Thinner tubes are easier to bend and shape, useful in custom or complex installations.
Stainless steel tubes come in a variety of standard sizes and thicknesses, often defined by industry standards such as ASTM, ISO, ANSI, and ASME. These standards ensure uniformity and compatibility across applications.
Wall thicknesses are typically measured in millimeters or inches and categorized by schedules (SCH) or gauge numbers. Here are some common thickness ranges:
| Wall Thickness (mm) | Wall Thickness (inches) | Typical Applications |
|---|---|---|
| 0.5 - 1.0 | 0.020 - 0.040 | Medical devices, precision instruments |
| 1.5 - 3.0 | 0.060 - 0.120 | Structural supports, fluid transport systems |
| 3.0 - 6.0 | 0.120 - 0.240 | Heavy-duty piping, industrial frameworks |
| 6.0+ | 0.240+ | High-pressure, high-stress environments |
- Small Diameter Tubes: OD from 6mm to 25mm, wall thickness from 0.5mm to 3mm.
- Medium Diameter Tubes: OD from 25mm to 100mm, wall thickness from 1.5mm to 5mm.
- Large Diameter Tubes: OD above 100mm, wall thickness from 3mm to 10mm or more.
For example, a 25mm stainless steel tube often has a wall thickness between 1.5mm and 3mm, balancing strength and weight for structural or fluid transport applications[1][4][5].
- Pressure and Load: High-pressure systems require thicker walls to prevent rupture or deformation.
- Structural Use: Load-bearing applications need thicker tubes for strength and stability.
- Corrosion Resistance: Thicker walls provide longer life in corrosive environments.
- Flexibility Needs: Applications requiring bending or shaping favor thinner walls.
Different stainless steel grades (e.g., 304, 316, 316L) have varying mechanical properties. Higher-grade materials may allow for thinner walls while maintaining strength.
- Seamless Tubes: Typically have uniform thickness and higher strength, suitable for critical applications.
- Welded Tubes: May have slight variations in thickness but are cost-effective for many uses.
Compliance with standards such as ASTM A213, ASTM A269, EN 10253, and ISO ensures the tube meets safety and performance criteria, including thickness tolerances[2][5][9].
A detailed video explaining stainless steel tube materials, specifications, and bending techniques can be found here:
The thicker the tube wall, the higher the pressure it can withstand. For example, tubes with wall thicknesses of 3mm or more are commonly used in high-pressure fluid systems, while thinner tubes are suitable for low-pressure or decorative applications[4][9].
Thicker tubes increase weight, which can affect transportation and installation costs. Engineers must balance the need for strength with weight considerations, especially in automotive or aerospace industries.
While stainless steel inherently resists corrosion, thicker walls provide a longer lifespan in harsh environments by allowing for some material loss over time without compromising structural integrity.
| Schedule (SCH) | Wall Thickness (inches) | Wall Thickness (mm) | Typical Use Cases |
|---|---|---|---|
| SCH 5 | 0.065 | 1.65 | Low-pressure applications |
| SCH 10 | 0.109 | 2.77 | Medium pressure piping |
| SCH 40 | 0.154 | 3.91 | Standard industrial piping |
| SCH 80 | 0.218 | 5.54 | High-pressure systems |
| SCH 160 | 0.312 | 7.92 | Very high-pressure applications |
These schedules help engineers select the appropriate thickness based on pressure and safety requirements[7][9].
| Outer Diameter (mm) | Wall Thickness (mm) | Inner Diameter (mm) | Common Applications |
|---|---|---|---|
| 12.7 | 1.2 | 10.3 | Medical, instrumentation |
| 25.4 | 1.6 | 22.2 | Structural, fluid transport |
| 38.1 | 3.0 | 32.1 | Heavy-duty piping, handrails |
| 50.8 | 3.0 | 44.8 | Industrial piping, supports |
| 101.6 | 6.3 | 89.0 | High-pressure industrial systems |
- Use a caliper or micrometer to measure the outer diameter (OD).
- Measure the inner diameter (ID) using an internal caliper or bore gauge.
- Calculate wall thickness as $$ \frac{OD - ID}{2} $$.
- For precision, especially in critical applications, use ultrasonic thickness gauges.
| Application Type | Recommended Wall Thickness | Notes |
|---|---|---|
| Decorative and Architectural | 0.5mm - 1.5mm | Focus on appearance and light load |
| Fluid Transport (Low Pressure) | 1.5mm - 3.0mm | Balance between strength and flow capacity |
| Structural Support | 3.0mm - 6.0mm | High strength and durability required |
| High-Pressure Systems | 6.0mm+ | Maximum strength and safety critical |
| Medical and Food Industry | 0.5mm - 2.0mm | Requires sanitary finish and corrosion resistance |
Regular inspection of wall thickness is essential to detect corrosion or wear, especially in harsh environments. Non-destructive testing methods such as ultrasonic thickness measurement help maintain safety and performance.
Choosing the correct thickness for a stainless steel tube is a balance of application requirements, pressure capacity, structural strength, and cost considerations. Understanding stainless steel tube dimension — including outer diameter, inner diameter, and wall thickness — is fundamental to selecting the right tube for your needs. Standard thicknesses range from thin-walled tubes for decorative or low-pressure uses to thick-walled tubes designed for high-pressure and heavy-duty applications. Adhering to industry standards and considering material grade ensures safety, durability, and optimal performance.
The standard wall thickness for a 25mm stainless steel tube typically ranges from 1.5mm to 3.0mm, depending on the application. Thicker walls are used for higher pressure or structural needs, while thinner walls are suitable for lighter-duty uses[4][5].
Wall thickness directly impacts the tube's ability to withstand internal pressure. Thicker walls increase the pressure rating, making the tube safer and more durable under high-pressure conditions[9].
Yes, many manufacturers offer custom stainless steel tube dimensions, including specific wall thicknesses, to meet unique application requirements. This customization ensures optimal performance and fit[1][6].
Common standards include ASTM A213, ASTM A269, ISO, ANSI, and ASME, which specify dimensions, tolerances, and material properties to ensure quality and safety[5][7].
Wall thickness can be measured using calipers for OD and ID, then calculating the difference divided by two. For more precision, ultrasonic thickness gauges are used, especially in industrial inspections[5].
