Welded stainless steel tube fittings are essential components in many industrial, commercial, and sanitary piping systems. Their durability, corrosion resistance, and ability to withstand high pressure make them a preferred choice in sectors such as food processing, pharmaceuticals, chemical manufacturing, and petrochemical industries. This comprehensive article explores the various sizes in which welded stainless steel tube fittings come, their types, materials, and installation tips, accompanied by visual aids and videos to enhance understanding.

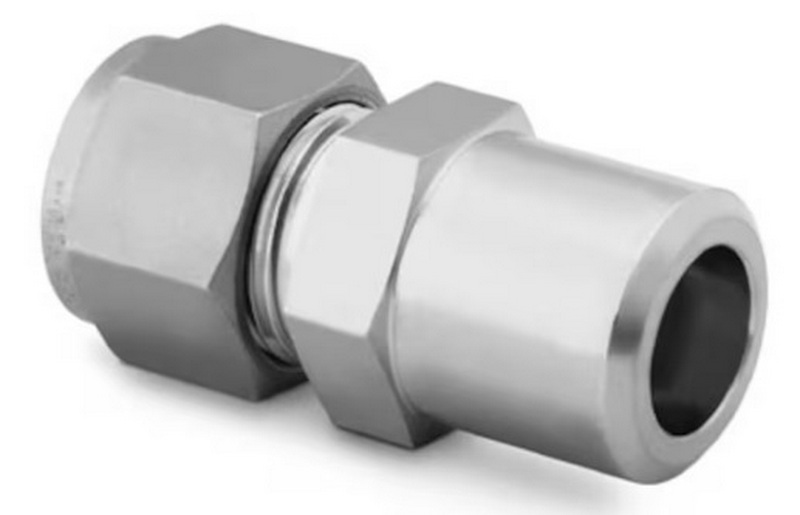

welded stainless steel tube fittings_2

Understanding Welded Stainless Steel Tube Fittings

Welded stainless steel tube fittings are designed to connect, redirect, or terminate stainless steel tubes in piping systems. Unlike threaded or flanged fittings, these fittings are permanently joined to pipes or tubes through welding, ensuring a leak-proof and robust connection. They are typically measured by the outside diameter (OD) of the tube they fit onto, and come in a variety of shapes such as elbows, tees, reducers, caps, and crosses.

Common Materials and Grades

The most common stainless steel grades used for welded tube fittings are:

- 304 Stainless Steel: Offers excellent corrosion resistance and is widely used for general applications.

- 316 Stainless Steel: Provides superior corrosion resistance, especially in chloride-rich environments.

- 316L Stainless Steel: A low carbon version of 316, ideal for welding applications to prevent carbide precipitation.

- 321 Stainless Steel: Stabilized with titanium, offering good mechanical properties and resistance to intergranular corrosion.

These materials ensure that the fittings can withstand harsh environments, high temperatures, and pressures while maintaining structural integrity.

Sizes of Welded Stainless Steel Tube Fittings

Nominal Tube Sizes

Welded stainless steel tube fittings are manufactured to fit tubes ranging from very small diameters to large industrial sizes. The most common nominal tube sizes available are:

- Imperial Sizes: From 1/2 inch to 8 inches OD, commonly used in North America and other regions following imperial measurement standards.

- Metric Sizes: From 6mm OD up to 250mm OD or more, catering to international and European standards.

Wall Thickness

Wall thickness varies depending on the size and schedule of the tube:

- For smaller sizes (1/2" to 3"), typical wall thickness is around 0.065 inches (16 gauge).

- For 4" sizes, wall thickness is about 0.083 inches (14 gauge).

- For 6" and 8" sizes, wall thickness increases to approximately 0.109 inches (12 gauge).

In metric sizes, wall thickness can range from 0.5mm to 6mm depending on the application and tube size.

Detailed Size Range Examples

Size Range (Imperial) Outside Diameter (OD) Wall Thickness (inches)
Small 1/2" to 3" 0.065 (16 ga)
Medium 4" 0.083 (14 ga)
Large 6" to 8" 0.109 (12 ga)
Size Range (Metric) Outside Diameter (OD) Wall Thickness (mm)
Small 6mm to 38mm 0.5mm to 4mm
Medium to Large 38mm to 250mm 1.5mm to 5mm

Types of Welded Stainless Steel Tube Fittings

Welded stainless steel tube fittings come in various types to fulfill different piping needs:

- Elbows: Available in 45°, 90°, and 180° bends, including long radius and short radius options.

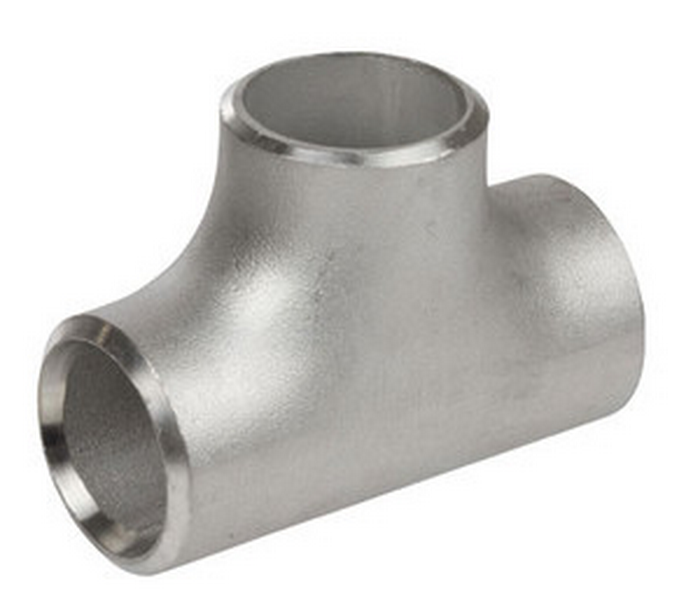

- Tees: Equal and reducing tees for branching pipelines.

- Reducers: Concentric and eccentric reducers for changing pipe diameters.

- Caps and End Discs: For sealing tube ends.

- Crosses and Y pieces: For complex piping junctions.

- Specialty fittings: Such as dome caps, hose tails, and sealing flanges for specific applications.

welded stainless steel tube fittings_3

Installation Tips for Welded Stainless Steel Tube Fittings

Proper installation is crucial for the longevity and performance of welded stainless steel tube fittings:

- Preparation: Clean the tube ends thoroughly to remove contaminants.

- Fit-Up: Ensure tight fit and alignment before welding.

- Welding Technique: Use TIG welding for precise, clean welds with minimal distortion.

- Cooling: Avoid prolonged welding times to prevent corrosion and cracking; cool welds quickly but carefully.

- Post-Weld Treatment: Heat treatment or annealing may be necessary for some grades to restore corrosion resistance.

Standards and Compliance

Welded stainless steel tube fittings conform to various industry standards to ensure quality and compatibility:

- ASTM A403: Standard specification for stainless steel pipe fittings.

- ANSI B16.9 and B16.28: Standards for dimensions and tolerances of butt weld fittings.

- 3A Sanitary Standards: For fittings used in hygienic applications.

Conclusion

Welded stainless steel tube fittings are versatile, durable, and available in a wide range of sizes to suit various industrial and sanitary applications. From small 1/2 inch tubes to large 8 inch or 250mm tubes, these fittings are manufactured in different grades like 304 and 316 to ensure corrosion resistance and mechanical strength. Proper welding techniques, adherence to standards, and careful installation are key to maximizing their performance and longevity. Whether for general piping systems or hygienic environments, welded stainless steel tube fittings provide reliable and high-quality connections essential for modern piping infrastructure.

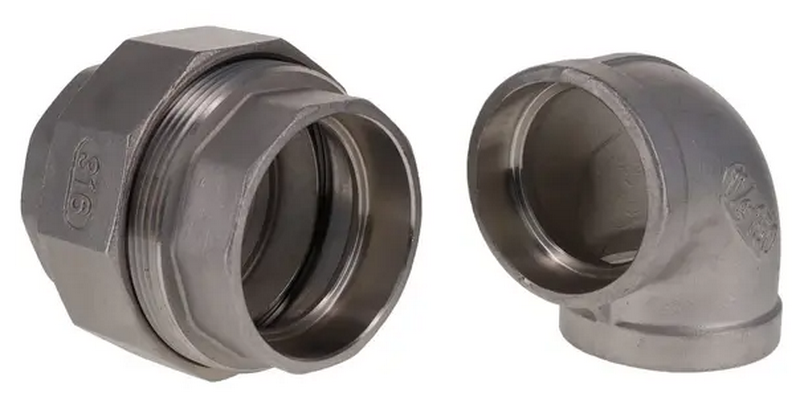

welded stainless steel tube fittings_1

Frequently Asked Questions (FAQs)

1. What are the common sizes available for welded stainless steel tube fittings?

Welded stainless steel tube fittings are commonly available in nominal tube sizes ranging from 1/2 inch to 8 inches in imperial sizes and 6mm to 250mm in metric sizes, with varying wall thicknesses depending on the application.

2. What materials are typically used for welded stainless steel tube fittings?

The most common materials are stainless steel grades 304, 316, 316L, and 321, chosen for their corrosion resistance and mechanical properties suitable for different environments.

3. How do I ensure a proper weld on stainless steel tube fittings?

Proper preparation, fit-up, and TIG welding techniques are essential. Avoid long welding times, use appropriate filler materials, and consider post-weld heat treatment to prevent corrosion and cracking.

4. Can welded stainless steel tube fittings be used in sanitary applications?

Yes, fittings made with polished finishes and conforming to 3A sanitary standards are widely used in food, pharmaceutical, and beverage industries for hygienic piping systems.

5. Are custom sizes available for welded stainless steel tube fittings?

Many manufacturers offer custom fabrication of welded stainless steel tube fittings to meet specific project requirements, including non-standard sizes and shapes.
