Stainless steel tube spacers are essential components widely used in mechanical assemblies, electronics, automotive, and architectural applications. They provide precise spacing between parts, ensuring proper alignment, insulation, and structural integrity. One of the key considerations when selecting stainless steel tube spacers is their size, which directly affects their suitability for different projects.

This comprehensive article explores the various sizes that stainless steel tube spacers come in, their specifications, and how to choose the right size for your needs. It also includes visual aids and videos to enhance understanding, followed by a detailed FAQ section.

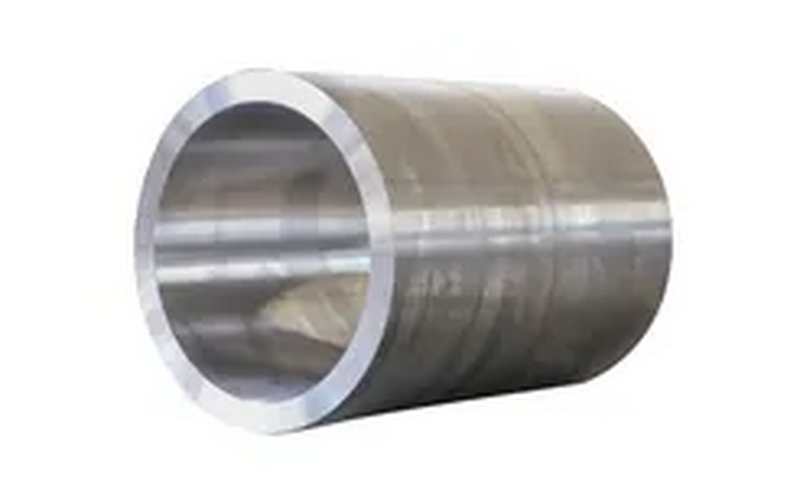

Stainless steel tube rings_3

Understanding Stainless Steel Tube Spacers

Before diving into the sizes, it's important to understand what stainless steel tube spacers are. They are hollow cylindrical components made from stainless steel tubing, designed to create a gap or space between two surfaces or components. Their hollow nature allows a bolt or screw to pass through while maintaining a fixed distance between parts.

Key Features:

- Corrosion resistance due to stainless steel material

- High strength and durability

- Aesthetic appeal for visible mounting solutions

- Available in various diameters and wall thicknesses

Common Sizes of Stainless Steel Tube Spacers

Stainless steel tube spacers come in a wide range of sizes to accommodate different applications. These sizes are typically defined by three main dimensions:

- Outer Diameter (O.D.)

- Inner Diameter (I.D.)

- Wall Thickness

Size Ranges

The sizes of stainless steel tube spacers are often categorized into ranges based on their outer diameters. Here are the typical size ranges available:

0.250 to 0.875 inches Outer Diameter

Outer Diameter (in) Inner Diameter (in) Wall Thickness (in)
0.250 0.180, 0.152, 0.134 0.035, 0.049, 0.058
0.312 0.243, 0.215, 0.197 0.035, 0.049, 0.058
0.375 0.305, 0.277, 0.259, 0.245 0.035, 0.049, 0.058, 0.065
0.438 0.368 0.035
0.500 0.260 to 0.444 0.028 to 0.120
0.625 0.375 to 0.555 0.035 to 0.125
0.750 0.500 to 0.680 0.035 to 0.125
0.840 0.546 to 0.674 0.083 to 0.147
0.875 0.745 to 0.805 0.035 to 0.065

1.000 to 1.900 inches Outer Diameter

Outer Diameter (in) Inner Diameter (in) Wall Thickness (in)
1.000 0.500 to 0.944 0.028 to 0.250
1.125 0.875 to 1.055 0.035 to 0.125
1.250 0.750 to 1.180 0.035 to 0.250
1.315 0.957 to 1.049 0.133 to 0.179
1.375 1.209 to 1.305 0.035 to 0.083
1.500 0.750 to 1.430 0.035 to 0.375
1.660 1.278 to 1.380 0.140 to 0.191
1.750 1.000 to 1.375 0.188 to 0.375
1.900 1.500 to 1.770 0.065 to 0.200

These sizes cover most industrial and commercial applications requiring stainless steel tube spacers.

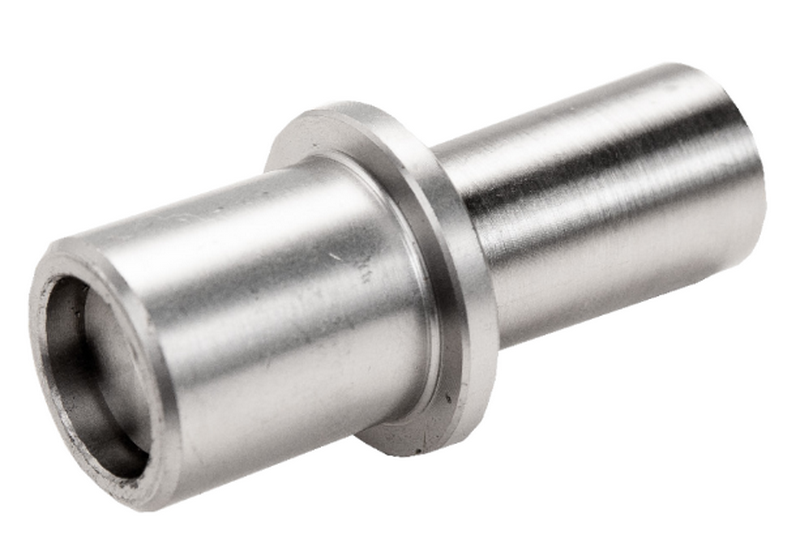

Stainless Steel Tube Plugs_3

Material and Finish Considerations

While size is important, the material grade and finish of stainless steel tube spacers also play a crucial role. Common stainless steel grades include 304 and 316, with 316 offering superior corrosion resistance, especially in marine or chemical environments.

The finish can be brushed, polished, or passivated to enhance corrosion resistance and appearance, which is critical for visible mounting applications.

Applications and How Size Affects Performance

Choosing the right size of stainless steel tube spacer depends on the application:

- Electronics: Smaller diameters and thinner walls for PCB mounting and insulation.

- Automotive: Medium to large diameters with thicker walls for structural spacing.

- Architectural: Larger diameters with polished finishes for aesthetic mounting of signs and panels.

- Mechanical Assemblies: Sizes vary widely depending on load and clearance requirements.

The wall thickness affects the spacer's strength and compression resistance. Thicker walls provide more durability but add weight and cost.

How to Select the Right Size Stainless Steel Tube Spacer

When selecting stainless steel tube spacers, consider the following:

- Outer Diameter: Must fit the clearance hole or mounting space.

- Inner Diameter: Should accommodate the bolt or screw size with some clearance.

- Wall Thickness: Depends on the load and strength requirements.

- Length: Defines the spacing distance needed between components.

- Material Grade: Choose 304 for general use, 316 for high corrosion resistance.

- Finish: For visible applications, polished or brushed finishes are preferable.

Examples of Standard Stainless Steel Tube Spacer Sizes Available for Purchase

Size Category Typical Outer Diameter Range Typical Length Range Common Wall Thickness
Small 0.250" – 0.500" 0.25" – 2.0" 0.028" – 0.065"
Medium 0.500" – 1.000" 0.5" – 4.0" 0.035" – 0.125"
Large 1.000" – 2.000" 1.0" – 6.0" 0.065" – 0.250"

Installation Tips for Stainless Steel Tube Spacers

- Ensure the spacer length matches the required gap.

- Verify the inner diameter fits the fastener shaft snugly but allows easy insertion.

- Use appropriate corrosion-resistant screws or bolts.

- For visible applications, consider spacers with screwable heads or decorative caps.

- Multiple spacers can be used in parallel to increase load capacity.

Conclusion

Stainless steel tube spacers come in a broad spectrum of sizes, typically ranging from 0.250 inches to nearly 2 inches in outer diameter, with varying inner diameters and wall thicknesses to suit diverse industrial, mechanical, and architectural needs. Their material properties, including corrosion resistance and strength, make them ideal for applications requiring durability and aesthetic appeal.

When selecting stainless steel tube spacers, it is crucial to consider the exact dimensions needed for your assembly, the load requirements, and the environmental conditions. With the right size and material grade, stainless steel tube spacers provide reliable, long-lasting performance.

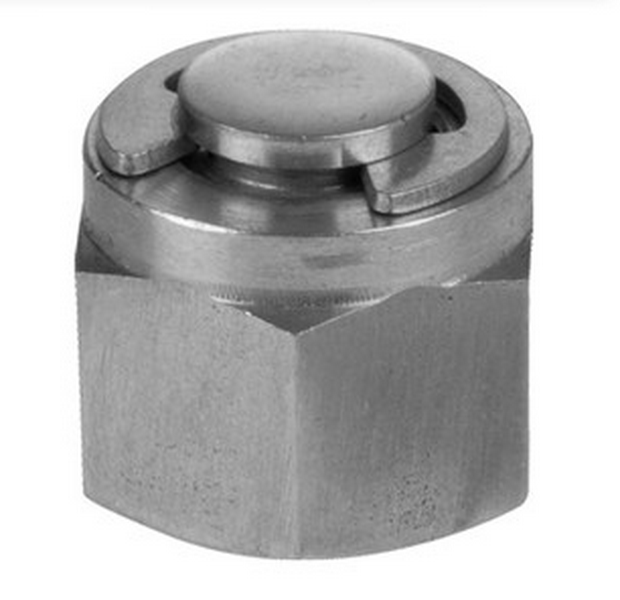

Heat Exchanger Tube Plugs_2

Frequently Asked Questions (FAQ)

1. What is the most common size range for stainless steel tube spacers?

The most common sizes range from 0.250 inches to 1.900 inches in outer diameter, with various inner diameters and wall thicknesses tailored to specific applications.

2. Can stainless steel tube spacers be custom-sized?

Yes, many manufacturers offer custom sizing options to meet specific length, diameter, and wall thickness requirements.

3. What determines the wall thickness of a stainless steel tube spacer?

Wall thickness is determined by the load the spacer needs to support and the desired strength and durability.

4. Are stainless steel tube spacers suitable for outdoor use?

Absolutely. Stainless steel spacers, especially grade 316, provide excellent corrosion resistance and are ideal for outdoor and marine environments.

5. How do I choose between stainless steel and aluminum spacers?

Choose stainless steel for higher strength, corrosion resistance, and aesthetic appeal; aluminum is lighter and more cost-effective but less durable in harsh environments.
