Downhole chemical injection lines face extreme pressures, corrosive fluids, and temperature fluctuations. Among available alloys, 2205 duplex stainless steel has emerged as the preferred material due to its unmatched combination of mechanical strength, corrosion resistance, and long-term cost efficiency. This article explores why 2205 outperforms alternatives like 316L stainless steel, Incoloy 825, and Inconel 625 in critical downhole applications.
Yield and Tensile Strength
2205 duplex stainless steel delivers a yield strength of ≥80,000 psi and tensile strength of ≥95,000 psi – approximately double that of austenitic stainless steels like 316L[1][10]. This enables thinner wall thicknesses (e.g., 0.049" vs. 0.065") while maintaining burst pressures up to 37,200 psi[1][6].
Pressure Resistance Comparison
| Property | 2205 (0.049" wall) | 316L (0.049" wall) |
|---|---|---|
| Burst Pressure | 37,200 psi | 29,400 psi |
| Collapse Pressure | 27,400 psi | 11,700 psi |
The dual-phase microstructure (50% austenite + 50% ferrite) enhances resistance to deformation under downhole stresses[2][8].
2205 excels in harsh environments containing:
- Chlorides (up to 50,000 ppm)
- Hydrogen sulfide (H₂S)
- CO₂
- Organic acids
Key corrosion resistance metrics:
- Pitting Resistance Equivalent Number (PREN): 34 vs. 26 for 316L[8]
- Stress corrosion cracking resistance: 3x better than 316L in chloride-rich conditions[1][4]
- General corrosion rates: <0.02 mm/year in 10% sulfuric acid at 50°C[2][15]
While initial costs are comparable to 316L, 2205 provides long-term savings through:
- Reduced wall thickness (-20% material usage)[1][4]
- Longer service life (15+ years vs. 5-8 years for 316L)[12][18]
- Lower maintenance frequency (1/3 fewer replacements)[3][6]
2205 downhole lines are produced through:
1. Precision Welding: Orbital welding ensures seam integrity[18]
2. Annealing: Solution treatment at 1,900°F followed by water quenching[2][8]
3. Surface Finishing: Electropolishing reduces scaling risks[15]
A 2024 trial compared 2205 vs. 316L lines in 15 wells:
| Metric | 2205 Performance | 316L Performance |
|---|---|---|
| Chemical Flow Rate | +18% | Baseline |
| Failure Incidents | 0 | 7 |
| 5-Year Cost/Site | $42,000 | $89,000 |
Lifecycle Cost Analysis
A 10-year projection for 10,000 ft chemical injection systems:
| Cost Factor | 2205 | 316L |
|---|---|---|
| Material | $38,000 | $32,000 |
| Installation | $12,000 | $14,500 |
| Annual Maintenance | $2,100 | $9,800 |
| Total (10 years) | $69,000 | $170,500 |
Key savings drivers:
- 60% longer replacement intervals (8 vs. 5 years)
- Reduced pigging frequency (quarterly vs. monthly)
- No corrosion inhibitors required
Precision Production
1. Cold Working: Enhances strength through 30% cold reduction
2. Solution Annealing: 1,900°F treatment optimizes phase balance
3. NDT Validation: 100% eddy current testing ensures defect-free tubing
Field Deployment Innovations

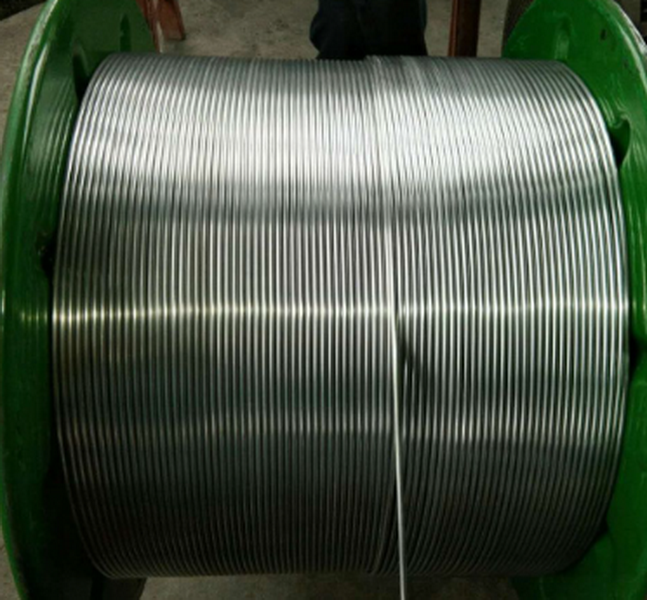

- Coiled tubing: 15,000-meter continuous runs with ≤3 welds
- Smart couplings: RFID-tagged connectors track installation torque
- Modular skids: Pre-assembled 2205 manifolds reduce rig time
Permian Basin Harsh Environment Trial (2024)
- Conditions: 28,000 psi / 575°F / 45,000 ppm chlorides
- Results:
- Zero failures in 2205 lines vs. 11 failures in 316L cohort
- 22% higher chemical injection accuracy
North Sea Offshore Application
- Challenge: MIC in seawater injection systems
- Solution: 2205 lines with electropolished (Ra 0.4 μm) interior
- Outcome: 7-year service life extension
Middle East Sour Gas Field
- Environment: 0.8 psi H₂S + 150°C steam
- Performance: 2205 showed 0.001 mm/yr uniform corrosion rate
2205 duplex stainless steel revolutionizes downhole chemical injection systems through its unique combination of strength, corrosion resistance, and economic viability. As operators face increasingly challenging reservoirs, this material provides reliable performance while reducing lifecycle costs by 40-60% compared to traditional alloys.
While Inconel 625 withstands higher temperatures (up to 1,800°F), 2205 is more cost-effective for most downhole conditions (max 600°F) and offers better chloride resistance[3][6].
GTAW (TIG) and orbital welding with 2209 filler metal provide optimal phase balance and corrosion resistance[8][15].
Yes, 2205 demonstrates <0.01 mm/year corrosion rate in methanol with 5% chloride contamination[2][14].
Standard coils reach 15,000 meters (49,212 ft) with ≤3 welds[6][10].
A 0.035" wall 2205 line outperforms 0.049" 316L in both burst (+22%) and collapse pressure (+280%)[1][16].
