Understanding the weight limit of a 1/32 stainless steel cable is crucial for ensuring safety and performance in various applications. This comprehensive article explores the specifications, strength, construction, and practical uses of 1/32 stainless steel cable, along with installation tips, maintenance advice, and answers to frequently asked questions. Throughout the article, the keyword "1 32 stainless steel cable" will be emphasized to help readers grasp the importance and capabilities of this cable size.

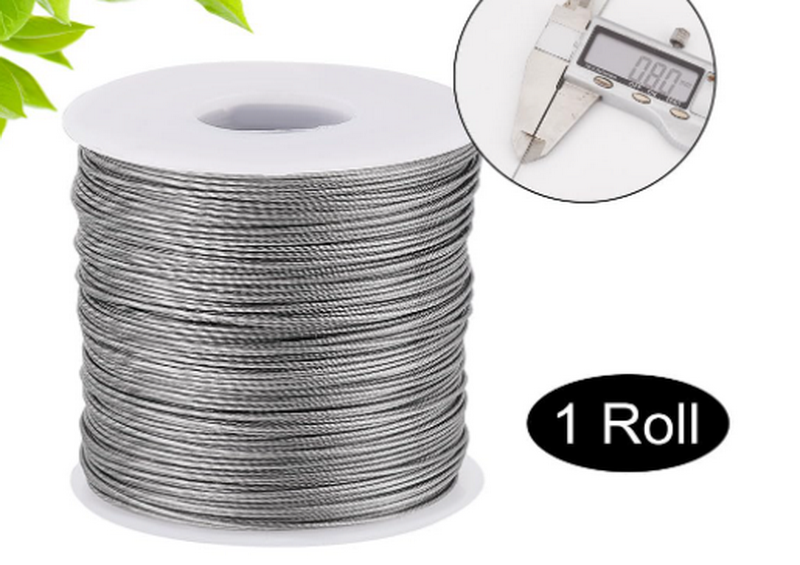

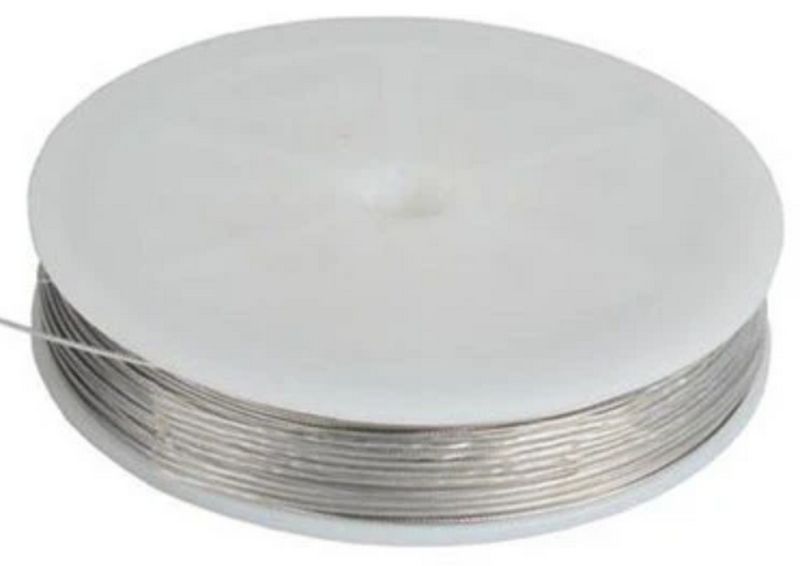

1/32 stainless steel cable refers to a cable with a diameter of one thirty-second of an inch (approximately 0.03125 inches or 0.8 mm). This cable is made from stainless steel, typically grades 304 or 316, known for their corrosion resistance, strength, and durability. The cable is composed of multiple strands of fine stainless steel wires twisted together to form a flexible yet strong rope.
The 1 32 stainless steel cable is commonly available in different strand constructions, such as 7x7 and 1x19 configurations:
- 7x7 Construction: Consists of 7 strands with 7 wires each, offering a balance between flexibility and strength. This construction is often used in applications requiring moderate flexibility.
- 1x19 Construction: Comprises a single strand with 19 wires, providing higher strength but less flexibility, ideal for applications where rigidity and load capacity are priorities.
The stainless steel grades used are usually:
- 304 Stainless Steel: Offers excellent corrosion resistance and tensile strength, suitable for most general-purpose applications.
- 316 Stainless Steel: Contains molybdenum for enhanced corrosion resistance, especially in marine or chemical environments.
The breaking strength is the maximum load the cable can withstand before failure. For 1 32 stainless steel cable, the breaking strength varies depending on the construction and grade:
- A 1/32 inch, 7x7 stainless steel cable (grade 304) typically has a minimum breaking strength of around 115 pounds (52 kg).
- The working load limit (WLL), which is the safe maximum load for regular use, is usually set with a safety factor of 5:1 or 10:1, reducing the WLL to about 11.5 to 23 pounds (5.2 to 10.4 kg) depending on the application and manufacturer recommendations.
The working load limit is the recommended maximum load for safe operation. For a 1 32 stainless steel cable:
- The WLL is generally about 20 to 30 pounds (9 to 14 kg) for commercial-grade cables.
- It is critical never to use the cable at its breaking strength; a safety factor is always applied to ensure durability and safety.
- For overhead or critical lifting applications, a 10:1 safety factor is recommended.
- For assemblies where end fittings or terminations are used, the effective strength may be reduced, so a 5:1 safety factor is often applied to the assembly strength.
These safety margins ensure that the cable performs reliably under expected loads without risk of sudden failure.
| Specification | 1/32 Stainless Steel Cable (7x7, Grade 304) |
|---|---|
| Diameter | 1/32 inch (0.03125 inch / 0.8 mm) |
| Minimum Breaking Strength | 115 pounds (52 kg) |
| Working Load Limit (WLL) | 20-30 pounds (9-14 kg) |
| Weight per 1000 ft | Approximately 2.2 lbs (1 kg) |
| Construction Types | 7x7, 1x19 |
| Stainless Steel Grades | 304, 316 |
| Safety Factor (Recommended) | 5:1 to 10:1 |
Due to its small diameter and considerable strength, 1 32 stainless steel cable is used in a variety of applications:
- Control cables in aircraft and machinery where precision and strength are necessary.
- Architectural uses, such as railing infills and balustrades, providing safety without obstructing views.
- Hanging lightweight signs or decorations.
- DIY projects requiring strong, corrosion-resistant cable.
- Fishing and marine applications where corrosion resistance is vital.
- Medical devices and equipment due to 304 stainless steel's antibacterial and non-magnetic properties.
Cutting such fine stainless steel cable requires precision tools:
- Mechanical cutters designed for steel cable.
- Fuse cutting to prevent fraying.
- Hand cutting with specialized cable cutters.
A detailed demonstration of cutting methods can be found in instructional videos that show mechanical, fuse, and hand cutting techniques to ensure clean and safe cuts.
Proper termination is essential for maintaining cable strength:
- Use of aluminum, copper, or stainless steel sleeves to form secure loops.
- Swaging (crimping) sleeves with appropriate tools to avoid weakening the cable.
- Heat shrink tubing or electrical tape can be used to cover loose ends and prevent fraying.
Installing 1 32 stainless steel cable on railings involves:
- Marking anchor points accurately.
- Inserting blind rivet nuts for secure attachment.
- Using threaded swivel connectors and pre-swaged wires to maintain tension and alignment.
- Regular inspection for signs of wear, corrosion, or fraying.
- Avoid exceeding the working load limit.
- Clean with mild detergent and water to remove corrosive elements.
- Lubrication is generally not required for stainless steel cables but may be applied for specific applications.
The 1 32 stainless steel cable is a versatile, strong, and corrosion-resistant cable ideal for a variety of light-duty applications. With a breaking strength of approximately 115 pounds and a recommended working load limit of 20 to 30 pounds, it offers a safe and reliable option when used within its limits. Understanding the differences in stainless steel grades, cable constructions, and proper installation techniques ensures optimal performance and longevity. Whether used in architectural projects, control systems, or marine environments, the 1 32 stainless steel cable balances strength and flexibility, making it an essential component in many industries.
The safe working load limit for a 1/32 stainless steel cable is typically around 20 to 30 pounds, depending on construction and safety factors applied. It should never be used at its breaking strength of approximately 115 pounds.
304 stainless steel offers excellent corrosion resistance and strength suitable for most applications, while 316 stainless steel includes molybdenum, providing superior corrosion resistance, especially in marine or chemical environments.
Use mechanical cable cutters, fuse cutting, or specialized hand cutters designed for steel cable. Fuse cutting melts the ends to prevent fraying, while mechanical cutters provide clean cuts.
Generally, 1/32 stainless steel cable is not recommended for overhead lifting unless designed and tested by professionals with appropriate safety factors, as the small diameter limits its load capacity.
Regular inspection, cleaning with mild detergents, avoiding overload, and proper storage in dry conditions will help maintain cable integrity and extend its service life.
