Stainless steel tubes are essential components in many industries, including construction, automotive, aerospace, and food processing, due to their durability, corrosion resistance, and strength. One of the critical parameters in selecting the right stainless steel tube is its wall thickness. The stainless steel tube wall thickness chart serves as a crucial reference for engineers, designers, and buyers to ensure that the tubing meets the required specifications for safety, performance, and longevity.

This comprehensive article explores the standard stainless steel tube wall thickness chart, its significance, how to interpret it, and the various standards governing these dimensions. We will also discuss the impact of wall thickness on tube performance and provide visual aids and videos to enhance understanding.

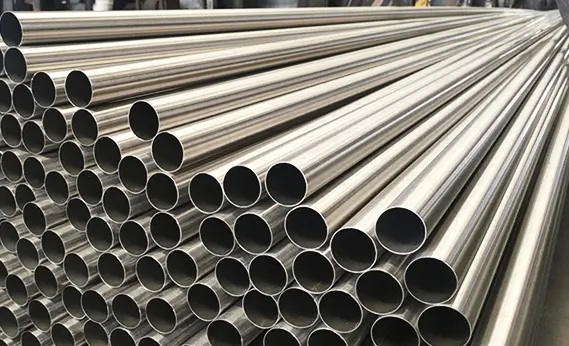

Stainless Steel Tubing Specs

Understanding Stainless Steel Tube Wall Thickness

Wall thickness refers to the measurement of the tube's wall from the outer surface to the inner surface. It plays a vital role in determining the tube's structural integrity, pressure handling capability, and weight.

- Thicker walls generally provide greater strength and pressure resistance but add weight and cost.

- Thinner walls reduce weight and material costs but may not withstand high pressures or heavy loads.

The internal diameter (ID) of a tube is directly affected by the wall thickness and is calculated by subtracting twice the wall thickness from the outer diameter (OD):

ID=OD−2×Wall Thickness

This relationship is crucial for applications requiring fluid flow or wiring through the tube.

Standard Stainless Steel Tube Wall Thickness Chart Overview

The stainless steel tube wall thickness chart lists nominal outside diameters (OD) alongside standard wall thicknesses and other related data such as weight per unit length and inside diameter. These charts are standardized according to various industrial specifications and pipe schedules.

Common Wall Thickness Standards and Schedules

- Various industrial standards define seamless and welded stainless steel pipes.

- Pipe schedules commonly include 5S, 10S, 40S (standard), 80S (extra strong), and others.

The wall thickness varies by pipe schedule. For example, a 1/4 inch stainless steel tube can have wall thicknesses ranging from 0.028 inches (thin) up to 0.119 inches (extra strong) depending on the schedule.

Detailed Stainless Steel Tube Wall Thickness Chart Example

Nominal Pipe Size (NPS) Outside Diameter (inches) Wall Thickness (inches) for Schedule 10S Wall Thickness (inches) for Schedule 40S Wall Thickness (inches) for Schedule 80S
1/8 0.405 0.035 0.068 0.095
1/4 0.540 0.049 0.088 0.119
1/2 0.840 0.065 0.109 0.147
3/4 1.050 0.065 0.113 0.154
1 1.315 0.065 0.133 0.179
2 2.375 0.083 0.154 0.218
3 3.500 0.083 0.216 0.300
4 4.500 0.083 0.237 0.337

This table illustrates typical wall thicknesses for various pipe schedules, which correspond to different pressure ratings and applications. The stainless steel tube wall thickness chart helps select the appropriate schedule based on the application's pressure and mechanical requirements.

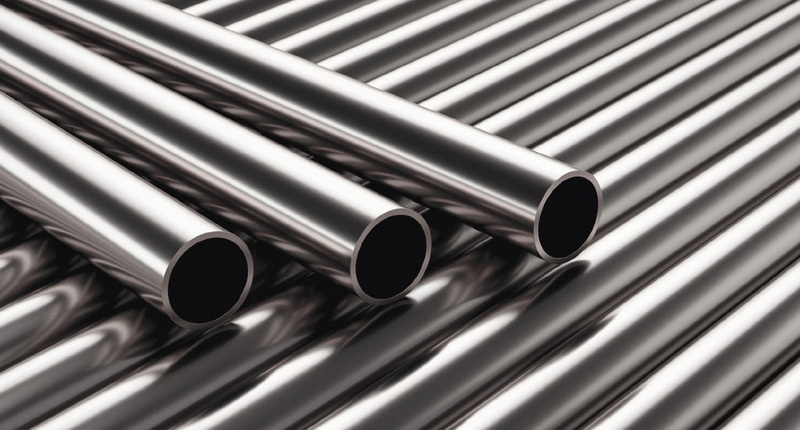

Steel Tube Wall Measurement

How to Read and Use the Stainless Steel Tube Wall Thickness Chart

1. Identify the Nominal Pipe Size (NPS): This is the approximate inside diameter of the tube.

2. Check the Outside Diameter (OD): The actual outside measurement of the tube.

3. Select the Pipe Schedule: This determines the wall thickness and pressure rating.

4. Find the Wall Thickness: Corresponding to the chosen schedule and size.

5. Calculate the Inside Diameter (ID): Using the formula ID=OD−2×Wall Thickness.

This process ensures the tube selected meets the mechanical and flow requirements of the application.

Wall Thickness Tolerances and Manufacturing Standards

Wall thickness is not always uniform throughout the tube due to manufacturing processes. Acceptable tolerances generally include:

- Variations of ±10% in wall thickness.

- Control of uneven wall thickness to not exceed 80% of the tolerance.

These tolerances ensure the tube's performance and safety in service.

Impact of Wall Thickness on Tube Performance

- Strength and Pressure Resistance: Thicker walls withstand higher internal pressures and external forces.

- Weight: Increased wall thickness adds weight, affecting handling and cost.

- Corrosion Resistance: While stainless steel is corrosion resistant, thicker walls provide longer service life in harsh environments.

- Flow Capacity: Thicker walls reduce internal diameter, impacting fluid flow rates.

Choosing the right wall thickness balances these factors for optimal performance.

Common Stainless Steel Tube Wall Thicknesses by Application

- Structural Applications: Use thicker walls (e.g., 1.6mm to 3mm) for strength and durability.

- Hydraulic and Fluid Transport: Moderate thickness (1.2mm to 2mm) to handle pressure while maintaining flow.

- Light Duty and Decorative: Thinner walls (0.5mm to 1mm) for weight savings and aesthetics.

Manufacturers often offer custom wall thicknesses to meet unique requirements.

Stainless Steel Tube Wall Thickness Chart in Metric Units

Outer Diameter (mm) Wall Thickness (mm) Weight (kg/m)
6 0.5 - 1.6 0.069 - 0.176
10 0.5 - 1.6 0.119 - 0.336
15 0.5 - 1.6 0.192 - 0.571
25 0.5 - 2.6 0.306 - 1.456
38 1.0 - 3.6 1.104 - 3.096
50 1.6 - 3.6 1.488 - 4.248

This chart helps metric users select appropriate wall thicknesses based on tube diameter and weight requirements.

Manufacturing Process and Its Effect on Wall Thickness

Stainless steel tubes can be seamless or welded:

- Seamless Tubes: Manufactured by extrusion or rotary piercing; tend to have more uniform wall thickness.

- Welded Tubes: Made by rolling and welding; may have slight variations near the weld seam.

Advanced manufacturing processes like cold drawing, heat treatment, and pickling improve dimensional accuracy and surface finish.

Conclusion

The stainless steel tube wall thickness chart is a fundamental tool for selecting the right tube for any application. Understanding the relationship between nominal pipe size, outside diameter, wall thickness, and pipe schedule ensures safety, performance, and cost-effectiveness. Adhering to industry standards guarantees dimensional accuracy and quality. Whether for structural support, fluid transport, or specialized industrial uses, knowing how to read and apply the wall thickness chart is essential for engineers and buyers alike.

By combining standardized charts, manufacturing knowledge, and practical calculations, professionals can confidently choose stainless steel tubes that meet rigorous demands and provide long-lasting service.

stainless steel tube_2

Frequently Asked Questions (FAQs)

1. What is the difference between stainless steel pipe schedules and wall thickness?

Pipe schedules define the wall thickness for a given nominal pipe size. Higher schedules (e.g., 80S) have thicker walls than lower schedules (e.g., 10S), affecting pressure rating and weight.

2. How do I calculate the internal diameter of a stainless steel tube?

Use the formula:

ID=OD−2×Wall Thickness

This subtracts the wall thickness from both sides of the outer diameter.

3. What are the common tolerances for stainless steel tube wall thickness?

Typical tolerances are ±10% of the nominal wall thickness, but this varies by manufacturing process.

4. Can stainless steel tube wall thickness be customized?

Yes, many manufacturers offer custom wall thicknesses to meet specific application needs, ensuring optimal performance and fit.

5. How does wall thickness affect the strength of stainless steel tubes?

Thicker walls increase the tube's ability to withstand pressure, bending, and external forces, enhancing structural strength and durability.
