Stainless steel tubes are essential components used in a wide array of industries including construction, automotive, aerospace, chemical processing, and food manufacturing. Understanding the stainless steel tube size chart is crucial for selecting the right tube for specific applications, ensuring compatibility, strength, and durability. This comprehensive guide will explore the standard stainless steel tube sizes, dimensions, and related technical details to help you make informed decisions.

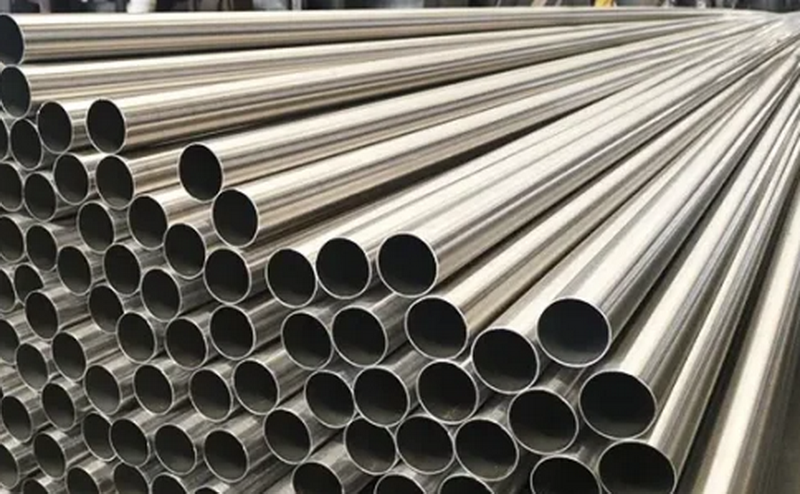

stainless steel tube_3

Understanding Stainless Steel Tube Dimensions

When discussing stainless steel tubes, the key dimensions to consider are:

- Outside Diameter (OD): The total diameter of the tube measured from the outer edges.

- Inside Diameter (ID): The diameter of the hollow section inside the tube.

- Wall Thickness: The thickness of the tube material, calculated as the difference between the OD and ID divided by two.

These three measurements collectively determine the tube's strength, weight, flow capacity (for fluid transport), and compatibility with fittings and connectors.

Why These Dimensions Matter

- OD is critical for ensuring the tube fits correctly with other components.

- ID affects the volume capacity inside the tube, which is important for fluid or gas flow.

- Wall Thickness impacts the tube's pressure resistance and structural integrity.

Stainless steel tubes are often manufactured in various shapes including round, square, and rectangular, with round tubes being the most common for piping and structural applications.

Standard Stainless Steel Tube Size Chart Overview

The stainless steel tube size chart lists common tube sizes standardized across industries. These sizes are typically specified in inches and millimeters, covering outer diameters from very small precision tubing (around 0.84 inches or 21 mm) up to large structural tubes several inches in diameter.

Common Size Ranges

- Small Diameter Tubing: Outer diameters from 2 mm to 20 mm (0.08 to 0.79 inches), often used in instrumentation and precision applications.

- Medium Diameter Tubing: Outer diameters from 1/8 inch up to 4 inches, common in plumbing, automotive, and mechanical uses.

- Large Diameter Tubing: Sizes above 4 inches, used in heavy industrial and structural applications.

Wall Thickness and Gauge

Wall thickness varies widely depending on the tube's intended use. Standard gauges range from very thin walls (for lightweight applications) to thick walls (for high pressure or structural strength). For example, seamless stainless steel tubing can have wall thicknesses from 0.012 inches (0.3 mm) to over 0.25 inches (6.35 mm).

Detailed Stainless Steel Tube Size Chart Examples

Here is a simplified example of a stainless steel tube size chart showing common OD, wall thickness, and weight per meter:

Outside Diameter (inches) Wall Thickness (inches) Weight (kg/meter) Common Grades (304, 316)
1/8" 0.012 0.101 304/L, 316/L
1/4" 0.028 0.222 304/L, 316/L
1/2" 0.049 0.590 304/L, 316/L
3/4" 0.035 0.564 304/L, 316/L
1" 0.049 0.512 304/L, 316/L
2" 0.065 1.026 304/L, 316/L
4" 0.120 3.113 304/L, 316/L

This chart is a general reference; actual sizes and weights can vary slightly depending on manufacturing tolerances and standards[7][5].

Types of Stainless Steel Tubing

1. Seamless Tubing

Seamless stainless steel tubes are made without a welded seam, providing superior strength and corrosion resistance. These tubes are typically used in high-pressure and critical applications. Sizes range from 0.84 inches to 4 inches in diameter with various wall thicknesses[3][6].

2. Welded Tubing

Welded tubes are fabricated by rolling and welding stainless steel sheets or strips. They are generally more cost-effective and available in a wide range of sizes but may have slightly lower strength compared to seamless tubes.

3. Precision Tubing

Precision stainless steel tubing is manufactured with tight tolerances for applications requiring exact dimensions, such as instrumentation and medical devices.

Stainless Steel Tubes_3

Stainless Steel Grades and Their Impact on Tube Sizes

The most common stainless steel grades used for tubing are:

- 304 Stainless Steel: General-purpose grade with excellent corrosion resistance and formability.

- 316 Stainless Steel: Contains molybdenum for enhanced corrosion resistance, especially in marine environments.

- Other Grades: 321, 317L, and 410 are also used depending on specific requirements.

The grade affects the tube's mechanical properties but does not typically change the size chart. However, some grades may have different wall thickness recommendations for equivalent strength.

How to Read a Stainless Steel Tube Size Chart

When using a stainless steel tube size chart, follow these steps:

1. Identify the outer diameter (OD) required for your application.

2. Choose the appropriate wall thickness based on pressure, strength, and weight requirements.

3. Check the weight per meter if weight is a critical factor.

4. Confirm the material grade to ensure corrosion resistance and mechanical properties meet your needs.

5. Verify if the tube is seamless or welded, as this affects performance.

Applications of Stainless Steel Tubes Based on Size

- Small Diameter Tubes (under 1 inch): Used in instrumentation, medical devices, and automotive fuel lines.

- Medium Diameter Tubes (1 to 4 inches): Common in plumbing, HVAC systems, and food processing.

- Large Diameter Tubes (over 4 inches): Used in structural supports, industrial piping, and marine applications.

Customization and Special Shapes

Beyond standard round tubes, stainless steel tubes can be customized into:

- Square Tubes

- Rectangular Tubes

- Elliptical and Oval Tubes

These shapes are often used in architectural and decorative applications. Wall thickness and size charts for these shapes vary and should be consulted from manufacturer-specific data[1].

Conclusion

The stainless steel tube size chart is a fundamental tool for selecting the right tube for any application. Understanding the key dimensions-outside diameter, inside diameter, and wall thickness-along with material grade and tube type (seamless or welded), is essential for ensuring optimal performance and durability. Standard sizes cover a broad range from small precision tubes to large structural tubes, with customization options available for specialized needs. Utilizing charts and resources effectively can save time and cost while enhancing safety and functionality in your projects.

Stainless Steel Tube HS Code_2

Frequently Asked Questions (FAQs)

1. What are the standard dimensions included in a stainless steel tube size chart?

A stainless steel tube size chart typically includes the outside diameter (OD), wall thickness, inside diameter (ID), and weight per unit length. These dimensions help determine the tube's suitability for specific applications.

2. How does wall thickness affect stainless steel tube performance?

Wall thickness influences the tube's strength, pressure resistance, and weight. Thicker walls provide greater durability and can withstand higher pressures, while thinner walls reduce weight and cost.

3. What is the difference between seamless and welded stainless steel tubes?

Seamless tubes are manufactured without a weld seam, offering higher strength and corrosion resistance. Welded tubes have a seam and are generally less expensive but may have slightly lower mechanical properties.

4. Which stainless steel grades are commonly used for tubing?

Grades 304 and 316 are the most common, with 316 offering better corrosion resistance. Other grades like 321 and 410 are used for specialized applications.

5. Can stainless steel tubes be customized in size and shape?

Yes, stainless steel tubes can be customized in various diameters, wall thicknesses, and shapes such as square, rectangular, elliptical, or oval to meet specific application requirements.
