Bending stainless steel tubes is a critical process in various industries, including aerospace, automotive, and medical equipment manufacturing. The bend radius of a stainless steel tube is a crucial factor that determines the quality and functionality of the final product. In this article, we will delve into the standard stainless steel tube bend radius, the methods used for bending, and the factors that influence the bending process.

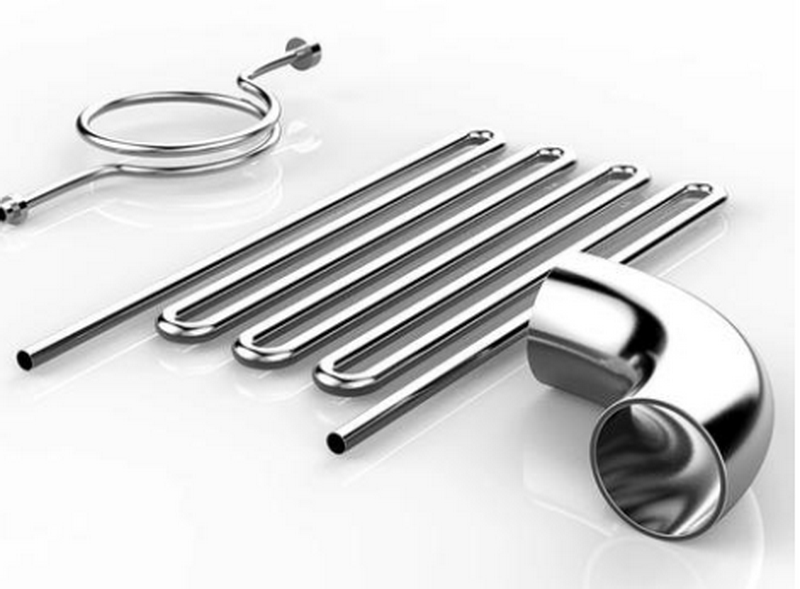

stainless steel tube coil factory_3

Introduction to Stainless Steel Tube Bending

Stainless steel tubes are widely used due to their corrosion resistance, durability, and versatility. However, bending these tubes requires careful consideration of several factors, including the material properties, tube geometry, and desired bend radius. The standard draw bend radius for stainless steel tubes is typically twice the outer diameter (OD) of the tube. For example, a tube with an OD of 20 mm would require a bend radius of 40 mm.

Bend Radii Guidelines

- Standard Draw Bend Radius: This is the most common guideline, where the bend radius is twice the outer diameter of the tube (2 x D). For instance, a tube with a 1-inch OD would have a standard bend radius of 2 inches[1][2].

- Tighter Bend Radii: While it is possible to achieve tighter bend radii, such as ½ x D, this often requires specialized tooling and techniques like mandrel bending. Tighter radii can be more expensive and may lead to issues like wall thinning or ovality[1][2].

- Video Example: For a detailed explanation of achieving tight bend radii, you can refer to videos on YouTube that demonstrate the use of mandrel bending for precise control over ovality and wall thinning.

- Minimum Roll Bending Radius: For roll bending, the minimum radius is typically seven times the outer diameter (7 x D). This method is suitable for larger radii and is less dependent on material properties compared to draw bending[1][2].

Bending Methods

Several methods are used for bending stainless steel tubes, each with its advantages and limitations:

1. Mandrel Bending:

This method involves inserting a mandrel into the tube to support the inner wall during bending. It is ideal for achieving tight radii with minimal ovality and is commonly used in high-precision applications[3][7].

2. Rotary Draw Bending:

This technique uses a rotating die to bend the tube. It is precise but may cause wall thinning, especially at tighter radii. It is suitable for applications requiring high accuracy without internal support[3][7].

Video Example: You can find detailed videos on YouTube explaining the rotary draw bending process and its applications.

3. Press Bending:

This method uses a press to bend the tube around a die. It is less common for stainless steel tubes but can be used for symmetrical workpieces with less critical roundness requirements[7].

4. Heat Induction Bending:

This involves heating the tube to make it more pliable, allowing for significant bends without cracking. It is particularly useful for heavy-wall and tight-radius bends in heavy industries[7].

stainless steel tube coil factory_4

Factors Affecting Bending

Several factors influence the bending process and the choice of bend radius:

- Material Properties: The grade and thickness of the stainless steel tube significantly impact the bending process. Higher grades and thicker tubes require more force and may be more prone to cracking or deformation[3].

- Tube Geometry and Dimensions: The diameter, wall thickness, and overall geometry of the tube influence the bending process. Tubes with smaller diameters or thinner walls are generally easier to bend than larger or thicker tubes[3].

- Bending Radius and Angle Requirements: The desired bend radius and angle dictate the bending method and machinery needed. Sharp bends or tight radii may require specialized equipment or mandrel bending to prevent tube distortion[3].

- Effects of Temperature and Pressure: In some cases, heat may be applied to the tube during bending to reduce its stiffness and improve formability. However, excessive heat can weaken the stainless steel and affect its corrosion resistance. Pressure can also be applied to help shape the tube, but care must be taken to avoid overloading the material[3].

Applications of Stainless Steel Tube Bending

Stainless steel tube bending is used in a wide range of applications due to its versatility and durability:

- Aerospace and Defense: High-precision bends are required for aircraft and defense equipment, where mandrel bending is often used to maintain structural integrity.

- Automotive: Bends are used in exhaust systems and fuel lines, where resistance to corrosion is crucial.

- Medical Equipment: Precision bends are necessary for medical devices, such as surgical instruments and hospital equipment.

Conclusion

In conclusion, the standard stainless steel tube bend radius is typically twice the outer diameter of the tube. However, achieving tighter radii requires specialized techniques and tooling. Understanding the bending methods, material properties, and factors influencing the bending process is crucial for producing high-quality products that meet specific application requirements.

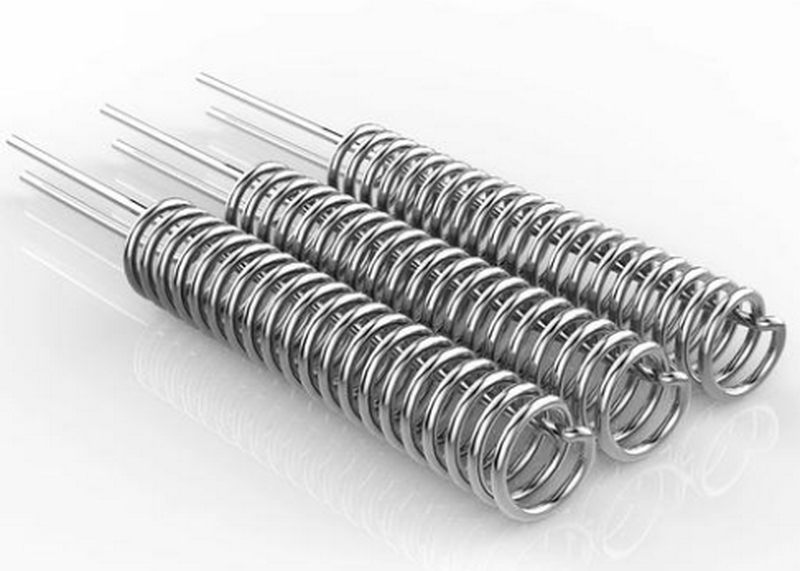

stainless steel tube coil factory_1

Frequently Asked Questions

1. What is the standard draw bend radius for stainless steel tubes?

The standard draw bend radius for stainless steel tubes is typically twice the outer diameter (OD) of the tube.

2. What method is best for achieving tight bend radii in stainless steel tubes?

Mandrel bending is the most reliable method for achieving tight bend radii with minimal ovality and wall thinning.

3. What is the minimum roll bending radius for stainless steel tubes?

The minimum roll bending radius is typically seven times the outer diameter (7 x D) of the tube.

4. How does material thickness affect the bending process?

Thicker tubes require more force during bending and may be more prone to cracking or deformation. Thinner tubes are generally easier to bend.

5. What are the common applications of stainless steel tube bending?

Stainless steel tube bending is commonly used in aerospace, automotive, medical equipment, and other industries where corrosion resistance and durability are essential.
