Stainless steel seamless capillary coil tubing is a vital component in various industries, prized for its precision, durability, and corrosion resistance[3][10]. These tubes, characterized by their small diameter and absence of a welded seam, are essential in applications ranging from medical devices to high-performance liquid chromatography (HPLC)[3][7]. Understanding the manufacturing process behind these tubes is crucial to appreciating their quality and performance. This article delves into the intricate steps involved in producing stainless steel seamless capillary coil tubing, highlighting the technology, materials, and quality control measures that ensure their reliability.

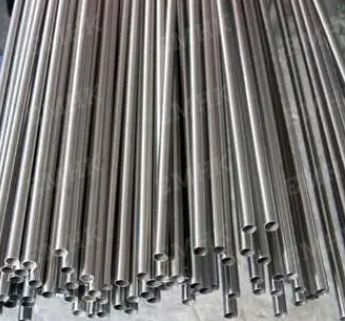

Stainless steel seamless capillary coil tubing refers to small-diameter tubes made from stainless steel without any welded joints[3]. The term "capillary" indicates the narrow bore, often used to control fluid flow precisely[3]. "Seamless" means the tubing is manufactured from a single piece of metal, offering uniform properties throughout its length[3]. Coiling refers to the ability of the tubing to be wound into a coil, which is useful for space-saving and flexibility in applications[3][10].
- Enhanced Strength: Absence of a weld seam eliminates a potential weak point, increasing the tube's ability to withstand high pressures and mechanical stresses[3].
- Corrosion Resistance: Uniform material composition ensures consistent resistance to corrosion across the entire tube, crucial for applications involving harsh chemicals or environments[3][10].
- Precise Dimensions: Seamless manufacturing allows for tighter control over inner and outer diameters, essential for accurate fluid flow and compatibility with fittings[7].
- Smooth Inner Surface: The lack of a weld bead results in a smoother internal surface, reducing friction and preventing blockages in fluid transfer applications[1].
- Medical Devices: Used in hypodermic needles, catheters, and other medical instruments requiring precision and biocompatibility[7].
- HPLC Systems: Employed in high-performance liquid chromatography for precise sample injection and separation[3].
- Instrumentation: Utilized in analytical instruments, pressure sensors, and control systems for accurate fluid or gas transfer[3].
- Aerospace Industry: Found in hydraulic and pneumatic systems where high reliability and corrosion resistance are critical[7].
- Oil and Gas Industry: Used for control lines, chemical injection, and sub-sea safety valves[3][10].
The choice of stainless steel alloy is a critical factor in the manufacturing process, directly impacting the tubing's properties and suitability for specific applications[7].
- 304/304L Stainless Steel: This is one of the most commonly used grades, known for its excellent corrosion resistance, good weldability, and formability. The "L" variant has lower carbon content, further enhancing weldability and resistance to sensitization.
- 316/316L Stainless Steel: This grade contains molybdenum, which significantly improves its resistance to chloride corrosion, making it ideal for marine and chemical processing applications. The 316L variant offers enhanced weldability.
- Other Stainless Steel Grades: Depending on specific requirements, other grades such as 321, 347, 430, and duplex stainless steels may be used. These offer varying degrees of strength, corrosion resistance, and high-temperature performance.
- ASTM A269: Standard specification for seamless and welded austenitic stainless steel tubing for general service.
- ASTM A213: Standard specification for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes.
- EN 10216-5: European standard for seamless steel tubes for pressure purposes – Technical delivery conditions – Part 5: Stainless steel tubes.
- Certifications: Reputable manufacturers provide material certifications that guarantee the stainless steel meets specific chemical composition and mechanical property requirements.
- Testing: Raw materials undergo rigorous testing, including chemical analysis, tensile testing, and hardness testing, to verify their compliance with industry standards.
- Traceability: Material traceability systems are implemented to track the origin and processing history of each batch of stainless steel, ensuring accountability and quality control.
The cold drawing method is a common technique for producing stainless steel seamless capillary coil tubing due to its ability to achieve tight tolerances and excellent surface finish[1].
1. Starting Material: The process typically starts with a hollow tube, also known as a "mother tube," produced by extrusion or gun drilling.
2. Cold Drawing: The mother tube is drawn through a series of dies, each smaller than the previous one. This reduces the tube's diameter and wall thickness while increasing its length.
3. Mandrel Usage: A mandrel (a solid bar) is often inserted inside the tube during drawing to control the inner diameter and prevent the tube from collapsing.
4. Inter-stage Annealing: Cold working increases the material's hardness and reduces its ductility. Inter-stage annealing (heating to a specific temperature followed by controlled cooling) is performed to restore the material's softness and allow further drawing.
5. Final Drawing: The final drawing steps achieve the desired dimensions and surface finish.
1. Tube Preparation: The mother tube is cleaned, lubricated, and pointed (end tapered) to facilitate entry into the drawing die.
2. Die Selection: Dies made of carbide or tool steel are selected based on the desired final dimensions.
3. Drawing Process: The tube is pulled through the die using a draw bench, which applies a controlled tensile force.
4. Mandrel Drawing (if applicable): If a mandrel is used, it is inserted into the tube before drawing, and both are pulled through the die simultaneously.
5. Lubrication: Effective lubrication is essential to reduce friction, prevent galling, and ensure a smooth surface finish.
6. Annealing: After several drawing passes, the tube is annealed to relieve internal stresses and restore ductility.
7. Pickling: After annealing, the tube may be pickled in an acid bath to remove any scale or surface contamination.
8. Final Inspection: The finished tube is inspected for dimensional accuracy, surface quality, and mechanical properties.
- Excellent dimensional control[7]
- Smooth surface finish[1]
- High strength and hardness
- Requires multiple drawing and annealing steps
- Can be more expensive than other methods
Hydraulic forming, also known as hydroforming, is another method used to manufacture stainless steel seamless capillary coil tubing[10]. This process uses hydraulic pressure to expand a tube blank inside a die cavity.
1. Tube Blank Preparation: A straight or pre-formed tube blank is placed inside a die.
2. Pressurization: The tube is filled with hydraulic fluid, and pressure is gradually increased.
3. Die Conformation: The hydraulic pressure forces the tube to expand and conform to the shape of the die cavity, creating the desired final shape and dimensions.
4. Extraction: Once the forming process is complete, the hydraulic pressure is released, and the formed tube is removed from the die.
1. Die Design and Manufacturing: The die is designed to the exact specifications of the desired tubing, including its inner and outer diameters.
2. Tube Blank Placement: The tube blank is carefully positioned inside the die cavity.
3. Sealing: The ends of the tube are sealed to prevent leakage of the hydraulic fluid.
4. Pressurization: Hydraulic fluid is pumped into the tube, and the pressure is gradually increased to the required level.
5. Monitoring: The forming process is closely monitored to ensure uniform expansion and prevent defects.
6. Pressure Release: Once the tube has fully conformed to the die, the hydraulic pressure is released.
7. Part Removal: The formed tube is removed from the die and inspected.
- Advantages:
- Ability to form complex shapes
- Good surface finish
- Reduced material thinning
- Disadvantages:
- High tooling costs
- Requires specialized equipment
- Can be slower than other methods
Extrusion is a process where a solid billet of stainless steel is forced through a die to create a hollow tube[5]. This method is particularly useful for producing long, continuous lengths of seamless tubing.
1. Billet Preparation: A solid billet of stainless steel is heated to a high temperature.
2. Extrusion: The heated billet is forced through a die using a powerful ram, creating a hollow tube.
3. Sizing: The extruded tube may undergo sizing operations to achieve the desired dimensions.
4. Cooling: The tube is cooled and straightened.
1. Billet Heating: The stainless steel billet is heated to a temperature suitable for extrusion, typically in the range of 1100-1300°C.
2. Die and Mandrel Preparation: The extrusion die and mandrel (which forms the inner diameter of the tube) are prepared and lubricated.
3. Extrusion Process: The heated billet is placed in the extrusion press, and the ram forces the material through the die and over the mandrel, creating a seamless tube.
4. Cooling and Straightening: The extruded tube is cooled rapidly to prevent oxidation and then straightened to ensure dimensional accuracy.
5. Surface Treatment: The tube may undergo surface treatments such as pickling or polishing to improve its finish and corrosion resistance.
- Advantages:
- Ability to produce long, continuous lengths of tubing
- Relatively high production rates
- Disadvantages:
- High initial tooling costs
- Limited to relatively simple shapes
- Requires high temperatures and pressures
Annealing and heat treatment are critical steps in the manufacturing process, influencing the mechanical properties and microstructure of the stainless steel seamless capillary coil tubing[1].
- Stress Relief: Cold working introduces internal stresses that can affect the tube's performance. Annealing relieves these stresses, improving ductility and reducing the risk of cracking.
- Microstructure Modification: Annealing can alter the microstructure of the stainless steel, enhancing its corrosion resistance and mechanical properties.
- Softening: Annealing softens the material, making it easier to bend, flare, or otherwise form.
1. Heating: The tubing is heated to a specific temperature range, typically between 1000°C and 1150°C for austenitic stainless steels.
2. Soaking: The tubing is held at this temperature for a specific time to allow the desired microstructural changes to occur.
3. Cooling: The tubing is cooled at a controlled rate, which can be either slow cooling in a furnace or rapid quenching in water or air.
- Solution Annealing: Used to dissolve carbides and other precipitates, improving corrosion resistance.
- Stabilization Annealing: Used to prevent sensitization (chromium depletion at grain boundaries) in stabilized stainless steels such as 321 and 347.
Surface treatment and polishing are performed to improve the appearance, corrosion resistance, and surface finish of the stainless steel seamless capillary coil tubing[1].
- Pickling: Immersion in an acid solution to remove scale, oxides, and other surface contaminants.
- Passivation: Treatment with nitric acid or other oxidizing agents to form a protective passive layer on the surface, enhancing corrosion resistance.
- Electropolishing: An electrochemical process that removes a thin layer of metal from the surface, resulting in a smooth, bright finish.
- Mechanical Polishing: Using abrasive wheels or belts to smooth and brighten the surface.
- Buffing: Using a soft cloth wheel and polishing compound to achieve a high-gloss finish.

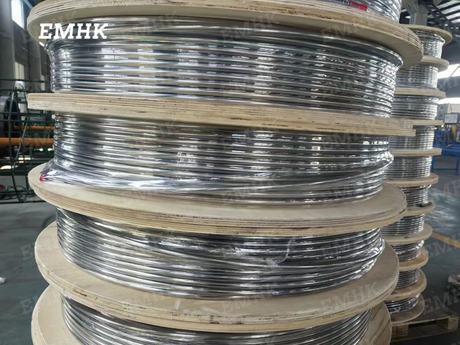

The final steps in the manufacturing process involve coiling the tubing to the required dimensions and cutting it to the desired length[3][10].
1. Setup: The annealed and polished tubing is fed into a coiling machine.
2. Winding: The machine winds the tubing around a mandrel or drum to create the coil.
3. Control: Tension and speed are carefully controlled to ensure uniform coiling and prevent kinking or deformation.
1. Measurement: The coiled tubing is measured to the desired length.
2. Cutting: Precise cutting tools, such as rotary cutters or laser cutters, are used to cut the tubing.
3. Deburring: The cut ends are deburred to remove any sharp edges or burrs.
Non-destructive testing methods are used to evaluate the integrity of the tubing without damaging it[1].
- Visual Inspection: A thorough visual inspection to identify surface defects, dimensional inaccuracies, and other imperfections.
- Eddy Current Testing: Used to detect surface and near-surface defects such as cracks, seams, and variations in wall thickness.
- Ultrasonic Testing: Used to detect internal defects such as voids, inclusions, and cracks.
- Hydrostatic Testing: The tubing is subjected to high internal pressure to verify its ability to withstand pressure without leaking or bursting.
Destructive testing involves subjecting samples of the tubing to various tests until failure to determine their mechanical properties and performance limits.
- Tensile Testing: Measures the tube's tensile strength, yield strength, and elongation.
- Hardness Testing: Measures the material's resistance to indentation.
- Flattening Test: The tube is flattened to a specified degree to assess its ductility and resistance to cracking.
- Flaring Test: The end of the tube is flared to a specified angle to assess its ductility and resistance to cracking.
- Corrosion Testing: The tube is exposed to corrosive environments to evaluate its corrosion resistance.
Precise dimensional verification is essential to ensure that the tubing meets the specified tolerances[7].
- Outer Diameter (OD): Measured using calipers or laser micrometers.
- Inner Diameter (ID): Measured using bore gauges or air gauges.
- Wall Thickness: Measured using ultrasonic thickness gauges or by destructive sectioning and microscopy.
- Length: Measured using calibrated measuring tapes or automated length measurement systems.
Cleanliness is a critical requirement for many applications, particularly in the medical and pharmaceutical industries[7].
- Visual Inspection: Using borescopes or video inspection systems to inspect the internal surface of the tubing for contaminants.
- Particle Counting: Analyzing the number and size of particles present on the surface or in a solvent rinse.
- Chemical Analysis: Using techniques such as gas chromatography-mass spectrometry (GC-MS) to identify and quantify any residual contaminants.
- Hypodermic Needles: For precise and painless injections[7].
- Catheters: For minimally invasive procedures[7].
- Implantable Devices: For drug delivery and monitoring[7].
- HPLC Systems: For sample injection and separation[3].
- Gas Chromatography (GC): For separating and analyzing volatile compounds[3].
- Mass Spectrometry (MS): For identifying and quantifying molecules[3].
- Hydraulic Systems: For controlling aircraft flight surfaces and landing gear[7].
- Pneumatic Systems: For operating various aircraft components[7].
- Fuel Lines: For delivering fuel to the engine[7].
- Control Lines: For controlling subsea valves and equipment[3][10].
- Chemical Injection: For injecting corrosion inhibitors and other chemicals[3][10].
- Instrumentation: For monitoring pressure, temperature, and flow[3][10].
- High-Performance Alloys: Development of new stainless steel alloys with improved strength, corrosion resistance, and high-temperature performance.
- Metal Matrix Composites: Use of composite materials to enhance the properties of stainless steel tubing.
- Automation: Increased automation of manufacturing processes to improve efficiency and reduce costs.
- Additive Manufacturing: Use of 3D printing techniques to create complex tubing geometries and customized designs.
- Surface Modification: Use of nanotechnology to modify the surface of stainless steel tubing, enhancing its corrosion resistance, biocompatibility, and other properties.
- Smart Tubing: Integration of nanosensors and other nanodevices into the tubing to monitor fluid flow, temperature, and other parameters.
The manufacturing of stainless steel seamless capillary coil tubing is a complex and precise process that requires careful control over materials, methods, and quality[1]. From raw material selection to final inspection, each step is critical to ensuring the tubing meets the stringent requirements of its diverse applications[3][7][10]. As technology advances, future trends promise to further enhance the properties and performance of these essential components, expanding their use in new and innovative ways.
Stainless steel offers excellent corrosion resistance, high strength, and good biocompatibility, making it ideal for various applications, including medical devices, analytical instrumentation, and aerospace systems[3][7][10].
Seamless construction eliminates weld seams, which are potential weak points. This results in enhanced strength, uniform corrosion resistance, and a smoother inner surface, crucial for precise fluid flow and high-pressure applications[1][3].
Quality control measures include non-destructive testing (NDT) methods such as visual inspection, eddy current testing, and ultrasonic testing, as well as destructive testing methods like tensile testing, hardness testing, and corrosion testing[1]. Dimensional verification and cleanliness inspections are also performed to ensure the tubing meets specified tolerances and cleanliness requirements[7].
Yes, stainless steel seamless capillary coil tubing can be customized in terms of dimensions, material grade, surface finish, and coiling configuration to meet the unique requirements of specific applications[7].
Future trends include the use of advanced materials, process optimization through automation and additive manufacturing, and the integration of nanotechnology for surface modification and smart tubing applications[3][7][10].
