Bending stainless steel tubes is a critical process in various industries, including automotive, aerospace, and construction. The ideal bending radius for stainless steel tubes depends on several factors, such as the tube's outer diameter, wall thickness, and the desired application. Understanding these factors is essential for achieving precise and high-quality bends.

Introduction to Stainless Steel Tube Bending

Stainless steel tubes are renowned for their strength, durability, and resistance to corrosion, making them ideal for applications where these properties are crucial. However, their rigidity and high tensile strength also present challenges during the bending process. To overcome these challenges, various bending techniques and tools are employed.

Common Bending Techniques

1. Mandrel Bending:

This method uses a mandrel inside the tube to maintain its roundness and prevent collapse during bending. It is ideal for tight radii and high-precision applications.

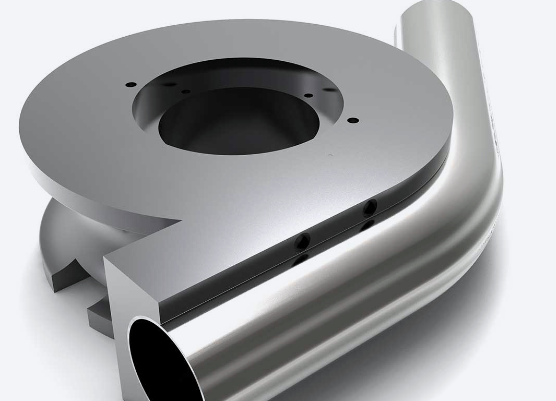

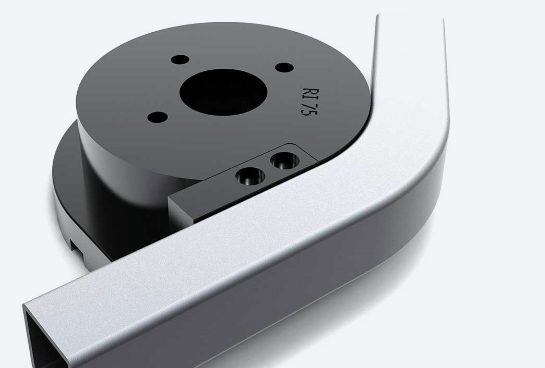

2. Draw Bending:

This technique involves clamping the tube on the exterior and forming it around a die. It is suitable for high-precision components and tight radius bends.

3. Roll Bending:

This method uses three rollers to gradually bend the tube. It is typically used for large radius bends.

Steel Tube Bending Radius

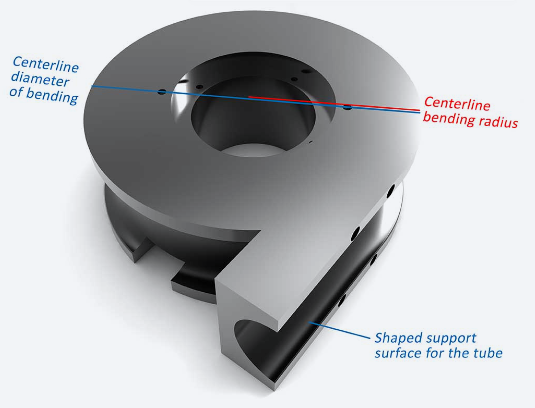

The bending radius of a tube refers to the radius measured to the centerline of the tube. The standard draw bend radius is typically twice the tube's outer diameter (2 x D). For example, a tube with an outer diameter of 20 mm would ideally have a bend radius of 40 mm.

Minimum and Maximum Bend Radii

- Minimum Bend Radius: The minimum achievable bend radius can be as low as half the tube's outer diameter (½ x D), but achieving such tight radii often requires specialized tooling and techniques like mandrel bending. For roll bending, the minimum radius is generally around 7 times the tube's diameter (7 x D).

- Maximum Bend Radius: There is no maximum limit to the bend radius in roll bending, as it can theoretically be infinite, meaning the tube remains straight.

Factors Influencing Bending Radius

1. Material Properties:

The type of stainless steel alloy affects its ductility and resistance to deformation. Some alloys are more suitable for tighter bends than others.

2. Wall Thickness:

Thicker walls provide more resistance to deformation but may require more force to bend.

3. Tooling and Equipment:

The choice of bending method and tooling significantly impacts the achievable bend radius. Mandrel bending, for instance, allows for tighter radii by providing internal support.

Design Considerations

When designing bends for stainless steel tubes, several factors must be considered:

1. Springback:

Stainless steel exhibits significant springback due to its high tensile strength. This means the tube will return to its original shape slightly after bending, requiring overbending to achieve the desired angle.

2. Wall Thinning:

Bending can cause the outer wall of the tube to thin, potentially compromising its structural integrity. The degree of wall thinning depends on the bend radius and angle.

3. Ovality:

Tight bends can cause the tube to become oval, affecting its roundness. Mandrel bending helps minimize ovality.

Video: Bending Stainless Steel Tubing

To better understand the process, watch this video on bending stainless steel tubing:

Applications of Stainless Steel Tube Bending

Stainless steel tube bending is used in a wide range of applications:

- Automotive: Exhaust systems, fuel lines, and structural components.

- Aerospace: Fuel lines, hydraulic systems, and structural components.

- Construction: Handrails, architectural features, and piping systems.

- Medical Equipment: Medical devices, surgical instruments, and hospital equipment.

Conclusion

Achieving the ideal bending radius for stainless steel tubes requires careful consideration of the tube's dimensions, material properties, and the chosen bending method. By understanding these factors and employing the right techniques, manufacturers can produce high-quality bends that meet the stringent demands of various industries.

Frequently Asked Questions

1. What is the standard bend radius for stainless steel tubes?

The standard draw bend radius for stainless steel tubes is typically twice the tube's outer diameter (2 x D). For example, a tube with an outer diameter of 20 mm would ideally have a bend radius of 40 mm.

2. What is the minimum bend radius achievable for stainless steel tubes?

The minimum bend radius can be as low as half the tube's outer diameter (½ x D), but achieving such tight radii often requires specialized tooling and techniques like mandrel bending.

3. How does wall thickness affect the bending process?

Thicker walls provide more resistance to deformation but may require more force to bend. They also reduce the risk of tube collapse during bending.

4. What are the common bending techniques used for stainless steel tubes?

Common techniques include mandrel bending, rotary draw bending, and three-roll bending. Each method is suited for different applications and bend radii.

5. How does springback affect the bending process?

Springback is significant in stainless steel due to its high tensile strength. It requires overbending to achieve the desired angle, as the tube will return to its original shape slightly after bending.
