When it comes to selecting the right cable for industrial, marine, architectural, or DIY projects, understanding the breaking strength of the cable is crucial. The 3/16 stainless steel cable is a popular choice due to its balance of strength, flexibility, and corrosion resistance. This comprehensive article explores the breaking strength of 3/16 stainless steel cable, its various constructions, applications, and factors influencing its performance. You will also find visual aids and videos to deepen your understanding.
Breaking strength refers to the maximum load a cable can withstand before it fails or breaks. It is a critical safety and performance metric used in engineering and construction to ensure that cables can handle the expected loads without risk of failure.

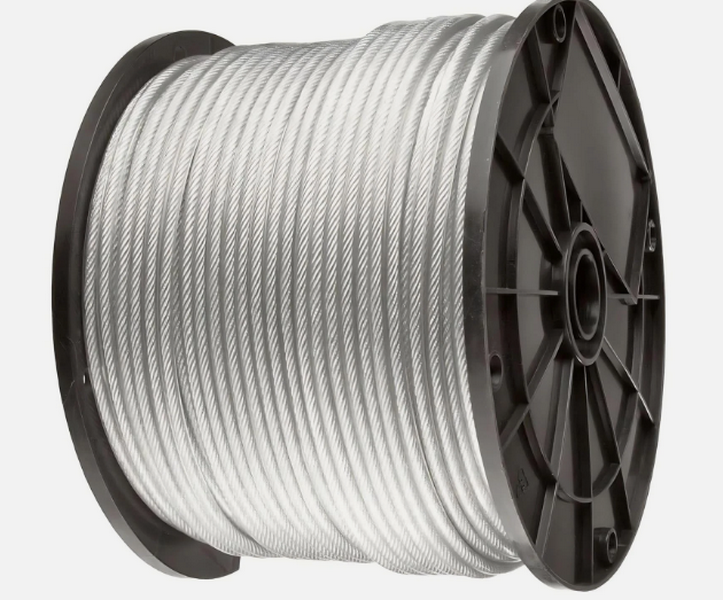

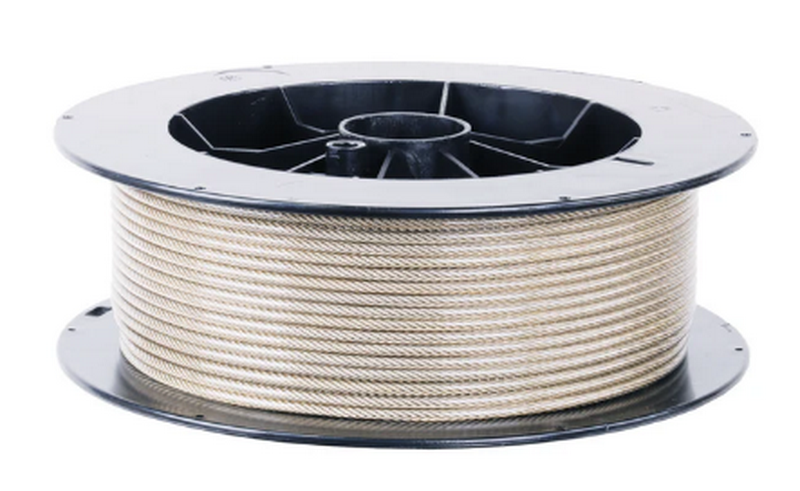

The 3/16 inch diameter stainless steel cable is commonly used in applications requiring durability and corrosion resistance, such as marine environments, architectural railings, and industrial rigging. Stainless steel cables are made from strands of steel wire twisted together, with different strand constructions affecting strength and flexibility.
- Consists of 1 strand made up of 19 wires.
- Offers excellent strength and minimal stretch.
- Less flexible but very stiff, ideal for static load applications like cable railings.
- Breaking strength for 3/16" 1x19 stainless steel cable is approximately 4,270 to 4,700 lbs.
- Comprises 7 strands, each with 19 wires, totaling 133 wires.
- More flexible and fatigue-resistant, suitable for applications involving bending or movement.
- Breaking strength typically around 3,700 to 4,200 lbs for 3/16" diameter.
- Made of 7 strands with 7 wires each.
- Offers a balance between flexibility and strength.
- Breaking strength near 3,700 lbs for 3/16" diameter, similar to 7x19 but with different performance characteristics.
| Construction | Breaking Strength (lbs) | Characteristics |
|---|---|---|
| 1x19 | 4,270 - 4,700 | High strength, low flexibility, minimal stretch |
| 7x19 | 3,700 - 4,200 | High flexibility, fatigue resistance |
| 7x7 | ~3,700 | Moderate flexibility, abrasion resistance |
These values can vary slightly depending on the cable manufacturer, grade of stainless steel (usually Type 316 marine grade), and cable finish.
316 stainless steel is the preferred material for marine and harsh environments due to its superior corrosion resistance, especially against chlorides and saltwater. It contains molybdenum, which enhances resistance to pitting and crevice corrosion, making it ideal for outdoor, marine, and industrial applications.
- Marine Rigging: Used on sailboats and marine hardware due to corrosion resistance and strength.
- Architectural Railings: 1x19 cables provide a clean, rigid look with minimal sag.
- Industrial Use: Lifting, hoisting, and securing loads within rated breaking strengths.
- DIY Projects: Garden trellises, hanging lights, fences, and other outdoor structures.
- Fitness Equipment & Pulley Systems: 7x19 cables preferred for flexibility and fatigue resistance.
- Cable Construction: More wires per strand mean greater flexibility but sometimes slightly reduced breaking strength.
- Material Grade: Type 316 stainless steel offers higher corrosion resistance and strength than 304.
- Environmental Conditions: Exposure to saltwater, chemicals, and weather can affect cable longevity.
- Load Type: Static loads favor 1x19 construction; dynamic or bending loads favor 7x19.
- Maintenance: Regular inspection and proper tensioning maintain cable integrity.
- Use appropriate fittings like thimbles, swage sleeves, and turnbuckles for secure assemblies.
- Avoid sharp bends to prevent wire fatigue.
- Inspect cables regularly for wear, corrosion, or broken strands.
- Use cable cutters designed for stainless steel to ensure clean cuts without fraying.
The breaking strength of 3/16 stainless steel cable varies primarily based on its construction type. The 1x19 construction offers the highest strength of approximately 4,700 lbs, making it ideal for static, high-load applications. The 7x19 construction provides a good balance of strength (around 3,700 to 4,200 lbs) and flexibility, suitable for dynamic environments like marine rigging. The choice between these depends on your specific application needs, environmental exposure, and load types.
316 stainless steel is the material of choice for its excellent corrosion resistance and durability, especially in marine and harsh outdoor settings. Proper installation, maintenance, and understanding of cable specifications ensure safety and performance.
Whether you are building architectural railings, securing loads, or working on marine projects, understanding the breaking strength and characteristics of 3/16 stainless steel cable is essential for selecting the right cable for your project.
7x19 cables have 7 strands with 19 wires each, offering more flexibility and fatigue resistance, suitable for dynamic applications. 1x19 cables have a single strand of 19 wires, offering higher strength and rigidity, ideal for static loads like railings.
1x19 cables have the highest breaking strength (~4,700 lbs), followed by 7x19 (~4,200 lbs), and 7x7 (~3,700 lbs). The choice depends on flexibility needs and application requirements.
Yes, 316 stainless steel contains molybdenum, providing superior corrosion resistance against saltwater and harsh environments, making it better suited for outdoor and marine applications.
While some 3/16 stainless steel cables are rated for overhead lifting, it is essential to consult rigging professionals and ensure the cable meets required safety standards before use.
Regular inspection, cleaning, proper tensioning, and applying protective coatings if near marine environments help maintain cable strength and durability over time.
