Coiled tubing is a continuous length of steel tubing wound onto a spool, typically mounted on a mobile unit or rig. Its streamlined and cylindrical design facilitates smooth deployment and retrieval in the wellbore. Coiled tubing's appearance reflects its efficiency, versatility, and functionality in oil and gas well intervention operations.
Coiled tubing is utilized in a diverse range of well intervention and completion techniques. It has occupied a rapidly advanced position in the oil and gas field with uses ranging from simple pumping operations to drilling operations of vertical and directed wells. Coiled tubing technology has replaced many wireline processes such as paraffin removal, well sampling, electrical and nuclear recording, and installation of packers.
Here are some common applications of steel coiled tubing:
Well Cleanouts: Removing debris, scale, or obstructions from the wellbore to restore production efficiency.
Circulation: Coiled tubing is a beneficial tool for circulation in well interventions due to its continuous length ability to navigate complex wellbores. In some cases, the flow of formation fluids in a well may be impeded by the weight of a hydrostatic head. To restore the flow, coiled tubing can be inserted into the wellbore allowing production to resume.
Pumping: Delivering various fluids and treatments, such as hydraulic fracturing, well stimulation, cementing, acidizing, and nitrogen purging. The continuous length of coiled tubing enables uninterrupted pumping, ensuring a consistent and controlled flow rate.
Drilling: Drilling operations of vertical and directed wells.
Logging and Perforating: Acquiring essential data through logging activities. Coiled tubing's flexibility and precision allow for the accurate placement of perforating charges at specific depths and locations within the well.
Production: Acting as production tubing in depleted gas wells, extracting the remaining resources.
Milling: Removing various obstructions from the well, such as milling bridge plugs, frac ports, casing, and cement.
Setting and Retrieving Bridge Plugs: Deploying bridge plugs and mechanical, hydraulic, or inflatable packers to establish zonal isolation.
Acid Stimulation: Pumping acid down the coiled tubing to stimulate the formation.
Fishing: Helping to fish for lost equipment.
Steel coiled tubing offers several advantages:
Less waste and scrap material
Reduced cost of labor
Superior resistance to corrosion
Low maintenance
Efficient and economical to transport
Fewer welds or mechanical fittings required

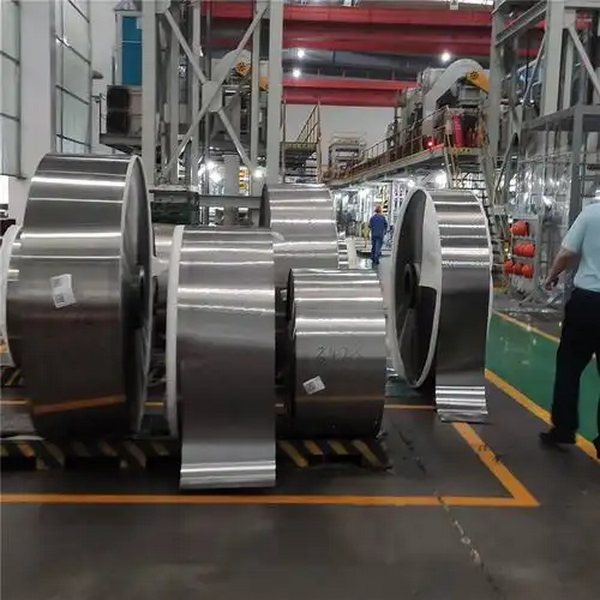

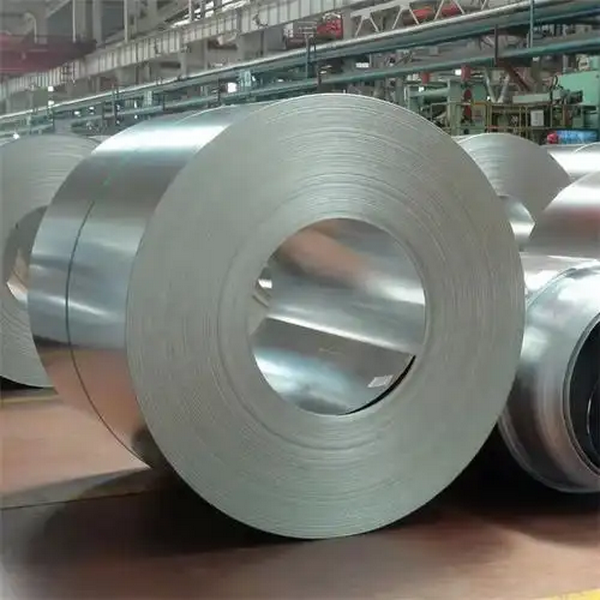

Coiled tubing products or strings are manufactured in an assortment of steel grades and can range from 3/4 of an inch to 5 inches in diameter and can measure in excess of 30,000 feet in length. Steel strips are received and staged for assembly based on customer requirements. The strips are then joined by 45-degree angle bias welds providing significantly longer low cycle fatigue life in comparison to standard strip joining. After welding, the strips are collected onto accumulator reels which can hold up to 120,000 pounds. The tubing is then continuously milled and welded using a high-frequency induction process. After welding, all tubing is continuously inspected for flaws by eddy current and ultrasonic non-destructive inspection methods. Tube samples from the beginning and end of each strain are then subjected to destructive testing. Mechanical tests ensure that each product conforms to quality system standards. After inspection, the tubing is air cooled and then water quenched before spooling. During spooling, corrosion inhibitor is applied to the tubing's outer surface. Immediately after spooling, every string is hydrostatically pressure tested to further ensure that the quality of the weld meets standards.
Steel coiled tubing plays a vital role in enhancing well productivity through various intervention techniques. By removing debris and obstructions from the wellbore, coiled tubing helps restore optimal flow and production rates. Its circulation capabilities enable the efficient delivery of fluids and chemicals, facilitating well stimulation, acidizing, and other treatments to improve reservoir permeability. The ability to perform logging and perforating operations with precision ensures that data is accurately acquired and that perforations are strategically placed to maximize production.
Coiled Tubing Drilling (CTD) has emerged as a significant advancement in the oil and gas industry, offering a versatile and efficient alternative to conventional drilling methods. Unlike traditional drilling, which relies on jointed drill pipe, CTD employs a continuous steel coiled tubing string to transmit power to the drill bit. This unique approach provides several advantages, making it suitable for various drilling applications.
Enhanced Drilling Efficiency: The continuous nature of coiled tubing eliminates the need for tripping in and out of the hole, saving significant time and reducing operational costs.
Improved Hole Cleaning: Coiled tubing allows for continuous circulation of drilling fluids, ensuring efficient removal of cuttings and preventing bit balling, which can impede drilling progress.
Precise Wellbore Placement: The flexibility of coiled tubing enables precise wellbore placement, allowing for targeted drilling in complex geological formations.
Reduced Environmental Impact: CTD generates less waste and requires a smaller footprint compared to conventional drilling, minimizing its environmental impact.
Underbalanced Drilling: CTD is well-suited for underbalanced drilling, where the wellbore pressure is maintained below the formation pressure. This technique minimizes formation damage and enhances production rates.
Extended Reach Drilling: The flexibility of coiled tubing enables extended reach drilling, allowing operators to access reservoirs located far from the wellhead.
Horizontal and Multilateral Drilling: CTD is commonly used for drilling horizontal and multilateral wells, maximizing reservoir contact and increasing production.
Steel coiled tubing is instrumental in optimizing well interventions, which are essential for maintaining and enhancing well performance throughout its lifecycle. These interventions encompass a wide range of activities, including:
Scale Removal: Over time, scale deposits can accumulate in the wellbore, restricting flow and reducing production. Coiled tubing is used to deliver chemical treatments or mechanical tools to remove scale and restore flow efficiency.
Paraffin Removal: Paraffin wax can precipitate from crude oil, forming deposits that impede flow. Coiled tubing is employed to inject hot oil or solvents to dissolve and remove paraffin buildup.
Water Shut-off: Excessive water production can reduce oil or gas production and increase disposal costs. Coiled tubing is used to deploy chemical or mechanical barriers to shut off water-producing zones.
Gas Lift Optimization: Gas lift is an artificial lift method that involves injecting gas into the wellbore to reduce fluid density and promote flow. Coiled tubing is used to optimize gas injection rates and depths, maximizing production.
The future of steel coiled tubing technology is promising, with ongoing research and development focused on enhancing its capabilities and expanding its applications. Some key areas of innovation include:
Advanced Materials: Developing new steel alloys with improved strength, corrosion resistance, and fatigue life to extend the service life of coiled tubing strings.
Smart Coiled Tubing: Integrating sensors and data acquisition systems into coiled tubing to provide real-time monitoring of downhole conditions, enabling more precise control and optimization of operations.
Robotics and Automation: Developing robotic systems for deploying and retrieving coiled tubing, reducing manual labor and improving safety.
Deepwater Applications: Adapting coiled tubing technology for use in deepwater environments, where conventional intervention methods are challenging and expensive.
Beyond the conventional applications, steel coiled tubing is continuously adapted and refined for more complex and specialized tasks. These advanced techniques often require innovative solutions and a deep understanding of wellbore dynamics.
The integration of sensors and data acquisition systems into steel coiled tubing has paved the way for intelligent well interventions. These systems provide real-time monitoring of various parameters, such as pressure, temperature, and flow rate, enabling operators to make informed decisions and optimize operations. For example, during a hydraulic fracturing treatment, real-time pressure data can be used to adjust pumping rates and ensure optimal fracture propagation.
Coiled Tubing Conveyed Logging (CTCL) is a technique that involves deploying logging tools into the wellbore using steel coiled tubing. This method is particularly useful in deviated or horizontal wells, where it can be difficult to run logging tools using traditional wireline techniques. CTCL provides valuable data about the reservoir properties, such as porosity, permeability, and fluid saturation, aiding in reservoir characterization and production optimization.
Coiled tubing patching is a method used to repair damaged or corroded sections of well casing. This technique involves deploying a steel patch into the wellbore using coiled tubing and then expanding the patch to create a seal against the casing wall. Coiled tubing patching is a cost-effective alternative to replacing the entire casing string, saving time and resources.
Steel coiled tubing is increasingly being used in HPHT environments, where the combination of high pressures and temperatures poses significant challenges. Specialized coiled tubing strings are designed to withstand these extreme conditions, enabling operators to access and produce hydrocarbons from deep, high-pressure reservoirs.
While steel coiled tubing offers numerous advantages, it is essential to acknowledge and address certain challenges and considerations:
Fatigue Life: Steel coiled tubing is subjected to cyclic bending stresses during deployment and retrieval, which can lead to fatigue and failure. Careful design and maintenance practices are crucial to extend the fatigue life of coiled tubing strings.
Corrosion: Exposure to corrosive fluids can degrade the integrity of steel coiled tubing. The use of corrosion-resistant alloys and coatings can help mitigate this issue.
Buckling: In highly deviated or horizontal wells, coiled tubing can buckle under compressive loads, making it difficult to push the tubing to the desired depth. Proper deployment techniques and the use of specialized tools can help prevent buckling.
Cost: The initial cost of steel coiled tubing equipment and services can be significant. However, the long-term benefits, such as increased production and reduced downtime, often outweigh the initial investment.
To illustrate the versatility and effectiveness of steel coiled tubing, let's examine some real-world case studies:
Case Study 1: Well Stimulation in a Shale Gas Well: In a shale gas well with declining production, coiled tubing was used to perform a multi-stage hydraulic fracturing treatment. The treatment successfully stimulated the reservoir, resulting in a significant increase in gas production.
Case Study 2: Scale Removal in an Offshore Oil Well: An offshore oil well experienced a decline in production due to scale buildup. Coiled tubing was deployed to inject a scale inhibitor, dissolving the scale and restoring the well's production capacity.
Case Study 3: Extended Reach Drilling in a Tight Gas Reservoir: Coiled tubing drilling was used to drill an extended reach well in a tight gas reservoir. The continuous drilling process and precise wellbore placement enabled access to previously inaccessible reserves.
These case studies demonstrate the diverse applications of steel coiled tubing and its ability to enhance well productivity, optimize interventions, and unlock new reserves. As technology advances, steel coiled tubing will continue to play a crucial role in the oil and gas industry.
Steel coiled tubing is a versatile and essential tool in the oil and gas industry, offering a wide range of applications from well cleanouts to drilling operations. Its ability to navigate complex wellbores, deliver fluids and treatments, and perform various intervention tasks makes it a valuable asset for enhancing well performance and production rates. With advantages such as reduced waste, superior corrosion resistance, and efficient transportation, steel coiled tubing provides a cost-effective and reliable solution for various oil and gas operations. The continuous advancements in coiled tubing technology continue to expand its capabilities and applications in the industry.
Steel coiled tubing typically ranges from 1 to 3.25 inches (25 to 83 mm) in diameter for oil and gas well interventions. However, it can range from 3/4 of an inch to 5 inches in diameter.
Coiled tubing offers distinct advantages over wireline techniques in workover operations due to its strength and rigidity, combined with its capability to circulate treatment fluids. The main advantage in the coiled tubing of the line is the possibility of pumping chemicals or cement into the well as it is suitable for wells with high inclination angles and horizontal, unlike the line.
By delivering chemicals, acids, or proppants into the wellbore, coiled tubing helps treat the reservoir, enhance its permeability, and ultimately increase production rates.
After welding, all tubing is continuously inspected for flaws by eddy current and ultrasonic non-destructive inspection methods. Tube samples from the beginning and end of each strain are then subjected to destructive testing. Mechanical tests ensure that each product conforms to quality system standards.
In depleted gas wells, coiled tubing serves as production tubing, extracting the remaining resources.
