Stainless steel coiled tube control lines are versatile and indispensable components in various industrial applications, particularly in environments requiring high corrosion resistance, flexibility, and reliability. These control lines are widely used in the oil and gas industry, subsea engineering, chemical processing, and geothermal energy. This article will delve into the applications, manufacturing process, and benefits of stainless steel coiled tube control lines.
Stainless steel coiled tube control lines are primarily used in:
Stainless steel coiled tube control lines are used in hydraulic control umbilicals for subsea and downhole operations. These systems transmit hydraulic power to actuate valves on subsea Christmas trees, blowout preventers (BOPs), and other critical equipment. The tubing's ability to withstand pressures up to 15,000 psi and temperatures exceeding 500°F ensures reliable performance in deepwater and high-pressure/high-temperature (HPHT) wells[1][2].
These lines are used for injecting chemicals into oil wells to enhance production or prevent corrosion. The materials used, such as 316L, 2205, and 2507 stainless steel, and nickel alloys like 625 and 825, provide strong corrosion resistance, making them suitable for harsh environments[3][7].
Coiled tubing plays a pivotal role in instrumentation systems, ensuring precise control and measurement of fluids and gases. It is used in applications such as pressure monitoring, temperature monitoring, and gas lift[4][8].
Essential for controlling subsea safety valves and blowout preventers (BOPs), these control lines ensure the safe operation of subsea equipment by providing reliable hydraulic control[1][5].
Used in geothermal plants for high-temperature applications, stainless steel coiled tube control lines can withstand extreme conditions, making them ideal for geothermal operations[1][7].
The manufacturing of stainless steel coiled tube control lines involves several steps:
1. Material Selection: Common materials include 316L stainless steel for general corrosion resistance and duplex grades like 2205 and 2507 for chloride-rich environments.
2. Tube Production: Tubes can be either seamless or welded. Seamless tubes are made from solid billets, while welded tubes are formed from strips and then welded.

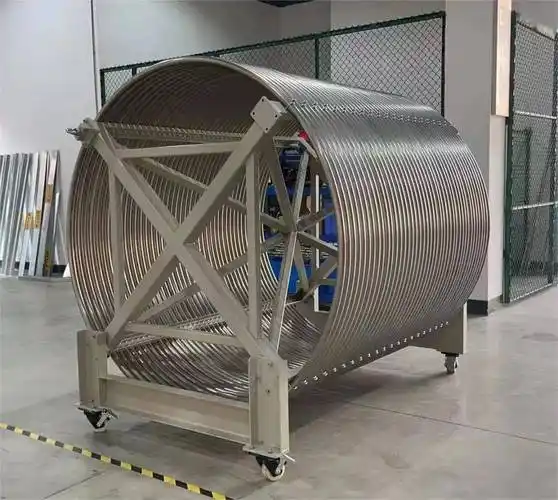

3. Coiling Process: The tubes are coiled onto drums to achieve long lengths without joints, enhancing flexibility and reducing leakage risks.
- Corrosion Resistance: Made from corrosion-resistant alloys, these control lines can withstand harsh environments.
- Flexibility: Allows for installation in confined spaces and complex geometries.
- High Pressure and Temperature Resistance: Capable of handling pressures up to 15,000 psi and temperatures exceeding 500°F.
- Reduced Maintenance: Eliminates threaded joints, reducing the risk of leakage.
- Installation Challenges: Long lengths require careful spooling to prevent kinking. Subsea installations demand corrosion-resistant encapsulation.
- Repair and Maintenance: Minor defects can be addressed with orbital welding, but severely damaged sections often require replacement.
Stainless steel coiled tube control lines are crucial components in modern industrial systems, offering unmatched durability and versatility. Their ability to handle extreme conditions while maintaining operational efficiency makes them vital in high-stakes environments such as subsea oilfields and geothermal plants.
Stainless steel control line tubing is typically made from corrosion-resistant alloys such as 316L stainless steel, duplex grades (2205, 2507), and nickel alloys (Alloy 625, 825) for high-temperature applications.
Coiled tubing can handle high pressures due to its seamless or welded construction and the use of high-strength materials. It is capable of withstanding pressures up to 15,000 psi.
Challenges include preventing kinking during spooling and ensuring proper encapsulation for subsea installations to protect against corrosion.
Minor defects can be repaired using orbital welding, but severely damaged sections often require replacement to maintain integrity.
Coiled tubing offers flexibility, eliminates threaded joints, and reduces leakage risks, making it more efficient for complex installations compared to conventional piping.
