Inconel 825, also known as Nickel Alloy 825, is a versatile material widely used in the oil and gas industry due to its excellent corrosion resistance and mechanical properties. The ASTM B704 specification for Inconel 825 control lines is particularly significant in this sector, as it outlines the standards for materials used in high-pressure applications such as chemical injection, hydraulic control, and instrumentation umbilicals. This article will delve into the applications, specifications, and benefits of using Inconel 825 B704 control lines in the oil and gas industry.
Inconel 825 is a nickel-iron-chromium alloy with additions of molybdenum, copper, and titanium. These elements enhance its resistance to corrosion in both oxidizing and reducing environments, making it ideal for use in harsh conditions such as those found in oil and gas operations. The alloy's ability to withstand stress-corrosion cracking and its resistance to pitting and crevice corrosion are particularly valuable in environments where chloride ions are present.
Inconel 825 exhibits strong mechanical properties, including a tensile strength of approximately 100,000 psi and a yield strength of about 45,000 psi. These properties ensure that the material can withstand the high pressures and stresses encountered in oil and gas applications.
Inconel 825 B704 control lines are used in various applications within the oil and gas industry:
These lines are used to inject chemicals into wells to enhance oil recovery or prevent corrosion. Inconel 825's corrosion resistance makes it suitable for handling aggressive chemicals.
In hydraulic systems, control lines transmit pressure signals to operate valves and other equipment. The high strength and corrosion resistance of Inconel 825 ensure reliable operation.
These are bundles of tubes and wires that provide control and monitoring functions for offshore platforms. Inconel 825's resistance to seawater corrosion is crucial in these applications.
Flowlines transport oil and gas from wells to processing facilities. Inconel 825 control lines are used to manage the flow and pressure in these lines.

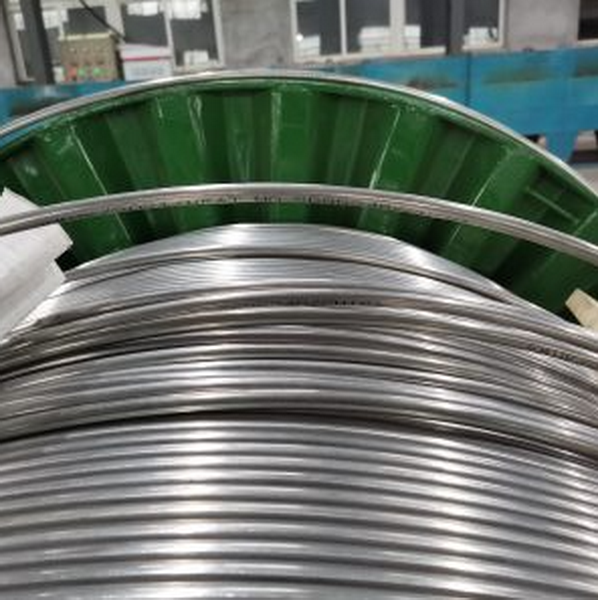

Inconel 825 B704 control lines are typically manufactured to specific dimensions and specifications:
- Outer Diameter: Common sizes include 1/4 inch, 3/8 inch, and 1/2 inch.
- Wall Thickness: Thicknesses range from 0.035 inches to 0.065 inches.
- Pressure Rating: These control lines are often rated for pressures up to 15,000 psi.
- Encapsulation: PVDF encapsulation is used to protect the lines from environmental factors.
The use of Inconel 825 B704 control lines offers several benefits:
- Corrosion Resistance: The alloy's composition provides excellent resistance to corrosion, extending the lifespan of equipment and reducing maintenance costs.
- Mechanical Strength: Inconel 825's high tensile and yield strengths ensure that control lines can withstand the stresses of high-pressure applications.
- Customization: Control lines can be customized in terms of size, length, and packaging to suit specific project requirements.
While Inconel 825 B704 control lines are highly effective, there are challenges to consider:
- Cost: Inconel 825 is more expensive than some other materials, which can impact project budgets.
- Machining: Although Inconel 825 is moderately easy to machine, it requires proper tooling and techniques to achieve optimal results.
As the oil and gas industry continues to evolve, the demand for materials like Inconel 825 is expected to grow. Advances in manufacturing and material science may lead to even more efficient and cost-effective solutions for control lines.
The use of Inconel 825 B704 control lines also has environmental implications. By reducing the need for frequent replacements due to corrosion, these lines help minimize waste and the environmental impact associated with material extraction and processing.
Inconel 825 B704 control lines play a critical role in the oil and gas industry due to their superior corrosion resistance and mechanical properties. As technology advances and new applications emerge, the importance of these control lines will only continue to increase.
Inconel 825 B704 control lines offer excellent corrosion resistance, which is crucial in harsh environments such as those encountered in oil and gas operations. This resistance helps extend equipment lifespan and reduce maintenance costs.
These control lines are often encapsulated with PVDF (Polyvinylidene Fluoride), which provides additional protection against environmental factors.
Common outer diameters include 1/4 inch, 3/8 inch, and 1/2 inch.
These control lines are typically rated for pressures up to 15,000 psi.
Yes, control lines can be customized in terms of size, length, and packaging to suit specific project requirements.
