Inconel 625 control lines, particularly in the 1/4-inch size, are widely recognized for their exceptional mechanical properties, corrosion resistance, and versatility across various industries. These control lines are fabricated from a nickel-based superalloy known as Inconel 625, which is specifically engineered to withstand extreme conditions such as high pressures, corrosive environments, and elevated temperatures. This article explores the applications, properties, and benefits of Inconel 625 control lines with a focus on the 1/4-inch size.
Inconel 625 is a nickel-based superalloy that contains significant amounts of chromium, molybdenum, niobium, and iron. These elements contribute to its remarkable strength, corrosion resistance, and thermal stability. The alloy is particularly well-suited for use in harsh environments where other materials would fail due to stress corrosion cracking or oxidation.
- Corrosion Resistance: Resistant to pitting, crevice corrosion, and chloride-induced stress corrosion cracking.
- Thermal Stability: Maintains mechanical integrity at temperatures ranging from cryogenic levels up to approximately 1020°F (550°C).
- Mechanical Strength: High tensile and yield strength combined with excellent ductility.
- Versatility: Suitable for applications in aerospace, marine, chemical processing, and oil and gas industries.

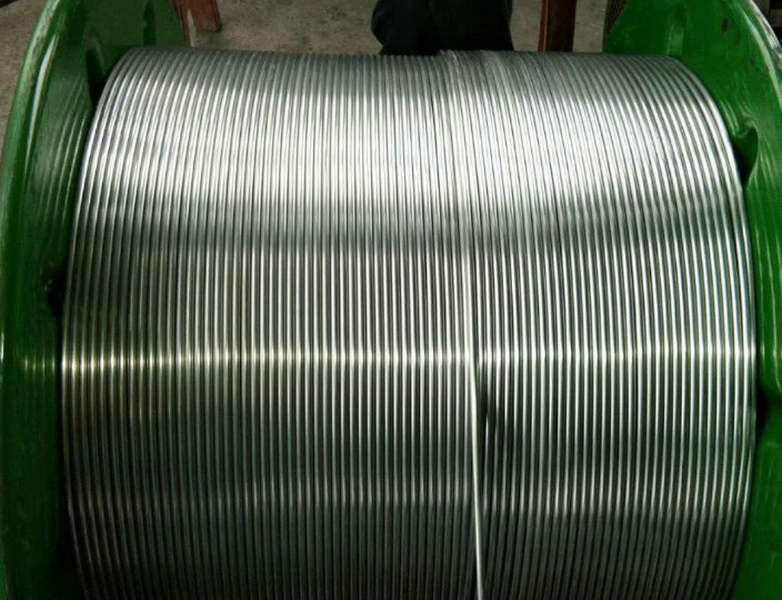

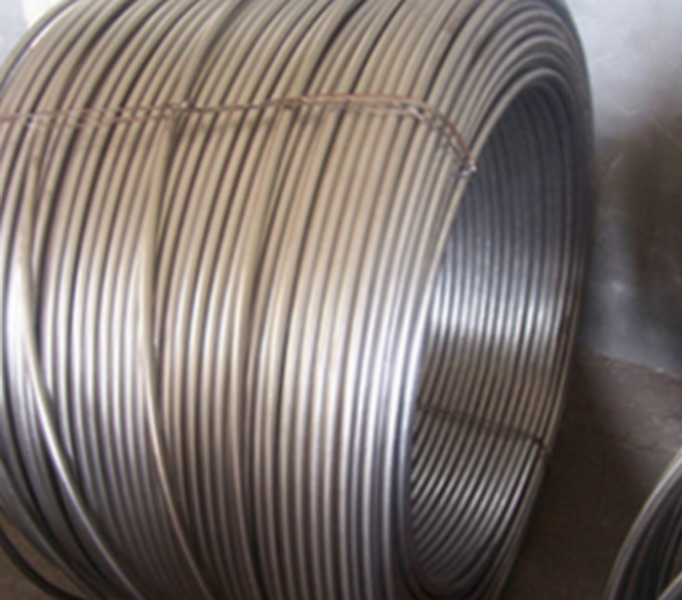

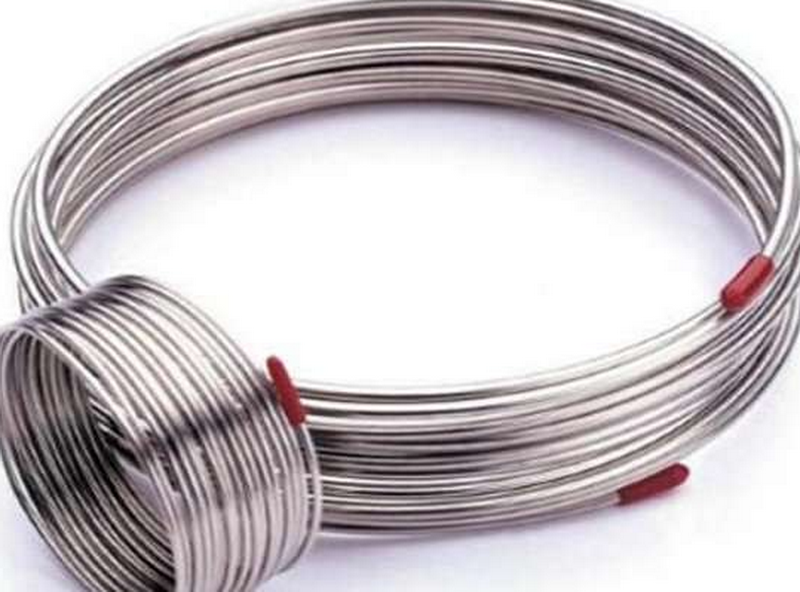

Control lines made from Inconel 625 are seamless or welded tubes designed for high-performance applications. The 1/4-inch size is particularly popular due to its balance between compactness and functionality. These lines are often used for hydraulic systems, instrumentation, and chemical injection in demanding environments.
- Outer Diameter (OD): Typically 1/4 inch (6.35 mm).
- Wall Thickness: Ranges from 0.035 inches to 0.083 inches.
- Pressure Rating: Can withstand pressures up to 120 MPa depending on the wall thickness.
- Length: Available in custom lengths up to thousands of meters.
In the oil and gas sector, Inconel 625 control lines are indispensable for:
- Hydraulic control systems in subsea wells.
- Chemical injection systems to prevent hydrate formation or corrosion.
- Downhole safety valves requiring reliable pressure transmission.
The aerospace industry leverages the high strength-to-weight ratio of Inconel 625 for:
- Hydraulic systems in aircraft.
- Fuel injection lines in jet engines.
- High-pressure tubing in rocket propulsion systems.
Due to its resistance to seawater corrosion, Inconel 625 control lines are used for:
- Subsea umbilicals.
- Hydraulic systems in offshore platforms.
- Corrosion-resistant piping in desalination plants.
In chemical plants, these control lines are employed for:
- Transporting corrosive fluids such as acids or alkalis.
- High-pressure fluid delivery in reactors.
- Instrumentation tubing for monitoring system performance.
In power plants, especially nuclear facilities:
- Used for steam generation systems exposed to high temperatures.
- Control tubing for monitoring critical parameters like pressure and temperature.
The alloy's ability to resist pitting and crevice corrosion makes it ideal for harsh environments such as offshore drilling or chemical plants.
Its exceptional tensile strength ensures durability under high-pressure conditions.
The material performs reliably across a wide temperature range, making it suitable for both cryogenic and high-temperature applications.
Inconel 625 can be easily welded or formed into complex shapes without losing its mechanical properties.
Inconel 625 control lines in the 1/4-inch size are a critical component across various industries that demand high performance under extreme conditions. Their exceptional corrosion resistance, mechanical strength, and thermal stability make them an unparalleled choice for applications ranging from subsea oil wells to aerospace hydraulic systems. As industries continue to push the boundaries of engineering challenges, materials like Inconel 625 will remain at the forefront of innovation.
Inconel 625 control lines are widely used in industries such as oil and gas, aerospace, marine engineering, chemical processing, and power generation due to their exceptional mechanical properties and corrosion resistance.
The 1/4-inch size strikes a balance between compactness and functionality. It is small enough for tight spaces but robust enough to handle high pressures and corrosive environments.
Inconel 625 offers superior corrosion resistance and higher strength compared to stainless steel. It is particularly effective in environments involving seawater or high temperatures where stainless steel may fail.
Due to their excellent corrosion resistance, these control lines require minimal maintenance. Regular inspections ensure that they remain free from mechanical damage or blockages.
Yes, alternatives like Incoloy 825 or stainless steel can be used depending on cost considerations and environmental requirements. However, these materials may not offer the same level of performance as Inconel 625 in extreme conditions.
