Incoloy 825 capillary tubing is a specialized form of tubing made from Incoloy 825, a nickel-iron-chromium alloy known for its exceptional corrosion resistance and versatility. This tubing is designed for applications requiring precise control and resistance to corrosive environments. In this article, we will explore the uses, properties, and applications of Incoloy 825 capillary tubing.
Incoloy 825 is a nickel-based alloy that includes significant amounts of iron, chromium, molybdenum, copper, and titanium. This composition provides excellent resistance to both oxidizing and reducing acids, making it ideal for environments where corrosion is a significant concern. The alloy's ability to withstand chloride stress corrosion cracking is particularly valuable in marine and chemical processing applications.

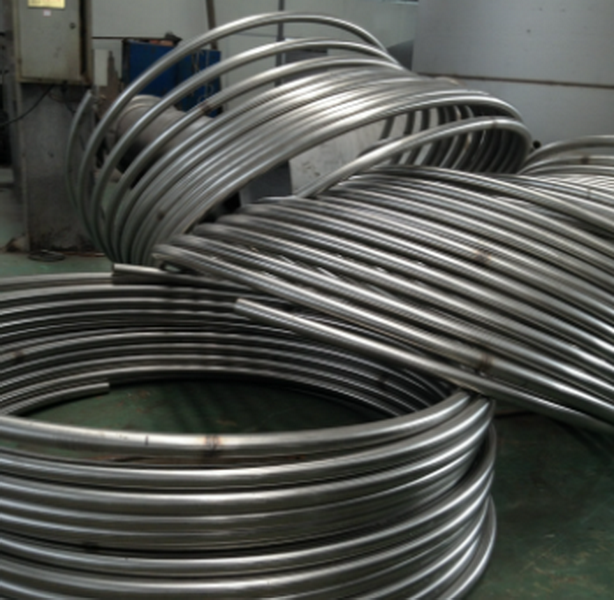

Incoloy 825 capillary tubing is manufactured to have a smaller diameter and precise thickness, which makes it suitable for applications requiring high precision and control. The tubing can be produced in both seamless and welded forms, with various surface finishes available to meet specific requirements.
The chemical composition of Incoloy 825 includes:
- Nickel (Ni): 38-46%
- Iron (Fe): 22%
- Chromium (Cr): 19.5-23.5%
- Molybdenum (Mo): 2.50-3.50%
- Copper (Cu): 1.50-3.0%
- Manganese (Mn): 1%
- Titanium (Ti): 0.60-1.20%
- Silicon (Si): 0.50%
- Aluminum (Al): 0.20%
- Carbon (C): 0.050%
- Sulfur (S): 0.030%
Incoloy 825 has a density of approximately 8.14 g/cm³ and a melting range of 1370-1400°C. Its mechanical properties include a tensile strength of at least 586 MPa and a yield strength of at least 241 MPa.
Incoloy 825 capillary tubing is used in a variety of applications due to its corrosion resistance and precision:
Incoloy 825 capillary tubing is used in hydraulic systems where precise control and resistance to corrosion are essential.
It is used for transporting liquids and gases in environments where corrosion could be a problem.
The tubing's resistance to corrosion makes it suitable for use in medical devices that require precise fluid control.
Incoloy 825 capillary tubing is used in chromatography due to its ability to withstand corrosive chemicals.
It is used in measurement devices for precise fluid handling.
The tubing's resistance to corrosion makes it suitable for use in remote thermometer systems.
Incoloy 825 capillary tubing is used in the oil and gas industry for control lines and chemical injection lines due to its resistance to corrosive environments.
The manufacturing process for Incoloy 825 capillary tubing involves forming the alloy into a tubular shape, which can be achieved through various methods such as rolling and welding. The tubing is then polished to achieve the desired surface finish.
Incoloy 825 capillary tubing offers several benefits and features that make it a preferred choice in various industries:
- Corrosion Resistance: It provides excellent resistance to a wide range of corrosive media.
- High Temperature Resistance: The tubing can withstand high temperatures, making it suitable for applications in power generation and chemical processing.
- Precision: Its precise dimensions allow for accurate fluid control, which is critical in applications like chromatography and medical devices.
- Durability: Incoloy 825 capillary tubing is durable and long-lasting, reducing maintenance costs over time.
Incoloy 825 capillary tubing is widely used across several industries due to its unique properties:
- Oil and Gas: For control lines and chemical injection lines.
- Chemical Processing: For handling corrosive chemicals.
- Medical: For precise fluid control in medical devices.
- Aerospace: For fuel lines and other critical systems.
Incoloy 825 capillary tubing is a versatile and reliable material for applications requiring high corrosion resistance and precision. Its use in various industries, from oil and gas to medical devices, underscores its value in environments where durability and control are critical.
Incoloy 825 capillary tubing is made from a nickel-iron-chromium alloy with additions of molybdenum, copper, and titanium, providing excellent corrosion resistance.
Incoloy 825 capillary tubing is used in hydraulic control lines, liquid/gas transportation lines, medical devices, chromatography applications, measurement devices, and the oil and gas industry.
Incoloy 825 offers excellent resistance to a wide range of corrosive media, including sulfuric acid, phosphoric acid, and seawater, making it ideal for environments where corrosion is a concern.
Yes, Incoloy 825 is weldable using standard techniques, although pre-weld cleaning is recommended to avoid contamination.
Incoloy 825 capillary tubing is suitable for service temperatures up to approximately 538°C (1000°F).
