Duplex 2205 control line 6.35mm is a specialized type of stainless steel tubing widely used in demanding industrial applications, especially in the oil and gas sector. This article explores the material characteristics, manufacturing process, applications, and benefits of Duplex 2205 control line tubing with a 6.35mm outer diameter. It also includes visual aids and videos to enhance understanding, followed by a detailed FAQ section to address common questions.

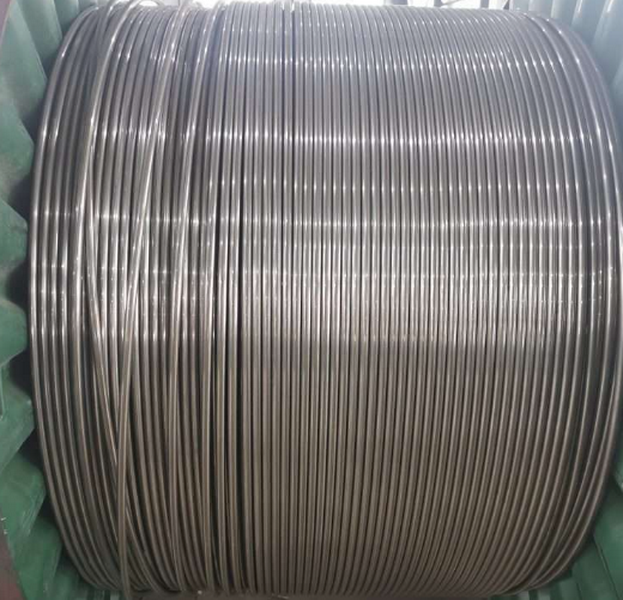

Duplex 2205 Control line_5

Understanding Duplex 2205 Stainless Steel

Duplex 2205 is a high-performance stainless steel alloy known for its unique microstructure that combines approximately equal parts of austenitic and ferritic phases. This balanced composition results in superior mechanical strength and corrosion resistance compared to conventional austenitic stainless steels such as 316L.

Key Features of Duplex 2205

- High Strength: Duplex 2205 offers nearly twice the strength of standard austenitic stainless steels, enabling the use of thinner walls and lighter tubing without compromising durability.

- Corrosion Resistance: It exhibits excellent resistance to pitting, crevice corrosion, chloride stress corrosion cracking, and general corrosion in harsh environments.

- Thermal Stability: The alloy maintains mechanical integrity and corrosion resistance at elevated temperatures, making it suitable for steam and heat exchanger applications.

- Good Weldability: Duplex 2205 can be welded effectively, facilitating fabrication and installation in complex systems.

Chemical Composition

Element Percentage Range
Chromium (Cr) 21.0% - 23.0%
Molybdenum (Mo) 3.0% - 3.5%
Nickel (Ni) 4.5% - 6.5%
Nitrogen (N) 0.10% - 0.22%
Carbon (C) ≤ 0.030%
Manganese (Mn) ≤ 2.00%
Phosphorus (P) ≤ 0.030%
Sulfur (S) ≤ 0.020%
Silicon (Si) ≤ 1.00%

This composition provides Duplex 2205 tubing with the ability to withstand aggressive environments such as subsea oil and gas fields, chemical plants, and marine applications.

Manufacturing Process of Duplex 2205 Control Line 6.35mm

The production of Duplex 2205 control line tubing with a 6.35mm outer diameter involves several precise steps to ensure high quality, dimensional accuracy, and mechanical performance.

1. Raw Material Selection and Melting

High-quality raw materials conforming to Duplex 2205 chemical composition standards are selected. These materials, including iron, chromium, molybdenum, nickel, and nitrogen, are melted in electric arc furnaces or vacuum induction furnaces to ensure purity and homogeneity.

2. Casting and Hot Rolling

The molten steel is cast into billets or slabs, which are then hot rolled to refine grain structure and achieve desired mechanical properties.

3. Tube Forming

The billets are formed into tubes by either seamless extrusion or welding methods such as high-frequency welding (HFW) or electric resistance welding (ERW).

4. Cold Drawing

Cold drawing reduces the tube diameter and wall thickness to precise dimensions, enhancing surface finish, dimensional accuracy, and strength.

5. Annealing

Tubes are annealed in controlled atmosphere furnaces to relieve internal stresses and stabilize the duplex microstructure, optimizing corrosion resistance and mechanical properties.

6. Finishing

Final steps include straightening, cutting to length, polishing, deburring, and end-forming (flaring, coning) as required.

7. Quality Control

Stringent tests such as non-destructive testing (eddy current, ultrasonic), hydrostatic pressure tests, mechanical property verification, and chemical composition analysis ensure compliance with standards like ASTM A789 and ASME SA789.

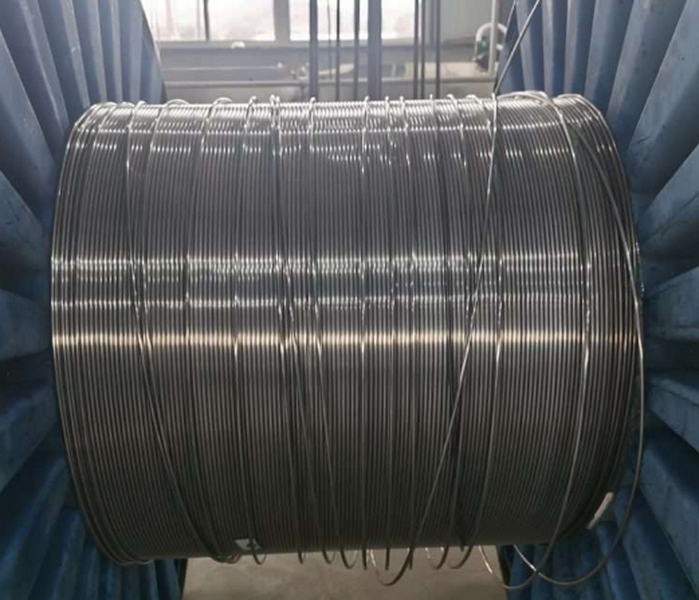

Duplex 2205 Control line_4

Physical and Mechanical Properties of Duplex 2205 Control Line 6.35mm

- Outer Diameter: 6.35 mm (1/4 inch)

- Wall Thickness: Typically around 1.24 mm, customizable

- Length: Available in coiled lengths up to 10,000 meters or straight lengths up to 25 meters

- Yield Strength: ≥ 80,000 psi (550 MPa)

- Tensile Strength: ≥ 95,000 psi (655 MPa)

- Hardness: Maximum 30C Rockwell

- Corrosion Resistance: Excellent resistance to pitting, crevice corrosion, chloride stress corrosion cracking, and general corrosion in acids

- Surface Finish: Bright annealed, polished, or other finishes as required

- Weldability: Good weldability for fabrication and installation

Applications of Duplex 2205 Control Line 6.35mm

Duplex 2205 control line tubing with a 6.35mm diameter is widely used in various industries due to its strength and corrosion resistance, especially in harsh environments.

Oil and Gas Industry

- Hydraulic Control Lines: Used to transmit high-pressure hydraulic fluids to control valves on subsea trees and downhole tools.

- Chemical Injection Lines: Transport chemicals such as methanol or corrosion inhibitors to prevent wax, scaling, and hydrate formation in pipelines.

- Umbilical Tubing: Encapsulated in umbilicals to carry hydraulic, chemical, and electrical lines to subsea equipment.

- Downhole Control Lines: Used in wells for monitoring and controlling downhole equipment.

Chemical and Petrochemical Plants

- Transport corrosive fluids safely in processing systems.

- Used in instrumentation lines for precise fluid or gas sampling.

Marine and Offshore Applications

- Seawater handling lines for injection and desalination.

- Tubing for offshore platforms and subsea equipment exposed to saltwater corrosion.

Power Generation and Renewable Energy

- Instrumentation and control lines in power plants.

- Tubing for heat exchangers, condensers, and feedwater heaters requiring corrosion resistance.

Other Industrial Uses

- Food and beverage processing lines needing hygienic and corrosion-resistant tubing.

- Medical device tubing requiring strength and corrosion resistance.

- Structural and mechanical components exposed to corrosive environments.

Advantages of Duplex 2205 Control Line 6.35mm

- High Mechanical Strength: Enables thinner walls and lighter tubing, reducing weight and material costs.

- Superior Corrosion Resistance: Extends service life in aggressive environments, reducing maintenance and replacement frequency.

- Thermal Stability: Suitable for high-temperature applications.

- Dimensional Precision: Tight tolerances ensure reliable performance in instrumentation and control systems.

- Versatility: Suitable for coiled tubing and straight tubing configurations.

- Cost-Effective: Longer lifespan and reduced downtime translate to lower total cost of ownership.

Conclusion

Duplex 2205 control line 6.35mm tubing is a critical component in industries requiring high strength, excellent corrosion resistance, and durability under harsh conditions. Its unique duplex microstructure provides superior mechanical properties and resistance to various forms of corrosion, making it ideal for hydraulic control lines, chemical injection lines, and instrumentation tubing in oil and gas, chemical processing, marine, and power generation sectors. Manufactured with precision and subjected to rigorous quality control, this tubing ensures reliable and long-lasting performance, reducing maintenance costs and enhancing operational safety. The versatility and robustness of Duplex 2205 control line tubing make it a preferred choice for demanding industrial applications worldwide.

Duplex 2205 Control line_3

Frequently Asked Questions (FAQs)

1. What industries commonly use Duplex 2205 control line 6.35mm tubing?

Duplex 2205 control line tubing is widely used in the oil and gas industry for hydraulic control and chemical injection lines, as well as in chemical processing plants, marine environments, power generation, and instrumentation systems requiring corrosion-resistant and high-strength tubing.

2. How does Duplex 2205 compare to 316L stainless steel for control line applications?

Duplex 2205 offers nearly twice the strength of 316L stainless steel and superior resistance to pitting, crevice corrosion, and chloride stress corrosion cracking, making it more suitable for harsh environments and high-pressure applications.

3. Can Duplex 2205 control line tubing be supplied in coiled form?

Yes, Duplex 2205 control line tubing is commonly supplied in coiled lengths up to 10,000 meters, which facilitates easier handling and installation in subsea and downhole applications.

4. What are the typical dimensions available for Duplex 2205 control line tubing?

The standard outer diameter for control line tubing is 6.35mm (1/4 inch) with wall thicknesses typically around 1.24mm, though custom sizes can be manufactured based on application requirements.

5. What quality standards does Duplex 2205 control line tubing meet?

Duplex 2205 control line tubing typically meets international standards such as ASTM A789 and ASME SA789, ensuring high-quality manufacturing, mechanical properties, and corrosion resistance suitable for critical industrial applications.
