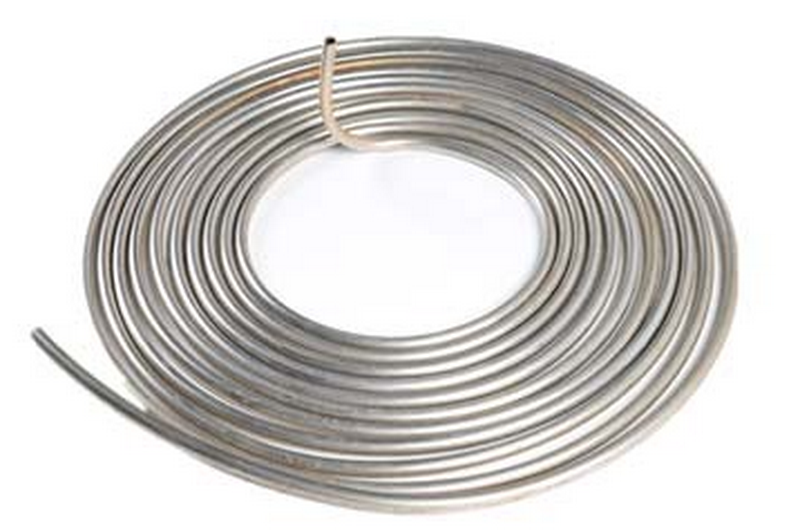

Duplex 2205 control line 1/4 inch is a specialized stainless steel coiled tubing widely used in high-pressure and corrosive environments, particularly within the oil and gas industry. This article explores the properties, applications, manufacturing processes, and advantages of Duplex 2205 control line tubing, especially in the 1/4 inch size, providing a comprehensive understanding of its role and importance.
Duplex 2205 stainless steel, also known as UNS S31803 or S32205, is a high-performance alloy combining austenitic and ferritic stainless steel properties. It offers excellent corrosion resistance, high strength, and superior toughness compared to conventional stainless steels like 304 and 316 grades.
Chemical Composition Highlights:
- Chromium (Cr): 21.0–23.0%
- Molybdenum (Mo): 3.0–3.5%
- Nickel (Ni): 4.5–6.5%
- Carbon (C): ≤ 0.030%
- Other elements include manganese, phosphorus, sulfur, and silicon in controlled amounts.
Mechanical Properties:
- Yield strength: ≥ 80,000 psi
- Tensile strength: ≥ 95,000 psi
- Maximum hardness: 30C Rockwell scale
Duplex 2205's unique microstructure provides resistance to chloride stress corrosion cracking, pitting, crevice corrosion, and erosion corrosion, making it ideal for aggressive environments[1][4][7].
Control line tubing refers to small-diameter tubes used to convey hydraulic fluids, gases, or chemicals for controlling valves, instruments, or other equipment in industrial processes. The 1/4 inch size is a common diameter for such tubing, balancing flow capacity and ease of installation.
Size and Dimensions:
Typical outer diameter (OD) is 0.250 inches (1/4 inch) with wall thickness ranging from 0.032 to 0.065 inches. Lengths can be customized, often reaching up to 15,000 meters per piece[1][6].
Manufacturing Process:
Duplex 2205 control line tubing is produced via TIG welding and cold drawing or seamless cold drawing methods, ensuring minimal welds and high integrity to reduce leakage risks[2][5].
Surface and Dimensional Quality:
The tubing features a superior surface finish, close dimensional tolerances, controlled ovality, and eccentricity, which are critical for reliable sealing and connection in hydraulic systems[2][5].
Pressure Ratings:
These tubes can withstand high pressures, commonly rated up to 100 MPa (approximately 15,000 psi), suitable for demanding subsea and downhole applications[1][3][7].
The primary use of Duplex 2205 control line 1/4 inch is in the oil and gas sector, especially for:
- Hydraulic Control Lines:
Used to operate valves and actuators on subsea Christmas trees and other downhole equipment. Hydraulic power is transmitted through these tubes from surface units to subsea valves without electrical signals, ensuring reliable actuation in harsh environments[2][7].
- Chemical Injection Lines:
Transporting corrosion inhibitors, scale inhibitors, and other chemicals into wells to protect pipelines and equipment from deposits like wax and asphaltene, which can block flow and reduce production efficiency[3][7].
- Instrumentation Lines:
Carrying fluids or gases for measurement devices, remote thermometers, and chromatographic equipment used in process monitoring and control[1][6].
- Marine Industry:
Due to its corrosion resistance, Duplex 2205 tubing is used in marine hydraulic and chemical injection systems[1].
- Power Generation and Renewable Energy:
Used in control lines within power plants and renewable energy installations where durability and corrosion resistance are critical[1].
- Food and Beverage Processing:
Its hygienic surface finish and corrosion resistance make it suitable for instrumentation and control lines in food-grade applications[1].
- Medical Devices and Precision Equipment:
Small bore Duplex 2205 tubing is used in medical devices, watches, laser engraving equipment, and small precision antenna tubes[1][6].
- Corrosion Resistance:
Superior resistance to chloride-induced corrosion and stress corrosion cracking, outperforming traditional 304 and 316 stainless steels[4].
- High Strength and Durability:
High yield and tensile strength allow the tubing to withstand extreme pressures and mechanical stresses[1][7].
- Long Service Life:
Resistance to erosion, fatigue, and general corrosion leads to longer operational life and reduced maintenance costs.
- Versatility:
Suitable for a wide range of applications from subsea oil extraction to precision instrumentation.
- Customization:
Available in various lengths, wall thicknesses, and finishes to meet specific client requirements[1][5].
Duplex 2205 control line tubing undergoes rigorous testing and quality controls:
- Non-Destructive Testing (NDT): To detect defects without damaging the tubing.
- Hydrostatic Testing: To verify pressure integrity.
- Dimensional Accuracy and Surface Finish Checks: Ensuring tight tolerances and smooth surfaces.
- Mechanical and Chemical Property Testing: Confirming compliance with ASTM A789 and ASME SA789 standards[1][2][7].
Duplex 2205 control line 1/4 inch tubing is a critical component in industries requiring high-performance, corrosion-resistant, and high-strength control lines. Its superior mechanical properties and resistance to harsh environments make it indispensable in oil and gas extraction, subsea hydraulic systems, chemical injection lines, and precision instrumentation. With customizable options and rigorous quality assurance, Duplex 2205 tubing ensures reliability and longevity in demanding applications, contributing significantly to operational efficiency and safety.
Duplex 2205 control line tubing is widely used in the oil and gas industry, marine, power generation, renewable energy, food processing, and medical device manufacturing due to its corrosion resistance and high strength[1][4][7].
Duplex 2205 offers superior chloride stress corrosion resistance, higher strength, and better toughness compared to 304 and 316 stainless steels, making it more suitable for harsh environments like subsea and chemical injection lines[4][7].
The tubing can typically handle pressures up to 100 MPa (approximately 15,000 psi), depending on wall thickness and specific application requirements[1][3][7].
It is manufactured using TIG welding and cold drawing or seamless cold drawing processes, ensuring minimal welds, high dimensional accuracy, and superior surface finish[2][5].
Yes, tubing can be customized in terms of length, wall thickness, and surface finish to meet specific project needs. Lengths can be as long as 15,000 meters per piece, and wall thickness ranges from 0.032 to 0.065 inches[1][6].
