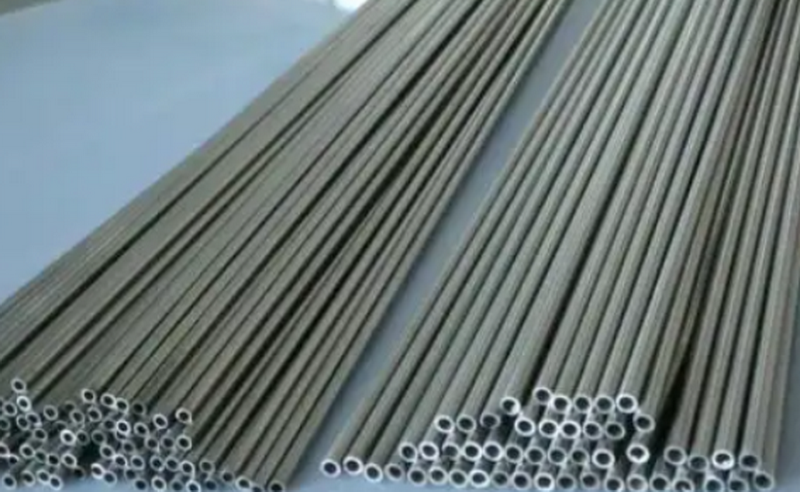

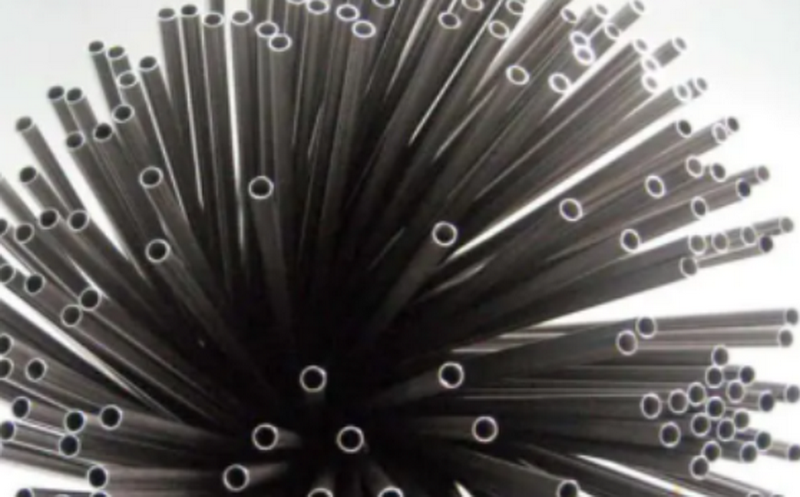

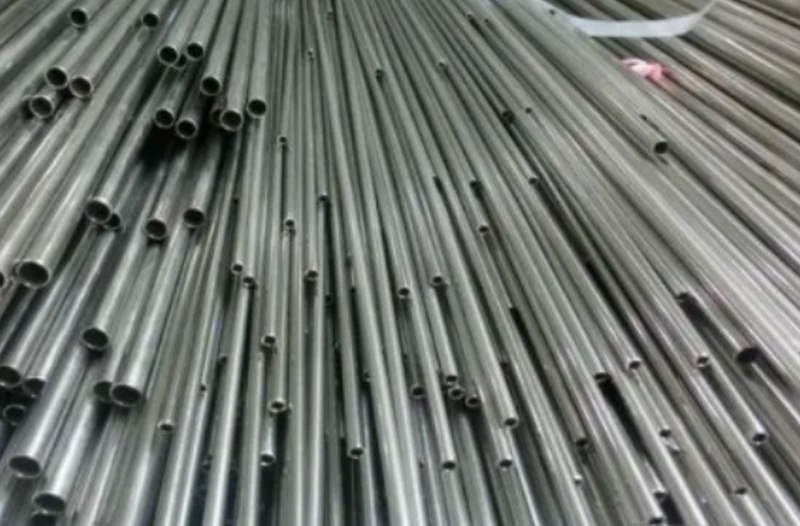

Introduction to 1/4 Inch Alloy 825 Capillary Tube

The 1/4 inch Alloy 825 capillary tube is a specialized precision tubing made from Incoloy 825, a nickel-iron-chromium alloy known for its outstanding corrosion resistance and mechanical properties. This capillary tube is typically seamless or welded and is manufactured to exacting standards, making it suitable for demanding industrial applications. Its small diameter of 1/4 inch (approximately 6.35 mm) combined with the robust Alloy 825 material makes it ideal for use in environments requiring high strength, corrosion resistance, and dimensional precision.

Material Composition and Properties of Alloy 825

Alloy 825, also known as Incoloy 825 or UNS N08825, contains nickel, iron, chromium, molybdenum, copper, and titanium. This unique composition grants the alloy excellent resistance to uniform corrosion, pitting, and stress corrosion cracking, especially in acidic and chloride-rich environments.

Key Physical and Mechanical Properties

Property	Value
Density	8.14 g/cm³
Melting Range	1370 - 1400 °C (2500 - 2550 °F)
Tensile Strength (annealed)	~550 - 690 MPa (80,000 - 100,000 psi)
Yield Strength (annealed)	~240 - 310 MPa (35,000 - 45,000 psi)
Elongation	30-45%
Thermal Conductivity	11.1 W/mK
Thermal Expansion Coefficient	14 µm/m°C

These properties ensure that the 1/4 inch Alloy 825 capillary tube can withstand high pressures and temperatures while maintaining structural integrity and corrosion resistance, making it suitable for harsh industrial environments[1][2][6].

Manufacturing Process of 1/4 Inch Alloy 825 Capillary Tube

The production of Alloy 825 capillary tubes involves forming the alloy strip into a tubular shape through rolling, followed by welding (usually gas tungsten arc welding) to create a seamless or welded tube. The tubes undergo rigorous quality control processes including hydrostatic pressure testing, eddy current testing for defects, and surface finishing techniques such as mechanical polishing (MP), electropolishing (EP), bright annealing (BA), and acid pickling (AP) to achieve precise dimensions and a clean, defect-free surface[1][6].

Applications of 1/4 Inch Alloy 825 Capillary Tube

The 1/4 inch Alloy 825 capillary tube is widely used in industries that demand high corrosion resistance, strength, and precision in small diameter tubing. Some of the primary applications include:

1. Oil and Gas Industry

- Chemical Injection Lines: Used to transport corrosion inhibitors, scale inhibitors, and other chemicals into wells to enhance production and prevent corrosion.

- Downhole Applications: Ideal for downhole chemical injection and sensor lines due to its resistance to pitting and chloride stress corrosion cracking.

- Hydraulic Control Lines: Used in drilling and completion operations for precise fluid control.

2. Chemical Processing Equipment

- Acid Production and Handling: Suitable for sulfuric and phosphoric acid environments due to its corrosion resistance.

- Pollution Control Systems: Used in scrubbers and other equipment exposed to aggressive chemicals.

3. Nuclear and Power Generation

- Nuclear Fuel Reprocessing: The tube's resistance to radiation and corrosion makes it suitable for nuclear applications.

- Heat Exchangers and Condensers: Used where corrosion resistance and mechanical strength are critical.

4. Medical and Instrumentation

- Chromatography Equipment: Used in precise fluid transport lines.

- Measurement Devices: Employed in remote thermometer and sensor systems.

- Medical Devices: Used in equipment requiring sterile, corrosion-resistant tubing.

5. Marine and Seawater Applications

- Seawater Cooling Systems: Alloy 825 resists seawater corrosion, making it suitable for cooling lines and heat exchangers.

6. Aerospace and Specialty Equipment

- Laser Engraving Equipment: Used for small precision tubing.

- Antenna Tubes: For small precision stainless steel antenna and car antenna tubes.

The versatility and durability of the 1/4 inch Alloy 825 capillary tube enable it to replace conventional tubing in many critical applications, especially where high pressure, corrosion resistance, and precise dimensions are essential[1][3][5].

Advantages of Using 1/4 Inch Alloy 825 Capillary Tube

- High Corrosion Resistance: Excellent resistance to acids, chlorides, and oxidizing environments.

- Mechanical Strength: Can withstand high pressures and mechanical stresses.

- Thermal Stability: Maintains integrity across a wide temperature range.

- Precision Manufacturing: Tight tolerances suitable for instrumentation and chemical injection.

- Long Service Life: Resistant to pitting, stress corrosion cracking, and general corrosion.

- Versatility: Suitable for a wide range of industries including oil and gas, chemical processing, nuclear, medical, and marine.

Installation and Handling Tips

- Ensure proper cleaning to remove oils, grease, and dust before installation.

- Use compatible fittings such as Alloy 825 Swagelok tube fittings designed for 1/4 inch tubing to ensure leak-free connections.

- Avoid sharp bends and excessive mechanical stress during installation to maintain tube integrity.

- Regular inspection for corrosion or wear in service environments is recommended.

Conclusion

The 1/4 inch Alloy 825 capillary tube is a critical component in many high-performance industrial applications. Its unique combination of corrosion resistance, mechanical strength, and precision manufacturing makes it indispensable in sectors such as oil and gas, chemical processing, nuclear power, and medical instrumentation. Whether used for chemical injection lines, downhole applications, or precision instrumentation, this capillary tube delivers reliable performance in some of the most challenging environments. With customizable dimensions, rigorous quality control, and versatile finishing options, the 1/4 inch Alloy 825 capillary tube remains a trusted solution for engineers and designers worldwide.

Frequently Asked Questions (FAQs)

1. What industries commonly use 1/4 inch Alloy 825 capillary tubes?

The primary industries include oil and gas, chemical processing, nuclear power, marine applications, and medical instrumentation. These industries benefit from the alloy's corrosion resistance and mechanical strength in harsh environments.

2. How does Alloy 825 compare to stainless steel for capillary tubes?

Alloy 825 offers superior resistance to chloride stress corrosion cracking and pitting compared to standard stainless steels like 304 or 316, making it more suitable for highly corrosive environments.

3. Can 1/4 inch Alloy 825 capillary tubes be customized in length and wall thickness?

Yes, manufacturers can produce these tubes in various lengths and wall thicknesses according to ASTM and ASME standards to meet specific application requirements.

4. What are the common surface finishing options for Alloy 825 capillary tubes?

Surface finishes include mechanical polishing (MP), electropolishing (EP), bright annealing (BA), and acid pickling (AP), which enhance corrosion resistance and ensure smooth internal surfaces.

5. How is the quality of Alloy 825 capillary tubes tested?

Quality control includes hydrostatic pressure testing, eddy current testing for defects, dimensional inspection, and mechanical property verification to ensure compliance with industry standards.
