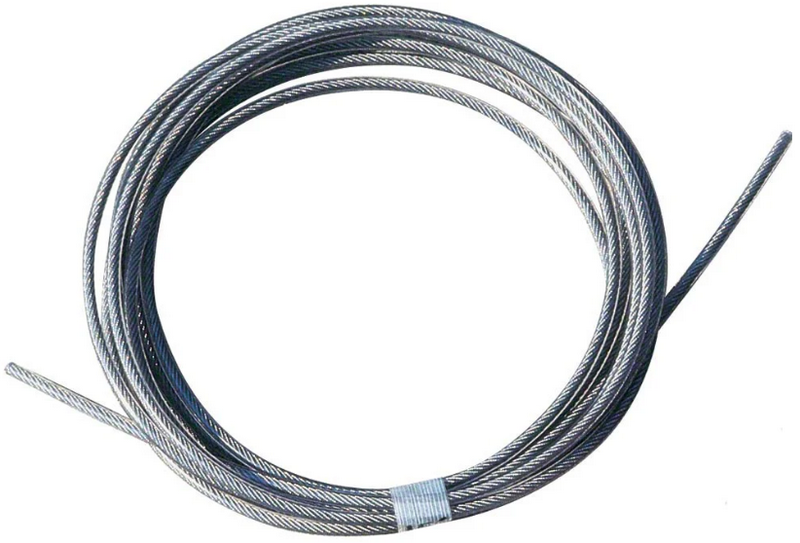

The 5/32 1x19 stainless steel cable is a highly durable and corrosion-resistant wire rope widely used in various applications that require strength, minimal stretch, and resistance to harsh environmental conditions. Constructed from 19 individual stainless steel wires twisted into a single strand, this cable offers exceptional tensile strength and rigidity, making it ideal for both architectural and marine uses. This article explores the detailed uses, features, installation tips, and maintenance of 5/32 1x19 stainless steel cable, providing a comprehensive guide for professionals and DIY enthusiasts alike.
- 5/32 refers to the diameter of the cable, which is 5/32 of an inch.
- 1x19 describes the cable construction: one strand made up of 19 individual wires twisted together. This configuration provides high strength and low flexibility.
The cable is typically made from 316 marine-grade stainless steel, known for its superior corrosion resistance, especially in saltwater environments. This makes it suitable for outdoor and marine applications where exposure to moisture and corrosive elements is common.
- High Tensile Strength: With a breaking strength of approximately 2800 lbs, it can withstand heavy loads.
- Low Stretch: Minimal elongation under tension ensures structural stability.
- Corrosion Resistance: Marine-grade 316 stainless steel resists rust and pitting even in harsh environments.
- Rigid and Non-Flexible: The 1x19 construction is less flexible than other cable types, making it ideal where rigidity is required.
- Smooth Surface: Polished finish with no burrs, ensuring safety and ease of handling.
- Cable Railings: Used extensively in staircases, balconies, decks, and terraces to provide safety without obstructing views. The cable's strength and low stretch make it perfect for tensioned railing systems.
- Balustrades: Offers a sleek, modern look while providing structural integrity.
- Structural Rigging: Supports architectural elements where minimal flexibility is needed.
- Standing Rigging on Sailboats: The cable is used for shrouds and stays due to its high strength and corrosion resistance.
- Dock Applications: Ideal for mooring lines and safety barriers in marine docks.
- Yacht Rigging: Provides reliable tension and durability in harsh marine conditions.
- Guy Wires: Supports antennas, towers, and poles.
- Safety Barriers: Used in factories and construction sites for safety fencing.
- Trellis and Garden Fencing: Provides support for plants and decorative fencing.
- Clotheslines: Durable and weather-resistant for outdoor use.
- Art Installations: Used in sculptures and installations requiring strong, thin cables.
- Cable cutters designed for stainless steel wire.
- Swaging or crimping tools for fittings.
- Stainless steel insert sleeves to protect cable ends.
- Tensioners and terminals for securing cable ends.
1. Measure and Cut: Measure the cable length accurately, adding extra length for fittings.
2. Attach Fittings: Use a crimper to secure fittings on cable ends.
3. Thread Cable: Pass the cable through posts or supports.
4. Tension Cable: Use tensioners to tighten the cable to recommended tension (approximately 150 lbs).
5. Trim Excess: Cut off any excess cable and secure with end caps or acorn nuts.
6. Passivate: Apply passivation treatments to exposed stainless steel surfaces to enhance corrosion resistance.
- Cable spacing: 3.125 inches on center.
- Post spacing: Maximum 4 feet between posts.
- Number of cables: For a 36-inch railing height, 10 cables are recommended; for 42 inches, 12 cables.
- Cable can make up to a 45-degree turn without damage.
Proper maintenance extends the life and appearance of stainless steel cable systems:
- Regular Cleaning: Wash with mild soap and fresh water to remove dirt, salt, and contaminants.
- Pressure Washing: Use a pressure washer to flush out debris from cable strands.
- Passivation: Apply passivation kits if discoloration or minor corrosion appears.
- Inspection: Regularly check tension and fittings for wear or damage.
The 5/32 1x19 stainless steel cable is a versatile, strong, and corrosion-resistant wire rope ideal for a wide range of applications, from architectural railings to marine rigging and industrial uses. Its unique 1x19 construction offers superior strength and minimal flexibility, making it perfect for tensioned systems that require stability and durability. Proper installation and maintenance ensure long-lasting performance, making this cable an excellent choice for both professional and DIY projects.
The 1x19 construction consists of 19 wires twisted into a single strand, making it stronger and less flexible than 7x7 or 7x19 cables. Its rigidity and high tensile strength make it ideal for applications requiring minimal stretch and maximum strength.
Yes, especially when made from 316 marine-grade stainless steel, it offers excellent corrosion resistance against weather, saltwater, and chemicals, making it suitable for outdoor and marine environments.
Installation involves cutting the cable to length, attaching fittings with a crimper, threading through posts, tensioning to about 150 lbs, trimming excess, and securing end caps. Using stainless steel insert sleeves improves aesthetics and protects cable ends.
Typically, the breaking strength is around 2800 lbs, with a recommended working load limit of about 750 lbs to maintain safety and durability.
Regular cleaning with mild soap and water, pressure washing to remove trapped debris, and applying passivation treatments when needed help maintain corrosion resistance and appearance.
