Stainless steel tubes are critical components in a wide range of industries due to their strength, corrosion resistance, and versatility. Understanding the standard stainless steel tube sizes is essential for engineers, designers, and procurement specialists to select the right tube for their specific applications. This comprehensive article explores the various standard sizes, shapes, dimensions, and specifications of stainless steel tubes, along with their common uses and manufacturing processes. Visual aids including charts and images are incorporated to enhance understanding.
Stainless steel tubes are generally specified by three key dimensions:
- Outer Diameter (OD): The external diameter of the tube.
- Wall Thickness (WT): The thickness of the tube wall, which influences strength and pressure capacity.
- Length: The tube length, which can be customized based on application needs.
These dimensions determine the tube's mechanical properties, weight, and suitability for various industrial uses.

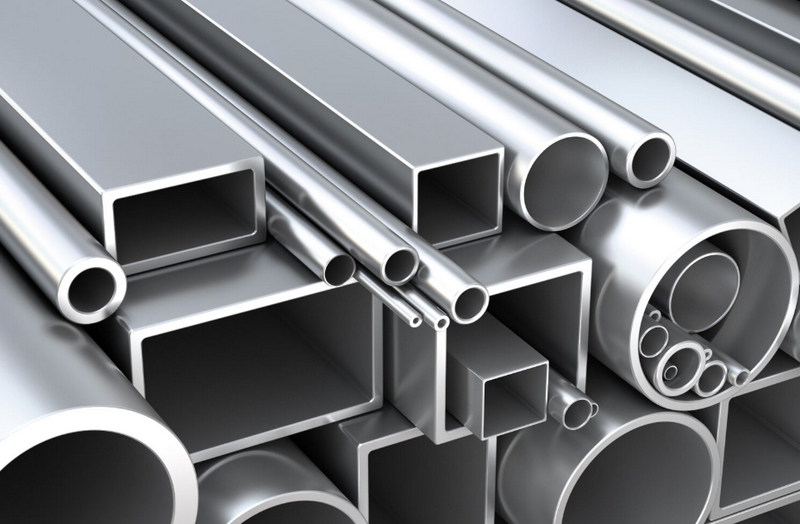

Stainless steel tubes come in several shapes, including:
- Round Tubes: The most common shape, used in fluid transport, structural applications, and decorative purposes.
- Square Tubes: Used in structural and architectural applications.
- Rectangular Tubes: Common in construction and manufacturing where flat surfaces are needed.
Standard stainless steel tube sizes are typically measured by their outside diameter up to 6 inches, while larger sizes may be specified by inside diameter, especially for spiral welded tubes. Wall thickness is measured in inches or millimeters and often expressed in gauge thickness.
- Outer Diameter: Typically ranges from 1/16 inch (about 1.6 mm) to 16 inches (406.4 mm).
- Wall Thickness: Ranges from 0.010 inch (0.25 mm) to 2 inches (50.8 mm).
- Lengths: Standard lengths vary, commonly available in 6 meters (about 20 feet), but can be cut to custom lengths.
- Side Lengths: Square tubes generally range from 1/2 inch to 4 inches on each side.
- Rectangular tubes: Dimensions vary widely, e.g., 1 inch x 2 inches up to larger sizes like 150 mm x 100 mm or more.
- Wall Thickness: Typically ranges from 0.020 inch to 0.120 inch (0.5 mm to 3 mm), depending on application.
Outer Diameter (inches) | Wall Thickness (inches) | Wall Thickness (mm) |
---|---|---|
1/16" (0.0625) | 0.010 - 0.028 | 0.25 - 0.7 |
1/4" (0.25) | 0.028 - 0.065 | 0.7 - 1.65 |
1/2" (0.5) | 0.035 - 0.120 | 0.9 - 3.0 |
1" (1.0) | 0.049 - 0.134 | 1.25 - 3.4 |
2" (2.0) | 0.065 - 0.250 | 1.65 - 6.35 |
4" (4.0) | 0.120 - 0.375 | 3.0 - 9.5 |
Shape | Dimensions (inches) | Wall Thickness (inches) |
---|---|---|
Square | 1/2" x 1/2" to 4" x 4" | 0.020 - 0.120 |
Rectangular | 1" x 2" to 6" x 12" | 0.030 - 0.150 |
- Outer diameters from 2 mm to 60 mm are common.
- Wall thicknesses range from 0.5 mm to 6 mm.
- Lengths are often standardized to 6 meters but customizable.
- Made by drawing tubes from solid cylindrical rods.
- Available in sizes from 0.84 inches to 4 inches diameter.
- Preferred for high-pressure applications due to uniform wall thickness.
- Produced by rolling and welding sheet metal.
- Can be made in larger diameters and custom lengths.
- Slightly less uniform wall thickness compared to seamless tubes but more cost-effective.
Stainless steel tubes are widely used across many industries due to their durability, corrosion resistance, and aesthetic appeal.
- Handrails, balustrades, and decorative elements.
- Structural supports and frames.
- Sizes vary depending on load requirements, often using larger diameters and thicker walls.
- Pipelines and casing tubes.
- Require tubes with high strength and corrosion resistance.
- Sizes and wall thicknesses are selected based on pressure and environmental conditions.
- Process piping and reactors.
- Hygiene and corrosion resistance are critical.
- Smaller diameter tubes with precise wall thicknesses are common.
- Transport pipelines and storage tanks.
- Stainless steel tubes ensure hygiene and easy cleaning.
- Standard sizes allow compatibility with equipment.
When selecting stainless steel tubes, consider:
- Application Requirements: Pressure, temperature, and environmental conditions.
- Compatibility: Ensure tube size matches fittings and other components.
- Cost vs. Performance: Larger diameters and thicker walls increase cost.
- Standards Compliance: Tubes should meet relevant industry standards for the intended use.
Understanding the standard stainless steel tube sizes is crucial for selecting the right tube for any industrial or architectural application. Stainless steel tubes come in a variety of shapes, sizes, and wall thicknesses, each suited to different performance requirements. From small-diameter seamless tubes used in precision industries to large welded tubes for structural applications, the variety ensures that stainless steel tubes meet diverse needs. Compliance with manufacturing standards and proper size selection enhances safety, efficiency, and cost-effectiveness. Equipped with this knowledge, professionals can confidently choose stainless steel tubes that best fit their projects.
The most common sizes include round tubes with outer diameters ranging from 1/16 inch to 16 inches and wall thicknesses from 0.010 inch to 2 inches. Square and rectangular tubes vary from 1/2 inch to 4 inches in side length with wall thicknesses typically between 0.020 inch and 0.120 inch.
Wall thickness depends on factors such as the pressure the tube must withstand, environmental conditions, and industry standards. Higher pressure or corrosive environments require thicker walls for safety and durability.
Yes, stainless steel tubes can be customized in size, shape, wall thickness, finish, and length to meet specific project requirements. Customization is common in specialized industries.
Common standards ensure quality and performance in stainless steel tubes. Compliance with these standards is essential for safety and reliability.
Stainless steel offers excellent corrosion resistance, strength, durability, and aesthetic appeal. It requires low maintenance and is suitable for hygienic applications, making it ideal for many industries.
