Stainless steel tube sections are integral components in a wide variety of industries, including construction, food processing, pharmaceuticals, automotive, and aerospace. Their versatility, durability, and corrosion resistance make them a preferred choice for structural and fluid transport applications. Understanding the standard sizes of stainless steel tube sections is crucial for engineers, architects, fabricators, and buyers to ensure proper fit, strength, and performance in their projects.
This comprehensive article explores the standard sizes of stainless steel tube sections, including round, square, and rectangular shapes, their dimensions, wall thicknesses, grades, and typical applications. It also includes visual aids and videos to enhance understanding and practical knowledge.
Stainless steel tube sections refer to hollow structural shapes made from stainless steel alloys. They come in various cross-sectional profiles:
- Round tubes (cylindrical)
- Square tubes (equal width and height)
- Rectangular tubes (unequal width and height)
These tubes can be manufactured in seamless or welded forms, with a range of finishes such as polished, pickled, or mirror finishes. The choice of tube section depends on the application, load requirements, aesthetic considerations, and fabrication needs.
The primary dimensions used to specify stainless steel tube sections are:
- Outside Diameter (OD): The external diameter of round tubes or the external width and height of square and rectangular tubes.
- Wall Thickness (WT): The thickness of the tube wall, which affects strength and pressure resistance.
- Inside Diameter (ID): The internal diameter, calculated by subtracting twice the wall thickness from the outside diameter.
These dimensions are critical for ensuring compatibility with fittings, structural strength, and fluid flow capacity.
Round tubes are the most common stainless steel tube section. They are widely used for fluid transport, structural supports, and decorative applications.
- Diameter Range: Typically from 4.76 mm (3/16 inch) up to 203.2 mm (8 inches) OD in common stock sizes.
- Wall Thickness: Usually ranges from 0.7 mm to 6.0 mm, with heavier gauges available for high-pressure applications.
- Length: Standard lengths are up to 6 meters, but custom cut lengths are often available.
Common Round Tube Sizes (in mm):
| Outside Diameter (OD) | Wall Thickness (WT) |
|---|---|
| 12.7 | 0.7 - 3.0 |
| 25.4 | 1.6 - 6.0 |
| 38.1 | 1.6 - 6.0 |
| 50.8 | 2.0 - 6.0 |
| 76.2 | 3.0 - 6.0 |
| 101.6 | 3.0 - 6.0 |
| 203.2 | 4.0 - 6.0 |

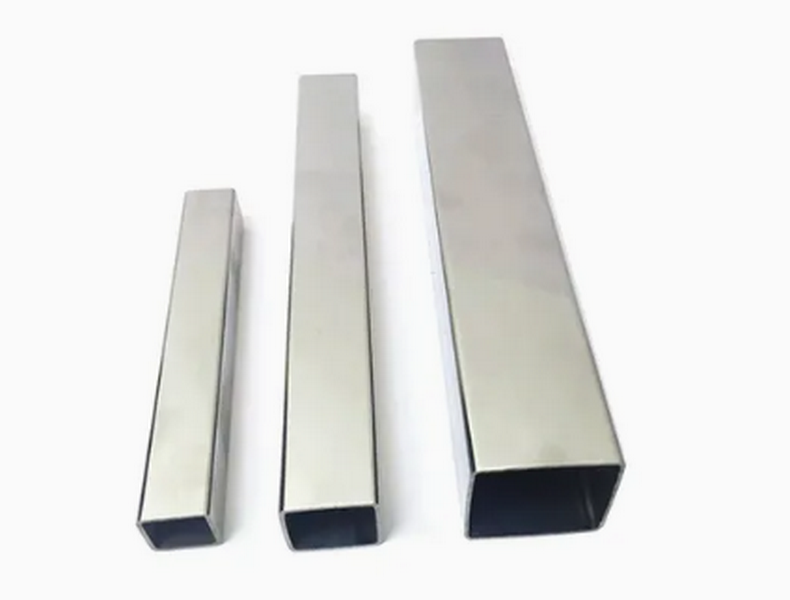

Square tubes are popular for architectural and structural applications where a clean, angular look is desired.
- Size Range: From 12.7 mm x 12.7 mm (0.5" x 0.5") up to 150 mm x 150 mm (6" x 6").
- Wall Thickness: Typically 0.7 mm to 6.0 mm, with thicker walls for heavy-duty uses.
- Length: Standard lengths up to 6 meters.
Common Square Tube Sizes (in mm):
| Size (Width x Height) | Wall Thickness (WT) |
|---|---|
| 12.7 x 12.7 | 0.7 - 3.0 |
| 25 x 25 | 1.0 - 4.0 |
| 50 x 50 | 2.0 - 6.0 |
| 100 x 100 | 3.0 - 6.0 |
| 150 x 150 | 4.0 - 6.0 |
Rectangular tubes offer flexibility in design, combining strength with a sleek profile, often used in construction, transportation, and decorative railings.
- Size Range: Width from 12.7 mm to 200 mm, height from 25.4 mm to 100 mm.
- Wall Thickness: 0.5 mm up to 25 mm depending on application.
- Length: Up to 6 meters or customized.
Common Rectangular Tube Sizes (in mm):
| Size (Width x Height) | Wall Thickness (WT) |
|---|---|
| 40 x 20 | 1.5 - 3.0 |
| 50 x 25 | 2.0 - 4.0 |
| 60 x 40 | 2.0 - 5.0 |
| 100 x 50 | 3.0 - 6.0 |
| 150 x 100 | 5.0 - 10.0 |
| 200 x 100 | 6.0 - 16.0 |
The most common stainless steel grades used for tube sections include:
- 304 / 304L: General purpose, excellent corrosion resistance, widely used in food, pharmaceutical, and architectural applications.
- 316 / 316L: Superior corrosion resistance, especially in chloride environments, ideal for marine and chemical processing.
- 321: High temperature resistance, often used in aerospace and exhaust systems.
Common finishes include:
- 2B Finish: Smooth, matte finish, commonly used for structural tubes.
- No. 4 Finish: Brushed finish, often used for decorative purposes.
- Mirror Finish (No. 8): Highly reflective, used in architectural and decorative applications.
- Structural Support: Used in construction frameworks, scaffolding, and bridges.
- Fluid Transport: Round tubes for piping systems in chemical, food, and pharmaceutical industries.
- Decorative: Railings, balustrades, and architectural features.
- Automotive and Aerospace: Exhaust systems, hydraulic lines, and structural components.
- High-Pressure Systems: Seamless tubes with thicker walls for pressure vessels and heat exchangers.
Stainless steel tube sections are available in a wide range of standard sizes, shapes, and grades to suit diverse industrial, structural, and decorative needs. Round, square, and rectangular tubes each have typical dimension ranges and wall thicknesses tailored for specific applications. Understanding these standard sizes, along with the material grades and finishes, helps in selecting the right tubing for strength, durability, corrosion resistance, and aesthetic appeal.
With the availability of seamless and welded tubes, plus customization options, stainless steel tube sections remain a versatile and essential material in modern engineering and construction projects.
Stainless steel tube sections commonly come in round, square, and rectangular shapes, each suited for different applications such as fluid transport, structural support, and decorative purposes.
Wall thickness depends on the application's pressure requirements, load-bearing needs, and environmental conditions. Thicker walls provide greater strength and pressure resistance but add weight.
Seamless tubes are made from a solid billet and offer higher strength and uniformity, ideal for high-pressure applications. Welded tubes are formed by rolling and welding steel strips, generally more cost-effective and suitable for less demanding uses.
Grade 316 stainless steel is preferred for corrosive environments, especially where exposure to chlorides or saltwater occurs, due to its enhanced corrosion resistance.
Yes, manufacturers often offer custom sizes, wall thicknesses, lengths, and finishes to meet specific project requirements, including polished or mirror finishes for aesthetic applications.
