Annealed stainless steel (SS) coiled tubing is a staple in numerous industries due to its exceptional mechanical properties, superior corrosion resistance, and inherent versatility. An in-depth understanding of the standard sizes available for annealed SS coiled tubing is paramount for engineers, manufacturers, and contractors engaged in sectors such as oil and gas, pharmaceuticals, chemical processing, and food processing. This article aims to provide a comprehensive overview of the standard sizes for annealed SS coiled tubing, exploring its diverse applications, notable benefits, critical selection criteria, and addressing frequently asked questions to offer a complete guide.

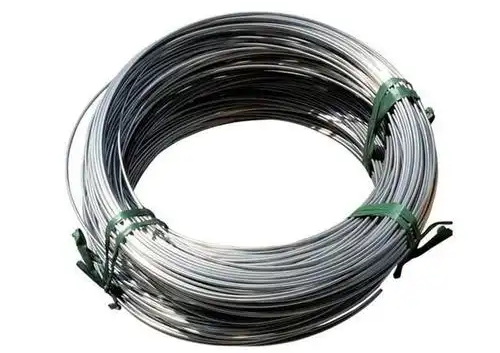

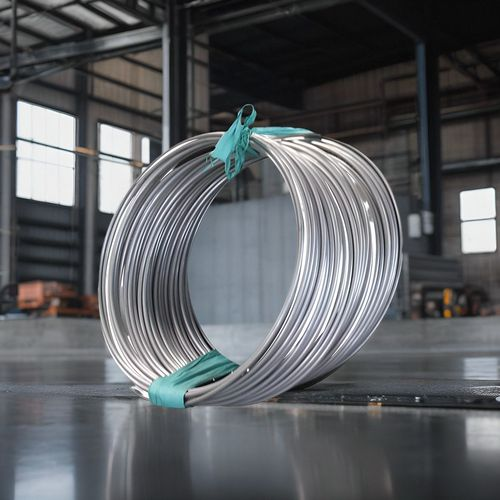

Annealed SS coiled tubing is manufactured through a meticulous process involving heating stainless steel to a precise temperature, followed by a controlled cooling phase. This annealing process significantly enhances the material's ductility, making it more pliable and easier to manipulate during installation, while also reducing its hardness for improved workability. The most prevalent grades of stainless steel utilized for annealed coiled tubing include 304, 316, and 316L. These grades are selected for their specific properties, ensuring suitability for a wide range of applications.
The standard sizes for annealed SS coiled tubing are primarily categorized by their outer diameter (OD), wall thickness, and inner diameter (ID). These dimensions are crucial for ensuring compatibility with existing systems and meeting specific performance requirements. Here's a detailed size chart illustrating common dimensions available in the market:
| Outer Diameter (OD) | Wall Thickness | Inner Diameter (ID) | Typical Applications |
|---|---|---|---|
| 1/16" | 0.010" | 0.043" | Instrumentation, control lines, medical devices |
| 1/8" | 0.020" | 0.085" | Hydraulic lines, pneumatic systems, analytical equipment |
| 1/4" | 0.035" | 0.180" | General purpose fluid transfer, chemical injection lines |
| 3/8" | 0.035" | 0.305" | Small heat exchangers, hydraulic systems |
| 1/2" | 0.035" | 0.430" | Medium heat exchangers, fluid conveyance |
| 5/8" | 0.035" | 0.555" | Industrial fluid transfer, process lines |
| 3/4" | 0.035" | 0.680" | Large heat exchangers, high-volume fluid transport |
| 1" | 0.065" | 0.870" | Heavy-duty industrial applications, structural support |
It's important to note that these sizes may exhibit slight variations based on the manufacturer and the specific demands of the application. Consulting with a tubing supplier is recommended to ensure that the chosen dimensions meet the necessary specifications.
Annealed SS coiled tubing is highly versatile and utilized across a multitude of sectors due to its inherent properties:
- Oil and Gas Industry: Annealed SS coiled tubing plays a vital role in the oil and gas industry, serving as a reliable conduit for transporting oil, gas, and various other fluids in high-pressure and corrosive environments. Its corrosion resistance ensures longevity and reliability in harsh conditions.
- Pharmaceuticals: In the pharmaceutical sector, the need for sterile environments and contamination-free fluid transport is paramount. Annealed SS coiled tubing is ideally suited for these applications, providing a smooth, non-reactive surface that prevents microbial growth and ensures the integrity of pharmaceutical products.
- Food Processing: Ensuring hygiene and safety is critical in food processing applications. Annealed SS coiled tubing meets these stringent requirements, providing a safe and hygienic means of transporting food products while preventing contamination and preserving flavor and quality.
- Chemical Processing: The chemical processing industry often deals with highly corrosive substances. Annealed SS coiled tubing offers exceptional resistance to these substances, making it an ideal choice for chemical transport lines.
- Heat Exchangers: Annealed SS coiled tubing is extensively used in heat exchangers due to its excellent thermal conductivity and resistance to corrosion. Its coiled configuration maximizes surface area, enhancing heat transfer efficiency.
- Hydraulic Systems: In hydraulic systems, annealed SS coiled tubing provides reliable fluid conveyance under high pressure, ensuring smooth and efficient operation of hydraulic machinery.
- Instrumentation: Precision instruments require accurate and reliable fluid or gas transport. Annealed SS coiled tubing is ideal for these applications, providing a consistent and leak-free pathway for instrumentation lines.
- Control Lines: In remote control systems, annealed SS coiled tubing serves as a critical link for transmitting control signals via fluid or gas pressure. Its flexibility and durability ensure reliable operation in challenging environments.
1. Corrosion Resistance: Stainless steel, particularly grades like 316 and 316L, offers superior resistance against rust and corrosion. This makes annealed SS coiled tubing ideal for applications in harsh environments where exposure to corrosive substances is common.
2. Reduced Installation Costs: The continuous lengths of coiled tubing significantly reduce installation costs by minimizing the need for multiple fittings and connections. This results in faster installation times and lower material costs.
3. Fewer Leak Points: Compared to traditional pipe systems that require numerous joints, a single coil of tubing inherently reduces the potential for leak points. This enhances system integrity and minimizes the risk of costly leaks and downtime.
4. Improved Reliability: Fewer joints and connections translate to enhanced system reliability. The absence of multiple potential failure points ensures more consistent and dependable performance over the lifespan of the system.
5. Low Maintenance: Annealed SS coiled tubing requires less maintenance compared to other materials. Its resistance to corrosion and minimal number of connections reduces the need for frequent inspections, repairs, and replacements.
6. Flexibility: The annealing process enhances the flexibility of stainless steel, making it easier to bend and manipulate during installation. This flexibility allows for easier routing and installation in complex or confined spaces.
7. High Strength: Despite its enhanced flexibility, annealed SS coiled tubing maintains high tensile strength, allowing it to withstand high pressures and mechanical stresses without deformation or failure.
8. Temperature Resistance: Annealed SS coiled tubing can withstand a wide range of temperatures, from cryogenic conditions to elevated temperatures, making it suitable for applications involving extreme temperature variations.
9. Hygienic Properties: Stainless steel is inherently hygienic, with a smooth, non-porous surface that resists bacterial growth and contamination. This makes annealed SS coiled tubing ideal for applications in the food processing, pharmaceutical, and medical industries.
10. Long Service Life: The combination of corrosion resistance, high strength, and temperature resistance ensures that annealed SS coiled tubing has a long service life, providing years of reliable performance with minimal maintenance.
Selecting the right size and grade of annealed SS coiled tubing for a specific application involves careful consideration of several factors:
1. Pressure Requirements: Determine the maximum operating pressure of the system and select tubing with a wall thickness that can safely withstand this pressure.
2. Fluid Compatibility: Ensure that the tubing material is compatible with the fluid or gas being transported to prevent corrosion or contamination.
3. Temperature Range: Consider the operating temperature range and select tubing that can maintain its mechanical properties and corrosion resistance within this range.
4. Environmental Conditions: Evaluate the environmental conditions, including exposure to corrosive substances, UV radiation, and mechanical stresses, and select tubing with appropriate resistance to these factors.
5. Industry Standards and Regulations: Ensure that the tubing meets all applicable industry standards and regulations, such as ASTM, ASME, and FDA requirements.
6. Bend Radius: Determine the minimum bend radius required for the application and select tubing with sufficient flexibility to accommodate this bend radius without kinking or collapsing.
7. Flow Rate: Consider the required flow rate and select tubing with an inner diameter that is large enough to accommodate this flow rate without excessive pressure drop.
8. Cost: Balance the performance requirements with the cost of the tubing to select the most cost-effective option that meets the necessary specifications.
9. Supplier Reputation: Choose a reputable supplier with a proven track record of providing high-quality tubing and reliable customer service.
10. Customization Options: If standard sizes do not meet the specific requirements of the application, explore customization options such as custom lengths, diameters, and wall thicknesses.
The selection of annealed SS coiled tubing requires an understanding of standard sizes, material properties, and application-specific requirements. Its widespread use across diverse industries underscores its reliability, versatility, and cost-effectiveness. By considering the factors outlined above, engineers and manufacturers can make informed decisions and select the optimal tubing for their specific needs.
Annealed stainless steel tubing undergoes a heat treatment process that enhances its ductility and reduces hardness, while non-annealed tubing does not undergo this process. Annealing makes the tubing more pliable and easier to work with during installation.
Yes, annealed SS coiled tubing is suitable for high-temperature applications due to its ability to withstand elevated temperatures without losing structural integrity. Grades like 316 and 316L are particularly well-suited for high-temperature environments.
The most common grades are Type 304, Type 316, and Type 316L stainless steel. Type 304 is a general-purpose grade, while Type 316 and 316L offer enhanced corrosion resistance, particularly in chloride-rich environments.
Thicker walls provide greater strength and pressure resistance, making them suitable for high-pressure applications. Thinner walls offer greater flexibility and are suitable for low-pressure applications.
Yes, many manufacturers offer custom sizing options to meet specific project requirements. Custom sizes may include non-standard diameters, wall thicknesses, and coil lengths.
