Stainless steel tube profiles are essential components used across a broad spectrum of industries, including construction, automotive, medical, chemical, and architectural sectors. These profiles come in various shapes and sizes, each tailored to specific applications and performance requirements. Understanding the different types of stainless steel tube profiles helps engineers, designers, and buyers select the right product for their needs.
This comprehensive article explores the most common stainless steel tube profiles, their characteristics, applications, and advantages. We will also include visual aids such as images and videos to enhance understanding. Finally, a detailed FAQ section will address common questions related to stainless steel tube profiles.
Stainless steel tube profiles can be broadly classified based on their cross-sectional shape and manufacturing method. The most common profiles include round, square, rectangular, and specialized shaped tubes such as oval, diamond, and hexagonal. Additionally, tubes come in seamless or welded forms, each with distinct properties.
Description:
Round stainless steel tubes are cylindrical hollow tubes defined by their outside diameter (OD) and wall thickness. They are the most common and versatile tube profile, widely used for fluid and gas transport, structural applications, and decorative purposes.
Applications:
- Fluid and gas conveyance in industries such as food processing, pharmaceuticals, and chemical manufacturing
- Heat exchangers and condensers
- Medical devices and instrumentation lines
- Structural elements like handrails, automotive exhaust systems, and architectural features
Advantages:
- Excellent for fluid flow and pressure containment
- Available in a wide range of sizes and stainless steel grades (e.g., 304, 316)
- Highly versatile and easy to bend or form for custom applications
Video:
Description:
Square stainless steel tubes have a hollow square cross-section, specified by their outer dimensions (e.g., 2" x 2") and wall thickness. They provide excellent structural strength and are often preferred for architectural and construction frameworks.
Applications:
- Structural supports and machine bases
- Architectural railings, posts, and frames
- Furniture manufacturing and vehicle frames
- Industrial fabrication requiring high strength and aesthetic appeal
Advantages:
- Superior bending and torsion resistance compared to round tubes
- Flat surfaces simplify joining, mounting, and welding
- Visually appealing for modern architectural designs
Description:
Rectangular tubes are similar to square tubes but have differing side lengths, such as 1" x 2" or larger. They combine strength with a larger surface area, ideal for specific structural and aesthetic applications.
Applications:
- Construction elements requiring wide flat surfaces
- Support beams and load-bearing structures
- Decorative architectural components
- Frames and partitions in industrial and commercial buildings
Advantages:
- Larger moment of inertia for bending resistance
- Versatile for both structural and decorative uses
- Available in a wide range of sizes and thicknesses
Beyond the common shapes, stainless steel tubes are also available in specialized profiles to meet unique engineering requirements.
- Oval Tubes: Used in automotive and decorative applications where aerodynamic or aesthetic shapes are needed.
- Diamond-Shaped Tubes: Employed in structural parts and mechanical tools for enhanced strength and unique design.
- Hexagonal Tubes: Used in mechanical and tooling applications requiring specific geometric profiles.
These shaped tubes generally offer greater bending and torsion resistance and can reduce structural weight, saving material costs.
Description:
Corrugated stainless steel tubing features a flexible, ridged design with a seamless inner core and an outer protective coating. It is primarily used for gas distribution systems.
Applications:
- Natural gas and propane piping in residential, commercial, and industrial buildings
- HVAC systems and water heaters
- Kitchen appliances and rooftop units
Advantages:
- Flexibility allows easy installation around obstacles
- Reduced need for fittings and joints, lowering leak risks
- Outstanding corrosion resistance and durability
Stainless steel tubes can be produced by two primary methods:
- Seamless Tubing: Manufactured by extrusion or rotary piercing, resulting in tubes without welds. These tubes provide superior strength and are preferred for high-pressure or critical applications.
- Welded Tubing: Made by rolling and welding flat stainless steel strips. These tubes are cost-effective and suitable for many structural and fluid transport uses.
Both types are available in various stainless steel grades, including 304 and 316, with different surface finishes such as mill finish, polished, or brushed.
The surface finish of stainless steel tubes affects their corrosion resistance, aesthetic appeal, and suitability for specific applications.
- Mill Finish: The basic finish after manufacturing, suitable for industrial uses.
- Polished Finish: Provides a smooth, reflective surface for decorative or hygienic applications.
- Brushed Finish: Offers a matte, textured look often used in architectural and consumer products.
Stainless steel tube profiles are indispensable in various industries due to their strength, corrosion resistance, and versatility.
- Construction and Architecture: Structural frameworks, handrails, balustrades, support columns, and decorative elements.
- Automotive Industry: Exhaust systems, chassis components, and safety structures.
- Medical and Pharmaceutical: Instrumentation lines, surgical devices, and sterile fluid transport.
- Chemical and Food Processing: Piping for corrosive fluids, sanitary tubing, and heat exchangers.
- Gas Distribution: Corrugated tubing for natural gas and propane systems.

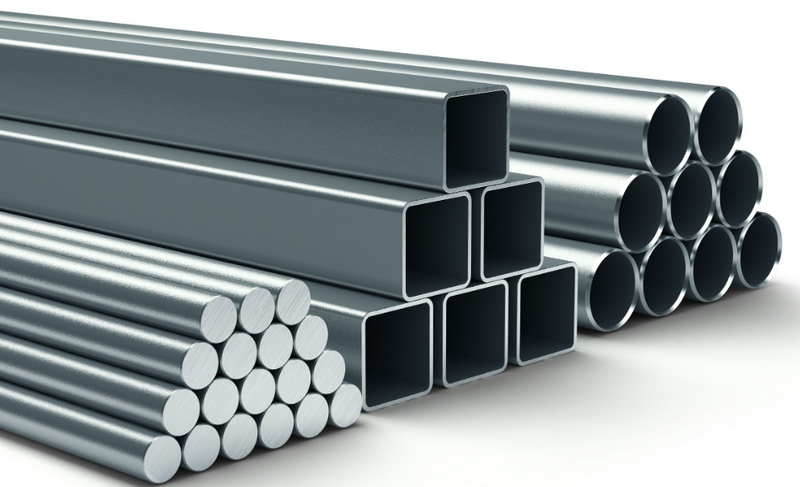

Below are some sample images illustrating different stainless steel tube profiles:
| Profile Type | Image Description |
|---|---|
| Round Tube | Polished round stainless steel tubes in various diameters |
| Square Tube | Square tubes used in architectural frames |
| Rectangular Tube | Rectangular tubes with sharp corners |
| Corrugated Tube | Flexible corrugated stainless steel tubing with protective coating |
Stainless steel tube profiles come in a diverse range of shapes, sizes, and finishes, each suited to specific industrial and architectural needs. The most common profiles-round, square, rectangular, and corrugated-offer unique advantages in terms of strength, flexibility, and corrosion resistance. Understanding these profiles and their applications enables better material selection, ensuring performance, durability, and cost-effectiveness in projects.
Whether for structural support, fluid transport, or decorative purposes, stainless steel tube profiles remain a cornerstone of modern engineering and design, valued for their longevity and versatility.
The most common stainless steel tube profiles are round, square, rectangular, and corrugated tubes. Each profile serves different purposes ranging from fluid transport to structural support.
Seamless tubes are made without welds, offering superior strength and uniformity, ideal for high-pressure applications. Welded tubes are made by rolling and welding steel strips, generally more cost-effective and suitable for many structural uses.
Grades 304 and 316 stainless steel are most common. Grade 304 is versatile and corrosion-resistant, while 316 offers enhanced resistance to saltwater and acidic environments.
Yes, stainless steel tubes, especially round and square profiles, can be bent, coiled, or formed to meet specific design requirements, including complex shapes like spirals.
Common finishes include mill finish (basic), polished (smooth and reflective), and brushed (matte texture). The choice depends on aesthetic and functional needs.
