Stainless steel tube flanges are essential components used to connect pipes, tubes, valves, pumps, and other equipment in piping systems. They provide a secure, leak-proof joint and facilitate easy assembly, disassembly, inspection, and maintenance. Due to their excellent corrosion resistance, strength, and durability, stainless steel tube flanges are widely used across industries such as oil and gas, chemical processing, pharmaceuticals, water treatment, and steel manufacturing.
This comprehensive article explores the different types of stainless steel tube flanges, their features, applications, and installation guidelines. Visual aids including diagrams and videos are integrated to enhance understanding. The article concludes with a Frequently Asked Questions section addressing common queries about stainless steel tube flanges.

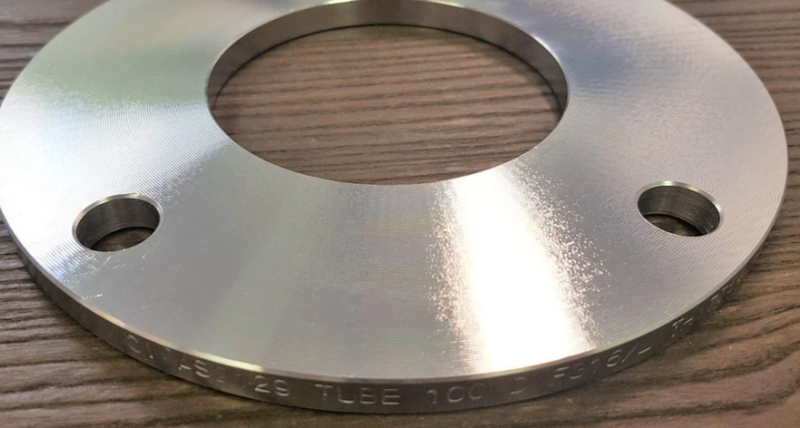

A stainless steel tube flange is a disc-shaped or ring-like mechanical component that attaches to the end of a stainless steel tube or pipe. It serves as a connection point to join two tubes or to connect tubes to equipment such as valves and pumps. Flanges are typically bolted together with a gasket in between to ensure a tight seal and prevent leaks.
Stainless steel is the preferred material for tube flanges due to its:
- High corrosion resistance against rust and chemical attack
- Superior strength and durability under high pressure and temperature
- Resistance to oxidation and harsh environmental conditions
- Self-healing surface layer that repairs minor scratches and damage
The most common stainless steel grades used for tube flanges are 304 and 316, with 316 offering enhanced corrosion resistance, especially in chloride-rich environments such as seawater.
There are several types of stainless steel tube flanges, each designed for specific applications and connection methods. Below are the primary types:

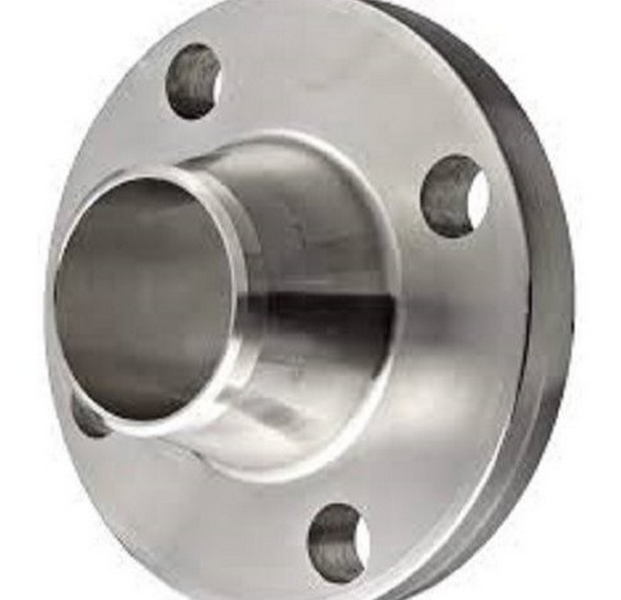

Flanges feature a long, tapered hub that is welded directly to the tube or pipe. This design ensures smooth flow of fluids and reduces turbulence and erosion at the joint. The flange's tapered neck provides excellent stress distribution, making it highly durable and resistant to bending or distortion.
Applications:
High-pressure and high-temperature systems such as chemical plants, power plants, and oil refineries.
Advantages:
- Strong and reliable welded connection
- Suitable for extreme conditions
- Easy to inspect and maintain
Jpganges have a flat face and a ring-shaped opening that slips over the tube end. They are then welded both inside and outside to secure the connection. Slip-on flanges are easier and less expensive to install compared to weld neck flanges.
Applications:
Low-pressure and non-critical piping systems.
Advantages:
- Simple installation
- Cost-effective
- Can be used as loose backup flanges with stub ends
Jlanges have a socket-shaped hub into which the tube is inserted and then fillet welded around the joint. This flange minimizes fluid turbulence and leakage risk.
Applications:
Small-diameter, high-pressure piping systems.
Advantages:
- Strong, leak-proof joints
- Suitable for high-pressure applications
- Good for small tubes where threading is not feasible
Joint flanges consist of two parts: a stub end welded to the tube and a loose backing flange that slides over the stub end. The backing flange is bolted to the mating flange or equipment.
Applications:
Systems requiring frequent dismantling, inspection, or cleaning.
Advantages:
- Easy alignment and assembly
- Reduces wear on flanges since backing flange is reusable
- Ideal for low-pressure applications
Flanges are solid discs without a center hole, used to seal the end of a tube or pipe. They allow for system expansion, maintenance, or pressure testing by closing off pipe ends.
Applications:
Pipe end closures, pressure testing, and maintenance.
Advantages:
- Provides a secure seal
- Allows easy access for inspection and cleaning

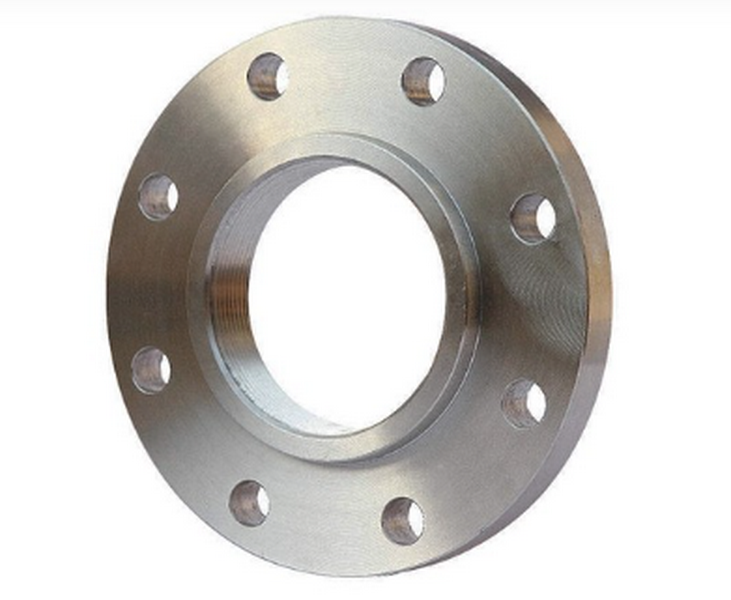

Threaded flanges have internal threads that screw onto the external threads of the tube. This flange type does not require welding.
Applications:
Low-pressure or non-welded systems.
Advantages:
- No welding required
- Easy to install and remove
- Suitable for explosive environments where welding is unsafe
Orifice flanges are designed to hold an orifice plate for measuring flow rates in piping systems. They have pressure taps for differential pressure measurement.
Applications:
Flow metering and regulation systems.
Advantages:
- Precise flow measurement
- Compatible with instrumentation
The choice of stainless steel grade affects flange performance, especially in corrosive or high-temperature environments. The most common grades are:
| Grade | Description | Typical Use Cases |
|---|---|---|
| 304 | General-purpose stainless steel with good corrosion resistance | Food processing, water treatment |
| 304L | Low carbon version of 304 for improved weldability | Welded piping systems |
| 316 | Enhanced corrosion resistance, especially to chlorides | Marine, chemical, and pharmaceutical |
| 316L | Low carbon 316 for better weldability and corrosion resistance | Corrosive environments with welding |
| 321 | Stabilized stainless steel with titanium for high-temperature resistance | High-temperature applications |
Stainless steel tube flanges are manufactured according to international standards such as ANSI/ASME B16.5, ASTM A182, ISO, and DIN. These standards define dimensions like:
- Nominal Pipe Size (NPS)
- Outside diameter of the flange
- Flange thickness
- Number and diameter of bolt holes
- Pressure class ratings (e.g., Class 150, 300, 600)
Proper dimensioning ensures compatibility with pipes and equipment, pressure tolerance, and ease of installation.
Proper installation is critical for the performance and longevity of stainless steel tube flanges:
1. Surface Preparation: Clean flange and tube surfaces to remove dirt, grease, and rust.
2. Alignment: Align flange bolt holes accurately with the mating flange or equipment.
3. Bolting: Insert bolts and tighten gradually in a crisscross pattern to ensure even pressure.
4. Gasket Placement: Use the correct gasket material compatible with the fluid and flange type.
5. Leak Testing: After assembly, test for leaks and retighten bolts if necessary.
Video:
Stainless steel tube flanges are vital components in piping systems, offering reliable, corrosion-resistant, and durable connections. Understanding the different types-weld neck, slip-on, socket weld, lap joint, blind, threaded, and orifice flanges-enables engineers and technicians to select the right flange for specific operational requirements. Choosing the appropriate stainless steel grade and adhering to standards and installation best practices ensures optimal performance and safety in diverse industrial environments.
A weld neck flange has a long tapered hub that is welded to the pipe, providing strong stress distribution and durability for high-pressure applications. A slip-on flange slides over the pipe and is welded both inside and outside; it is easier to install and used mainly in low-pressure systems.
Yes, stainless steel tube flanges, especially those made from grade 316 or 316L, have excellent resistance to corrosion, including in chloride-rich and chemical environments, making them suitable for harsh conditions.
Inspection frequency depends on the operating environment and application but generally should be done regularly during maintenance shutdowns to check for leaks, corrosion, and bolt tightness to ensure safety and performance.
Common standards include ANSI/ASME B16.5, ASTM A182, ISO, and DIN, which specify dimensions, pressure classes, and material grades to ensure compatibility and safety.
Stainless steel tube flanges typically cost more due to their superior corrosion resistance, durability, and strength. However, their longer lifespan and lower maintenance needs often justify the higher initial investment.
