Stainless steel control lines are widely used in various industrial applications, including oil and gas fields, chemical processing, and subsea operations. These control lines are typically made from materials like 304, 316L, duplex stainless steel, and nickel alloys, offering excellent corrosion resistance and durability. This article will delve into the common sizes of stainless steel control lines, their applications, and specifications.

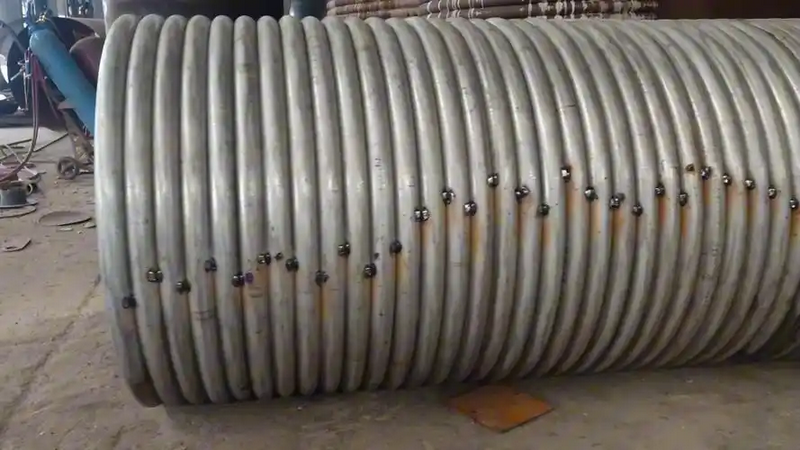

Stainless steel control lines are coiled tubes that can be either welded or seamless. They are often used in downhole and subsea environments for hydraulic control, chemical injection, and instrumentation purposes. The coiled nature of these tubes allows for long continuous lengths, which can be coiled onto drums for easy transportation and deployment.
- Downhole Hydraulic Control Lines: Used for controlling hydraulic systems in oil and gas wells.
- Downhole Chemical Control Lines: Employed for injecting chemicals into wells to enhance oil recovery or prevent corrosion.
- Subsea Control Lines: Essential for hydraulic power and chemical injection in subsea environments.
- Instrumentation Tubing: Used for transmitting data from sensors in oil and gas fields.
The sizes of stainless steel control lines vary widely, but common outer diameters range from 3 mm to 25.4 mm, with wall thicknesses from 0.5 mm to 3 mm. Popular sizes include 1/4 inch, 3/8 inch, 1/2 inch, 5/8 inch, and 3/4 inch control lines.
| Outer Diameter (OD) | Wall Thickness (WT) | Common Applications |
|---|---|---|
| 3 mm (0.118") | 0.5 mm (0.020") | Instrumentation |
| 6.35 mm (1/4") | 0.6 mm to 1.24 mm | Downhole Control |
| 9.53 mm (3/8") | 0.049 inch to 1 mm | Hydraulic Systems |
| 12.7 mm (1/2") | 0.8 mm to 1.5 mm | Subsea Operations |
| 15.88 mm (5/8") | 1 mm to 2 mm | Chemical Injection |
| 19.05 mm (3/4") | 1.2 mm to 2.5 mm | Flowline Control |
The choice of material for stainless steel control lines depends on the application environment. Common materials include:
- 304 and 304L Stainless Steel: Known for general corrosion resistance.
- 316L Stainless Steel: Offers better resistance to chloride-induced corrosion.
- Duplex Stainless Steel (2205, 2507): Used in environments with high chloride concentrations.
- Nickel Alloys (Inconel 625, 825): Suitable for high-temperature applications.
Stainless steel control lines can be manufactured through either seamless or welded processes. Seamless tubes are cold-drawn, which enhances their strength and eliminates potential weak points. Welded tubes, on the other hand, are often redrawn to improve their mechanical properties.
The specifications of stainless steel control lines include:
- Outer Diameter Tolerance: Typically +/- 0.005 inches (0.13 mm).
- Wall Thickness Tolerance: Usually +/- 10%.
- Coil Lengths: Can range from 6,000 meters to 13,500 meters depending on the product dimensions and whether orbital joints are used.
Stainless steel control lines are versatile and find applications across various industries:
- Oil and Gas: Used for downhole operations, subsea installations, and instrumentation.
- Chemical Processing: Employed for chemical injection and process control.
- Geothermal Energy: Essential for high-temperature environments.
Stainless steel control lines are critical components in modern industrial systems, offering durability and versatility. Their common sizes range from 3 mm to 25.4 mm in outer diameter, with wall thicknesses from 0.5 mm to 3 mm. The choice of material and manufacturing process depends on the specific application requirements. Understanding these specifications is essential for selecting the right control lines for various industrial applications.
Stainless steel control lines are commonly made from materials like 304, 304L, 316L, duplex stainless steel (2205, 2507), and nickel alloys (Inconel 625, 825). These materials offer varying levels of corrosion resistance and are chosen based on the application environment.
Stainless steel control lines are used in downhole hydraulic control, subsea operations, chemical injection, instrumentation tubing, and flowline control. They are also applied in geothermal energy and other high-temperature environments.
Stainless steel control lines can be manufactured through either seamless or welded processes. Seamless tubes are cold-drawn to enhance strength, while welded tubes are often redrawn to improve mechanical properties.
Common sizes include 1/4 inch, 3/8 inch, 1/2 inch, 5/8 inch, and 3/4 inch control lines, with outer diameters ranging from 3 mm to 25.4 mm and wall thicknesses from 0.5 mm to 3 mm.
Coiled stainless steel control lines offer several advantages, including flexibility, long continuous lengths, reduced leakage risks due to fewer joints, and ease of installation in confined spaces.
