Stainless steel tube bending is a complex process that involves shaping stainless steel tubing into various configurations for use in different industries, such as automotive, aerospace, and construction. Despite its versatility, bending stainless steel tubes poses several challenges due to the material's high strength, hardness, and tendency to work harden. This article will delve into the common problems encountered during stainless steel tube bending and explore solutions to address these issues.
Stainless steel tubing is prized for its corrosion resistance, durability, and aesthetic appeal. However, its high tensile strength and hardness make it difficult to bend without specialized equipment and techniques. The process requires careful planning and execution to avoid common pitfalls such as kinking, springback, and work hardening.
Stainless steel becomes more brittle and prone to cracking as it is bent due to work hardening. This phenomenon occurs because the material's crystal structure changes under stress, increasing its hardness but reducing its ductility. To mitigate this, it is crucial to use a bending machine with sufficient capacity and apply bending forces evenly.
After bending, stainless steel tends to spring back to its original shape, which can lead to inaccurate bend angles. Compensating for springback by overbending the tube slightly is essential to achieve the desired shape.
These deformations often occur due to inadequate support or poor-quality tooling. Using a mandrel during the bending process can help prevent kinking by maintaining the tube's roundness.
While bending itself does not directly affect corrosion resistance, choosing a stainless steel grade that retains its properties after bending is crucial for applications in corrosive environments.
Variations in material thickness can significantly affect bending results, especially when tight tolerances are required. Thicker tubes generally require more bending power than thinner ones.
Several methods are employed to bend stainless steel tubes, each suited to different applications and requirements:
This method involves inserting a mandrel inside the tube to prevent collapse and maintain roundness during bending. It is ideal for tight-radius bends and high-precision applications.

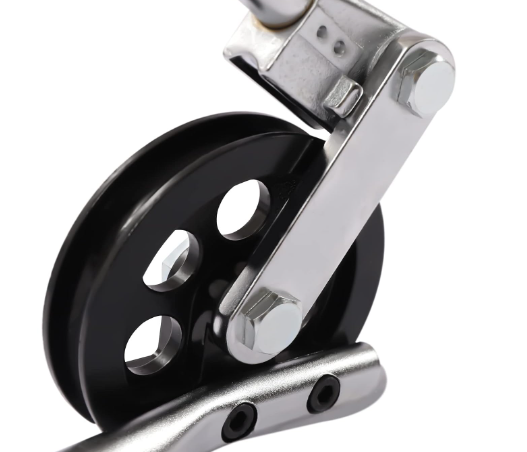

This technique uses a rotating die to form the desired bend. It is precise and suitable for high-precision components but can lead to wall thinning and ovality, especially in tighter radii.
This method bends the tube around a stationary die and is best for symmetrical pieces. However, it is less precise and not suitable for tight-radius bends.
This method involves using three rollers to gradually bend the tube. It is commonly used for large-radius bends and is suitable for thicker tubes.
This technique involves heating the tube to make it more pliable, allowing for significant bends without cracking. It is particularly useful for heavy-wall and tight-radius bends in heavy industries.
To address the challenges in stainless steel tube bending, several strategies can be employed:
- Use of Proper Lubricants: Applying heavy drawing lubricants can reduce friction and prevent kinks during bending.
- Correct Tooling and Equipment: Using the right tool material and setup is crucial for successful bending. Bronze materials are often used for mandrels and wiper dies, but tool coatings can help reduce wear when bending harder stainless steel grades.
- Gradual Bending: Avoiding sharp bends and opting for gradual, smooth bends can help prevent overstressing the material.
- Proper Calibration: Calibrating bending equipment accurately and aligning the tubing correctly with bending indicators can ensure consistent, kink-free bends.
Safety is paramount when bending stainless steel tubing. Operators should wear protective gear such as gloves and safety glasses to protect against sharp edges and springback. Ensuring the workspace is clean and organized and using well-maintained equipment can prevent accidents.
This issue can occur if the bending radius is too small or if the tube is not adequately supported. Using a mandrel and ensuring the bending radius is at least three to five times the tube diameter can help prevent this.
These can form due to uneven stress distribution or improper tooling. Adjusting the pressure die force and ensuring proper lubrication can mitigate this issue.
This severe deformation can be prevented by positioning the mandrel correctly and using adequate support during bending.
These issues are common in rotary draw bending, especially with tight radii. Using a mandrel and adjusting bending speed and pressure can help maintain the tube's shape.

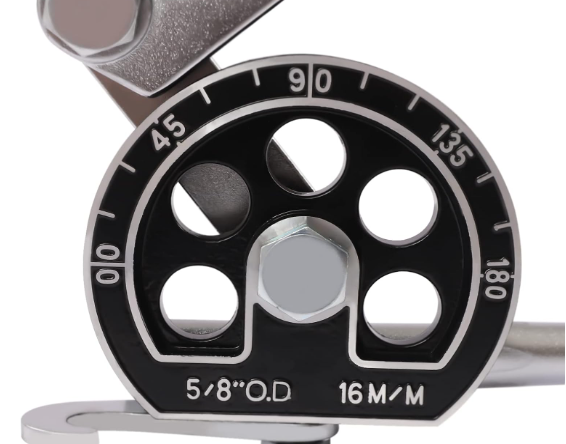

To counter springback, bend the tube slightly past the intended angle and adjust post-bend as necessary.
- Optimize Bending Radius: Choose an appropriate bending radius based on the tube's wall thickness and material properties. A radius that is too small can lead to excessive stretching on the outer side and compression on the inner side, resulting in deformation.
- Control Bending Speed: Too fast bending speed can lead to uneven stress distribution, causing localized deformation and rebound. Conversely, too slow speed may induce cold work hardening. Modern pipe bending machines with CNC control systems can be programmed to handle bending speeds for different materials.
- Use Multi-Pass Bending Process: Performing multiple bending steps can effectively reduce the stress of each bend, thereby decreasing rebound and deformation.

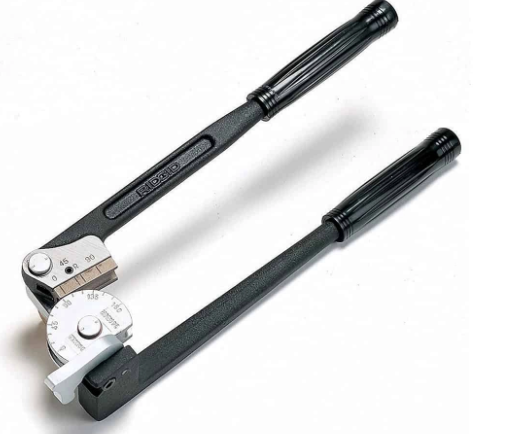

A stainless steel tube bending machine is crucial for achieving precise and efficient bends. These machines can be programmed to handle different materials and bending speeds, ensuring consistent results. They also allow for the use of various bending methods, such as mandrel and rotary draw bending, which are essential for maintaining tube integrity and achieving high-precision bends.
Bending stainless steel tubes requires careful consideration of the material's properties and the bending process itself. By understanding the common challenges and employing the right techniques and equipment, manufacturers can achieve precise, high-quality bends that meet the demands of various industrial applications. The use of a stainless steel tube bending machine is crucial for achieving these results efficiently and effectively.
The primary challenges include work hardening, springback, kinking, and maintaining corrosion resistance. Work hardening makes the material more brittle, while springback affects the accuracy of bend angles. Kinking can occur due to inadequate support, and maintaining corrosion resistance requires selecting the right stainless steel grade.
Springback is the tendency of the material to return to its original shape after bending, which can lead to inaccurate bend angles. To compensate for springback, the tube must be bent slightly beyond the desired angle.
Lubricants play a crucial role in reducing friction and preventing kinks during the bending process. Heavy drawing lubricants are recommended to ensure smooth bends and minimize material damage.
Common methods include mandrel bending, rotary draw bending, compression bending, three-roll bending, and heat induction bending. Each method is suited to different applications based on factors like bend radius and precision requirements.
Kinking can be prevented by using a mandrel to maintain the tube's roundness during bending. Proper tooling and adequate support are also essential to avoid kinking.
