Stainless steel tube inserts are essential components widely used in various industries to enhance the functionality, durability, and aesthetics of tubular structures. These inserts are designed to fit snugly inside hollow tubes, providing a secure threaded interface or reinforcement that enables attachments such as leveling feet, casters, or connectors. This article explores what stainless steel tube inserts are, their types, working principles, applications, installation methods, and benefits, supported by relevant images and videos for better understanding.

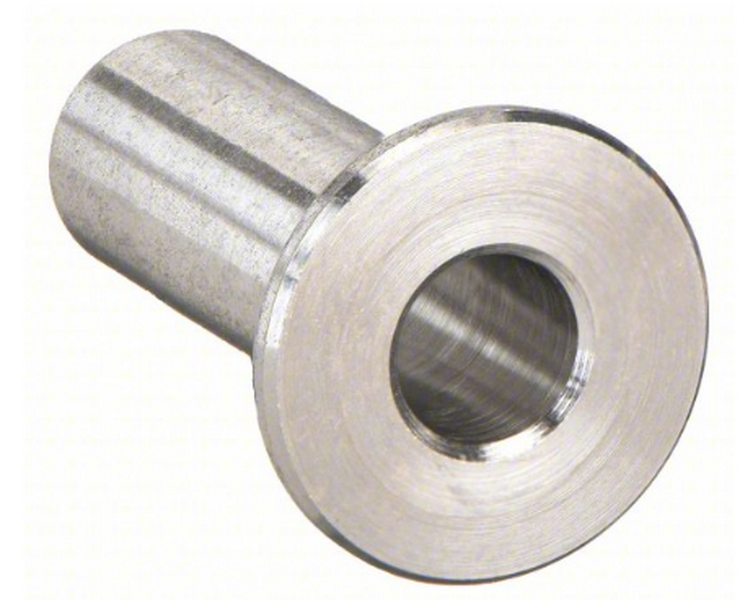

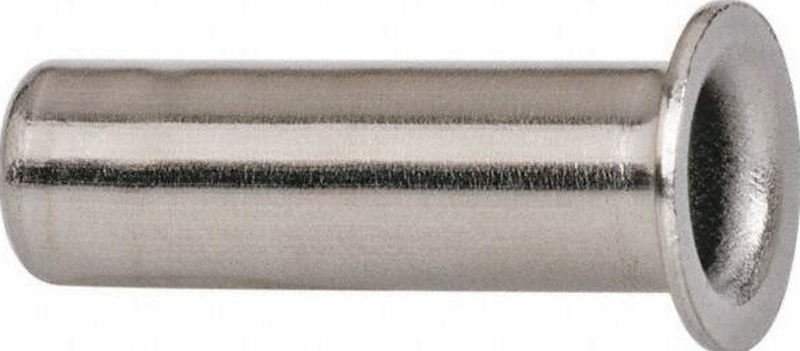

Stainless steel tube inserts are typically cylindrical or square-shaped components inserted into the open ends of hollow metal tubes, such as stainless steel, aluminum, or other structural metals. They often feature an internal female thread made of stainless steel, which allows for the attachment of bolts, leveling feet, or other hardware. The body of the insert can be made from plastic reinforced with glass fibers or entirely from stainless steel, depending on the application requirements.
- Material: Usually Grade 316 stainless steel for corrosion resistance and strength.
- Shape: Round or square to match the tube profile.
- Thread: Internal female thread for fastening.
- Body: Often plastic or composite for easy insertion and grip.
The primary function of stainless steel tube inserts is to provide a durable, threaded interface inside hollow tubes that lack sufficient wall thickness to be tapped directly. Here's how they work:
1. Insertion: The insert is pushed or tapped into the open end of the tube. Its outer surface is designed with ribs or flexible features that grip the inner wall of the tube tightly, preventing movement.
2. Threaded Interface: The internal stainless steel thread allows bolts or leveling feet to be screwed in securely.
3. Load Distribution: The insert reinforces the tube end, distributing mechanical loads and preventing deformation or damage to the tube.
4. Protection: Inserts also protect the tube ends from moisture ingress, corrosion, and mechanical damage.
This system enables easy attachment and adjustment of components like leveling feet or casters without welding or complex machining.
These have an internal female thread and are used to attach hardware like leveling feet or casters. Common thread sizes include M10, M12, M16, and M20.

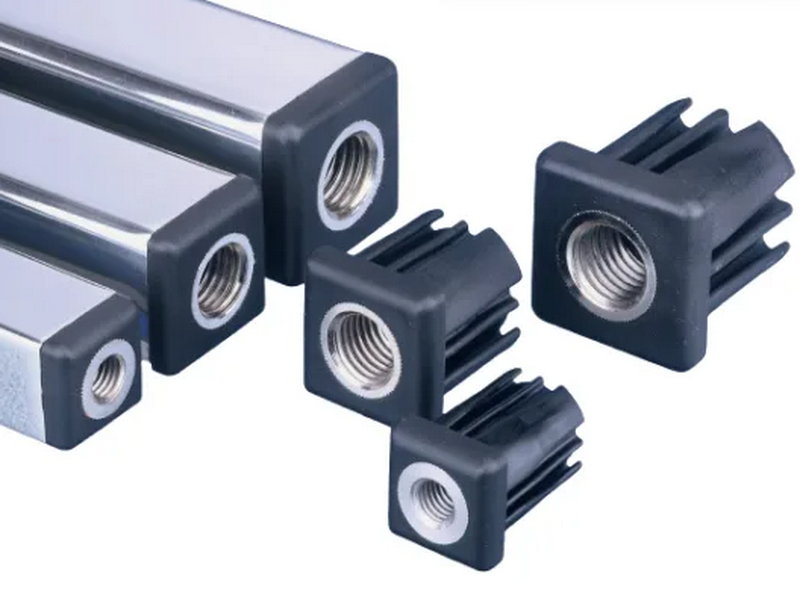

Made from plastic or composite materials with stainless steel threads, these inserts are designed for heavy-duty applications and provide a tight fit without the need for adhesives or fasteners.
These inserts expand inside the tube to create a secure fit, often used in adjustable furniture or machinery frames.
Some stainless steel inserts come with weld plates for permanent attachment to tubes, offering enhanced strength.
Stainless steel tube inserts are versatile and used in various sectors:
- Industrial Machinery: For mounting leveling feet and casters on metal frames.
- Furniture Manufacturing: To attach adjustable legs or connectors.
- Safety Systems: For secure mounting points in guardrails or barriers.
- Medical Equipment: Providing hygienic and corrosion-resistant connections.
- Automotive and Aerospace: For lightweight yet strong frame assemblies.
Installing stainless steel tube inserts is straightforward and can be done with minimal tools:
1. Measure the Tube: Determine the outer diameter (OD) and wall thickness of the tube.
2. Select the Insert: Choose an insert that matches the tube's OD and wall thickness range.
3. Prepare the Tube End: Ensure the tube end is clean and free of burrs.
4. Insert the Tube Insert: Push or tap the insert into the tube end using a hammer or press. The ribbed design holds it firmly in place.
5. Attach Hardware: Screw in leveling feet, bolts, or casters into the internal thread.
- Corrosion Resistance: Stainless steel inserts resist rust and corrosion, extending the life of the assembly.
- Strength and Durability: They provide a strong threaded connection that can withstand mechanical stress.
- Ease of Installation: Quick and simple to install without welding or complex machining.
- Versatility: Suitable for various tube sizes and wall thicknesses.
- Aesthetic Finish: Provide a clean, professional look while protecting tube ends.
- Adjustability: Enable easy height adjustment or component replacement.
- Grade 316 Stainless Steel: Preferred for its excellent corrosion resistance and mechanical strength.
- Glass Reinforced Plastic: Used for the body in some inserts to provide flexibility and grip.
- Other Stainless Steel Grades: Depending on application requirements.
When selecting a tube insert, consider:
- Tube Diameter and Wall Thickness: Match the insert's outer diameter and wall thickness range.
- Thread Size: Ensure compatibility with the hardware to be attached.
- Load Requirements: Choose heavy-duty inserts for high load applications.
- Environmental Conditions: Opt for corrosion-resistant grades in harsh environments.
- Application Type: Whether adjustable, permanent, or temporary fixing is needed.
Stainless steel tube inserts require minimal maintenance. Periodic inspection for wear or corrosion is recommended, especially in outdoor or harsh environments. Their corrosion resistance and robust design ensure long service life.
Stainless steel tube inserts are vital components that enhance the functionality and durability of hollow metal tubes by providing a reliable threaded interface for various attachments. Their corrosion resistance, strength, and ease of installation make them indispensable in industries ranging from manufacturing to medical equipment. By selecting the appropriate size and type, users can ensure secure connections, adjustability, and long-lasting performance in their applications.
Stainless steel tube inserts come in a variety of sizes to fit different tube outer diameters and wall thicknesses, with common thread sizes including M10, M12, M16, and M20. They are available for round and square tubes and can accommodate wall thicknesses typically ranging from 1mm to 3mm or more depending on the insert design.
Yes, stainless steel tube inserts are often used with aluminum structural tubes to provide a strong threaded interface for attachments like leveling feet or casters, combining the lightweight properties of aluminum with the strength of stainless steel threads.
Installation involves cleaning the tube end, selecting the correct insert size, and pushing or tapping the insert into the tube end until it fits snugly. No adhesives or fasteners are usually required due to the ribbed design of the insert that grips the tube interior.
Yes, inserts made from Grade 316 stainless steel offer excellent corrosion resistance, making them suitable for use in moist or harsh environments without rusting or degrading over time.
Yes, stainless steel tube inserts are designed to provide strong mechanical connections capable of supporting heavy loads, especially when used in industrial machinery, furniture, or safety systems.
