A stainless steel tube expander is a specialized tool designed to enlarge the diameter of stainless steel tubes, ensuring a secure, leak-proof fit in various industrial applications such as heat exchangers, condensers, boilers, and medical tubing. The question often arises: Is a stainless steel tube expander suitable for all tube sizes? This article explores the capabilities, limitations, and best practices of using stainless steel tube expanders across different tube sizes and materials, providing a comprehensive understanding for engineers, technicians, and industry professionals.

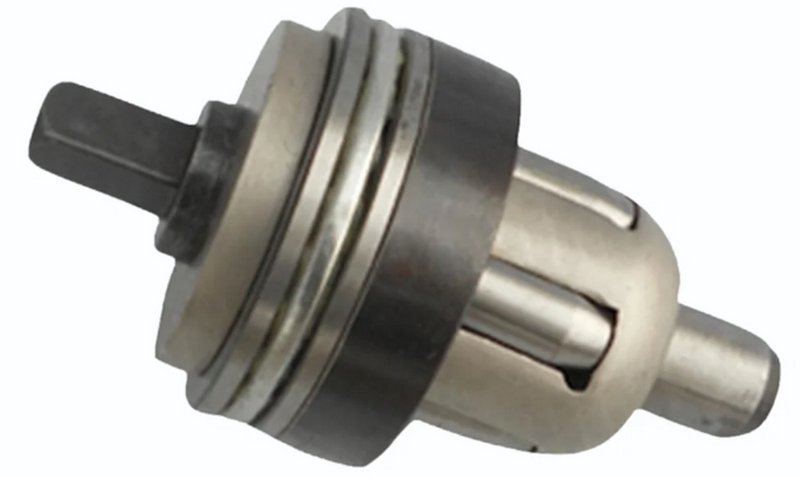

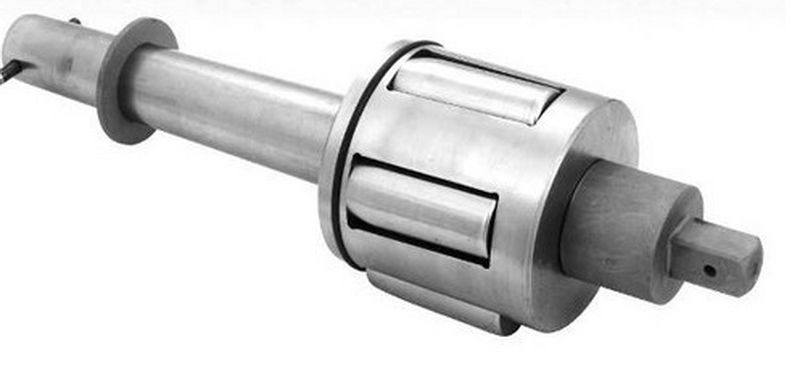

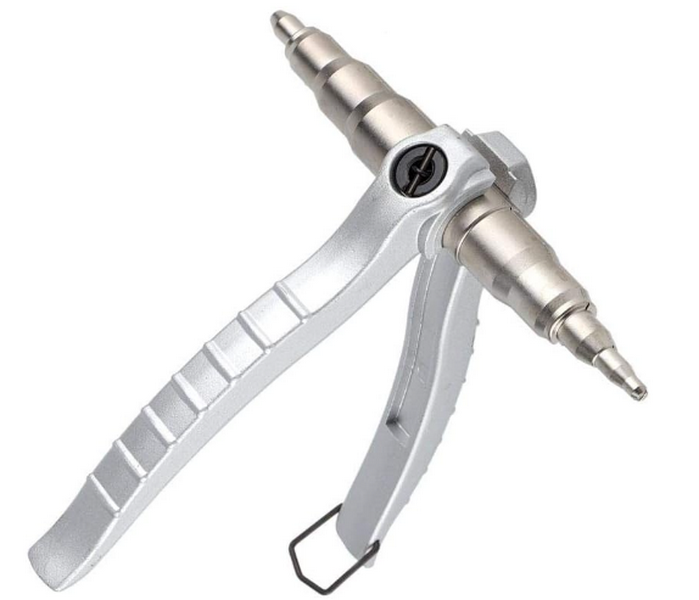

A stainless steel tube expander is a mechanical device used to increase the diameter of a tube's end by cold working it. This process creates a tight mechanical seal between the tube and the tube sheet or fitting, preventing leaks and ensuring structural integrity. The expander typically consists of mandrels and rollers or jaws that apply uniform pressure to the tube's interior surface, expanding it evenly without damaging the tube wall.
- 3-Roll Expanders: Commonly used for general tube expansion, suitable for thicker tubes.
- 4 or 5-Roll Expanders: Preferred for thin-walled stainless steel tubes to reduce spring-back and ensure concentric expansion.
- Jaw Expanders: Used for flexible tubing such as silicone or latex, often in medical or cleanroom environments.
- Hydraulic and Ram Forming Expanders: Provide precise control for specific diameters and tube thicknesses.
Stainless steel tube expanders are designed to accommodate a range of tube diameters and wall thicknesses, but they are not universally suitable for all tube sizes without customization.
- Typical tube expanders handle internal diameters from approximately 0.3 inches (7.6 mm) up to 1.75 inches (44.5 mm) or more, depending on the model and manufacturer.
- Thin-walled tubes (19 to 22 gauge) require specialized 5-roll expanders to avoid deformation and ensure even expansion.
- Thick-walled tubes and larger diameters may require hydraulic or ram forming expanders for effective expansion without damage.
- Stainless steel tubes can generally be expanded up to 4-5% of their diameter without compromising structural integrity.
- Expansion beyond this limit risks thinning the tube wall excessively, leading to potential leaks or failure.
- The tube sheet material and thickness also influence the expansion process and the choice of expander.
Manufacturers often provide custom tube expanders tailored to specific tube sizes and applications. For example, special expanders can handle tubes with diameters up to 3.25 inches (82.5 mm) or more, with adjustable roll lengths to suit tube sheet thicknesses ranging from 1/4 inch to over 2 inches.
- Corrosion Resistance: Stainless steel expanders resist corrosion, making them ideal for cleanroom and medical applications.
- Precision and Repeatability: Pneumatic and hydraulic expanders offer precise control over expansion diameter, ensuring consistent results.
- Versatility: Suitable for a wide range of tube materials including stainless steel, titanium, Incoloy, and other exotic alloys.
- Reduced Tube Spring-Back: Multi-roll expanders minimize the tube's tendency to revert to its original size after expansion.
- Cleanroom Compatibility: Stainless steel jaws prevent contamination during expansion, critical in pharmaceutical and medical device manufacturing.
- Size Range Restrictions: Standard expanders have size limits; tubes outside these ranges require custom tools.
- Material Hardness: Harder materials like titanium may require more robust expanders or multiple passes.
- Wall Thickness Constraints: Very thin or very thick walls may not expand uniformly without risk of damage.
- Tube Sheet Design: Triangular tube pitch patterns or thin ligaments in tube sheets may complicate expansion.
- Cost and Maintenance: High-quality stainless steel expanders can be costly and require regular maintenance for optimal performance.
Stainless steel tube expanders are extensively used in the HVAC and power generation industries to ensure tight seals in heat exchanger tubes, improving heat transfer efficiency and preventing leaks.
In medical device manufacturing, stainless steel tube expanders with cleanroom-compatible designs are used to expand silicone, latex, and other flexible tubing for secure fitting installation.
The corrosion resistance and strength of stainless steel make these expanders ideal for tubes in harsh chemical environments, ensuring durability and safety.
This video provides an inside look at the precision manufacturing process of stainless steel tube expansion, highlighting equipment and techniques used to achieve consistent, high-quality results.
| Factor | Consideration |
|---|---|
| Tube Diameter | Select an expander model that covers the tube's internal diameter range |
| Wall Thickness | Use 5-roll expanders for thin walls; hydraulic or ram forming for thick walls |
| Tube Material | Stainless steel, titanium, and exotic alloys require specific expander designs |
| Tube Sheet Thickness | Choose roll length and expander type based on tube sheet thickness |
| Application Environment | Cleanroom-compatible stainless steel jaws for medical; robust designs for industrial use |
- Regularly inspect expander rolls or jaws for wear and corrosion.
- Calibrate pneumatic or hydraulic controls to maintain precise expansion diameters.
- Use appropriate lubrication and cleaning to prevent contamination.
- Train operators on correct expansion techniques to avoid tube damage.
- Store expanders in controlled environments to prolong tool life.
Advanced techniques for using stainless steel tube expanders can significantly enhance the efficiency and effectiveness of the expansion process. One such technique is multi-pass expansion, where the tube is expanded in multiple stages to achieve the desired diameter without compromising the tube wall integrity. This method is particularly useful for thick-walled tubes or materials that are difficult to expand. Additionally, specialized tools, such as hydraulic expanders, can be employed for different materials, ensuring optimal results.
Other advanced methods include controlled expansion speed and pressure adjustments to minimize tube deformation and prevent cracking. Using digital or automated expanders with real-time feedback sensors allows operators to monitor expansion parameters closely, improving precision and reducing human error.
Real-world applications of stainless steel tube expanders can be seen in various industries, including heat exchangers and medical devices. For instance, in the HVAC industry, tube expanders are used to create tight seals in heat exchanger tubes, improving heat transfer efficiency and reducing maintenance costs. One case study showed that using a 5-roll stainless steel tube expander reduced tube replacement frequency by 30% due to improved expansion quality.
In medical device manufacturing, tube expanders are utilized to ensure secure fittings for flexible tubing, addressing challenges such as contamination and precision. A pharmaceutical company reported enhanced product safety and reduced contamination risk after switching to stainless steel jaw expanders with cleanroom-compatible designs.
Recent innovations in the design of stainless steel tube expanders focus on improving precision and reducing wear. New materials, such as advanced alloys and coatings, are being introduced to enhance the durability of expanders. For example, tungsten carbide coatings on rolls increase lifespan and reduce maintenance frequency.
Additionally, technologies like automated expansion processes and smart sensors are being integrated into expander designs to provide real-time feedback and improve accuracy. These smart expanders can adjust expansion parameters dynamically based on tube material and thickness, ensuring optimal expansion without operator intervention.
Despite their effectiveness, there are common mistakes made during the use of stainless steel tube expanders. Incorrect sizing of the expander for the tube diameter can lead to uneven expansion or damage to the tube. Using an expander that is too large or too small can cause leaks or tube deformation.
Neglecting regular maintenance, such as cleaning and lubrication, can result in reduced performance and increased wear on the expander. Operators sometimes apply excessive force or expand tubes too quickly, causing cracks or weakening the tube wall.
Experts recommend several tips for successful stainless steel tube expansion:
- Proper training for operators is crucial to ensure they understand the correct techniques and the importance of using the right tools.
- Regular maintenance of expanders, including inspection and calibration, is essential to maintain precision and prolong the life of the equipment.
- Use multi-pass expansion for thick or hard materials to avoid tube damage.
- Always verify tube and tube sheet compatibility before expansion.
- Employ cleanroom-compatible stainless steel jaws when working with medical or pharmaceutical tubing to prevent contamination.
A stainless steel tube expander is a highly effective tool for expanding tubes in a variety of sizes and applications, but it is not universally suitable for *all* tube sizes without consideration of tube diameter, wall thickness, material, and application requirements. With the right selection—whether a 3-roll, 5-roll, jaw-type, or hydraulic expander—stainless steel tube expanders can deliver precise, reliable, and contamination-free expansion for tubes ranging from small medical tubing to large industrial heat exchanger tubes. Customization and expert consultation are key to ensuring the expander matches the specific tube size and operational needs, maximizing performance and durability.
Stainless steel tube expanders typically handle tube internal diameters from about 0.3 inches (7.6 mm) up to 1.75 inches (44.5 mm) or more, with custom expanders available for larger sizes. Wall thickness and tube material also affect suitability.
Yes, 5-roll stainless steel tube expanders are highly recommended for thin-walled tubes (19 to 22 gauge) to ensure even expansion and reduce spring-back effects.
Generally, stainless steel tubes can be expanded up to 4-5% of their diameter without compromising structural integrity, but this depends on wall thickness and tube sheet design.
Yes, stainless steel tube expanders with cleanroom-compatible stainless steel jaws are ideal for expanding flexible medical tubing such as silicone and latex, ensuring contamination-free operation.
Regular inspection, cleaning, lubrication, and calibration of pneumatic or hydraulic controls are essential to maintain precision and prolong the life of stainless steel tube expanders.
