In the demanding sectors of oil and gas, chemical processing, marine, and power generation, material selection is critical for safety, reliability, and cost-effectiveness. Among the advanced materials available, 2507 duplex coiled tubing has emerged as a preferred choice for applications requiring exceptional strength, corrosion resistance, and durability. But does this premium material justify its higher initial cost? This article offers a comprehensive analysis of 2507 duplex coiled tubing—exploring its properties, applications, benefits, cost considerations, and whether it is truly worth the investment.
2507 duplex stainless steel, also known as Super Duplex 2507 (UNS S32750), is a high-alloy, dual-phase stainless steel. It contains approximately 25% chromium, 7% nickel, 4% molybdenum, and nitrogen, which together deliver a unique combination of strength and corrosion resistance. The duplex structure (austenite and ferrite phases) is key to its superior mechanical and chemical properties.

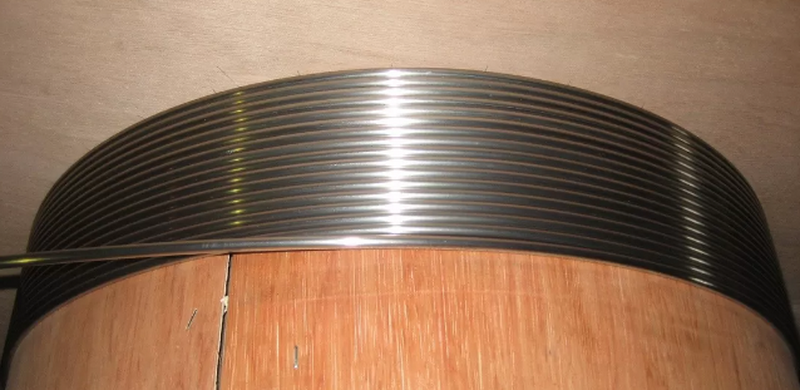

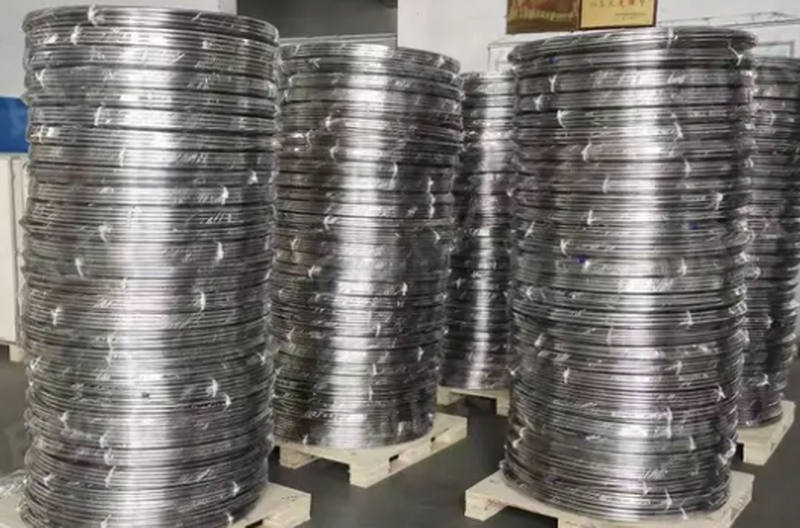

2507 duplex coiled tubing is available in both seamless and welded forms, produced using advanced cold drawing and TIG welding techniques. It is manufactured to stringent standards such as ASTM A789 and EN10216-5, ensuring high quality and consistency for critical applications.
Key Specifications:
- Outer Diameter: 1/8” – 1.5” (3.2 mm – 42 mm)
- Wall Thickness: 0.035” – 0.118” (0.89 mm – 3 mm)
- Length: Up to 10,000 meters (custom lengths available)
- Yield Strength: ≥80,000 psi
- Tensile Strength: ≥95,000 psi
- Chloride Resistance: The high chromium and molybdenum content provides outstanding resistance to chloride pitting and crevice corrosion, making it ideal for subsea and offshore environments.
- Acid and Chemical Resistance: Performs exceptionally well in acidic and aggressive chemical environments, reducing the risk of corrosion-related failures.
- High Yield and Tensile Strength: With a yield strength of at least 80,000 psi and tensile strength exceeding 95,000 psi, 2507 duplex tubing can withstand high pressures and mechanical stresses.
- Fatigue and Impact Resistance: The duplex structure offers excellent resistance to fatigue, impact, and stress corrosion cracking.
- Reduced Maintenance: The combination of corrosion resistance and mechanical strength translates to fewer replacements and lower maintenance costs over the tubing's lifecycle.
- Reliability in Extreme Conditions: Maintains performance in both high-temperature wells and low-temperature arctic environments.
- Downhole Hydraulic Control Lines: For transmitting hydraulic power in well completion and intervention.
- Chemical Injection Lines: For precise delivery of chemicals in enhanced oil recovery and flow assurance.
- Subsea Umbilicals: Used in deepwater applications where resistance to seawater and high pressure is critical.
- Instrumentation Tubing: For accurate control and measurement in corrosive process streams.
- Heat Exchangers: Withstands aggressive media and high temperatures.
- Desalination Plants: Handles chlorinated seawater with minimal risk of pitting.
- Boiler and Reheater Tubes: In flue gas desulfurization units and high-temperature environments.
- Minimized Leak Risks: Fewer welds and superior corrosion resistance reduce the likelihood of leaks and catastrophic failures.
- System Integrity: Critical for safety systems in oil and gas operations, especially in remote or hazardous locations.
- Longer Service Intervals: The tubing's durability means less downtime for maintenance and replacement.
- Flexibility in Installation: Coiled tubing can be supplied in long, continuous lengths, reducing the need for joints and simplifying installation in complex or confined spaces.
- Lower Total Cost of Ownership: While the upfront cost is higher, reduced maintenance, fewer replacements, and less production downtime often make 2507 duplex coiled tubing more cost-effective over the long term.
- Reduced Risk of Spills: Superior resistance to corrosion and cracking minimizes the risk of leaks, protecting the environment from hazardous spills.
| Property/Feature | 2507 Duplex Coiled Tubing | 2205 Duplex Tubing | 316L Austenitic Tubing |
|---|---|---|---|
| Yield Strength (min) | 80,000 psi | 65,000 psi | 30,000 psi |
| Tensile Strength (min) | 95,000 psi | 90,000 psi | 75,000 psi |
| Pitting Resistance (PREN) | 42.5+ | 35 | 25 |
| Chloride SCC Resistance | Excellent | Good | Moderate |
| Cost | High | Medium | Low |
| Typical Applications | Harsh, high-pressure | General industry | Non-chloride, low-risk |
| Lifecycle Cost | Low | Medium | High |
- Higher Upfront Investment: 2507 duplex coiled tubing is more expensive than standard duplex (2205) or austenitic (316L) stainless steel tubing due to its complex alloy composition and manufacturing process.
- Long-Term Savings: The tubing's durability, resistance to corrosion, and longer service life reduce the frequency and cost of replacements, maintenance, and unscheduled downtime.
- In environments with high chloride content, aggressive chemicals, or extreme pressures and temperatures, 2507 duplex coiled tubing often outperforms alternatives, making it the most cost-effective solution when considering the total lifecycle cost.
- The premium price may not be justified for low-risk or non-aggressive environments where less expensive materials suffice.
- Requires skilled personnel and specialized procedures for welding and installation due to its high strength and unique metallurgical properties.
- Prolonged exposure to temperatures above 250°C (482°F) can affect the microstructure and mechanical properties, limiting its use in certain high-temperature applications.
A major offshore oil operator replaced traditional 316L coiled tubing with 2507 duplex coiled tubing for subsea chemical injection lines. Over a five-year period, the operator reported:
- Zero corrosion-related failures
- 30% reduction in maintenance costs
- Improved system reliability and safety
A desalination facility using 2507 duplex coiled tubing for brine handling experienced:
- No pitting or crevice corrosion after years of exposure to chlorinated seawater
- Reduced operational interruptions and lower total maintenance expenditure
2507 duplex coiled tubing stands out as a premium solution for industries facing the harshest operational challenges. Its unparalleled combination of mechanical strength, corrosion resistance, and long service life delivers exceptional value—particularly in oil and gas, marine, and chemical processing sectors where failure is not an option.
While the initial investment is higher, the long-term savings in maintenance, downtime, and replacements, along with improved safety and environmental protection, make 2507 duplex coiled tubing a wise investment for critical applications. For projects where reliability and performance are paramount, 2507 duplex coiled tubing is not just worth the investment—it is the benchmark for excellence.
2507 duplex coiled tubing offers much higher yield and tensile strength, as well as significantly better resistance to pitting, crevice corrosion, and stress corrosion cracking—especially in chloride-rich or aggressive chemical environments. This makes it ideal for demanding applications where standard stainless steel would fail prematurely.
Thanks to its high chromium, molybdenum, and nitrogen content, 2507 duplex coiled tubing excels in subsea and offshore environments. It resists corrosion from seawater and aggressive chemicals, maintains integrity under high pressures, and offers a long service life with minimal maintenance.
The higher cost is justified in harsh, high-risk environments where corrosion or mechanical failure would result in significant downtime, safety hazards, or environmental damage. For less demanding applications, a lower-cost material may be more appropriate.
Yes. Manufacturers offer a wide range of diameters, wall thicknesses, and coil lengths—often up to 10,000 meters or more. Both seamless and welded options are available, and tubing can be tailored to meet project-specific standards and certifications.
The main benefits include reduced frequency of replacements, lower maintenance costs, fewer production interruptions, and enhanced safety due to minimized risk of leaks or failures. This translates to a lower total cost of ownership over the tubing's lifecycle.
