When it comes to selecting the right cable for heavy-duty applications, the strength and durability of the material are paramount. Among the many options available, 1/16 inch stainless steel cable is a popular choice due to its corrosion resistance and aesthetic appeal. But is it truly strong enough for heavy-duty tasks? This comprehensive article explores the 1 16 stainless steel cable strength, its construction, typical uses, limitations, and practical guidance for choosing the right cable for your needs.

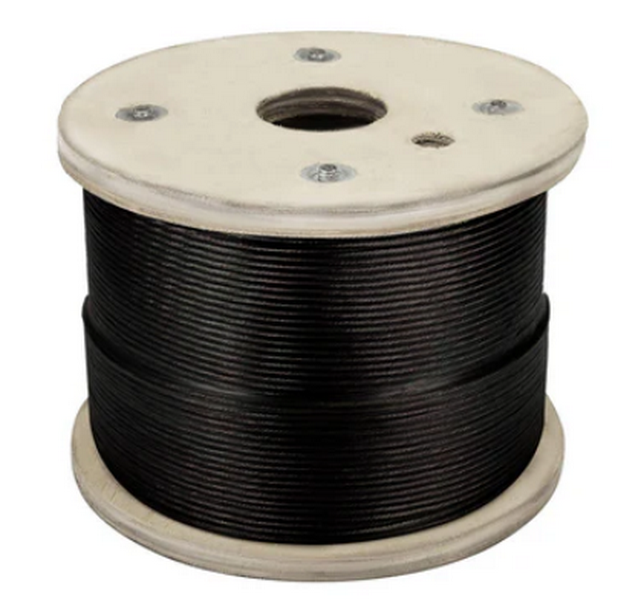

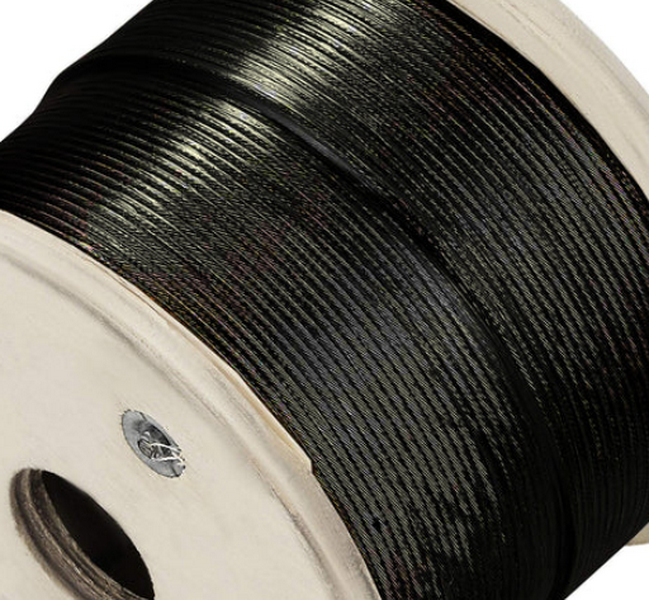

1/16 stainless steel cable refers to wire rope with a diameter of 1/16 inch (0.0625 inches). It is typically constructed in a 7x7 strand configuration, meaning it consists of 7 strands with 7 wires each, twisted together to form a flexible yet strong cable. Stainless steel, particularly grades like 304 and 316, is used for its excellent corrosion resistance and durability.
- 7x7 Strand Construction: Offers a good balance of flexibility and strength, making it suitable for various applications.
- Material Grades: Commonly made from Type 304 or Type 316 stainless steel. Type 316 is preferred for marine or harsh environments due to superior corrosion resistance.
- Diameter: 1/16 inch is relatively thin, designed for light to moderate load applications.
The breaking strength of 1/16 stainless steel cable typically ranges around 480 lbs (approximately 218 kg) for a 7x7 construction made from Type 304 stainless steel. This means the cable will fail if subjected to forces exceeding this limit.
However, the working load limit (WLL), which is the safe load the cable can handle during use, is usually set at about 1/5th of the breaking strength to incorporate a safety factor. This places the WLL around 96 lbs to 100 lbs for 1/16 stainless steel cable[1][2][8][10].
Heavy-duty applications typically involve lifting, pulling, or securing loads that are several hundred pounds or more, often requiring cables capable of supporting thousands of pounds safely. Examples include:
- Industrial rigging and hoisting
- Structural support in construction
- Marine mooring and anchoring
- Heavy machinery operation
Given its breaking strength of approximately 480 lbs and a WLL around 96-100 lbs, 1/16 stainless steel cable is generally not strong enough for heavy-duty applications. It is designed more for light-duty tasks such as:
- Decorative railing and balustrades
- Garden trellises and fencing
- Light rigging and securing small loads
- Clotheslines and hanging lightweight items
For heavy-duty tasks, cables with larger diameters (e.g., 1/8 inch or greater) and higher strand counts (7x19 or 6x19) are recommended, as they offer breaking strengths in the thousands of pounds range[8][11].
Despite its limitations, 1/16 stainless steel cable excels in applications where corrosion resistance, flexibility, and a sleek appearance are important, but the loads are relatively light. Examples include:
- Indoor or outdoor display systems supporting up to 55 lbs[7]
- Architectural features where aesthetics matter more than load capacity
- Marine environments for small securing tasks where corrosion resistance is critical
- DIY projects requiring durable yet thin cable
- 7x7 vs 7x19: The 7x7 construction offers moderate flexibility and strength, while 7x19 strands provide more flexibility and higher strength, suitable for more dynamic loads.
- Core Type: Independent Wire Rope Core (IWRC) provides higher strength compared to fiber cores.
- Type 304 Stainless Steel: Good corrosion resistance, suitable for most environments.
- Type 316 Stainless Steel: Superior corrosion resistance, ideal for marine or chemical exposure.
Exposure to saltwater, chemicals, or extreme weather can degrade galvanized cables faster than stainless steel cables, making stainless steel the preferred choice for longevity in harsh conditions[9][16].
Industry standards recommend applying a safety factor of 5:1 or 6:1 to the breaking strength when determining the working load limit to ensure safety in use[11].
Cutting 1/16 stainless steel cable requires precision tools to avoid fraying and ensure clean ends. Common methods include mechanical cutters, fuse cutting, and hand cutting[4].
- Use appropriate fittings such as thimbles and wire rope clips to maintain cable integrity.
- Avoid sharp bends that can weaken the cable.
- Inspect regularly for wear and corrosion.
| Application | Suitability for 1/16 Cable | Notes |
|---|---|---|
| Decorative railing | Excellent | Provides sleek look, supports light loads |
| Garden trellis | Excellent | Durable and weather resistant |
| Light rigging | Suitable for light loads | Not for lifting heavy weights |
| Marine small securing | Good | Use Type 316 for better corrosion resistance |
| Heavy lifting/hoisting | Not recommended | Use larger diameter cables for safety |
While 1/16 stainless steel cable offers excellent corrosion resistance, flexibility, and an attractive finish, its strength limitations make it unsuitable for heavy-duty applications. With a breaking strength of about 480 lbs and a working load limit near 100 lbs, it is best reserved for light-duty uses such as decorative railings, garden trellises, and small securing tasks.
For heavy-duty applications requiring lifting, rigging, or supporting substantial loads, larger diameter cables with higher strand counts and stronger materials (such as 1/8 inch or greater stainless steel cables) should be used to ensure safety and performance.
The typical breaking strength of 1/16 inch 7x7 stainless steel cable is approximately 480 lbs (218 kg). This is the maximum load the cable can withstand before failure[1][10].
No, 1/16 stainless steel cable is not recommended for heavy lifting. Its working load limit is around 96-100 lbs, which is insufficient for heavy-duty lifting or hoisting applications[8][11].
Stainless steel cables offer superior corrosion resistance, especially in marine or harsh environments. They also maintain strength and appearance longer than galvanized cables which can rust and degrade over time[8][9][16].
Use specialized cable cutters designed for stainless steel wire rope, or methods like fuse cutting for clean ends. Avoid using regular wire cutters to prevent fraying and damage[4].
For heavy-duty applications, cables with diameters of 1/8 inch or larger, and constructions such as 7x19 or 6x19, made from high-grade stainless steel (Type 316) are recommended. These cables have breaking strengths in the thousands of pounds range, suitable for industrial and marine uses[8][11].
