Welding thin stainless steel tubes can be a challenging task due to the material's low thermal conductivity and susceptibility to warping. This comprehensive guide will walk you through the essential techniques, tools, and best practices for achieving high-quality welds on thin stainless steel tubing.
Thin stainless steel tubes are typically defined as having a wall thickness of less than 2.5 mm (approximately 3/32 inch). Common applications for these tubes include automotive exhaust systems, food processing equipment, and various structural applications.
Key Characteristics:
- Material Properties: Stainless steel is known for its corrosion resistance but has low thermal conductivity, which means heat does not dissipate quickly. This can lead to burn-through or warping if not managed properly.
- Welding Techniques: The two most common welding methods for thin stainless steel are TIG (Tungsten Inert Gas) welding and MIG (Metal Inert Gas) welding. TIG welding is preferred for its precision and control over heat input.
Preparation is crucial for successful welding. Here are the steps you should follow:
1. Clean the Surface:
- Remove any contaminants such as grease, oil, or rust from the surfaces to be welded. Use acetone or a similar solvent.
2. Fit-Up:
- Ensure that the pieces fit together snugly with minimal gaps. Proper fit-up helps maintain consistent heat distribution during welding.
3. Select Filler Material:
- Choose a filler rod that matches the base metal's composition. For most stainless steels, a low-carbon filler material is recommended to prevent corrosion.
4. Set Up Your Equipment:
- For TIG welding, use a 2% thoriated tungsten electrode with a diameter of 1.0 to 1.6 mm.
- Adjust your welder settings according to the thickness of the material; typically, a current setting of 10-20 amps is suitable for thin materials.

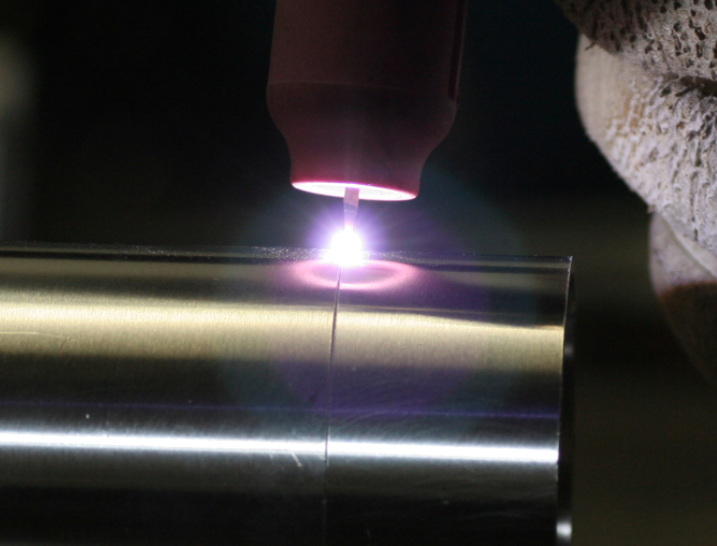

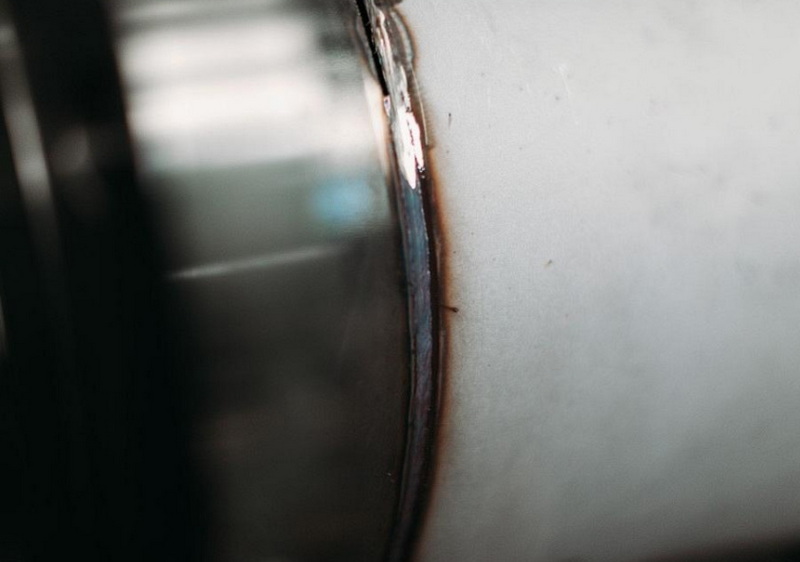

TIG welding is often the method of choice for thin stainless steel due to its ability to provide precise control over heat input.
1. Start with a Short Arc Length:
- Maintain a short arc length to reduce heat input and prevent burn-through.
2. Establish the Puddle Quickly:
- Get the weld puddle started quickly and begin moving immediately to avoid overheating the area.
3. Control Your Travel Speed:
- A faster travel speed helps minimize heat input, which is critical when working with thin materials.
4. Use Back Purging:
- Back purging with argon gas helps prevent oxidation on the backside of the weld, ensuring a clean joint.
5. Intermittent Welding:
- Use intermittent welds rather than continuous beads to allow the material to cool between passes.
MIG welding can also be used for thin stainless steel but requires careful control of settings:
1. Use Smaller Diameter Wire:
- Smaller diameter wires (0.023 to 0.030 inches) are ideal for thin metals as they require less amperage to melt, allowing better control of heat input.
2. Shielding Gas Mixture:
- A mixture of 75% argon and 25% CO2 is commonly used for thin steel, providing good arc stability and penetration while minimizing spatter.
3. Pulsed MIG Welding:
- This advanced technique alternates between high and low current pulses, allowing better heat management and reducing burn-through risks.
Burn-Through:
- This occurs when too much heat is applied to thin materials.
- Solution: Reduce amperage and increase travel speed.
Warping:
- Thin materials can warp due to uneven heating.
- Solution: Use tacks frequently to hold pieces in place and allow cooling between passes.
Oxidation:
- Oxidation can weaken welds.
- Solution: Always back purge when TIG welding stainless steel tubes.
Laser welding is an advanced technique ideal for thin metal applications. A focused laser beam creates a narrow, deep weld with minimal heat-affected zone, offering excellent control over heat input and reducing burn-through risks.
Using a heat sink made of brass or copper clamped behind the seam can help absorb excess heat during welding, preventing warping and distortion in thin materials.
1. Joint Design Considerations:
- Choosing an appropriate joint design (butt joints vs lap joints) can significantly impact weld quality.
- Butt joints are often preferred for their strength but require precise alignment.
2. Preheating Techniques:
- For some applications, preheating may help reduce thermal shock during welding.
- However, care must be taken not to overheat as this could lead to other issues like distortion or loss of corrosion resistance in stainless steel.
1. Electrode Preparation:
- The tungsten electrode must be ground properly; a sharp point provides better arc stability while a blunt tip may produce wider arcs suitable for thicker materials.
2. Filler Material Application:
- When adding filler material in TIG welding, introduce it into the leading edge of the puddle rather than directly into the arc; this ensures better fusion without overheating surrounding areas.
3. Post-Weld Cleaning:
- After completing your welds on stainless steel tubes, it's essential to clean them using pickling paste or similar products designed specifically for removing oxidation without damaging the metal surface.
4. Visual Inspection Techniques:
- Regularly inspect your welds visually or using non-destructive testing methods like dye penetrant testing or ultrasonic testing can help identify defects early on before they become critical issues in your application.
5. Practice on Scrap Material:
- Before working on actual projects, practice on scrap pieces of similar thickness and material type helps build confidence and skill level without risking valuable materials or time.
6. Utilizing Technology in Welding:
- Consider using advanced technologies such as robotic arms equipped with precise controls for consistent results across multiple pieces if working in high-volume production environments.
7. Welding Positioning Techniques:
- Depending on your project requirements (horizontal vs vertical), adjust your technique accordingly; vertical down may provide better control in certain situations while horizontal might be beneficial for larger assemblies.
8. Understanding Heat Affected Zones (HAZ):
- Recognize how HAZ affects mechanical properties post-welding; minimizing HAZ through controlled techniques ensures stronger overall structures post-weld.
9. Utilizing Heat Sinks Effectively:
- Experiment with different sizes/shapes of heat sinks based on tube dimensions; larger sinks absorb more heat but may also introduce their own challenges regarding accessibility during welding operations.
10. Safety Precautions During Welding Operations:
- Always wear appropriate personal protective equipment (PPE), including gloves designed specifically for handling hot materials post-weld; ensure ventilation systems are operational when working indoors due to fumes produced during processes like TIG/MIG welding.
In conclusion, mastering the art of welding thin stainless steel tubes involves understanding both fundamental principles as well as intricate details specific to each project type you undertake—be it fabricating custom exhaust systems or creating intricate medical devices requiring precision joints without compromising structural integrity over time due to environmental factors like corrosion resistance needed in many applications today!
By investing time into honing your skills through practice while adhering strictly to guidelines outlined within this article—alongside leveraging advanced techniques where applicable—you'll find yourself capable not only producing aesthetically pleasing results but also ensuring long-lasting durability across all projects undertaken!
The best method is typically TIG welding due to its precision and control over heat input but MIG welding can also be effective if done correctly depending upon application needs such as speed versus aesthetics desired from final product appearance-wise!
To prevent burn-through use lower amperage settings combined with maintaining fast travel speeds while applying intermittent welds instead continuous beads wherever possible ensuring even cooling occurs throughout process duration!
Select filler rods matching base metal composition—low-carbon rods generally recommended especially if working within food processing industries where hygiene standards must be upheld consistently!
Yes! Back purging using argon gas essential during TIG processes specifically aimed at preventing oxidation occurring backside welded areas leading potential weaknesses forming later down line!
While technically feasible stick-welding not recommended due higher levels generated causing distortion along edges potentially ruining overall quality achieved through careful planning beforehand!
