Using a Ridgid stainless steel tube bender efficiently requires understanding its design, functionality, and proper techniques. Ridgid tools are renowned for their durability and ease of use, making them ideal for professionals and DIY enthusiasts alike. This article will guide you through the process of using a Ridgid stainless steel tube bender like a pro, including tips and tricks for achieving precise bends.

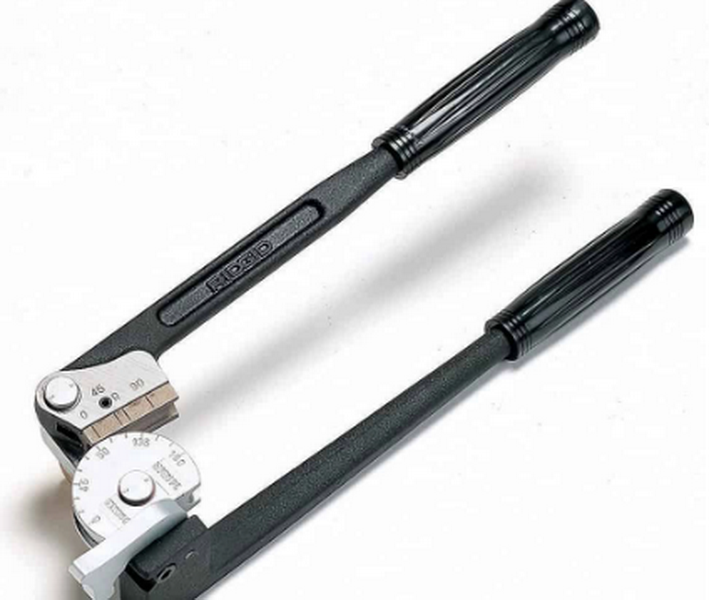

Ridgid offers a range of tube benders designed to handle various materials, including stainless steel, copper, and titanium. These tools are engineered to provide high-quality bending performance with minimal effort. The 600 Series Heavy-Duty Instrument Benders, for example, are specifically designed for bending hard tubing such as stainless steel and titanium, offering a capacity for tubes up to 1/2 inch in diameter[6][9].
- High-Gear Mechanical Ratios: These allow for efficient bending of heavy-wall steel and stainless steel tubes without the need for annealing or special temper grade tubing[3].
- Uniform Bends: Ridgid benders can produce uniform bends up to 180 degrees, ensuring consistent results[3].
- Extra-Long Handles: Provide increased leverage, making it easier to bend tubes[4].
- Roll Dies: Reduce tube flattening (ovality) during the bending process[4].
Before bending, ensure the tube is clean and free of debris. Mark the tube at the desired bend location using a marker or a scriber. This mark will serve as a reference point during the bending process.
1. Open the Tube Latch: Move the carriage handle and tube latch away from the form to prepare for tube insertion[5].
2. Position the Tube: Place the tube in the groove of the bender die, aligning the reference mark with the appropriate position on the bender[5].
3. Secure the Tube: Close the tube latch over the tube to restrict movement while allowing for additional alignment[5].
1. Align the Zero Line: Lower the carriage handle until the "0" line on the carriage aligns with the 0° designation on the form[5].
2. Rotate the Handle: Rotate the carriage handle around the form until the "0" line aligns with the desired degree of bend on the form[5].
3. Complete the Bend: Continue rotating the handle until the desired bend angle is achieved. For a 90-degree bend, align the "0" line with the 90-degree mark on the form[5].
After completing the bend, the tube may spring back slightly. To adjust for this, lift the bender handle and realign the tube with the roll support. Measure the bend using the bender scale and bend an additional two or three degrees as needed[2].
- Use Proper Alignment: Ensure the tube is properly aligned with the bender's markings to achieve accurate bends[5].
- Apply Even Pressure: Use consistent pressure to avoid uneven bends or tube damage[5].
- Check for Ovality: Regularly inspect the tube for signs of ovality and adjust the roll dies as necessary[4].
- Premature Bending: Ensure the link is straight and parallel to the long handle to prevent premature bending[2].
- Insufficient Leverage: Use the extra-long handles to maximize leverage and reduce effort[4].
For a visual guide, watch the following video on using a Ridgid tube bender:

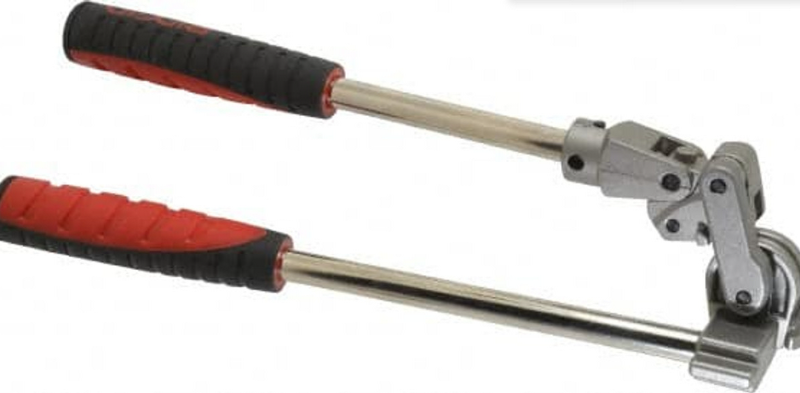

- Swagelok Hand Tube Benders: For those interested in alternative bending tools, Swagelok offers hand tube benders that provide accurate and efficient bending capabilities[2].
Using a Ridgid stainless steel tube bender effectively requires attention to detail and practice. By following the steps outlined above and avoiding common mistakes, you can achieve precise bends in stainless steel tubes. Whether you're a professional plumber or a DIY enthusiast, mastering the use of a Ridgid tube bender will enhance your ability to work with stainless steel tubing efficiently.
Ridgid tube benders are designed to handle a variety of materials, including stainless steel, steel, copper, and titanium. They are particularly effective for bending hard tubing without the need for annealing[3][9].
To prevent tube ovality, use the roll dies provided with the bender. These dies help maintain the tube's circular shape during the bending process[4].
Ridgid tube benders can produce uniform bends up to 180 degrees, making them versatile for various applications[3].
To adjust for springback, lift the bender handle and realign the tube with the roll support. Then, measure the bend and add a few degrees as needed to achieve the desired angle[2].
Always wear protective gloves and safety glasses when using a tube bender. Ensure the workspace is clear of obstacles and that the bender is securely positioned to avoid accidents.
