Selecting the right 1/8 316 stainless steel cable is crucial for ensuring safety, durability, and performance in your project. Whether you're working on marine rigging, architectural cable railings, or industrial applications, understanding the properties, construction, and specifications of this cable type will help you make an informed decision. This comprehensive guide will walk you through everything you need to know about 1/8 316 stainless steel cable, including its types, features, applications, and buying tips.

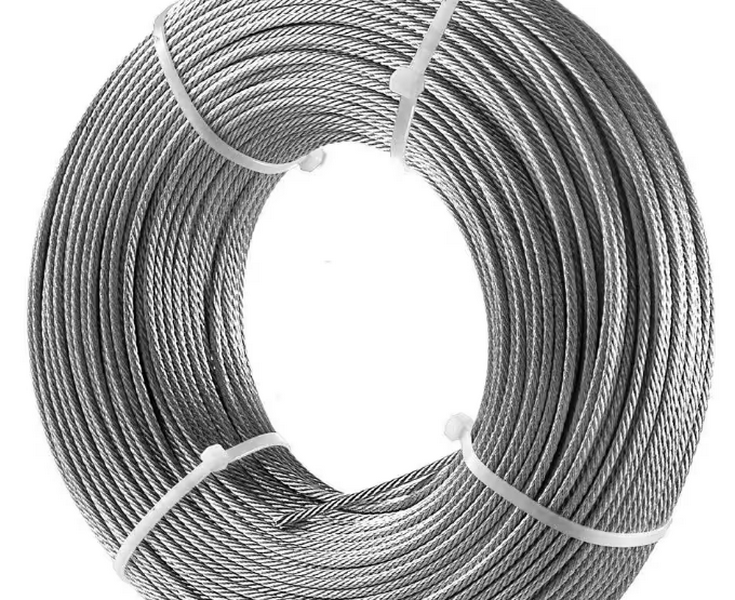

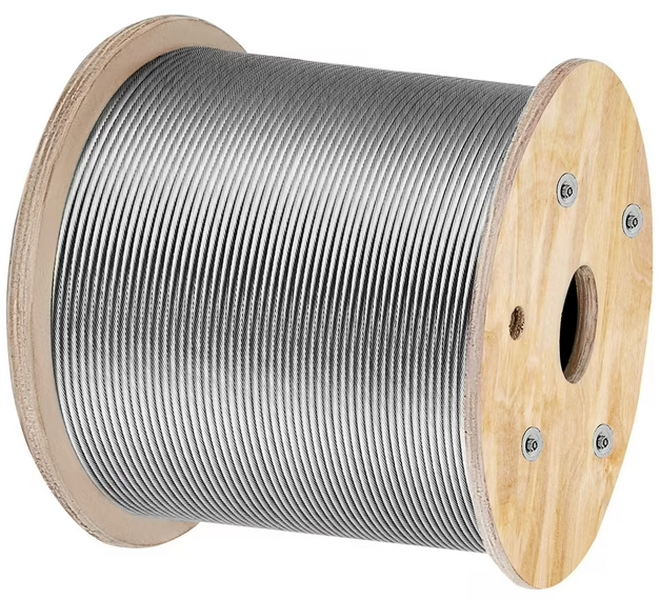

1/8 316 stainless steel cable is a wire rope made from type 316 stainless steel with a diameter of 1/8 inch. Type 316 stainless steel is known for its superior corrosion resistance due to its high chromium and molybdenum content, making it ideal for harsh environments such as marine or coastal areas. The cable consists of multiple strands of stainless steel wires twisted together to provide strength, flexibility, and durability.
The two most common stainless steel grades used in cables are 304 and 316. The key difference lies in corrosion resistance and strength:
- 316 Stainless Steel contains molybdenum, which enhances resistance to crevice corrosion and pitting, especially in marine and chemical environments.
- 304 Stainless Steel has slightly higher tensile strength but less corrosion resistance compared to 316.
For outdoor, marine, or industrial applications where corrosion resistance is critical, 316 stainless steel is the preferred choice[2][6].
The construction of the cable refers to how many strands and wires are twisted together. The most common configurations for 1/8 inch cables are:
- 1x19 Construction: One strand made of 19 wires. This type offers high strength and rigidity but limited flexibility. It is ideal for applications requiring minimal stretch, such as cable railings[6][11][12].
- 7x7 Construction: Seven strands each made of seven wires. This offers a balance between flexibility and strength, suitable for applications involving bends or corners[3][9].
- 7x19 Construction: Seven strands each with 19 wires. This is the most flexible construction, often used in applications requiring fatigue resistance and flexibility, such as boat rigging and winches[1][10].
Breaking strength is the maximum load the cable can withstand before failure, while working load limit (WLL) is the safe load capacity, typically calculated with a safety factor of 5:1.
For 1/8 inch 316 stainless steel cables:
| Construction | Breaking Strength (lbs) | Working Load Limit (lbs) |
|---|---|---|
| 1x19 | ~1,760 - 1,780 | ~350 - 360 |
| 7x7 | ~1,360 | ~270 |
| 7x19 | ~1,670 | ~334 |
These values may vary slightly by manufacturer but provide a good reference[1][3][10][11].
- For marine or coastal applications, always choose 316 stainless steel due to its superior corrosion resistance.
- For indoor or less corrosive environments, 304 stainless steel might suffice but 316 is still preferred for longevity[2][6].
- Use 1x19 for rigid, straight-line applications like cable railings where minimal stretch is needed.
- Use 7x7 or 7x19 for applications requiring flexibility, such as pulleys, winches, or areas with bends[6][9][10].
- Ensure the cable length is sufficient for your project with some allowance for adjustments.
- The 1/8 inch diameter is popular as it balances strength and flexibility well[6][7].
- Most 316 stainless steel cables come uncoated and have a bright, shiny finish.
- For enhanced abrasion resistance or specific aesthetic needs, PVC or vinyl coatings are available but may reduce flexibility[6].
- Ensure you have compatible fittings such as swage terminals, clamps, or turnbuckles designed for 1/8 inch 316 stainless steel cable.
- Some suppliers offer complete cable railing systems with fittings optimized for their cables[1][5].
- Cable Railings: Used in decks, balconies, staircases for a sleek, modern look with safety[5][11][12].
- Marine Rigging: Ideal for boat rigging, pulleys, and winches due to corrosion resistance and flexibility[10].
- Industrial Use: Suitable for lifting, securing, and structural support in harsh environments[6].
- Decorative and Architectural: Used in lighting suspensions, trellises, and fencing[9].
- Safety and Security: Barrier cables and guardrails in public spaces[9].
- Use proper cable cutters for clean cuts to ensure fittings slide on easily.
- Maintain cables by cleaning with mild detergent and water regularly to prevent buildup and inspect for wear.
- Follow manufacturer guidelines for cable tension and post spacing, especially in railing systems (e.g., maximum 4 feet between posts, 3.125 inches cable spacing)[8].
- Avoid overloading beyond the working load limit to ensure safety and longevity[11].
Choosing the right 1/8 316 stainless steel cable depends on understanding your project's environmental conditions, strength and flexibility requirements, and compatibility with fittings. The 316 stainless steel grade offers excellent corrosion resistance, making it ideal for marine and outdoor applications. Selecting the appropriate cable construction-1x19 for rigidity, 7x7 or 7x19 for flexibility-ensures optimal performance. Proper installation and maintenance further extend the cable's lifespan, providing a safe, durable, and aesthetically pleasing solution for your needs.
1x19 construction consists of one strand made of 19 wires, offering high strength and rigidity but limited flexibility. 7x7 construction has seven strands with seven wires each, providing a good balance of strength and flexibility, suitable for applications with bends or corners.
Yes, 316 stainless steel cable is highly resistant to corrosion and pitting, making it ideal for marine environments such as boat rigging, pulleys, and coastal installations.
Regularly clean the cable with mild detergent and water to remove dirt and salt deposits. Inspect for signs of wear or damage and replace if necessary to ensure safety.
Breaking strength varies by construction but generally ranges from about 1,360 lbs for 7x7 cables up to approximately 1,780 lbs for 1x19 cables.
Yes, while most cables are uncoated with a bright finish, PVC or vinyl coatings are available to enhance abrasion resistance and provide additional protection depending on the application.
