Selecting the right Stainless Steel Control Line for your project is crucial for ensuring the reliability, efficiency, and safety of your operations. Whether you are working in the oil and gas industry, chemical processing, or aerospace, the choice of control line can significantly impact your system's performance. In this article, we will guide you through the process of selecting the best Stainless Steel Control Line for your needs, highlighting key factors to consider and best practices for installation and maintenance.

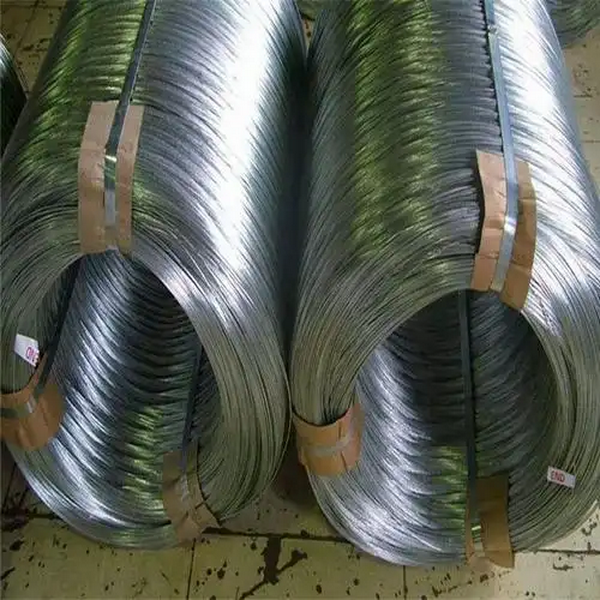

Stainless Steel Control Lines are versatile and widely used in various industries due to their excellent corrosion resistance, high strength-to-weight ratio, and ability to withstand high pressures and temperatures. These lines are typically made from stainless steel grades like 304, which contains approximately 18% chromium and 8% nickel, providing superior durability and resistance to corrosion.
- Tensile Strength: Stainless Steel 304 has a tensile strength of at least 70,000 psi, making it suitable for high-pressure applications.
- Yield Strength: The yield strength is typically above 40,000 psi, ensuring that the material can handle stress without deforming.
- Elongation: It offers good elongation properties, allowing for flexibility in bending and forming.
- Hardness: The maximum hardness is around 200HV, which is suitable for most industrial applications.
Stainless Steel Control Lines are used in a variety of applications:
1. Downhole Injection: These lines are crucial for delivering chemicals and transmitting hydraulic pressure in oil and gas wells.
2. Hydraulic Control: They are used in hydraulic systems to operate valves and other control devices.
3. Pressure and Temperature Monitoring: Control lines house sensors that provide real-time data on downhole conditions.
When choosing a Stainless Steel Control Line, several factors must be considered:
1. Corrosion Resistance: Evaluate the specific corrosive environment the line will be exposed to. While 304 stainless steel offers good general corrosion resistance, certain chemicals may require higher grades like 316L.
2. Operating Temperature: Ensure the line can withstand the temperature range of your application. Stainless Steel 304 maintains its properties from cryogenic temperatures to approximately 800°C (1472°F).
3. Pressure Rating: The line must be able to handle the maximum operating pressure of your system with an appropriate safety factor.
4. Dimensions: Consider the outside diameter (OD), inside diameter (ID), wall thickness, and length. Ensure these dimensions meet the required tolerances for your project.
5. Surface Finish: Choose the appropriate surface finish based on your application. Common finishes include mill finish, polished finish, and electropolished finish.
To maximize the performance and longevity of your Stainless Steel Control Line, follow these best practices:
1. Proper Storage and Handling: Store tubing in a clean, dry environment and handle with clean gloves to prevent contamination.
2. Cutting and Preparation: Use appropriate cutting tools and clean and deburr cut ends to ensure proper fit and function.
3. Bending and Forming: Use proper bending tools to prevent kinking or flattening. Consider the minimum bend radius for the specific tubing dimensions.
4. Welding: Use appropriate welding techniques and filler materials. Implement proper shielding gas and post-weld cleaning procedures.
5. Installation: Use compatible fittings and components. Follow proper torque specifications for connections and implement appropriate support and anchoring methods.
6. Maintenance and Cleaning: Develop a regular inspection and maintenance schedule. Use appropriate cleaning agents and methods to maintain surface integrity.
Ensure that your Stainless Steel Control Line meets relevant industry standards and certifications, such as ASTM A269/A269M, ASTM A213/A213M, ASME SA-269, and NACE MR0175/ISO 15156.
While Stainless Steel Control Lines may be more expensive than some alternatives, their long-term durability and low maintenance requirements often make them a cost-effective choice.
Selecting the right Stainless Steel Control Line for your project requires careful consideration of material properties, application requirements, and industry standards. By following a systematic approach and adhering to best practices for installation and maintenance, you can ensure the reliability and efficiency of your operations.
Stainless Steel Control Lines offer excellent corrosion resistance, high strength-to-weight ratio, and the ability to withstand high pressures and temperatures, making them ideal for harsh environments.
Choose a surface finish based on your application's requirements. For example, a polished finish is often used in applications where cleanliness and hygiene are critical.
Common applications include downhole injection, hydraulic control, and pressure and temperature monitoring in industries like oil and gas and aerospace.
Regular maintenance, proper installation, and adherence to industry standards are crucial for extending the service life of your control line.
Despite higher initial costs, Stainless Steel Control Lines are often cost-effective due to their long-term durability and low maintenance requirements.
