Stainless steel 316L coiled tubing with a 0.25-inch outer diameter is widely used in various industries due to its excellent corrosion resistance, durability, and flexibility. Proper installation of this tubing is crucial for ensuring optimal performance and longevity. This comprehensive guide will walk you through the step-by-step process of installing SS 316L coiled tubing, providing valuable insights and best practices along the way.
Before diving into the installation process, it's essential to understand the properties and characteristics of SS 316L coiled tubing:
- Material: 316L stainless steel, known for its high corrosion resistance
- Outer Diameter: 0.25 inch (6.35 mm)
- Common wall thicknesses: 0.035 inch, 0.049 inch, or 0.065 inch
- Typical applications: Chemical injection, hydraulic control lines, instrumentation, and process piping
To properly install SS 316L coiled tubing, you'll need the following tools and equipment:
- Tubing cutter
- Deburring tool
- Tube bender
- Flaring tool (if required)
- Wrenches and pliers
- Measuring tape
- Safety glasses and gloves
- Tube fittings (compression or flared, depending on the application)
- Thread sealant or PTFE tape
Before starting the installation, carefully plan the tubing route and measure the required lengths. Consider factors such as:
- Minimum bend radius (typically 4-5 times the outer diameter)
- Clearance from hot surfaces or moving parts
- Support points and anchoring locations

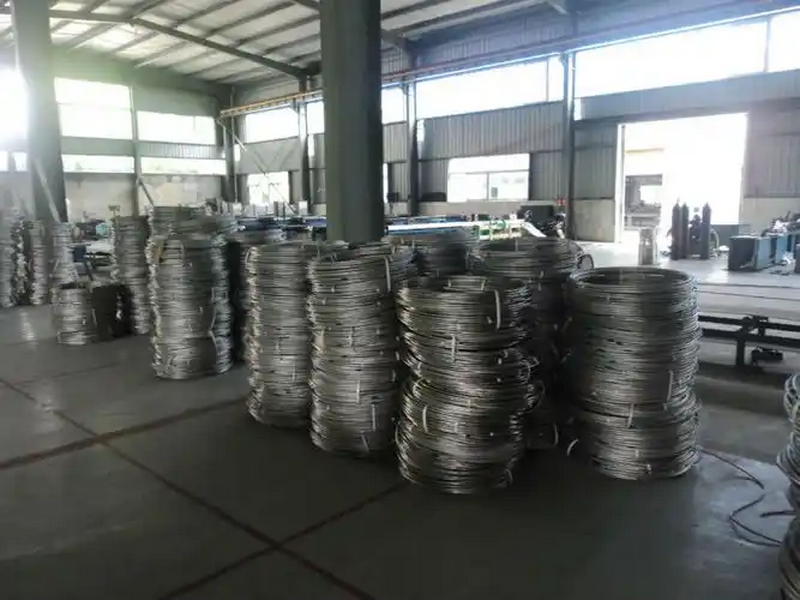

SS 316L coiled tubing is typically supplied on spools or in coils. To uncoil the tubing:
1. Secure the spool or coil to prevent uncontrolled unwinding.
2. Slowly unwind the tubing, being careful not to kink or damage it.
3. Use a tube straightener if available to remove any residual curvature.
To cut the SS 316L coiled tubing to the required length:
1. Measure and mark the cutting point.
2. Use a tubing cutter designed for stainless steel.
3. Place the tubing in the cutter, ensuring it's perpendicular to the cutting wheel.
4. Tighten the cutter slightly and rotate it around the tubing.
5. Gradually tighten the cutter with each rotation until the tubing is cut through.
After cutting, it's crucial to deburr and clean the tubing ends:
1. Use a deburring tool to remove any burrs or sharp edges from the cut end.
2. Clean the inside and outside of the tubing end with a clean, lint-free cloth.
3. Ensure no debris or contaminants are present on the tubing surface.
If your installation requires bends in the tubing:
1. Use a tube bender appropriate for 0.25-inch OD stainless steel tubing.
2. Mark the start and end points of the desired bend on the tubing.
3. Insert the tubing into the bender, aligning the marks with the bender's reference points.
4. Apply steady pressure to create a smooth, consistent bend.
5. Avoid overbending, as stainless steel has a tendency to spring back slightly.
Depending on your application, you may be using compression fittings or flared fittings:
1. Slide the nut and ferrule onto the tubing in the correct orientation.
2. Ensure the tubing end is square and deburred.
1. Use a flaring tool designed for stainless steel.
2. Create a 37° flare at the tubing end.
3. Inspect the flare for uniformity and absence of cracks.
To connect the SS 316L coiled tubing:
1. Apply thread sealant or PTFE tape to male threads if required.
2. For compression fittings:
- Insert the tubing into the fitting body until it bottoms out.
- Tighten the nut finger-tight.
- Use a wrench to tighten an additional 1 1/4 turns for 316L stainless steel.
3. For flared fittings:
- Place the flared end against the fitting's sealing surface.
- Tighten the nut to the manufacturer's recommended torque.
After installation, it's crucial to perform a pressure test:
1. Slowly pressurize the system to the maximum working pressure.
2. Hold the pressure for a minimum of 10 minutes.
3. Check for leaks using leak detection fluid or by monitoring pressure drop.
4. If leaks are found, depressurize the system and retighten fittings or replace components as necessary.
For outdoor or high-temperature applications, consider adding insulation or protective covering:
1. Clean the tubing surface thoroughly.
2. Apply appropriate insulation material, such as foam or fiberglass.
3. Secure the insulation with heat-resistant tape or cladding.
4. For UV protection, use a suitable protective wrap or paint.
To ensure the best performance and longevity of your SS 316L coiled tubing installation:
1. Always use high-quality fittings and components compatible with 316L stainless steel.
2. Maintain cleanliness throughout the installation process to prevent contamination.
3. Avoid over-tightening fittings, as this can damage the tubing or fittings.
4. Use proper support and anchoring to prevent excessive vibration or movement.
5. Consider using pre-insulated or jacketed tubing for demanding environments.
6. Regularly inspect the installation for signs of corrosion, leaks, or damage.
7. Follow proper maintenance procedures, including periodic cleaning and inspection.
When working with SS 316L coiled tubing, you may encounter some challenges:
- Solution: Use a high-quality tube bender designed for stainless steel. Consider using a hydraulic bender for larger diameters or thicker wall tubing.
- Solution: Ensure proper preparation of tubing ends, use the correct fitting type, and follow manufacturer's tightening recommendations.
- Solution: Consider using higher-grade alloys or applying protective coatings. Ensure proper material selection for the specific application.
- Solution: Use appropriate support and anchoring methods. Consider using vibration dampeners in high-vibration environments.
- Solution: Plan the routing carefully, use gradual bends, and consider using flexible hose sections for extremely tight areas.
For more complex installations or specialized applications, consider these advanced techniques:
- For high-purity or high-pressure applications, orbital welding can provide superior joint integrity.
- Requires specialized equipment and trained operators.
- Improves the surface finish and corrosion resistance of the tubing.
- Particularly useful in sanitary or high-purity applications.
- For applications requiring temperature maintenance, consider using heat-traced tubing.
- Can be achieved through electric tracing or steam tracing methods.
- For complex systems, pre-fabricated multi-tube bundles can simplify installation and improve thermal efficiency.
When working with SS 316L coiled tubing, always prioritize safety:
1. Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and steel-toed shoes.
2. Be cautious of sharp edges when cutting or deburring tubing.
3. Follow proper lifting techniques when handling large spools or coils of tubing.
4. Ensure proper ventilation when using thread sealants or cleaning agents.
5. Follow all relevant safety regulations and guidelines for your specific industry and application.
SS 316L coiled tubing is a sustainable choice due to its long lifespan and recyclability. However, consider the following environmental aspects:
1. Minimize waste by carefully planning and measuring before cutting.
2. Properly dispose of any cutting debris or cleaning materials.
3. Consider using environmentally friendly thread sealants and cleaning agents.
4. At the end of its life cycle, ensure the tubing is recycled through appropriate channels.
The field of SS 316L coiled tubing installation is continually evolving. Some future trends to watch for include:
1. Increased use of automation and robotics in installation processes.
2. Development of advanced coatings for enhanced corrosion resistance.
3. Integration of smart sensors for real-time monitoring of tubing performance.
4. Adoption of additive manufacturing techniques for custom fittings and components.
To illustrate the versatility and effectiveness of SS 316L coiled tubing, consider these brief case studies:
- Challenge: Corrosive marine environment and high-pressure hydraulic systems.
- Solution: Installation of 0.25-inch SS 316L coiled tubing for hydraulic control lines, resulting in improved reliability and reduced maintenance.
- Challenge: High-purity fluid transfer in a sterile environment.
- Solution: Implementation of electropolished SS 316L coiled tubing with orbital welded joints, ensuring contamination-free product transfer.
- Challenge: High-temperature heat transfer fluid circulation in a desert environment.
- Solution: Use of insulated SS 316L coiled tubing bundles, providing efficient heat transfer and minimizing thermal losses.
Proper installation of SS 316L coiled tubing with a 0.25-inch outer diameter is crucial for ensuring optimal performance, safety, and longevity in various industrial applications. By following the step-by-step process outlined in this guide and adhering to best practices, you can achieve a reliable and efficient tubing system. Remember to prioritize safety, maintain cleanliness, and consider the specific requirements of your application throughout the installation process.
The maximum pressure rating depends on the wall thickness and temperature of operation. For example, a 0.25-inch OD tube with a 0.035-inch wall thickness typically has a working pressure of around 4,000 to 5,000 PSI at room temperature. However, always consult the manufacturer's specifications and follow relevant industry standards for your specific application.
The minimum bend radius for 0.25-inch SS 316L coiled tubing is typically 4-5 times the outer diameter. For a 0.25-inch OD tube, this translates to a minimum bend radius of 1 to 1.25 inches. However, for optimal performance and to minimize stress on the tubing, it's recommended to use a larger bend radius when possible, such as 6-8 times the outer diameter.
Yes, compression fittings are commonly used with SS 316L coiled tubing. When using compression fittings, ensure that they are compatible with stainless steel and rated for the pressure and temperature of your application. Follow the manufacturer's instructions for proper installation, including the number of turns for tightening the nut.
To prevent galvanic corrosion when connecting SS 316L tubing to dissimilar metals:
- Use dielectric unions or insulating fittings to electrically isolate the different metals.
- Apply protective coatings or wraps at the connection points.
- Ensure proper grounding and bonding of the system.
- Consider using sacrificial anodes in severe environments.
- Regularly inspect and maintain the connections to detect any early signs of corrosion.
SS 316L coiled tubing offers several advantages over other materials:
- Excellent corrosion resistance, particularly in chloride-rich environments.
- High strength-to-weight ratio, allowing for thinner wall thicknesses.
- Wide temperature range capability, from cryogenic to high temperatures.
- Good formability and weldability for ease of installation.
- Long service life and low maintenance requirements.
- Hygienic properties, making it suitable for food and pharmaceutical applications.
- Recyclability and sustainability.
