Measuring the size of stainless steel cable is crucial for various applications, from construction to DIY projects. Understanding the correct method to measure the diameter and gauge of your cable ensures that you select the right fittings and hardware for your needs. This article provides a comprehensive guide on how to accurately measure stainless steel cable, along with tips, tools required, and common mistakes to avoid.

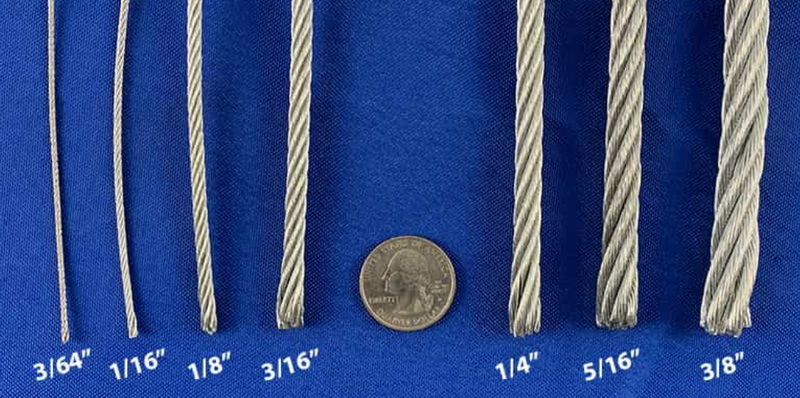

Stainless steel cables are made from a series of wires twisted together to form a strong and flexible rope-like structure. These cables are known for their durability, resistance to corrosion, and high tensile strength, making them ideal for various applications, including:
- Construction: Used in lifting and rigging.
- Marine: Ideal for mooring lines and rigging on boats.
- Architecture: Used in cable railing systems.
Before measuring your stainless steel cable, it's essential to understand its structure. The diameter of the cable is typically measured as the diameter of a circumscribed circle that encloses all strands.
To measure the size of stainless steel cable accurately, you will need the following tools:
- Calipers: A pair of calipers (preferably digital) will provide precise measurements of the cable diameter.
- Tape Measure: For measuring longer lengths or distances.
- Wire Gauge Tool: Useful for identifying wire gauges if you're working with smaller cables.
- Marker: To mark measurement points if needed.
1. Prepare the Cable: Ensure that the cable is clean and free from any debris or corrosion that may affect measurement accuracy.

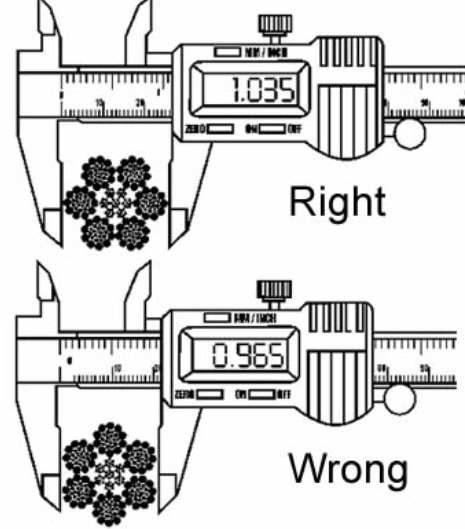

2. Use Calipers:
- Open the calipers wide enough to fit around the cable.
- Place the cable between the jaws of the caliper so that it touches both sides.
- Close the calipers until they make contact with the outermost strands of the cable.
- Read the measurement displayed on the caliper. It's advisable to take multiple measurements at different points along the cable (at least two or three) to ensure accuracy.
3. Calculate Average Diameter: If you took multiple measurements, calculate the average diameter by adding all measurements together and dividing by the number of measurements taken.
4. Record Your Measurements: Write down your findings for future reference, especially if you plan to purchase fittings or replacements based on these measurements.
If you need to determine the wire gauge of your stainless steel cable:
1. Use a Wire Gauge Tool: Place a strand of wire into the appropriate slot on a wire gauge tool.
2. Identify Size: The slot that fits snugly around your wire indicates its gauge size.
3. Cross-Reference with Standards: If necessary, cross-reference your findings with standard wire gauge charts to confirm sizes in both metric and imperial units.
- Not Taking Multiple Measurements: Always take several measurements to account for any inconsistencies in diameter due to wear or manufacturing tolerances.
- Using Incorrect Tools: Ensure you use calipers designed for measuring round objects; flat measuring tools will not provide accurate results.
- Ignoring Tension Effects: If measuring under tension (as in some installations), be aware that this can affect diameter readings. Aim for measurements taken under no tension or minimal tension (not exceeding 5% of minimum breaking force).
As industries increasingly transition toward metric measurements, understanding how to convert between imperial and metric units is essential when dealing with stainless steel cables. For example:
- A 1-inch diameter rope converts to 25.4 mm in metrics.
- For sizes smaller than 5/8 inch, round to the nearest 0.5 mm.

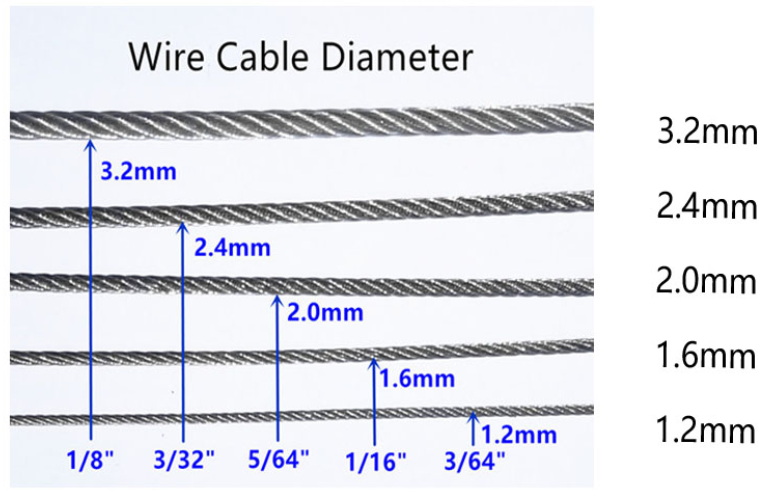

The following table provides equivalent metric diameters for common wire rope sizes:
| Nominal Wire Rope Diameter | Inches | Millimeters |
|---|---|---|
| 1/4 | 0.25 | 6.5 |
| 5/16 | 0.3125 | 8 |
| 1/2 | 0.5 | 13 |
| 3/4 | 0.75 | 19 |
| 1 | 1 | 26 |
These conversions help ensure that you select compatible hardware when working with different measurement systems[1][7].
When selecting stainless steel cables, it is also essential to consider their strengths and weights per unit length, as these factors can significantly impact performance in various applications. The following conversion factors may be useful:
- To convert rope weight in pounds per foot (lb/ft) to kilograms per meter (kg/m), multiply by 1.488.
- To convert minimum breaking force from tons (T) to kilonewtons (kN), multiply by 8.897; remember that 1 lb equals approximately 4.448 newtons (N).
These calculations are vital when determining load capacities and ensuring safety in applications involving stainless steel cables[3][10].
Proper measurement of stainless steel cables is critical across various industries:
- Construction Sites: Accurate measurements ensure that lifting equipment operates safely within specified load limits.
- Marine Applications: Correctly sized mooring lines prevent accidents caused by line failure due to incorrect sizing or inadequate strength.
- Architectural Projects: In cable railing systems, precise measurements guarantee structural integrity while maintaining aesthetic appeal.
In each case, using properly measured cables helps prevent accidents and ensures compliance with safety regulations.
Accurately measuring stainless steel cable is essential for ensuring safety and functionality in various applications. By following this guide and utilizing appropriate tools, you can confidently determine your cable's size and gauge. Always remember to take multiple measurements and consult wire gauge charts when necessary.
Inspect for visible fraying or broken strands; if you notice significant wear or damage, it may be time to replace it.
While tape measures can help measure length, they are not suitable for accurate diameter measurements; calipers are recommended for this purpose.
Standard ropes typically allow up to a 5% tolerance over their nominal diameter due to variations in manufacturing processes.
To convert inches to millimeters, multiply by 25.4 (e.g., $$1 \text{ inch} = 25.4 \text{ mm}$$).
Yes, measuring at different points along the length helps account for any inconsistencies in diameter due to wear or other factors.
