Installing stainless steel tube handrail fittings is an essential task for ensuring safety, durability, and aesthetic appeal in staircases, balconies, and walkways. This comprehensive guide will walk you through the entire process of installing stainless steel tube handrail fittings, providing detailed instructions, tips, and visual aids to help you achieve a secure grip and professional finish. Whether you are a DIY enthusiast or a professional installer, this article covers everything you need to know about stainless steel tube handrail fittings installation.

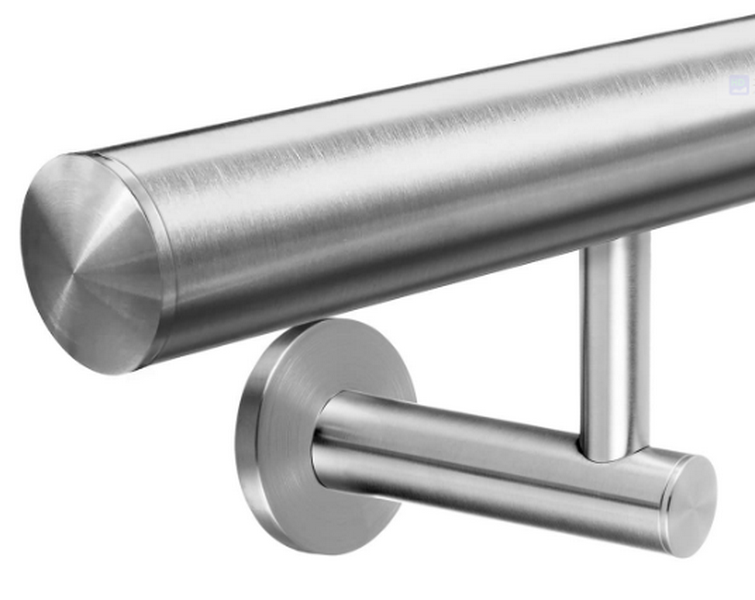

Stainless steel tube handrail fittings are specialized components designed to connect, support, and finish stainless steel handrails. They include brackets, elbows, connectors, end caps, flanges, base plates, and joiners. These fittings not only provide structural integrity but also contribute to the sleek, modern look of stainless steel handrails.

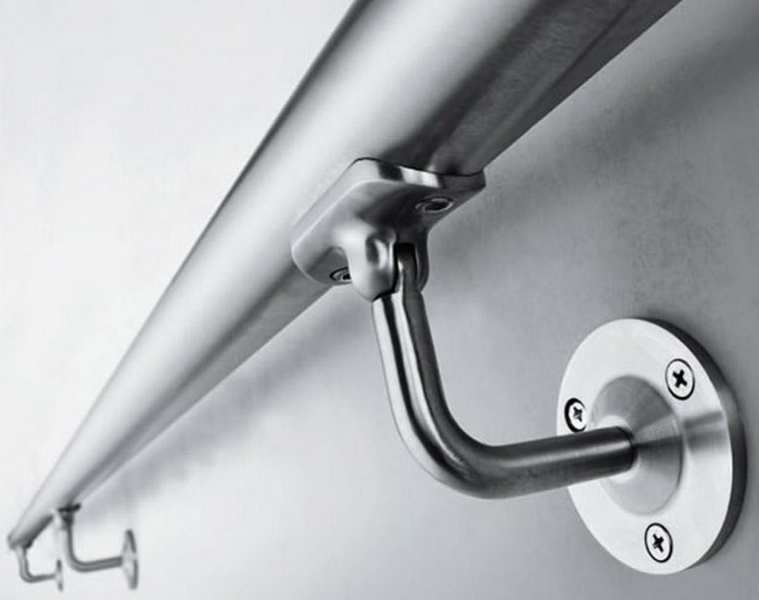

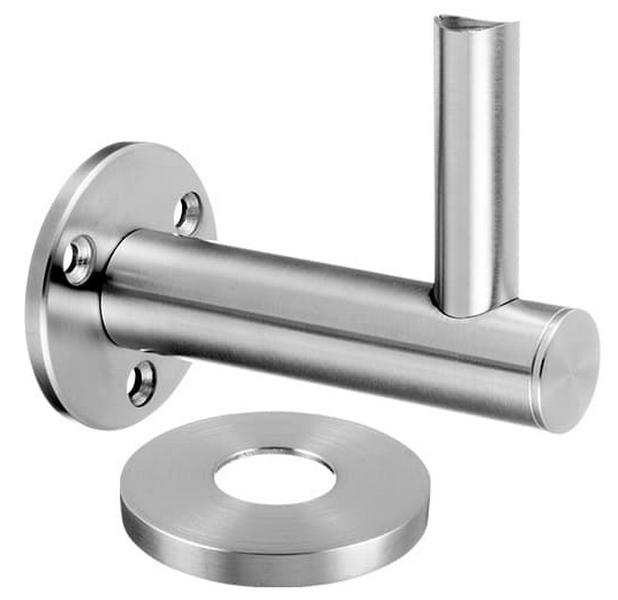

- Handrail Brackets: Attach the handrail to walls or posts, ensuring stability.
- End Caps: Cover exposed ends of the handrail for safety and aesthetics.
- Elbows and Connectors: Join handrail sections at corners or changes in direction.
- Flanges and Base Plates: Secure handrails to floors or walls.
- Joiners: Connect straight sections seamlessly.
Each fitting plays a crucial role in the overall handrail system, and selecting the right type is vital for a secure and attractive installation[6].
Before beginning the installation, gather all necessary tools and materials:
- Stainless steel tube handrail fittings (brackets, elbows, end caps, etc.)
- Stainless steel handrail tubing
- Measuring tape
- Pencil or marker
- Level
- Drill with appropriate bits (including titanium drill bits for stainless steel)
- Screwdriver or power driver
- Stainless steel screws and anchors
- Hacksaw or metal cutting saw with abrasive blade
- Safety glasses and gloves
- Stainless steel cleaner and cloth
- Optional: Clear silicone adhesive or caulking for added stability
Having these ready will streamline the installation process and ensure safety and precision[2][6][7][11].
Begin by measuring the length of the area where the handrail will be installed. Mark the desired height for the handrail, typically between 900mm to 1100mm from the floor or stair tread, depending on local building codes. Use a level to ensure marks are even and straight.
Plan the placement of posts and brackets. Posts are usually spaced every 1.2 to 1.5 meters for optimal support. Mark the wall or floor for bracket and post locations, ensuring even spacing and alignment[2][7][11].
Clean the installation area thoroughly, removing dust, debris, or obstacles. Check the wall or floor stability to ensure it can support the handrail system. Reinforce weak surfaces if necessary to guarantee a secure anchor point[2].
Attach the base plates or flanges to the floor or wall at the marked locations. Use a drill to make pilot holes, then insert appropriate anchors for the surface type (concrete, wood, drywall). Secure the base plates with stainless steel screws.
Next, install the posts by fixing them onto the base plates. Make sure each post is vertical and level using a spirit level. Tighten screws securely to prevent wobbling[7][9][11].
Fix the handrail brackets to the posts or directly to the wall, depending on your design. Mark and drill pilot holes for the brackets, then secure them with stainless steel screws. Ensure brackets are level and aligned to maintain a straight handrail line[2][7].
Measure the required lengths of the stainless steel handrail tubing to fit between posts or brackets. Use a hacksaw or metal cutting saw with an abrasive blade to cut the tubes precisely. Remove any burrs or sharp edges with a file or abrasive pad.
Polish the cut edges to remove discoloration and maintain the stainless steel finish. Avoid using steel wool, which can contaminate the steel and cause rust spots[9].
Some fittings require drilling holes in the handrail tube to attach saddles or connectors. Mark the hole positions accurately, then use a sharp drill bit with drilling compound to ease the process. Drill carefully to avoid deforming the tube[1][9].
Slide the handrail tubing into the brackets or saddles. Use stainless steel screws or connectors to fasten the tubing securely. Tighten all screws evenly but avoid overtightening, which can damage the fittings or tube[2][7][11].
Attach end caps to the exposed ends of the handrail tubing for a clean, finished look and to prevent injury from sharp edges. Use stainless steel pop rivets or screws as recommended by the fitting manufacturer[1][6].
For added stability and to prevent rattling, apply a clear silicone adhesive or caulking at the junctions between the handrail and brackets. This step is optional but recommended for high-traffic or outdoor installations[7][11].
Check the entire handrail system for alignment, stability, and secure connections. Apply pressure to the handrail to test for any movement or wobbling. Tighten any loose fittings and ensure no sharp edges or protruding screws remain.
Clean the handrail with a stainless steel cleaner and a soft cloth to enhance the finish and protect against corrosion[2][7].
Including visual aids can significantly improve understanding and installation accuracy. Below are recommended types of images and videos to accompany each step:
- Measuring and Marking: Photos showing the use of tape measure, level, and marking on walls.
- Drilling and Fixing Base Plates: Close-ups of drilling pilot holes and securing base plates.
- Post Installation: Images of posts being secured and leveled.
- Bracket Attachment: Photos of brackets being fixed to posts or walls.
- Cutting and Preparing Tubing: Videos demonstrating cutting stainless steel tubes and polishing edges.
- Drilling Handrail Tubing: Clips showing precise drilling techniques.
- Fitting Handrail Tubing: Step-by-step images of sliding tubes into brackets and securing screws.
- Finishing Touches: Photos of end caps installation and silicone application.
- Final Inspection: Video demonstrating handrail stability testing.
- How to Install Stainless Steel Stair Handrails - DIY Professional Way
A detailed video showing professional installation techniques, including drilling, fitting, and securing handrails.
- How to Install a Stainless Steel Wall Mounted Stair Handrail DIY
Step-by-step visual guidance on wall-mounted handrail installation, focusing on bracket placement and securing the handrail.
- How to Install DIY Stainless Steel Posts and Handrails
Demonstrates setting out base plates, cutting posts, and fitting flush joiners for a seamless handrail system.
- Always wear safety glasses and gloves when cutting, drilling, or handling stainless steel fittings.
- Use stainless steel screws and anchors to prevent corrosion and ensure longevity.
- Pre-drill pilot holes to avoid splitting or damaging surfaces.
- Use a level frequently to maintain straight and even handrails.
- Avoid overtightening screws to prevent damage to fittings or tubing.
- Follow local building codes and regulations regarding handrail height and spacing.
- If unsure about any step, consult a professional installer.
Stainless steel handrail fittings are low maintenance but require occasional cleaning to maintain their appearance and corrosion resistance. Use a stainless steel cleaner and a soft cloth to remove dirt and fingerprints. Avoid abrasive cleaners or steel wool, which can scratch or contaminate the surface.
Regularly inspect fittings and screws for looseness or damage, tightening or replacing parts as needed to ensure ongoing safety and stability[6].
Installing stainless steel tube handrail fittings correctly is crucial for safety, durability, and aesthetic appeal. By following this detailed guide-from planning and measuring to cutting, fitting, and securing-you can achieve a professional and secure handrail installation. Stainless steel's corrosion resistance and sleek appearance make it an excellent choice for both indoor and outdoor applications, providing a long-lasting and stylish solution for any railing project.
Incorporate the right tools, materials, and best practices to ensure your stainless steel tube handrail fittings offer a secure grip and enhance the overall safety of your space.
You will need a measuring tape, drill with titanium bits, screwdriver, hacksaw or metal cutting saw, level, stainless steel screws and anchors, safety glasses, gloves, and optionally silicone adhesive for extra stability.
Measure according to local building codes, typically between 900mm to 1100mm from the floor or stair tread. Use a level to mark a straight line along the installation path for consistent height.
Yes, with the right tools, materials, and careful planning, a DIY installation is possible. However, for complex designs or commercial installations, consulting a professional is recommended.
Clean the fittings regularly with stainless steel cleaner and a soft cloth. Inspect for loose screws or damage every 6 to 12 months, tightening or replacing parts as necessary.
Grade 304 stainless steel is suitable for most indoor and outdoor applications. Grade 316 offers superior corrosion resistance, ideal for coastal or high-humidity environments.
