Installing marine grade 316 stainless steel cable guide fittings is essential for creating durable and corrosion-resistant cable systems, particularly in marine or harsh environmental conditions. This comprehensive guide will walk you through the step-by-step process of installation, ensuring a professional and secure setup.

What Are Marine Grade 316 Stainless Steel Cable Guide Fittings?

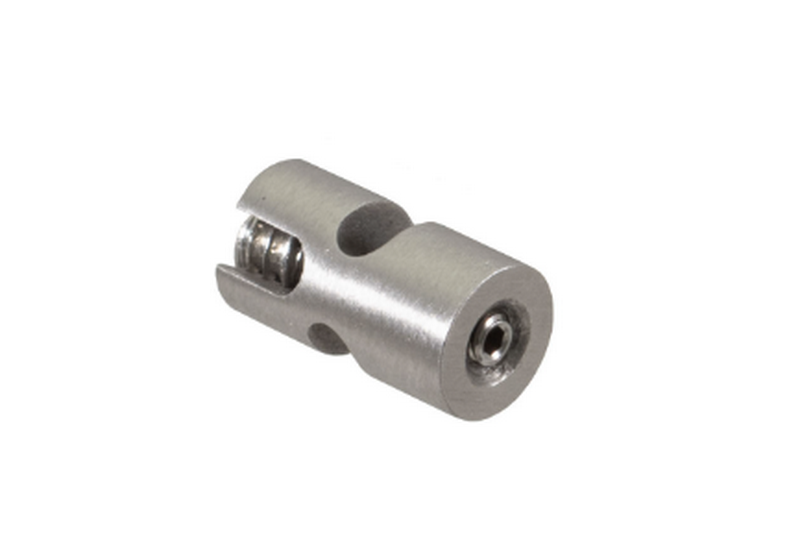

Marine grade 316 stainless steel cable guide fittings are specialized components designed to secure and guide stainless steel cables in railing systems, balustrades, or other structural applications. Known for their high resistance to corrosion, these fittings are ideal for coastal or industrial environments where exposure to moisture and salt is prevalent.

Tools and Materials Needed

Before starting the installation, gather the following tools and materials:

- Marine grade 316 stainless steel cable guide fittings

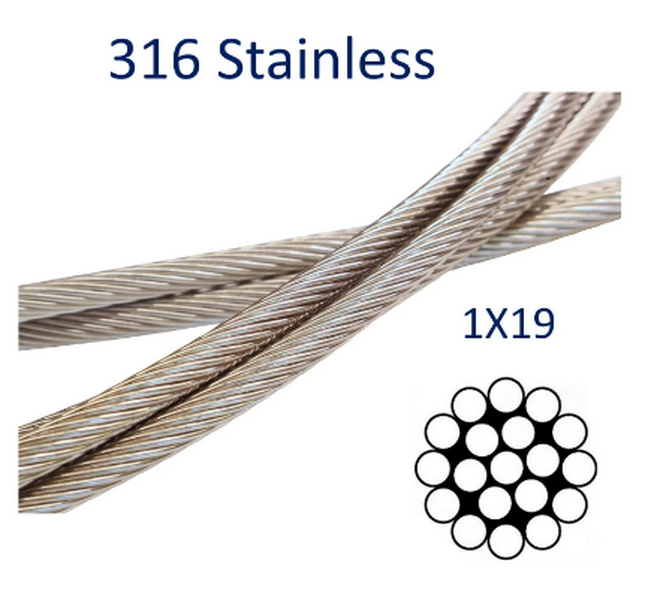

- Stainless steel cables (1x19 or 7x7 strand)

- Drill with appropriate drill bits

- Cable crimper and cutter

- Wrenches (e.g., spanners)

- Screwdrivers

- Safety equipment (gloves, goggles)

Step-by-Step Installation Process

1. Plan and Measure

Start by planning the layout of your cable system:

- Measure the distance between posts to determine the required cable lengths.

- Mark positions for drilling holes on the posts.

2. Drill Holes in Posts

Drill pass-through holes in intermediate posts using a high-quality carbide drill bit. For end posts, drill holes to accommodate tensioners or terminal fittings. Ensure the hole diameter matches the fitting specifications.

3. Prepare the Cable

Cut stainless steel cables to the required length using a high-quality cutter. Leave some extra length for adjustments during tensioning.

4. Attach Fittings to One End

Secure one end of the cable using a swage fitting or a swageless terminal:

- Slide the socket component over the cable.

- Insert the wedge component into the central core of the wire.

- Reposition outer strands evenly around the wedge and screw the socket assembly tightly.

5. Thread Cable Through Intermediate Posts

Pass the prepared cable through all intermediate posts' holes, keeping it taut to avoid sagging.

6. Secure Cable at Opposite End

Attach a tensioner or turnbuckle at the opposite end:

- Insert the cable into the fitting.

- Adjust and tighten it using wrenches to lock it securely.

7. Tension the Cable

Using a tension gauge, tighten each cable uniformly to prevent sagging while avoiding over-tensioning that might damage posts or fittings.

8. Trim Excess Cable

Once tensioning is complete, trim any excess cable protruding from fittings for a clean finish.

9. Inspect and Test

Perform a final inspection:

- Ensure all connections are tight.

- Check for uniform tension across all cables.

- Test stability by applying light pressure on each wire.

Conclusion

Installing marine grade 316 stainless steel cable guide fittings requires careful planning, precise measurements, and attention to detail. By following this step-by-step guide, you can achieve a durable and aesthetically pleasing result suitable for marine or harsh environments. Proper installation ensures long-lasting performance with minimal maintenance.

Frequently Asked Questions

1. What makes marine grade 316 stainless steel ideal for cable fittings?

Marine grade 316 stainless steel offers exceptional resistance to corrosion caused by saltwater, making it perfect for coastal or humid environments.

2. Can I install these fittings without professional help?

Yes, with proper tools and this guide, you can install marine grade 316 stainless steel cable guide fittings as a DIY project.

3. How do I maintain these fittings?

Regularly inspect for dirt or debris buildup and clean with fresh water. Avoid using harsh chemicals that might damage the finish.

4. What is the difference between swage and swageless terminals?

Swage terminals require hydraulic crimping tools for attachment, while swageless terminals can be installed manually without special equipment.

5. How tight should I tension my cables?

Cables should be tight enough to prevent sagging but not so tight that they stress posts or fittings. Use a tension gauge to ensure uniformity.
