Installing a stainless steel tube elbow correctly is essential for ensuring a durable, leak-free, and efficient piping system. Stainless steel tube elbows are widely used in plumbing, industrial piping, and mechanical systems to change the direction of flow while maintaining the integrity and strength of the pipeline. This comprehensive guide will walk you through the entire process of installing a stainless steel tube elbow, covering preparation, tools, installation techniques, and post-installation checks. Along the way, you will find detailed explanations, images, and videos to help you master the installation process.
Before diving into the installation process, it is important to understand what a stainless steel tube elbow is and why it is used.

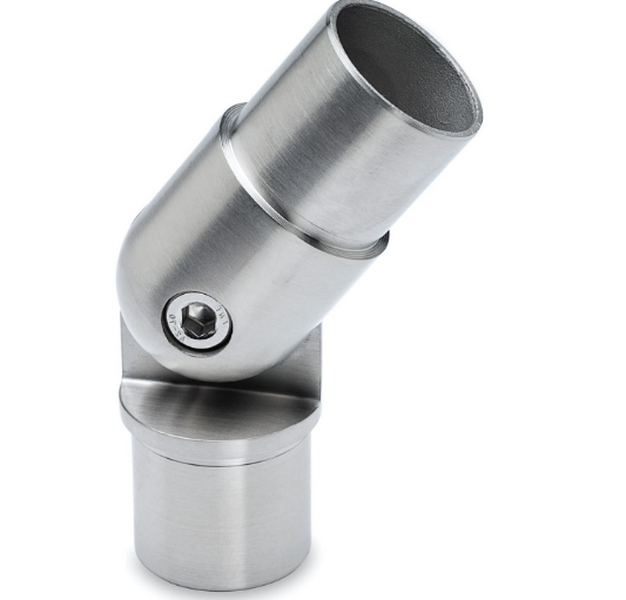

- Definition: A stainless steel tube elbow is a pipe fitting that connects two tubes or pipes at an angle, typically 45°, 90°, or 180°, allowing the pipeline to change direction smoothly.
- Material Benefits: Stainless steel offers excellent corrosion resistance, strength, and durability, making these elbows suitable for harsh environments and high-pressure applications.
- Types: Stainless steel elbows come in various types based on manufacturing methods and connection types, including welded, threaded, flanged, and press-fit elbows.
To install a stainless steel tube elbow correctly, gather the following tools and materials:
- Stainless steel tube elbow (correct size and type)
- Stainless steel tubing or pipe
- Pipe cutter or hacksaw (for cutting tubes)
- Deburring tool or file
- Thread sealant tape (PTFE tape) or pipe joint compound (for threaded elbows)
- Pipe wrench or adjustable wrench
- Torque wrench (optional, for precise tightening)
- Marker or depth gauge
- Cleaning cloth or brush
- Press tool with compatible jaws (for press-fit elbows)
- Safety gloves and goggles
- Inspect the Elbow: Check the stainless steel tube elbow for any defects such as dents, scratches, or corrosion that could compromise the seal or strength.
- Check Compatibility: Ensure the elbow size matches the tubing diameter and the connection type is suitable for your system.
- Clean the Tubing and Elbow: Remove any dirt, rust, or debris from the tubing ends and inside the elbow to ensure a clean, smooth connection.
- Cut the Tubing: Use a pipe cutter or hacksaw to cut the stainless steel tubing to the desired length. Make sure the cut is straight and clean.
- Deburr the Edges: Use a deburring tool or file to remove any sharp edges or burrs from the cut ends of the tubing. This prevents damage to the elbow and ensures a proper seal.
*Visual Aid:*
- Insert the tubing into the elbow fitting until it reaches the tube stop or bottom of the socket.
- Mark the tubing at the point where it meets the edge of the elbow. This mark ensures the tubing is fully inserted during assembly.
- If your stainless steel tube elbow is threaded, wrap PTFE tape around the male threads of the tubing or elbow in a clockwise direction.
- Wrap the tape 3-4 times to ensure a good seal.
- Alternatively, apply a pipe joint compound designed for stainless steel fittings.
- For Threaded Elbows:
- Screw the elbow onto the tubing by hand until snug.
- Use a pipe wrench to tighten the elbow further. Avoid over-tightening to prevent damage.
- If available, use a torque wrench to tighten to the manufacturer's recommended torque.
- For Press-Fit Elbows:
- Insert the tubing fully into the elbow until it reaches the tube stop.
- Use a press tool with the correct jaw size to compress the fitting around the tubing.
- Ensure the press is complete and the fitting is securely crimped.
- For Welded Elbows:
- Position the elbow and tubing correctly.
- Weld the elbow to the tubing following proper welding procedures for stainless steel.
- Check the connection for proper alignment and full insertion.
- Inspect the seal for any visible gaps or misalignment.
- Perform a pressure test or leak test to ensure the joint is secure and leak-free.
- Tighten any loose fittings if necessary, but avoid over-tightening.
- Always ensure the elbow and tubing sizes match exactly to avoid leaks or mechanical failure.
- Avoid using tools that have been used on carbon steel or ferrous metals to cut stainless steel tubing to prevent contamination and corrosion.
- Use appropriate sealing materials such as rubber gaskets or PTFE tape to ensure leak-proof joints.
- Position elbows to minimize stress and allow for easy maintenance access.
- Do not reuse press-fit fittings after crimping; always use new fittings for each installation.
- Store stainless steel elbows in a clean, dry, and ventilated area to prevent corrosion before installation.
Stainless steel tube elbows must be handled with care to avoid contamination and damage. Always store them in a clean, dry environment away from corrosive substances. Avoid contact with carbon steel tools or materials, as this can cause cross-contamination and lead to rust spots on the stainless steel surface.
When installing stainless steel tube elbows, ensure that all components in the piping system are compatible in terms of material and pressure rating. Mixing dissimilar metals without proper isolation can cause galvanic corrosion, which deteriorates the fittings and tubing over time.
Check the operating temperature and pressure of your system before installation. Stainless steel tube elbows are designed to withstand high temperatures and pressures, but exceeding the manufacturer's specifications can lead to premature failure. Always consult product datasheets and engineering guidelines.
After installation, clean the external surfaces of the elbow and tubing to remove any fingerprints, dirt, or installation residues. This helps maintain corrosion resistance and aesthetic appearance. Use appropriate stainless steel cleaners or mild detergents.
For complex piping systems, document the installation details including elbow type, size, location, and installation date. Labeling the piping system helps with future maintenance and troubleshooting.
Correct installation of a stainless steel tube elbow is critical for the longevity and performance of any piping system. By carefully preparing the tubing and fittings, using the right tools and sealing materials, and following precise installation steps, you can achieve a secure, leak-free connection. Whether you are working with threaded, press-fit, or welded elbows, attention to detail and adherence to manufacturer guidelines will ensure your stainless steel tube elbows function reliably under various conditions. Regular inspection and maintenance further enhance the durability of your piping system.
There are several types of stainless steel tube elbows, including welded, threaded, press-fit, and flanged elbows. They come in common angles such as 45°, 90°, and 180°, and are selected based on application requirements and connection methods.
Measure the outer diameter of your tubing and select an elbow with a matching nominal size. Always verify the specifications and standards to ensure compatibility with your piping system.
No, especially for press-fit or crimped elbows, reusing fittings is not recommended as it can compromise the seal and structural integrity. Threaded elbows may be reused if undamaged, but always inspect carefully.
PTFE (Teflon) tape and pipe joint compounds designed for stainless steel are commonly used for threaded connections. For press-fit and welded elbows, sealing is achieved by the fitting method itself, so additional sealants are not required.
Ensure tubing ends are clean and deburred, use the correct sealing materials, fully insert the tubing into the elbow, and tighten fittings to the recommended torque. Perform pressure testing after installation to detect leaks early.
