Seamless coiled tubes are essential components in various industries, including automotive, aerospace, chemical processing, and construction. The manufacturing of these tubes requires meticulous attention to detail and stringent quality control measures to ensure that the final product meets demanding standards. This article will explore the intricate processes involved in seamless coiled tube manufacturing, focusing on comprehensive quality control practices that can be implemented at each stage of production to guarantee optimal performance and reliability.

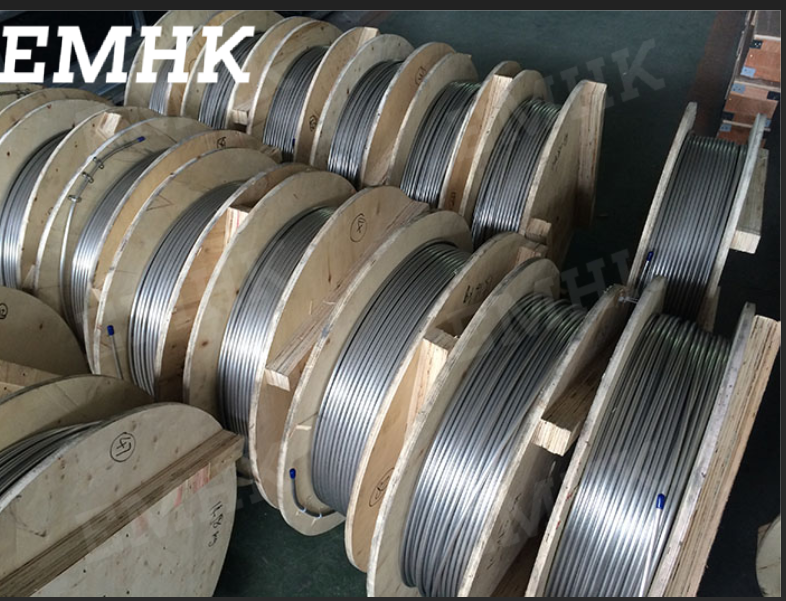

Seamless coiled tubes are manufactured without any seams or welds, which makes them inherently stronger and more reliable than their welded counterparts. The absence of seams significantly reduces the risk of leaks and failures, making them ideally suited for high-pressure, critical applications where structural integrity is paramount. These tubes are produced through various sophisticated methods, including extrusion, piercing, and drawing, each requiring careful monitoring and control to maintain the highest levels of quality and consistency.
The manufacturing process of seamless coiled tubes is complex and typically involves several key steps, each critical to the final product's quality:
1. Billet Preparation: The process begins with the careful selection of high-quality billets, which are solid, pre-formed pieces of metal. These billets must meet specific material composition and dimensional requirements. The billets are then meticulously cleaned and heated to a specific temperature range. This heating process is crucial, as it enhances the metal's malleability, making it easier to work with in subsequent steps. The temperature must be precisely controlled to avoid overheating, which can lead to grain growth and weakening of the material, or underheating, which can make the metal too rigid and prone to cracking.
2. Piercing: The heated billet is then transferred to a piercing mill, where it is forced over a mandrel – a solid, cylindrical tool – to create a hollow tube. This piercing process is a critical step, as it sets the foundation for the tube's internal dimensions and wall thickness. The alignment of the mandrel and the applied pressure must be carefully controlled to ensure uniform wall thickness and prevent any eccentricities or defects in the tube's structure.
3. Elongation: The pierced tube is then elongated through a series of rolling processes, which reduce the tube's diameter and increase its length. This stage involves passing the tube through various rolling mills, each equipped with precisely calibrated rollers that progressively shape the tube to the desired dimensions. The speed of the rollers, the temperature of the tube, and the lubrication used during this process are all carefully monitored to ensure a smooth and uniform elongation without introducing any surface defects or internal stresses.
4. Sizing: After elongation, the tube undergoes sizing to ensure that it meets the precise dimensional specifications required for its intended application. This step often involves cold drawing or further rolling processes, which refine the tube's diameter, wall thickness, and roundness. Cold drawing, in particular, is a critical step for achieving tight tolerances and improving the tube's surface finish.
5. Finishing: Finally, the tubes undergo a series of finishing processes to enhance their properties and prepare them for their intended use. These processes may include annealing (a heat treatment process that relieves internal stresses and improves ductility), pickling (a chemical treatment that removes surface oxides and scale), and various surface treatments (such as passivation or coating) to enhance corrosion resistance and provide a smooth, clean surface.
To ensure the highest levels of quality control in seamless coiled tube manufacturing, a comprehensive set of measures should be implemented and rigorously enforced throughout the entire production process. These measures should encompass material selection, process control, testing, and inspection.
Choosing the right materials is fundamental for producing high-quality seamless coiled tubes. The selection process should consider a wide range of factors, including the tube's intended application, the operating environment, the required strength and corrosion resistance, and any specific industry standards or regulations.
- Stainless Steel: Offers excellent corrosion resistance and high strength, making it suitable for applications in harsh environments.
- Carbon Steel: Provides high strength and durability at a lower cost, making it suitable for less demanding applications.
- Alloy Steels: Offer specialized properties such as high-temperature strength, creep resistance, or improved weldability, making them suitable for specific industrial applications.
Maintaining precise temperature control during the heating process is absolutely critical. Variations in temperature can lead to significant inconsistencies in the material properties of the tubes. Overheating can cause grain growth, reducing the material's strength, while underheating can make the material too brittle, leading to cracking. Implementing advanced heating technologies, such as induction heating or controlled atmosphere furnaces, can help achieve uniform heating and minimize defects.
Regular dimensional checks should be conducted at various stages of production to ensure that the tubes meet the specified tolerances. This includes measuring wall thickness, diameter, and length using precision instruments such as calipers, micrometers, and laser measurement systems. Statistical process control (SPC) techniques can be used to monitor trends in dimensional measurements and identify potential problems before they lead to defects.
Incorporating non-destructive testing (NDT) methods allows manufacturers to detect internal defects without damaging the product. These tests are essential for identifying issues like cracks, inclusions, porosity, or wall thickness variations that may compromise the tube's integrity and lead to premature failure.
- Ultrasonic Testing (UT): Uses high-frequency sound waves to detect internal flaws and measure wall thickness.
- Eddy Current Testing (ET): Uses electromagnetic induction to detect surface and near-surface defects.
- Radiographic Testing (RT): Uses X-rays or gamma rays to reveal internal flaws and variations in density.
- Liquid Penetrant Testing (LPT): Detects surface-breaking defects by applying a dye to the surface and then observing it under ultraviolet light.
Mechanical properties such as tensile strength, yield strength, elongation, and hardness must be evaluated through rigorous mechanical testing protocols. These tests provide critical insights into how well the material will perform under operational conditions and ensure that it meets the required strength and ductility.
- Tensile Testing: Measures the material's resistance to being pulled apart.
- Yield Strength Testing: Measures the stress at which the material begins to deform permanently.
- Hardness Testing: Measures the material's resistance to indentation.
- Hydrostatic Testing: Verifies the tube's ability to withstand internal pressure without leaking or bursting.
Conducting chemical analysis ensures that the material composition meets the specified standards and that the correct alloy is being used. Techniques like optical emission spectroscopy (OES) and X-ray fluorescence (XRF) can be used to analyze alloy content and detect any impurities that may affect the tube's performance.
A thorough surface inspection is essential to identify any surface defects such as scratches, dents, or corrosion. Visual inspection, often aided by magnification, can reveal these defects, and surface roughness measurements can be used to quantify the smoothness of the tube's surface.
Ensuring rigorous quality control in seamless coiled tube manufacturing is absolutely vital for producing reliable, high-performance products that meet stringent industry standards and customer expectations. By implementing a comprehensive set of quality control measures at each stage of production—from careful material selection to meticulous final inspection—manufacturers can significantly reduce defects, enhance product performance, and ensure the long-term reliability of their products. The use of advanced testing techniques, combined with a commitment to continuous improvement, is essential for maintaining a competitive edge in the demanding market for seamless coiled tubes.
Seamless coiled tubes are typically made from a variety of materials, each chosen for its specific properties and suitability for different applications. Common materials include stainless steel (various grades like 304, 316), carbon steel (A106, A179), and alloys designed for specific applications such as high-temperature or corrosive environments (Inconel, Hastelloy). The selection of the appropriate material is crucial for ensuring the tube's performance and longevity in its intended application.
Temperature plays a critical role in determining the malleability and workability of the metal during the manufacturing process. Proper temperature control is essential for preventing defects and ensuring the desired mechanical properties of the final product. Overheating can lead to grain growth, weakening the material, while underheating can make the material too brittle, causing cracking or other defects. Precise temperature control is achieved through the use of advanced heating equipment and continuous monitoring throughout the process.
Several non-destructive testing (NDT) methods are used to inspect seamless coiled tubes for internal and surface defects without damaging the product. Common NDT methods include ultrasonic testing (UT), which uses high-frequency sound waves to detect internal flaws and measure wall thickness; eddy current testing (ET), which uses electromagnetic induction to detect surface and near-surface defects; radiographic testing (RT), which uses X-rays or gamma rays to reveal internal flaws; and liquid penetrant testing (LPT), which detects surface-breaking defects by applying a dye to the surface.
Mechanical testing is essential for verifying the strength, ductility, and other mechanical properties of seamless coiled tubes. These tests ensure that the tubes can withstand the stresses and strains they will encounter during operation without failing. Common mechanical tests include tensile testing, which measures the material's resistance to being pulled apart; yield strength testing, which measures the stress at which the material begins to deform permanently; hardness testing, which measures the material's resistance to indentation; and hydrostatic testing, which verifies the tube's ability to withstand internal pressure without leaking or bursting.
Quality checks should be performed at every stage of production, from the initial inspection of raw materials to the final inspection of the finished product. This includes checks on material composition, dimensions, surface finish, and mechanical properties. By implementing a comprehensive quality control program with frequent checks, manufacturers can identify and correct any problems early in the process, preventing defects from progressing and ensuring that the final product meets the required specifications.
