Alloy 825 capillary tube is a high-performance nickel-iron-chromium alloy tube known for its excellent corrosion resistance, mechanical strength, and versatility in demanding industrial applications. It is widely used in oil and gas, chemical processing, medical devices, instrumentation, and hydraulic control systems. Proper cutting and installation of Alloy 825 capillary tube are critical to maintain its integrity, performance, and longevity. This comprehensive guide will walk you through the correct procedures, tools, and best practices for cutting and installing Alloy 825 capillary tube, supported by detailed explanations, images, and videos.

Understanding Alloy 825 Capillary Tube

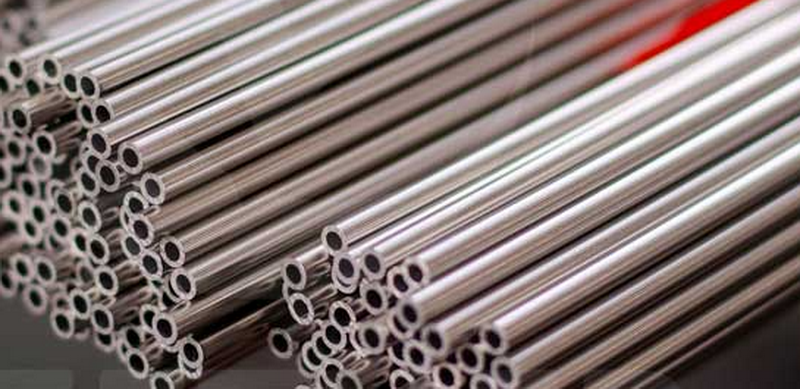

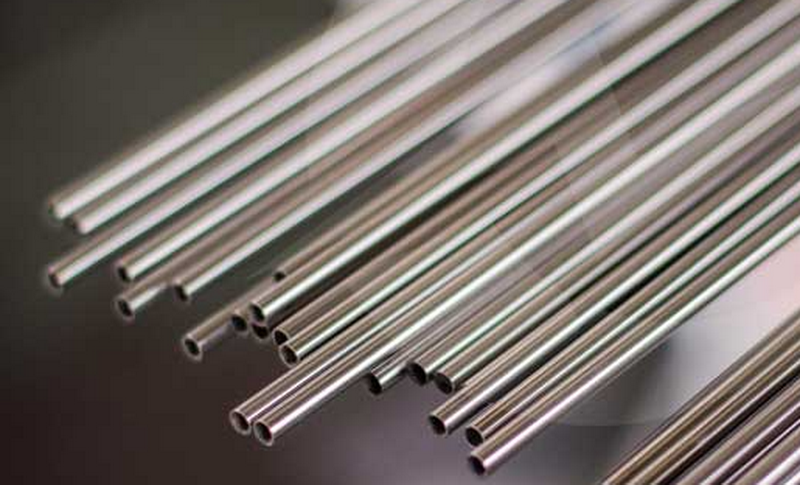

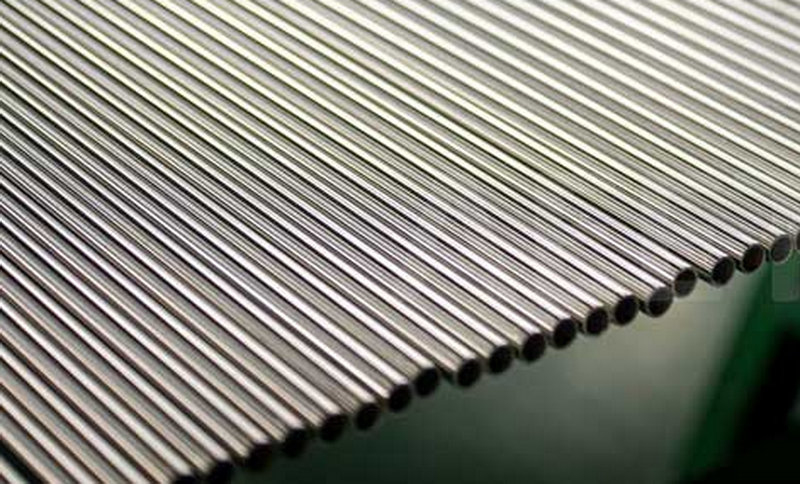

Alloy 825 capillary tube, also known as Incoloy 825 capillary tube, is a seamless or welded small-diameter tube with precise dimensional tolerances. Its chemical composition includes nickel, iron, chromium, molybdenum, copper, and titanium, which provide exceptional resistance to uniform and localized corrosion, including chloride-ion stress corrosion cracking. These tubes are available in various sizes, wall thicknesses, and finishes to suit specific applications.

- Typical outer diameters range from 0.30 mm to 8.00 mm.

- Wall thickness can vary between 0.06 mm and 1.65 mm.

- Lengths are customizable, often supplied in coils or cut-to-length pieces.

Applications include hydraulic control lines, liquid and gas transportation, chromatography, medical instrumentation, and precision measurement devices[1][4][7].

Tools and Materials Needed for Cutting and Installing Alloy 825 Capillary Tube

Before starting the cutting and installation process, gather the following tools and materials:

- Sharp cutting tool: razor blade, tubing cutter designed for small diameter tubes, or a cutting stone for fused silica tubes.

- Deburring tool or fine file for smoothing cut edges.

- Tube bending tools (if bending is required).

- Tube fittings compatible with Alloy 825 capillary tubes (e.g., compression fittings, Swagelok fittings).

- Torque wrench or appropriate hand tools for tightening fittings.

- Safety equipment: gloves, eye protection.

Step-by-Step Guide to Cutting Alloy 825 Capillary Tube Correctly

1. Measure and Mark the Tube

Measure the required length carefully, allowing for any insertion length needed into fittings. Mark the cutting point clearly with a fine-tip marker or scribe.

2. Use the Correct Cutting Method

- For Alloy 825 capillary tube, a sharp razor blade or precision tubing cutter is recommended to avoid deforming or squashing the tube.

- Avoid using pliers or scissors that can crush or distort the tube diameter.

- For fused silica or glass capillaries, a cutting stone or cleaving tool is necessary to produce a clean break.

3. Make a Clean, Square Cut

- Cut the tube perpendicular to its axis to ensure a square edge.

- Avoid angled or jagged cuts, which can cause leaks or improper fitting seals.

- Use a gentle, steady motion when cutting to prevent tube deformation.

4. Deburr and Clean the Cut End

- Remove any burrs or sharp edges with a deburring tool or fine file.

- Clean the cut end with a lint-free cloth to remove debris or oil.

Video Demonstration: How to Cut a Capillary Tube Without Squashing

This video shows how to cut capillary tubes properly without reducing the internal diameter or damaging the tube[3].

Installing Alloy 825 Capillary Tube Correctly

1. Prepare the Tube for Installation

- Ensure the tube is cut to the correct length.

- Confirm the cut end is clean, square, and burr-free.

2. Insert the Tube into the Fitting

- Insert the tube into the fitting nut until it protrudes slightly (approximately 2 mm) through the tapered ferrule end.

- This ensures a proper seal and prevents dead volume inside the fitting.

3. Tighten the Fitting

- Finger-tighten the fitting first.

- Use a wrench to tighten further if required, but avoid over-tightening, which can damage the tube or fitting.

- For fittings rated up to 5,000 psi, follow manufacturer torque specifications (e.g., 2-3 in-oz for certain fittings).

- Gently pull on the tube to verify it is securely held by the fitting.

4. Check for Leaks and Secure the Assembly

- Pressurize the system at low pressure to test for leaks.

- If leaks occur, loosen the fitting, re-seat the tube, and retighten.

- For high-pressure applications, tighten fittings slightly beyond finger-tight with a torque wrench as specified.

5. Use Proper Fittings and Flanges

- Use stainless steel duplex fittings or nickel alloy filler metals for welding when necessary.

- Ensure fittings are compatible with Alloy 825 to maintain corrosion resistance and mechanical integrity[2][6][8].

Best Practices and Tips for Handling Alloy 825 Capillary Tubes

- Avoid bending tubes sharply; use proper bending tools to prevent kinks.

- Store tubes in a clean, dry environment to prevent contamination.

- Use protective caps on tube ends before installation to keep debris out.

- Inspect tubes for damage before installation.

- Follow manufacturer guidelines for torque and fitting compatibility.

- Perform regular maintenance checks for corrosion or leaks in installed systems[8].

Visual Guide: Proper and Improper Installation Examples

Conclusion

Cutting and installing Alloy 825 capillary tube correctly is essential to ensure the tube's performance, reliability, and longevity in critical industrial applications. Using the right tools, making clean and square cuts, properly inserting the tube into compatible fittings, and following torque guidelines will prevent leaks and damage. Regular inspection and maintenance further protect the system from corrosion and failure. By adhering to these best practices, you can maximize the benefits of Alloy 825 capillary tubes in your projects.

Frequently Asked Questions (FAQs)

1. What is the best tool to cut Alloy 825 capillary tube?

A sharp razor blade or precision tubing cutter designed for small diameter tubes is best. Avoid scissors or pliers that can crush the tube. For fused silica tubes, a cutting stone or cleaving tool is recommended.

2. How much should the tube protrude from the fitting during installation?

The tube should extend approximately 2 mm beyond the tapered ferrule end inside the fitting to ensure a proper seal and avoid dead volume.

3. Can I bend Alloy 825 capillary tube by hand?

No, bending by hand can cause kinks or deformation. Use proper tube bending tools designed for small diameter tubes to maintain tube integrity.

4. What torque should I use when tightening fittings on Alloy 825 capillary tubes?

Follow manufacturer specifications, typically 2-3 in-oz for smaller fittings. Avoid over-tightening as it can damage the tube or fitting.

5. How do I check for leaks after installing Alloy 825 capillary tube?

Pressurize the system at low pressure and inspect all fittings for leaks visually or with leak detection fluid. Retighten fittings if necessary.
