Introduction

1 x 19 stainless steel cable is a popular choice for architectural railings, yacht rigging, and structural applications due to its high strength, minimal stretch, and sleek appearance. However, its rigidity and construction—nineteen wires twisted into a single, non-flexible strand—make cutting and crimping this cable more challenging than more flexible types. This comprehensive guide covers every aspect of working with 1 x 19 stainless steel cable, including the tools required, safety measures, step-by-step instructions, troubleshooting, and expert tips for professional results.

Table of Contents

- What is 1 x 19 Stainless Steel Cable?

- Tools and Materials Needed

- Safety Precautions

- How to Cut 1 x 19 Stainless Steel Cable

- How to Crimp 1 x 19 Stainless Steel Cable

- Common Mistakes and Troubleshooting

- Tips for Best Results

- Frequently Asked Questions

- Conclusion

What is 1 x 19 Stainless Steel Cable?

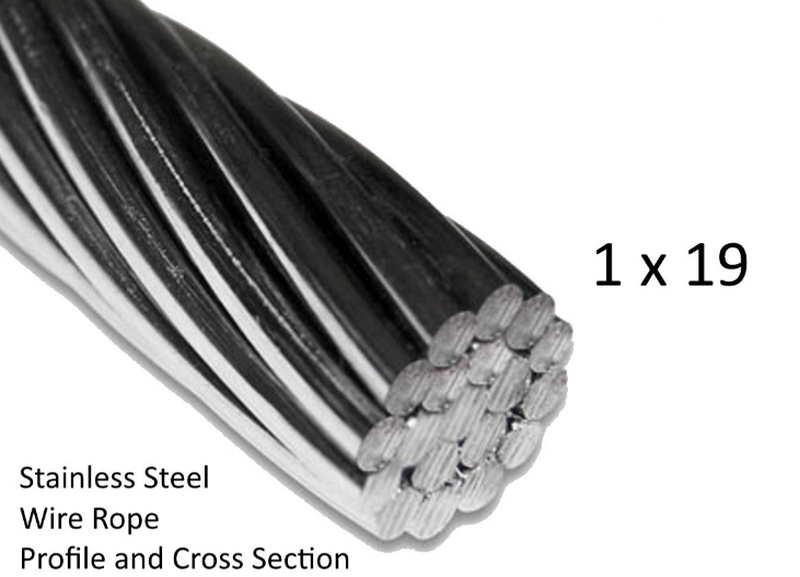

1 x 19 stainless steel cable is constructed from nineteen individual stainless steel wires twisted into a single, non-flexible strand. This design provides:

- High tensile strength

- Minimal stretch

- Excellent corrosion resistance

- A smooth, modern appearance

Due to its rigidity, 1 x 19 stainless steel cable is ideal for straight-line applications such as cable railings, balustrades, and yacht rigging, but it is not suitable for applications requiring tight bends or loops.

Tools and Materials Needed

Before starting, gather the following tools and materials:

- High-quality cable cutters rated for stainless steel

- Measuring tape or ruler

- Permanent marker or masking tape

- Cable crimping tool (hydraulic or heavy-duty manual type)

- Cable ferrules, sleeves, or end fittings (compatible with 1 x 19 cable)

- Vise or cable clamp to secure the cable

- Personal protective equipment (PPE): safety glasses, gloves

- Fine-tooth hacksaw (as an alternative for precise cuts)

- File or sandpaper (for smoothing cut ends)

- Heat source (optional, for fusing ends to prevent fraying)

Safety Precautions

- Always wear safety glasses to protect your eyes from flying metal strands.

- Use cut-resistant gloves to prevent injuries from sharp cable ends.

- Secure the cable firmly in a vise or clamp before cutting or crimping.

- Work on a stable, flat surface to maintain control over the cable and tools.

- Keep bystanders away from the work area during cutting and crimping.

How to Cut 1 x 19 Stainless Steel Cable

Cutting 1 x 19 stainless steel cable requires precision and the right technique to prevent fraying and ensure a clean end for crimping.

Step 1: Measure and Mark

- Use a measuring tape to determine the exact length needed.

- Mark the cut point with a permanent marker or wrap a piece of tape around the cable for visibility.

Step 2: Secure the Cable

- Place the cable in a vise or clamp on a sturdy workbench.

- Ensure the marked cut point is accessible and the cable is tightly held to prevent movement.

Step 3: Choose the Cutting Tool

- Cable Cutters: Use high-quality, sharp cable cutters specifically designed for stainless steel. Position the blades directly over the marked point.

- Abrasive Chop Saw: For larger diameters or multiple cuts, use a chop saw with an abrasive wheel for clean, straight cuts.

- Fine-tooth Hacksaw: For precise manual cuts, use a fine-tooth hacksaw. Guide the saw with a wooden block drilled to the cable's diameter for accuracy.

Step 4: Make the Cut

- Apply steady, even pressure with the cutter or saw.

- Avoid twisting or bending the cable during the cut to prevent deformation.

- If using a hacksaw, saw through both the cable and the guiding block for a clean, square cut.

Step 5: Finish the Cut End

- Use a file or sandpaper to smooth any burrs or sharp edges.

- Optionally, use a heat source (such as a torch) to lightly fuse the cable end and prevent fraying, especially if the cable will be inserted into a fitting.

How to Crimp 1 x 19 Stainless Steel Cable

Crimping is essential for securely attaching end fittings, ferrules, or loops to 1 x 19 stainless steel cable. Due to its stiffness, hydraulic or heavy-duty manual crimpers are recommended.

Step 1: Select the Right Fittings

- Use cable ferrules, sleeves, or end fittings compatible with 1 x 19 stainless steel cable.

- For load-bearing loops, use thimbles to prevent cable wear.

Step 2: Insert the Cable

- Slide the ferrule or sleeve onto the cable end.

- If forming a loop, insert the cable through the ferrule, around a thimble, and back through the ferrule.

Step 3: Position the Fitting

- Ensure enough cable protrudes from the ferrule to allow for full compression and expansion during crimping.

- For loops, adjust the loop size as required before crimping.

Step 4: Crimp the Fitting

- Place the ferrule and cable into the crimping tool's cavity.

- For figure-8 ferrules, orient the fitting so both sides of the loop are pressed evenly.

- Apply steady, even pressure to close the tool and compress the ferrule.

- Repeat the crimping process along the length of the ferrule if multiple compressions are required.

*Video 2: Step-by-step demonstration of crimping cable ferrules.*

Step 5: Inspect the Crimp

- Use a go-gauge (if available) to ensure the ferrule is fully compressed.

- Perform a pull test to verify the strength and security of the crimped connection.

Common Mistakes and Troubleshooting

- Frayed Cable Ends: Use sharp cutters and consider fusing the end with heat to prevent fraying.

- Deformed Cable: Always secure the cable before cutting and avoid excessive force that bends the cable.

- Loose Crimp: Ensure the correct size ferrule and apply full pressure with the crimping tool.

- Improper Loop Size: Adjust the loop before crimping, as the cable cannot be repositioned once crimped.

- Incorrect Fitting Orientation: Align figure-8 or oval ferrules according to manufacturer instructions for maximum strength.

Tips for Best Results

- Use 1 x 19 stainless steel cable only for straight runs; avoid applications requiring tight bends.

- Always use hydraulic or heavy-duty manual crimpers for 1 x 19 cable due to its rigidity.

- For architectural railings, use Type 316 stainless steel for maximum corrosion resistance.

- Mark and measure twice before cutting to avoid costly mistakes.

- Store unused cable in a dry, clean area to prevent corrosion.

Conclusion

Working with 1 x 19 stainless steel cable requires careful planning, the right tools, and attention to detail. By following the steps outlined in this guide—measuring, marking, securing, cutting, and crimping—you can achieve professional, safe, and durable results for your architectural, marine, or structural projects. Remember to always use the correct tools, prioritize safety, and select fittings designed for 1 x 19 stainless steel cable to ensure the longevity and integrity of your installation.

Frequently Asked Questions

1. What makes 1 x 19 stainless steel cable different from other cable constructions?

1 x 19 stainless steel cable consists of nineteen wires twisted into a single, stiff strand, offering high tensile strength and minimal stretch. Unlike more flexible cables such as 7x7 or 7x19, 1 x 19 cable is non-flexible and best suited for straight-line applications like railings and rigging.

2. Can I use hand swaging tools for 1 x 19 stainless steel cable?

Hand swaging tools are generally not recommended for 1 x 19 stainless steel cable due to its rigidity. Hydraulic crimpers or heavy-duty manual crimpers are preferred to ensure a secure and reliable connection.

3. How do I prevent the ends of 1 x 19 stainless steel cable from fraying after cutting?

To prevent fraying, use sharp cable cutters for a clean cut, and optionally fuse the end with heat or apply an end sleeve. Crimping a ferrule or applying epoxy can also help keep the strands together.

4. What size ferrule or sleeve should I use for my 1 x 19 stainless steel cable?

The ferrule or sleeve should match the diameter of your cable. For example, if you have a 4mm 1 x 19 cable, use a 4mm ferrule. The ferrule's inside diameter should be just large enough to accommodate the cable without excessive play.

5. Is 1 x 19 stainless steel cable suitable for forming tight loops or bends?

No, 1 x 19 stainless steel cable is not suitable for tight loops or bends due to its stiffness. It is designed for straight runs and applications where minimal stretch and high strength are required. For flexible loops, use 7x7 or 7x19 cable constructions.
