How Strong Is A 16 Inch Stainless Steel Cable?

Views: 222     Author: Robert     Publish Time: 2025-04-25      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

Understanding Stainless Steel Cable Construction

Strength of a 16 Inch Stainless Steel Cable

Grades and Corrosion Resistance

Common Uses of 16 Inch Stainless Steel Cable

Installation and Hardware

Stainless Steel Cable

Factors Affecting Cable Strength

Visual and Video Resources

>> Visual: Cross-section of 7x7 vs 7x19 Cable

Conclusion

Frequently Asked Questions (FAQs)

>> 1. What is the breaking strength of a 16 inch 3/16 inch stainless steel cable?

>> 2. How does the cable construction affect strength?

>> 3. Which stainless steel grade is best for outdoor use?

>> 4. Can a 16 inch stainless steel cable support heavy loads?

>> 5. What hardware is needed to properly install a stainless steel cable?

Citations:

When it comes to strength, durability, and versatility, stainless steel cables are a popular choice for a wide range of applications. Among these, the 16 inch stainless steel cable stands out for its compact size and impressive strength. This article explores the strength characteristics of a 16 inch stainless steel cable, its construction, common uses, and important considerations when selecting and using this type of cable. We will also include helpful visuals and videos to illustrate key points.

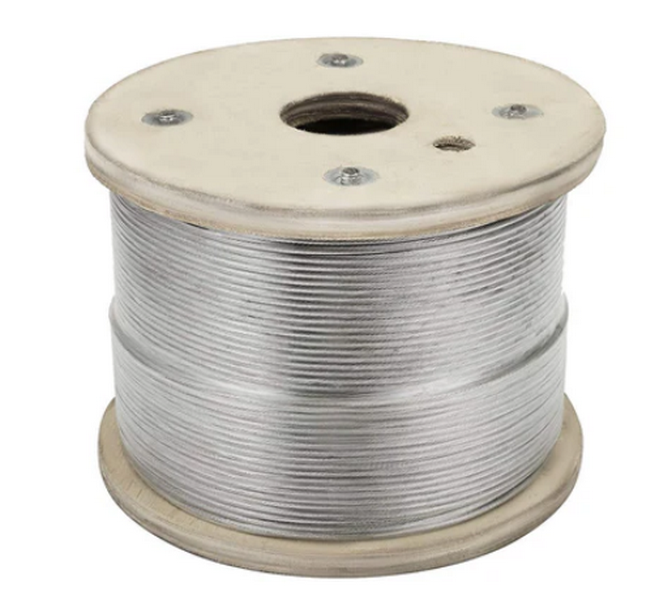

1 16 inch stainless steel cable_2

Understanding Stainless Steel Cable Construction

Stainless steel cables are made by twisting multiple strands of steel wire together, which provides flexibility and strength. The two most common constructions are:

- 7x7 cable: Consists of 7 strands, each made of 7 wires. This design offers moderate flexibility and strength.

- 7x19 cable: Composed of 7 strands, each containing 19 wires. This cable is more flexible and has higher fatigue resistance, making it ideal for dynamic applications.

For example, a 3/16 inch 7x19 stainless steel cable typically has a breaking strength of about 3,700 lbs, making it suitable for demanding tasks like marine rigging and industrial use[1][2].

Strength of a 16 Inch Stainless Steel Cable

The strength of a stainless steel cable depends primarily on its diameter, strand construction, and material grade. For a 16 inch length of stainless steel cable, the strength is generally measured by its breaking strength or rated load capacity.

- A 3/16 inch diameter stainless steel cable (7x19 construction) has a breaking strength around 3,700 lbs.

- A 1/16 inch diameter cable (7x7 construction) supports up to about 55 lbs per cable when properly installed[1][3].

Since the length itself (16 inches) does not affect the breaking strength directly, the cable's diameter and construction are the key factors.

Grades and Corrosion Resistance

Stainless steel cables are often made from Type 304 or Type 316 stainless steel:

- Type 304: Commonly used, offers good corrosion resistance and strength.

- Type 316: Marine-grade stainless steel with enhanced corrosion resistance, ideal for harsh environments like saltwater exposure.

For a 16 inch stainless steel cable, selecting the right grade is crucial for longevity and performance, especially in outdoor or marine applications[4].

Common Uses of 16 Inch Stainless Steel Cable

Despite its short length, a 16 inch stainless steel cable can be used in various applications, including:

- Securing loads or cargo where short, strong cables are needed.

- Architectural and railing systems for tensioning and support.

- Display and hanging systems for art or signage.

- Marine hardware for rigging and securing small components.

- Industrial and agricultural equipment for safety and control lines.

Installation and Hardware

Proper installation is essential to maximize the strength and safety of a stainless steel cable. Common hardware includes:

- Swage fittings and ferrules to secure cable ends.

- Thimbles to protect cable loops.

- Wire rope clips for adjustable terminations.

2205 duplex stainless steel capillary tubing_1

Stainless Steel Cable

- High strength-to-weight ratio: Strong yet lightweight.

- Corrosion resistance: Especially with Type 316 stainless steel.

- Flexibility: Can bend without breaking, ideal for dynamic loads.

- Low maintenance: Resistant to rust and wear.

- Aesthetic appeal: Sleek and modern look for architectural uses.

Factors Affecting Cable Strength

Several factors influence the effective strength of a 16 inch stainless steel cable:

- Cable diameter and construction: Larger diameters and more wires increase strength.

- Material grade: Type 316 offers better corrosion resistance.

- Installation quality: Proper swaging and hardware use prevent premature failure.

- Environmental exposure: Saltwater and chemicals can degrade cables over time.

- Load type: Static loads vs. dynamic or shock loads affect cable lifespan.

Visual and Video Resources

Visual: Cross-section of 7x7 vs 7x19 Cable

Feature 7x7 Cable 7x19 Cable
Strands 7 strands of 7 wires 7 strands of 19 wires
Flexibility Moderate High
Strength Good Higher
Common Uses Towing, static loads Marine rigging, pulleys

Conclusion

A 16 inch stainless steel cable is a remarkably strong and versatile component, capable of supporting loads ranging from tens to thousands of pounds depending on its diameter and construction. For example, a 3/16 inch 7x19 stainless steel cable can have a breaking strength of approximately 3,700 lbs, making it suitable for heavy-duty applications despite its short length. Selecting the appropriate cable diameter, strand configuration, and material grade (such as Type 316 for marine environments) ensures optimal performance and durability. Proper installation with quality hardware is essential to maintain the cable's strength and safety. Whether used in marine, industrial, architectural, or general securing applications, a 16 inch stainless steel cable offers a reliable solution with excellent corrosion resistance and flexibility.

2507 Duplex Coiled Tubing_2

Frequently Asked Questions (FAQs)

1. What is the breaking strength of a 16 inch 3/16 inch stainless steel cable?

A 3/16 inch stainless steel cable with 7x19 construction typically has a breaking strength of about 3,700 lbs, regardless of length. The 16 inch length does not reduce this strength but is more about the cable segment used[1][2].

2. How does the cable construction affect strength?

7x19 cables are more flexible and fatigue-resistant than 7x7 cables, which makes them better for dynamic loads. Both constructions have high strength, but 7x19 usually has a higher breaking strength and flexibility[1][10].

3. Which stainless steel grade is best for outdoor use?

Type 316 stainless steel is considered marine-grade and offers superior corrosion resistance, especially in saltwater environments. Type 304 is also corrosion resistant but less so than 316[4][9].

4. Can a 16 inch stainless steel cable support heavy loads?

Yes, depending on diameter and construction. For example, a 3/16 inch 7x19 cable can support thousands of pounds. A 1/16 inch cable supports much less weight, around 55 lbs[1][3].

5. What hardware is needed to properly install a stainless steel cable?

Common hardware includes swage fittings, wire rope clips, and thimbles. Proper installation ensures the cable maintains its strength and prevents damage[5][6].
